Flanges
Blind Flange Table E
AS2129, ASTM A182
Blind Flange Table E
AS2129, ASTM A182
Features
- Also known as a Blanking Flange
- Manufactured to AS2129 Table E Standard (*)
- Forged to ASTM A182
- Flat Faced Blind Flange (FFBL/BLFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 15NB (1/2") to 40NB (1 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
You need to have a trade account with us to download CAD files.
Related Products
-
Spiral Weld Tube Flange Table E
AS2129, ASTM A182
Spiral Weld Tube Flange Table E
AS2129, ASTM A182
Features
- To suit Spiral Weld (ID) Tube
- Manufactured to AS2129 Table E Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table E Flange Bolt Kit
Table E Flange Bolt Kit
Features
- Bolt Kit to suit bolting two Table E Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
RapidPress Flange Table E
RapidPress Flange Table E
Features
- RapidPress Coupler - Black EPDM Seal
- Flange Manufactured to AS2129 Table E Standard (*)
- (*) Please note that for some sizes, the thickness will differ from the Standard. New stock at Standard thickness will replace these as old stock is sold out ...
- Flange Forged to ASTM A182 (F316L)
- Temperature Rating: -20°C, 120°C
- Maximum Operating Pressure: 16 Bar (232 psi)
View Dimensions
-
BSP Threaded Flange Table E
AS2129, ASTM A182
BSP Threaded Flange Table E
AS2129, ASTM A182
Features
- BSP Threaded (Parallel/BSPP)
- Manufactured to AS2129 Table E Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Threaded Flange (FFTH/THFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 15NB (1/2") to 40NB (1 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table D/E Flange Gasket
Table D/E Flange Gasket
Features
- To suit Table E Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance ...
- Temperature rating -25°C to 70°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Backing Ring Table D/E
AS2129 Bolt Pattern
Backing Ring Table D/E
AS2129 Bolt Pattern
Features
- To suit Imperial Sized Tube and Schedule Pipe, with the use of a Neck Ring or Stub End
- Forged to ASTM A182
- All sharp edges have been chamfered by 0.5 mm at 45° ...
- Pressure Ratings are not available for this product
- Please note that these Backing Rings do not conform to AS2129, however they are suitable for use with AS2129 Flanges as the bolt pattern matches that standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tube Flange Table E
AS2129, ASTM A182
Tube Flange Table E
AS2129, ASTM A182
Features
- To suit Imperial Sized Tube
- Manufactured to AS2129 Table E Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 25.4 (1") to 38.1 (1 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Stainless Steel Table D/E Expansion Bellow
Stainless Steel Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Stainless Steel Flanges
View Dimensions
-
Galvanised Table D/E Expansion Bellow
Galvanised Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Galvanised Table E Flanges
View Dimensions
-
Table D Flange Bolt Kit
Table D Flange Bolt Kit
Features
- Bolt Kit to suit bolting two Table D Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Food Grade Table D/E Flange Gasket
Food Grade Table D/E Flange Gasket
Features
- To suit Table E Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes ...
- Maximum temperature 90°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Flange Table E
AS2129, ASTM A182
Pipe Flange Table E
AS2129, ASTM A182
Features
- To suit Schedule Pipe
- Manufactured to AS2129 Table E Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 15NB (1/2") to 40NB (1 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
View Dimensions
You need to have a trade account with us to download CAD files.
-

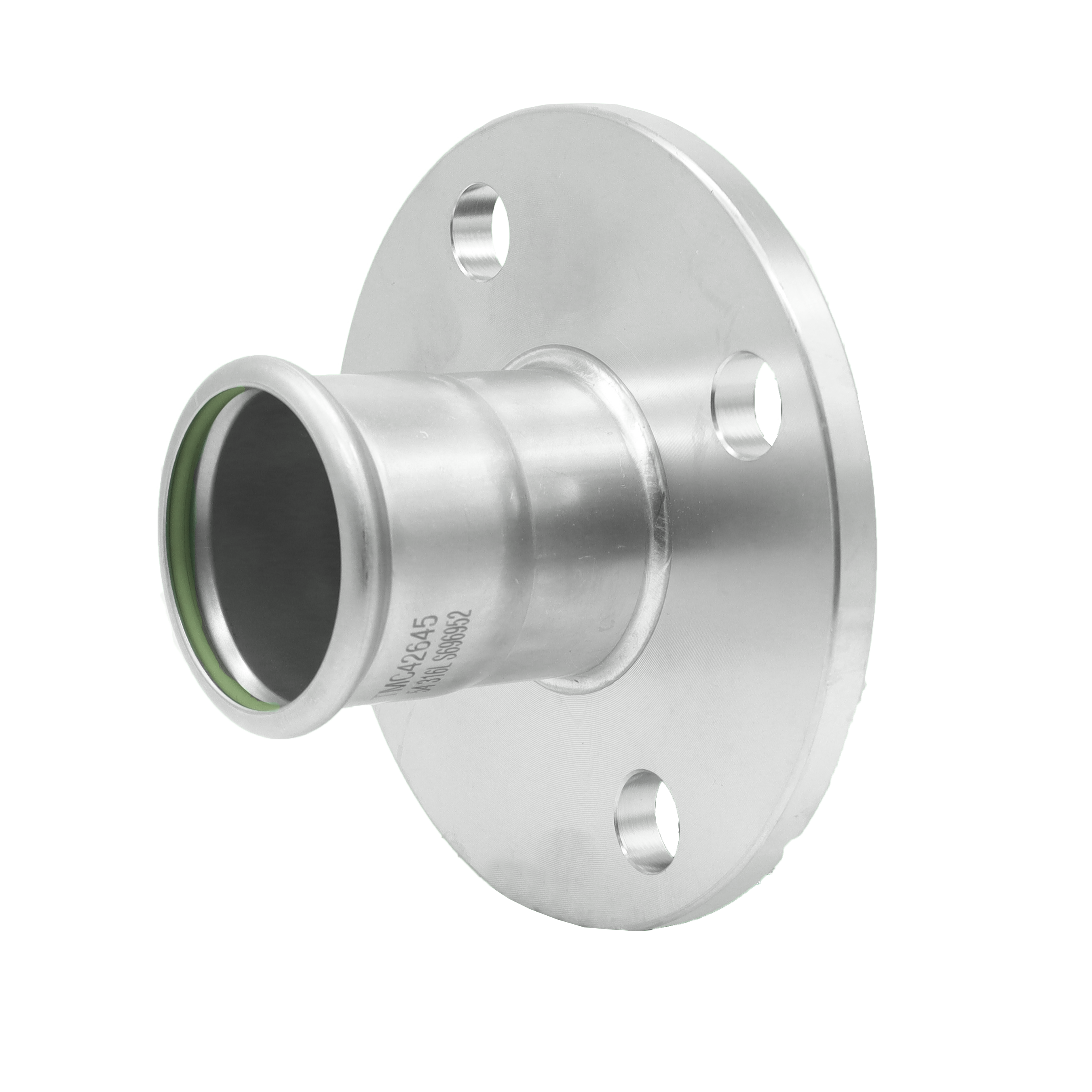

RapidPress Extreme Flange Table E
RapidPress Extreme Flange Table E
Features
- RapidPress Extreme Coupler - Green FKM Seal
- Flange Manufactured to AS2129 Table E Standard (*)
- (*) Please note that for some sizes, the thickness will differ from the Standard. New stock at Standard thickness will replace these as old stock is sold out...
- Flange Forged to ASTM A182 (F316L)
- Temperature Rating: -20°C, 220°C
- Maximum Operating Pressure: 16 Bar (232 psi)
View Dimensions
-
Tube Flange Table D
AS2129, ASTM A182
Tube Flange Table D
AS2129, ASTM A182
Features
- To suit Imperial Sized Tube
- Manufactured to AS2129 Table D Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 25.4 (1") to 63.5 (2 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Blind Flange Table D
AS2129, ASTM A182
Blind Flange Table D
AS2129, ASTM A182
Features
- Also known as a Blanking Flange
- Manufactured to AS2129 Table D Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Blind Flange (FFBL/BLFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 15NB (1/2") to 65NB (2 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP Threaded Flange PN10-40
EN1092-1, EN10222-5
BSP Threaded Flange PN10-40
EN1092-1, EN10222-5
Features
- BSP Threaded (Parallel/BSPP)
- Manufactured to EN1092-1 PN10/16/40 Standard (*)
- Forged to EN10222-5 ...
- Raised Faced Threaded Flange (RFTH/THRF), also referred in the Standard as Type 13/B1
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (SBSPF25*PN10-40*). Please note, stars are for visual purposes of this example only.
View Dimensions
-
Spiral Weld Tube Flange PN16
EN1092-1, EN10222-5
Spiral Weld Tube Flange PN16
EN1092-1, EN10222-5
Features
- To suit Spiral Weld (ID) Tube
- Manufactured to EN1092-1 PN16 Standard
- Forged to EN10222-5 ...
- Flat Faced Slip On Flange (FFSO/SOFF), also referred in the Standard as Type 01/A
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
-

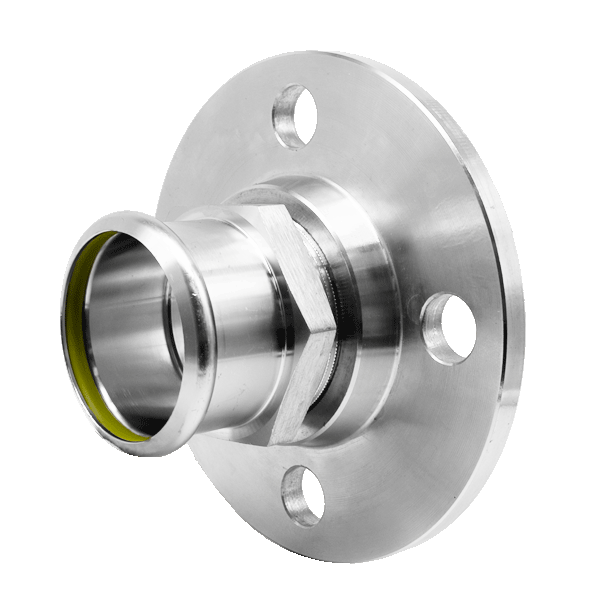

RapidPress Gas Flange Table E
RapidPress Gas Flange Table E
Features
- RapidPress Gas Coupler - Yellow NBR Seal
- Flange Manufactured to AS2129 Table E Standard (*)
- (*) Please note that sizes 22.0x20NB to 42.0x40NB do not meet AS2129 thickness. The thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard. These flanges will be denoted as "NON STANDARD"....
- Flange Forged to ASTM A182 (F316L)
- Temperature Rating: -20°C, 70°C
- Maximum Operating Pressure: 5 Bar (72 psi)
-

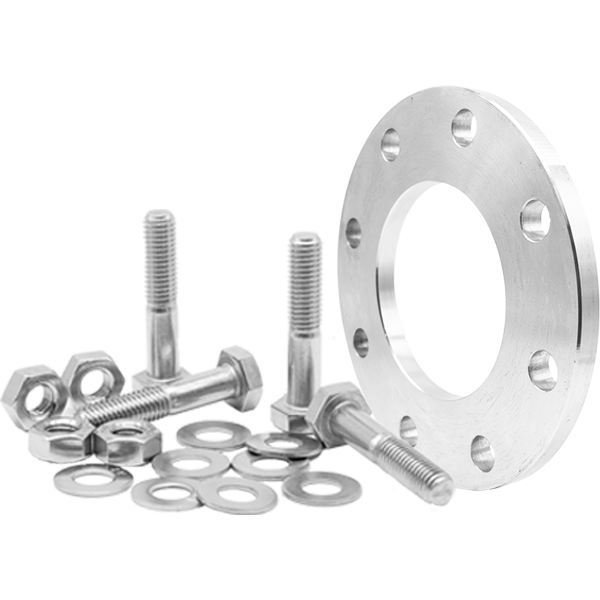

PN10/16/40 Flange Bolt Kit
PN10/16/40 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two PN10/16/40 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
ANSI150 Flange Bolt Kit
ANSI150 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI150 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Table D Flange Gasket
Table D Flange Gasket
Features
- To suit Table D Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance ...
- Temperature rating -25°C to 70°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tube Flange PN10-40
EN1092-1, EN10222-5
Tube Flange PN10-40
EN1092-1, EN10222-5
Features
- To suit Imperial Sized Tube
- Manufactured to EN1092-1 PN10/16/40 Standard (*)
- Forged to EN10222-5 ...
- Flat Faced Slip On Flange (FFSO/SOFF), also referred in the Standard as Type 01/A
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (STF25*PN10-40*). Please note, stars are for visual purposes of this example only.
View Dimensions
-
Blind Flange PN10-40
EN1092-1, EN10222-5
Blind Flange PN10-40
EN1092-1, EN10222-5
Features
- Also known as a Blanking Flange
- Manufactured to EN1092-1 PN10/16/40 Standard (*)
- Forged to EN10222-5 ...
- Flat Face Blind Flange (FFBL/BLFF), also referred in the Standard as Type 05/A
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (SBF25*PN10-40*). Please note, stars are for visual purposes of this example only.
- Please note, that some old stock is forged to ASTM A182 (F316L), new incoming stock will be forged to EN10222-5 (1.4404). Refer to the grade to determine this
View Dimensions
-
BSP Threaded Flange ANSI150
ASME B16.5, ASTM A182
BSP Threaded Flange ANSI150
ASME B16.5, ASTM A182
Features
- BSP Threaded (Parallel/BSPP)
- Manufactured to ASME B16.5 ANSI150 Standard
- Forged to ASTM A182 ...
- Raised Faced Threaded Flange (RFTH/THRF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Spiral Weld Tube Flange ANSI150
ASME B16.5, ASTM A182
Spiral Weld Tube Flange ANSI150
ASME B16.5, ASTM A182
Features
- To suit Spiral Weld (ID) Tube
- Manufactured to ANSI150 Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that these are *Non Hubbed*
View Dimensions
You need to have a trade account with us to download CAD files.
-
Food Grade Table D Flange Gasket
Food Grade Table D Flange Gasket
Features
- To suit Table D Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes ...
- Maximum temperature 90°C
View Dimensions
You need to have a trade account with us to download CAD files.
-

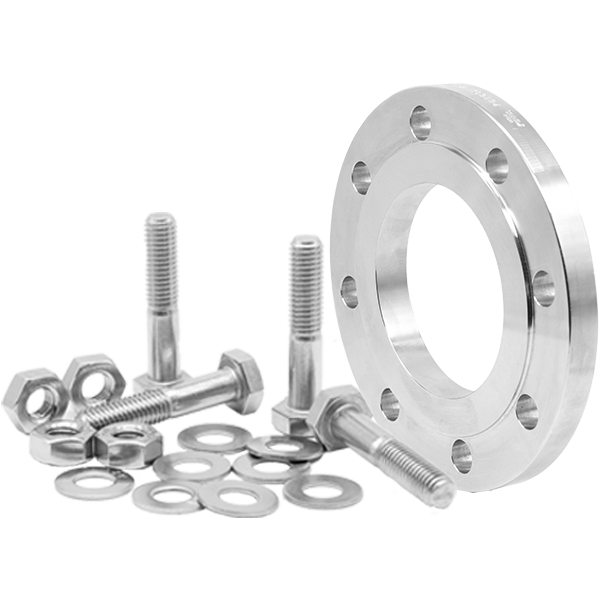

ANSI300 Flange Bolt Kit
ANSI300 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI300 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
RapidPress Flange PN10-40
RapidPress Flange PN10-40
Features
- RapidPress Coupler - Black EPDM Seal
- Flange Manufactured to EN1092-1 Type 01/A PN10/16/40 Standard (*)
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (RPF28*PN10-40*). Please note, stars are for visual purposes of this example only. ...
- Flange Forged to EN10222-5 (1.4404 (F316L))
- Temperature Rating: -20°C, 120°C
- Maximum Operating Pressure: 16 Bar (232 psi)
View Dimensions
-
Tube Flange ANSI150
ASME B16.5, ASTM A182
Tube Flange ANSI150
ASME B16.5, ASTM A182
Features
- To suit Imperial Sized Tube
- Manufactured to ANSI150 Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that these are *Non Hubbed*
View Dimensions
You need to have a trade account with us to download CAD files.
-
Blind Flange ANSI150
ASME B16.5, ASTM A182
Blind Flange ANSI150
ASME B16.5, ASTM A182
Features
- Also known as a Blanking Flange
- Manufactured to ASME B16.5 ANSI150 Standard (*)
- Forged to ASTM A182 ...
- Raised Face Blind Flange (RFBL/BLRF) (*)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that some older stock is Flat Faced, and does not meet Standard thickness. Refer to items missing 'E' measurement. New stock will replace this, and will be Raised Face and meet Standard thickness
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Flange Table D
AS2129, ASTM A182
Pipe Flange Table D
AS2129, ASTM A182
Features
- To suit Schedule Pipe
- Manufactured to AS2129 Table D Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that for sizes 15NB (1/2") to 65NB (2 1/2") the thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Blind Flange AS/NZS4087 PN16
AS/NZS4087, ASTM A182
Blind Flange AS/NZS4087 PN16
AS/NZS4087, ASTM A182
Features
- Also known as a Blanking Flange
- Manufactured to AS/NZS4087 PN16 Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Blind Flange (FFBL/BLFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that these are forged to ASTM A182
View Dimensions
You need to have a trade account with us to download CAD files.
-
AS/NZS4087 PN16 Flange Bolt Kit
AS/NZS4087 PN16 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two AS4087 PN16 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
PN10-40 Flange Gasket
PN10-40 Flange Gasket
Features
- To suit PN10-16 Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance ...
- Temperature rating -25°C to 70°C
View Dimensions
-
RapidPress Extreme Flange PN10-40
RapidPress Extreme Flange PN10-40
Features
- RapidPress Extreme Coupler - Green FKM Seal
- Flange Manufactured to EN1092-1 PN10/16/40 Type 01/A Standard (*)
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (RPF28*PN10-40*V). Please note, stars are for visual purposes of this example only....
- Flange Forged to EN10222-5 (1.4404 (F316L))
- Temperature Rating: -20°C, 220°C
- Maximum Operating Pressure: 16 Bar (232 psi)
View Dimensions
-
RapidPress Gas Flange PN10-40
RapidPress Gas Flange PN10-40
Features
- RapidPress Gas Coupler - Yellow NBR Seal
- Flange Manufactured to EN1092-1 PN10/16/40 Type 13/B1 Standard (*)
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (RPF28*PN10-40*G). Please note, stars are for visual purposes of this example only....
- Flange Forged to EN10222-5 (1.4404 (F316L))
- Temperature Rating: -20°C, 70°C
- Maximum Operating Pressure: 5 Bar (232 psi)
-
Backing Ring Table D
AS2129 Bolt Pattern
Backing Ring Table D
AS2129 Bolt Pattern
Features
- To suit Imperial Sized Tube and Schedule Pipe, with the use of a Neck Ring or Stub End
- Forged to ASTM A182
- All sharp edges have been chamfered by 0.5 mm at 45° ...
- Pressure Ratings are not available for this product
- Please note that these Backing Rings do not conform to AS2129, however they are suitable for use with AS2129 Flanges as the bolt pattern matches that standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Flange PN10-40
EN1092-1, EN10222-5
Pipe Flange PN10-40
EN1092-1, EN10222-5
Features
- To suit Schedule Pipe
- Manufactured to EN1092-1 PN10/16/40 Standard (*)
- Forged to EN10222-5 ...
- Raised Face Slip On Flange (RFSO/SORF), also referred in the Standard as Type 01/B1
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (SPF25*PN10-40*). Please note, stars are for visual purposes of this example only.
- Please note, that some old stock is forged to ASTM A182 (F316L), new incoming stock will be forged to EN10222-5 (1.4404). Refer to the grade to determine this
View Dimensions
-
Food Grade PN10-40 Flange Gasket
Food Grade PN10-40 Flange Gasket
Features
- To suit PN10-16 Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes ...
- Maximum temperature 90°C
View Dimensions
-
ANSI150 Flange Gasket
ANSI150 Flange Gasket
Features
- To suit ANSI150 Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance ...
- Temperature rating -25°C to 70°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Flange ANSI150
RapidPress Flange ANSI150
Features
- RapidPress Coupler - Black EPDM Seal
- Flange Manufactured to ASME B16.5 ANSI150 Standard (*)
- (*) Please note that these flanges are Non Hubbed and Flat Faced ...
- Flange Forged to ASTM A182 (F316L)
- Temperature Rating: -20°C, 120°C
- Maximum Operating Pressure: 16 Bar (232 psi)
View Dimensions
-
Backing Ring PN10-16
EN1092-1 Bolt Pattern
Backing Ring PN10-16
EN1092-1 Bolt Pattern
Features
- To suit Imperial Sized Tube and Schedule Pipe, with the use of a Neck Ring or Stub End
- Forged to EN10222-5
- All sharp edges have been chamfered by 0.5 mm at 45° ...
- Pressure Ratings are not available for this product
- Please note that these Backing Rings do not conform to EN1092-1, however they are suitable for use with EN1092-1 Flanges as the bolt pattern matches that standard
- Please also note, that some old stock is CAST (316) and Test Certificates are will not be available. New incoming stock will be Forged to EN10222-5 (1.4404) which we can provide Test Certificates for. Refer to the grade to determine this
View Dimensions
-
Backing Ring ANSI150
ASME B16.5 Bolt Pattern
Backing Ring ANSI150
ASME B16.5 Bolt Pattern
Features
- To suit Imperial Sized Tube and Schedule Pipe, with the use of a Neck Ring or Stub End
- Forged to ASTM A182
- All sharp edges have been chamfered by 0.5 mm at 45° ...
- Pressure Ratings are not available for this product
- Please note that these Backing Rings do not conform to ASME B16.5, however they are suitable for use with ASME B16.5 Flanges as the bolt pattern matches that standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Flange ANSI150
ASME B16.5, ASTM A182
Pipe Flange ANSI150
ASME B16.5, ASTM A182
Features
- To suit Schedule Pipe
- Manufactured to ASME B16.5 ANSI150 Standard
- Forged to ASTM A182 ...
- Raised Face Slip On Flange (RFSO/SORF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Food Grade ANSI150 Flange Gasket
Food Grade ANSI150 Flange Gasket
Features
- To suit ANSI150 Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes ...
- Maximum temperature 90°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Extreme Flange ANSI150
RapidPress Extreme Flange ANSI150
Features
- RapidPress Extreme Coupler - Green FKM Seal
- Flange Manufactured to ASME B16.5 ANSI150 Standard (*)
- (*) Please note that these flanges are Non Hubbed and Flat Faced. These flanges will be denoted as "NON STANDARD". ...
- Flange Forged to ASTM A182 (F316L)
- Temperature Rating: -20°C, 220°C
- Maximum Operating Pressure: 16 Bar (232 psi)
View Dimensions
-
ANSI300 Flange Gasket
ANSI300 Flange Gasket
Features
- To suit ANSI300 Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance ...
- Temperature rating -25°C to 70°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Gas Flange ANSI150
RapidPress Gas Flange ANSI150
Features
- RapidPress Gas Coupler - Yellow NBR Seal
- Flange Manufactured to ASME B16.5 ANSI150 Standard
- Flange Forged to ASTM A182 (F316L)...
- Temperature Rating: -20°C, 70°C
- Maximum Operating Pressure: 5 Bar (72 psi)
-
Socket Weld Pipe Flange ANSI150
ASME B16.5, ASTM A182
Socket Weld Pipe Flange ANSI150
ASME B16.5, ASTM A182
Features
- To suit Schedule Pipe
- Manufactured to ASME B16.5 ANSI150 Standard
- Forged to ASTM A182 ...
- Raised Face Socket Weld Flange (RFSW/SWRF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tube Neck Ring
EN1092-1 Type 33
Tube Neck Ring
EN1092-1 Type 33
Features
- To suit Imperial Sized Tube in conjunction with a Backing Ring
- Pressed from Sheet
View Dimensions
You need to have a trade account with us to download CAD files.
-
Spiral Weld Neck Ring
EN1092-1 Type 33
Spiral Weld Neck Ring
EN1092-1 Type 33
Features
- To suit Spiral Weld (ID) Tube in conjunction with a Backing Ring
- Pressed from Sheet
View Dimensions
-
Food Grade ANSI300 Flange Gasket
Food Grade ANSI300 Flange Gasket
Features
- To suit ANSI300 Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes ...
- Maximum temperature 90°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tube Expansion Flange
Tube Expansion Flange
Features
- To suit imperial tube
- Fastener Hole: 4mm
- EPDM Seal ...
- A purpose designed seal, used when process piping penetrates the wall, floor or ceiling in food and beverage plants, or any applications where a waterproof hygenic seal is required
View Dimensions
-
Weld Neck Pipe Flange Schedule 10S ANSI150
ASME B16.5, ASTM A182
Weld Neck Pipe Flange Schedule 10S ANSI150
ASME B16.5, ASTM A182
Features
- To suit Schedule 10S Pipe
- Manufactured to ASME B16.5 ANSI150 Standard
- Forged to ASTM A182 ...
- Raised Face Weld Neck Flange (RFWN/WNRF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Stub End Schedule 10S
MSS SP 43, ASTM A403
Pipe Stub End Schedule 10S
MSS SP 43, ASTM A403
Features
- To suit Schedule 10S Pipe in conjunction with a Backing Ring
- Manufactured to MSS SP 43, ASTM A403 Standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Expansion Flange
Pipe Expansion Flange
Features
- To suit schedule pipe sizes (Nominal Bore)
- Fastener Hole: 4mm
- EPDM Seal ...
- A purpose designed seal, used when process piping penetrates the wall, floor or ceiling in food and beverage plants, or any applications where a waterproof hygenic seal is required
View Dimensions
-
Weld Neck Pipe Flange Schedule 40S ANSI150
ASME B16.5, ASTM A182
Weld Neck Pipe Flange Schedule 40S ANSI150
ASME B16.5, ASTM A182
Features
- To suit Schedule 40S Pipe
- Manufactured to ASME B16.5 ANSI150 Standard
- Forged to ASTM A182 ...
- Raised Face Weld Neck Flange (RFWN/WNRF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipe Stub End Schedule 40S
MSS SP 43, ASTM A403
Pipe Stub End Schedule 40S
MSS SP 43, ASTM A403
Features
- To suit Schedule 40S Pipe in conjunction with a Backing Ring
- Manufactured to MSS SP 43, ASTM A403 Standard
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Expansion Flange
RapidPress Expansion Flange
Features
- EPDM Seal
- To suit RapidPress Tube sizes
- Fastener hole size: 4mm ...
- Temperature rating: -20°C, 120°C
- A purpose designed seal, used when process piping penetrates a wall, floor or ceiling in Food & Beverage Plants or any application where a waterproof hygenic seal is required.
View Dimensions
-
Pipe Flange ANSI300
ASME B16.5, ASTM A182
Pipe Flange ANSI300
ASME B16.5, ASTM A182
Features
- To suit Schedule Pipe
- Manufactured to ASME B16.5 ANSI300 Standard
- Forged to ASTM A182 ...
- Raised Face Slip On Flange (RFSO/SORF)
- All sharp edges have been chamfered by 0.5 mm at 45°
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipetite® Wall Entry Flange
Pipetite® Wall Entry Flange
Features
- Pipetite® Silicone conforms to FDA 21 CFG 177.2600
- Temperature Rating: -50°C to +250°C
View Dimensions
-
Pipe Flange AS/NZS4087 PN16
AS/NZS4087, ASTM A182
Pipe Flange AS/NZS4087 PN16
AS/NZS4087, ASTM A182
Features
- To suit Schedule Pipe
- Manufactured to AS/NZS4087 PN16 Standard (*)
- Forged to ASTM A182 ...
- Flat Faced Slip On Flange (FFSO/SOFF)
- All sharp edges have been chamfered by 0.5 mm at 45°
- (*) Please note that these are forged to ASTM A182
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pipetite® Wall Entry Reboot®
Pipetite® Wall Entry Reboot®
Features
- Pipetite® Silicone conforms to FDA 21 CFG 177.2600
- Temperature Rating: -50°C to +250°C
View Dimensions
-
Table E Expansion Bellow Bolt Kit
Table E Expansion Bellow Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Expansion Bellow.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
