Tube Flange Table E
Tube Flange Table E
Features
- To suit Imperial Tube
- Dimensional Standard: AS2129
- Please note: Sizes from 25.4 (1") to 38.1 (1 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFSO (Flat Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-
Tube Flange Table D
Tube Flange Table D
Features
- To suit Imperial Tube
- Dimensional Standard: AS2129
- Please note: Sizes from 25.4 (1") to 63.5 (2 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFSO (Flat Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-

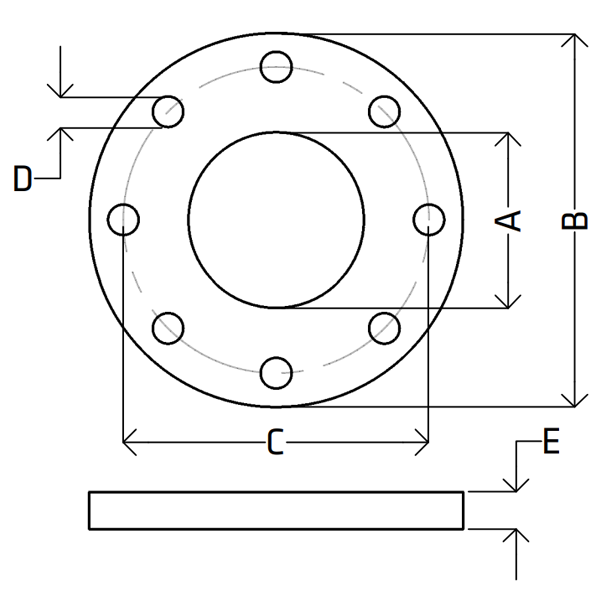

Tube Flange PN10-40
Tube Flange PN10-40
Features
- To suit Imperial Tube
- Dimensional Standard: EN1092-1
- FFSO Type 01/A (Flat Face Slip On)
- Forged to: EN10222-5
- Flange Gaskets available
- To determine flange spec, refer to the end of the code as shown in between stars (STF25*PN10-40*) - Stars only shown for example
-
Tube Flange ANSI Class 150
Tube Flange ANSI Class 150
Features
- To suit Imperial Tube
- Bolt Pattern Matches ASME B16.5. Please note these are Non Hubbed and do not meet ASME B16.5 standard.
- FFSO (Flat Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-
Galvanised Tube Backing Ring Table D/E
Galvanised Tube Backing Ring Table D/E
Features
- Galvanised Steel
- To suit Imperial Tube, with a Tube Neck Ring
- Bolt Pattern matches AS2129, however thickness does not meet AS2129 standard.
- Bevel size: 4mm at 45°
- Stainless Steel option is also available
- Flange Gaskets available
-
Spiral Weld Flange Table E
Spiral Weld Flange Table E
Features
- To suit Spiral Weld (ID) Tube
- Dimensional Standard: AS2129
- FFSO (Flat Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-
Spiral Weld Flange PN16
Spiral Weld Flange PN16
Features
- To suit Spiral Weld Tube (ID)
- Dimensional Standard: EN1092-1
- FFSO Type 01/A (Flat Face Slip On)
- Forged to: EN10222-5
- Flange Gaskets available
- To determine flange spec, refer to the end of the code as shown in between stars (SSWF250*PN16*) - Stars only shown for example
-
Spiral Weld Flange ANSI Class 150
Spiral Weld Flange ANSI Class 150
Features
- To suit Spiral Weld Tube (ID)
- Bolt Pattern Matches ASME B16.5, Non Hubbed, not to spec
- FFSO (Flat Face Slip On)
- Flange Gaskets available
- Forged to: ASTM A182
-
Pipe Flange Table E
Pipe Flange Table E
Features
- To suit Schedule Pipe
- Dimensional Standard: AS2129
- Please note: Sizes from 15NB (1/2") to 40NB (1 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFSO (Flat Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-
Pipe Flange Table D
Pipe Flange Table D
Features
- To suit Schedule Pipe
- Dimensional Standard: AS2129
- Please note: Sizes from 15NB (1/2") to 65NB (2 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFSO (Flat Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-
Pipe Flange PN10-40
Pipe Flange PN10-40
Features
- To suit Schedule Pipe
- Dimensional Standard: EN1092-1
- RFSO Type 01/B1 (Raised Face Slip On)
- Forged EN10222-5 1.4404 (F316L) Coming Soon
- Flange Gaskets available
- To determine flange spec, refer to the end of the code as shown in between stars (SPF25*PN10-40*) - Stars only shown for example
-
Pipe Flange ANSI Class 150
Pipe Flange ANSI Class 150
Features
- To suit Schedule Pipe
- Dimensional Standard: ASME B16.5
- RFSO (Raised Face Slip On)
- Forged to: ASTM A182
- Flange Gaskets available
-
Socket Weld Pipe Flange ANSI Class 150
Socket Weld Pipe Flange ANSI Class 150
Features
- To suit Schedule Pipe
- Dimensional Standard: ASME B16.5
- RFSW (Raised Face Socket Weld)
- Forged to: ASTM A182
- Flange Gaskets available
-
Weld Neck ANSI Class 150 Flange - Schedule 10S
Weld Neck ANSI Class 150 Flange - Schedule 10S
Features
- To suit Schedule 10S Pipe
- Dimensional Standard: ASME B16.5
- RFWN (Raised Face Weld Neck)
- Forged to: ASTM A182
- Flange Gaskets available
-
Weld Neck ANSI Class 150 Flange - Schedule 40S
Weld Neck ANSI Class 150 Flange - Schedule 40S
Features
- To suit Schedule 40S Pipe
- Dimensional Standard: ASME B16.5
- RFWN (Raised Face Weld Neck)
- Forged to: ASTM A182
- Flange Gaskets available
-
Pipe Flange ANSI Class 300
Pipe Flange ANSI Class 300
Features
- To suit Schedule Pipe
- Dimensional Standard: ASME B16.5
- RFSO (Raised Face Slip On)
- Flange Gaskets available
- Forged to: ASTM A182
-
Pipe Flange AS/NZS4087 PN16
Pipe Flange AS/NZS4087 PN16
Features
- To suit Schedule Pipe
- Bolt Pattern Matches AS/NZS4087, manufacture process not to spec. Manufactured by forging to ASTM A182
- FFSO (Flat Face Slip On)
- Flange Gaskets available
-
BSP Flange Table E
BSP Flange Table E
Features
- BSPP Threads (Parallel)
- Dimensional Standard: AS2129
- Please note: Sizes from 15NB (1/2") to 40NB (1 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFTH (Flat Face Threaded)
- Forged to: ASTM A182
- Flange Gaskets available
-
BSP Flange PN10-40
BSP Flange PN10-40
Features
- BSPP Threads (Parallel)
- Dimensional Standard: EN1092-1
- RFTH Type 13/B1 (Raised Face Threaded)
- Forged to: EN10222-5
- Flange Gaskets available
- To determine flange spec, refer to the end of the code as shown in between stars (SBSPF25*PN10-40*) - Stars only shown for example
-
BSP Flange ANSI Class 150
BSP Flange ANSI Class 150
Features
- BSPP Threads (Parallel)
- Dimensional Standard: ASME B16.5
- RFTH (Raised Face Threaded)
- Flange Gaskets available
- Forged to: ASTM A182
-
Blind Flange Table E
Blind Flange Table E
Features
- Also known as a Blanking Flange
- Dimensional Standard: AS2129
- Please note: Sizes from 15NB (1/2") to 40NB (1 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFBL (Flat Face Blind)
- Forged to: ASTM A182
- Flange Gaskets available
-
Blind Flange Table D
Blind Flange Table D
Features
- Also known as a Blanking Flange
- Dimensional Standard: AS2129
- Please note: Sizes from 15NB (1/2") to 65NB (2 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- FFBL (Flat Face Blind)
- Forged to: ASTM A182
- Flange Gaskets available
-
Blind Flange PN10-40
Blind Flange PN10-40
Features
- Also known as a Blanking Flange
- Dimensional Standard: EN1092-1
- FFBL Type 05A (Flat Face Blind)
- Forged EN10222-5 1.4404 (F316L) Coming Soon
- Flange Gaskets available
- To determine flange spec, refer to the end of the code as shown in between stars (SBF25*PN10-40*) - Stars only shown for example
-
Blind Flange ANSI Class 150
Blind Flange ANSI Class 150
Features
- Also known as a Blanking Flange
- Dimensional Standard: ASME B16.5
- RFBL (Raised Face Blind)
- Flange Gaskets available
- Forged to: ASTM A182
-
Blind Flange AS/NZS4087 PN16
Blind Flange AS/NZS4087 PN16
Features
- Also known as a Blanking Flange
- Bolt Pattern Matches AS/NZS4087, manufacture process not to spec. Manufactured by forging to ASTM A182
- FFBL (Flat Face Blind)
- Flange Gaskets available
-
Backing Ring Table D/E
Backing Ring Table D/E
Features
- Cast Flange
- To suit both Schedule Pipe and Imperial Tube, with Pipe Stub Ends and Tube Neck Rings
- Bolt Pattern matches AS2129, however thickness does not meet AS2129 standard
- Test Certs and Pressure Ratings not available
- Bevel size: 4mm at 45°
- Flange Gaskets available
- Galvanised Steel option is also available
-
Galvanised Tube Backing Ring Table D/E
Galvanised Tube Backing Ring Table D/E
Features
- Galvanised Steel
- To suit Imperial Tube, with a Tube Neck Ring
- Bolt Pattern matches AS2129, however thickness does not meet AS2129 standard.
- Bevel size: 4mm at 45°
- Stainless Steel option is also available
- Flange Gaskets available
-
Backing Ring Table D
Backing Ring Table D
Features
- Cast Flange
- To suit both Schedule Pipe and Imperial Tube, with Pipe Stub Ends and Tube Neck Rings
- Bolt Pattern matches AS2129, however thickness does not meet AS2129 standard
- Test Certs and Pressure Ratings not available
- Bevel size: 4mm at 45°
- Flange Gaskets available
- Galvanised Steel option is also available
-
Backing Ring PN10-16
Backing Ring PN10-16
Features
- Cast Flange
- To suit both Schedule Pipe and Imperial Tube, with Pipe Stub Ends and Tube Neck Rings
- Bolt Pattern matches EN1092-1, however thickness does not meet EN1092-1 standard
- Test Certs and Pressure Ratings not available
- Bevel size: 4mm at 45°
- Flange Gaskets available
- Galvanised Steel option is also available
-
Backing Ring ANSI150
Backing Ring ANSI150
Features
- Cast Flange
- To suit both Schedule Pipe and Imperial Tube, with Pipe Stub Ends and Tube Neck Rings
- Bolt Pattern matches ASME B16.5, however thickness does not meet ASME B16.5 standard. Please note these are also Non Hubbed.
- Test Certs and Pressure Ratings not available
- Bevel size: 4mm at 45°
- Flange Gaskets available
- Galvanised Steel option is also available
-

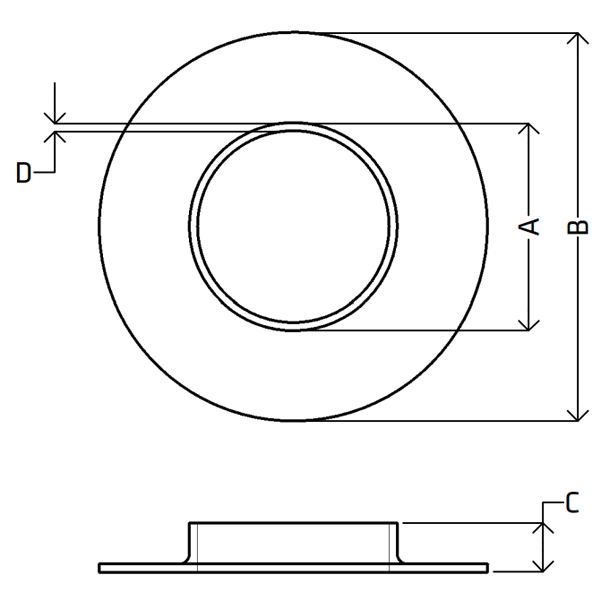

Tube Neck Ring
Tube Neck Ring
Features
- Tube size is Outside Diameter unless otherwise stated
- To be used with Backup Flange
-
Spiral Weld Neck Ring
Spiral Weld Neck Ring
Features
- Tube size is Inside Diameter
- To be used with Backup Flange
-
Schedule 10S Pipe Stub End
Schedule 10S Pipe Stub End
Features
- Butt welds to NB pipe sizes
- Used with Stainless Backing Ring
-
Schedule 40S Pipe Stub End
Schedule 40S Pipe Stub End
Features
- Butt welds to NB pipe sizes
- Used with Stainless Backing Ring
-
Tube Expansion Flange
Tube Expansion Flange
Features
- To suit imperial tube
- Fastener Hole: 4mm
- EPDM Seal
- A purpose designed seal, used when process piping penetrates the wall, floor or ceiling in food and beverage plants, or any applications where a waterproof hygenic seal is required
-
Pipe Expansion Flange
Pipe Expansion Flange
Features
- To suit schedule pipe sizes (Nominal Bore)
- Fastener Hole: 4mm
- EPDM Seal
- A purpose designed seal, used when process piping penetrates the wall, floor or ceiling in food and beverage plants, or any applications where a waterproof hygenic seal is required
-
RapidPress Expansion Flange
RapidPress Expansion Flange
Features
- EPDM Seal
- To suit RapidPress Tube sizes
- Fastener hole size: 4mm
- Temperature rating: -20°C, 120°C
- A purpose designed seal, used when process piping penetrates a wall, floor or ceiling in Food & Beverage Plants or any application where a waterproof hygenic seal is required.
-
Stainless Steel Table D/E Expansion Bellow
Stainless Steel Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi)
- Stainless Steel Flanges
-
Electro-Galvanised Table D/E Expansion Bellow
Electro-Galvanised Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi)
- Electro-Galvanised Table E Flanges
-
RapidPress Flange Table E
RapidPress Flange Table E
Features
- EPDM Seal
- Dimensional Standard: AS2129
- Please note: Sizes from 22, 28 and 42 are not manufactured to AS2129 Standard, as the thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- Flanges are forged to: ASTM A182
- Temperature rating: -20°C, 120°C
- Gas Rated and RapidPress Extreme options available
-
RapidPress Extreme Flange Table E
RapidPress Extreme Flange Table E
Features
- FKM Seal
- Dimensional Standard: AS2129
- Please note: Sizes from 22, 28 and 42 are not manufactured to AS2129 Standard, as the thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- Flanges are forged to: ASTM A182
- Temperature rating: -20°C, 220°C
- EPDM and Gas Rated options available
-

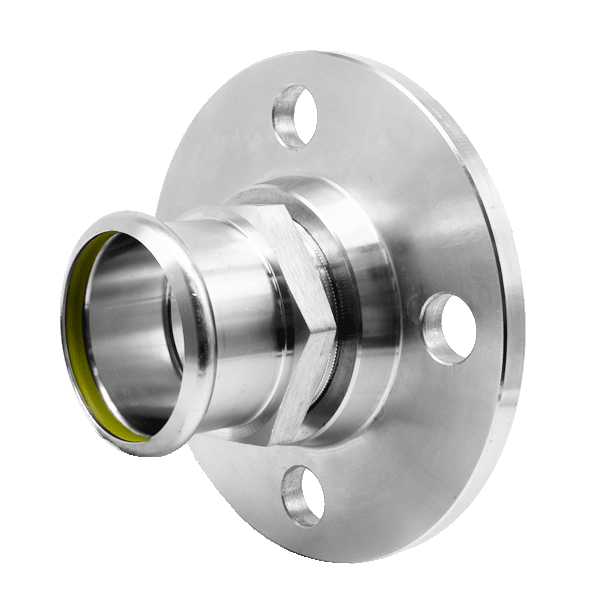

RapidPress Flange Table E - Gas
RapidPress Flange Table E - Gas
Features
- Includes: BSP Flange Table E and RapidPress Male BSP Coupler (Gas)
- BSPP Threads (Parallel)
- Dimensional Standard: AS2129
- Please note: Sizes from 15NB (1/2") to 40NB (1 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
- Flange Forged to: ASTM A182
- We recommend the use of Blue Monster PTFE Gas Guard Thread Sealing Tape
- Temperature rating: -20°C, 70°C
- Maximum operating pressure: 5 Bar (72psi)
-
Table D/E Flange Gasket
Table D/E Flange Gasket
Features
- To suit Table E Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance
- Temperature rating -25°C to 70°C
-
Food Grade Table D/E Flange Gasket
Food Grade Table D/E Flange Gasket
Features
- To suit Table E Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes
- Maximum temperature 90°C
-
Table D Flange Gasket
Table D Flange Gasket
Features
- To suit Table D Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance
- Temperature rating -25°C to 70°C
-
Food Grade Table D Flange Gasket
Food Grade Table D Flange Gasket
Features
- To suit Table D Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes
- Maximum temperature 90°C
-
PN10-40 Flange Gasket
PN10-40 Flange Gasket
Features
- To suit PN10-16 Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance
- Temperature rating -25°C to 70°C
-
Food Grade PN10-40 Flange Gasket
Food Grade PN10-40 Flange Gasket
Features
- To suit PN10-16 Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes
- Maximum temperature 90°C
-
ANSI150 Flange Gasket
ANSI150 Flange Gasket
Features
- To suit ANSI150 Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance
- Temperature rating -25°C to 70°C
-
Food Grade ANSI150 Flange Gasket
Food Grade ANSI150 Flange Gasket
Features
- To suit ANSI150 Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes
- Maximum temperature 90°C
-
ANSI300 Flange Gasket
ANSI300 Flange Gasket
Features
- To suit ANSI300 Flange stud pattern
- Black Insertion Rubber
- Manufactured with cotton reinforcement to assist tensile strength and tear resistance
- Temperature rating -25°C to 70°C
-
Food Grade ANSI300 Flange Gasket
Food Grade ANSI300 Flange Gasket
Features
- To suit ANSI300 Flange stud pattern
- White Nitrile Rubber
- Manufactured to Food Grade Quality (FQ), commonly used for petrochemical purposes
- Maximum temperature 90°C
-
Table E Flange Bolt Kit
Table E Flange Bolt Kit
Features
- Bolt Kit to suit bolting two Table E Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
-
Table D Flange Bolt Kit
Table D Flange Bolt Kit
Features
- Bolt Kit to suit bolting two Table D Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
-
ANSI150 Flange Bolt Kit
ANSI150 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI150 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
-
PN10/16/40 Flange Bolt Kit
PN10/16/40 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two PN10/16/40 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
-
ANSI300 Flange Bolt Kit
ANSI300 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI300 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
-
AS4087 PN16 Flange Bolt Kit
AS4087 PN16 Flange Bolt Kit
Features
- Bolt Kit to suit bolting two AS4087 PN16 Flanges together.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
-
Table E Expansion Bellow Bolt Kit
Table E Expansion Bellow Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Expansion Bellow.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
