BSP is an acronym for British Standard Pipe. British Standard Pipe is a family of technical standards for screw threads that have been adopted internationally for connecting pipe and fittings by joining an external (male) thread with an internal (female) thread. The Metal Company stocks a full range of BSP Threaded fittings in 316 Stainless Steel. Learn more...

Elbows
Sockets
Nipples
Tees
Bushes & Reducers

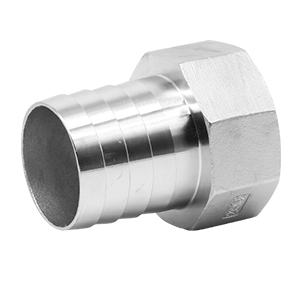

Hosetails

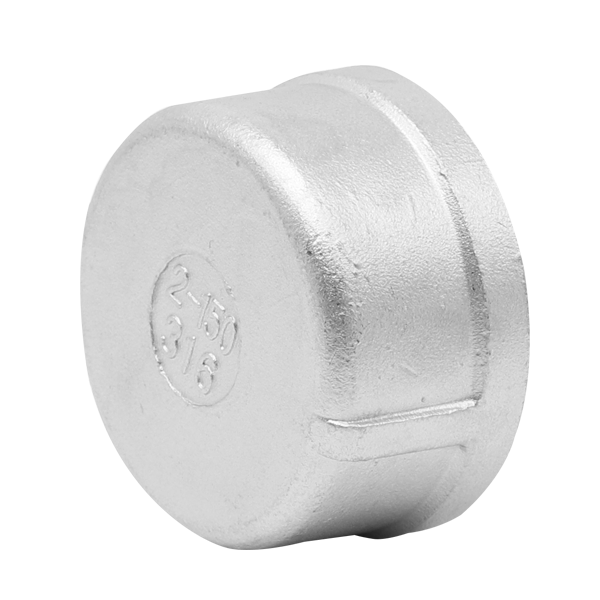

Plugs & Caps

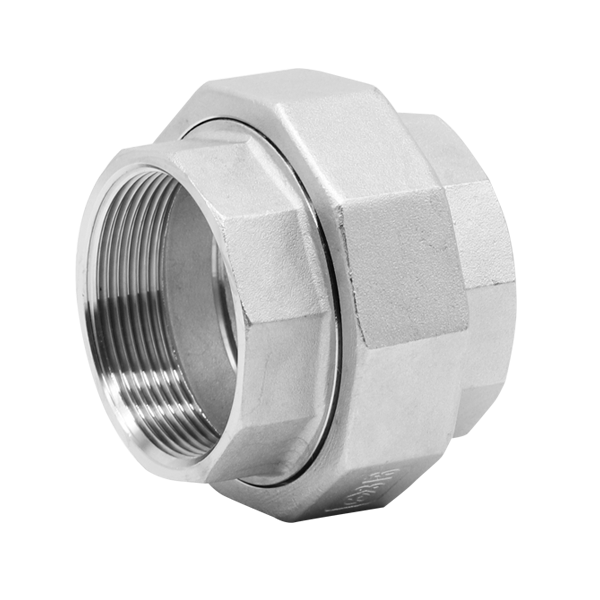

Mac Unions
BSP Adapters
Flanges
NPT-BSP Adapters

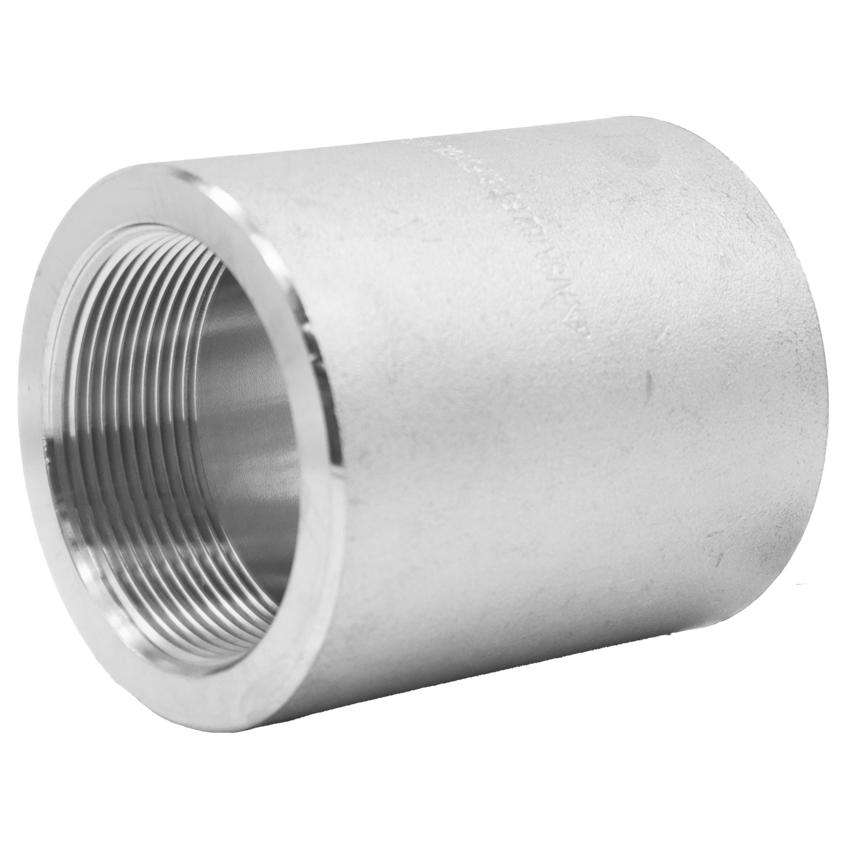

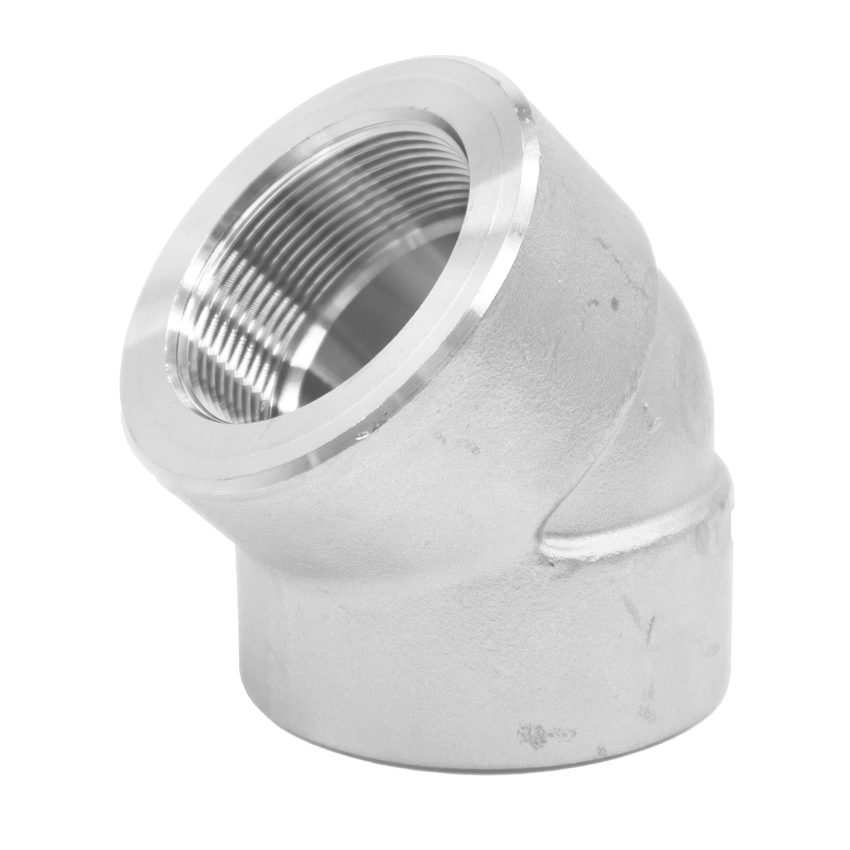

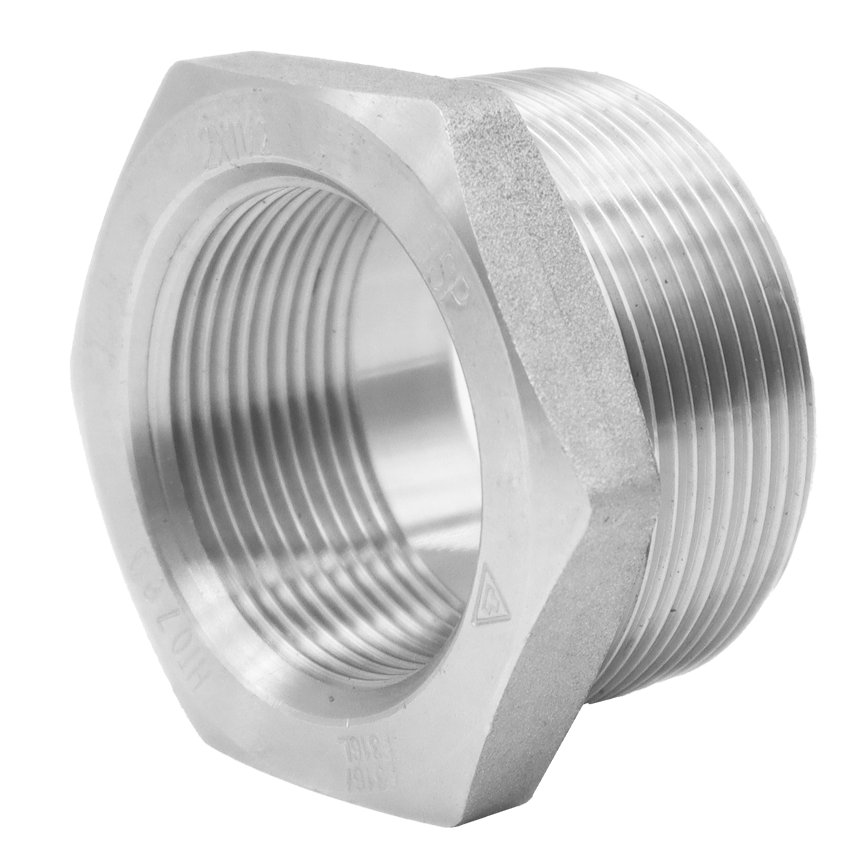

3000LB Threaded Fittings

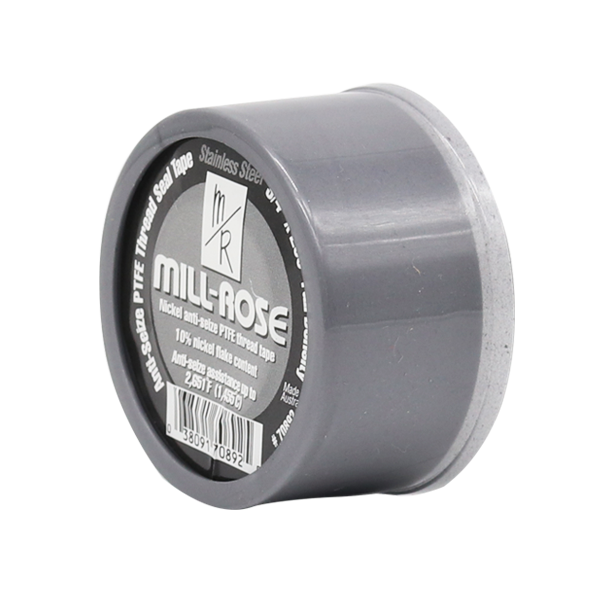

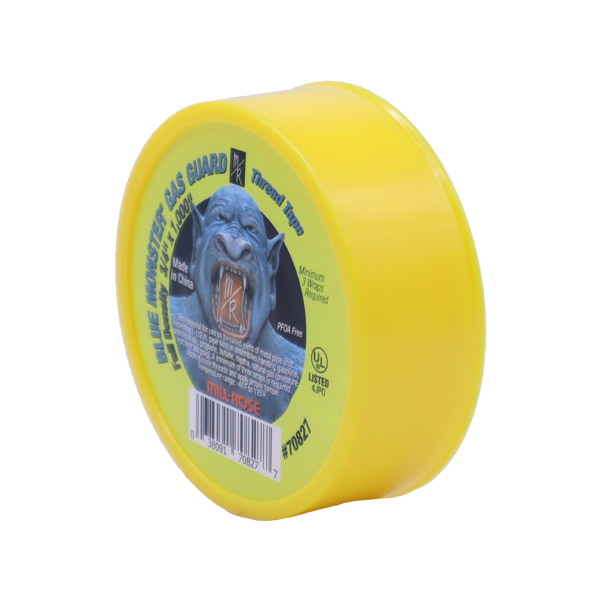

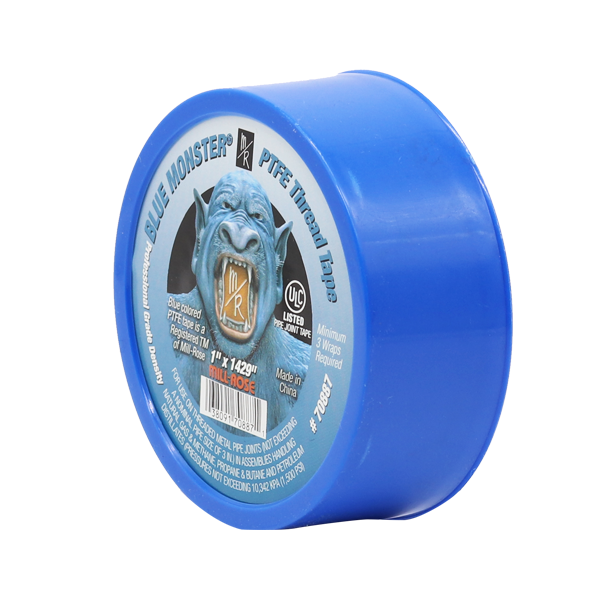

Sealing Tape

Showing all 58 results

Elbows

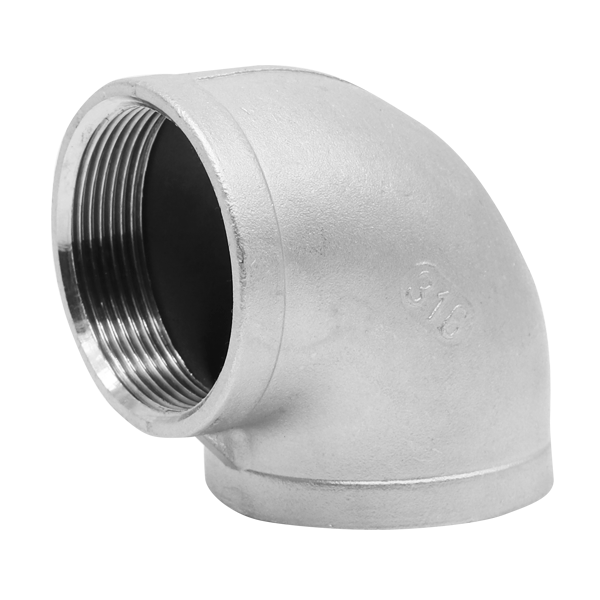

Female Elbow 90°

View

IMAGE DIAGRAM

Female Elbow 90°

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SE06	1/8" SE06	6NB	316	$5.25
SE08	1/4" SE08	8NB	316	$6.21
SE10	3/8" SE10	10NB	316	$5.95
SE15	1/2" SE15	15NB	316	$8.10
SE20	3/4" SE20	20NB	316	$8.91
SE25	1" SE25	25NB	316	$16.38
SE32	1 1/4" SE32	32NB	316	$24.75
SE40	1 1/2" SE40	40NB	316	$42.12
SE50	2" SE50	50NB	316	$58.50
SE65	2 1/2" SE65	65NB	316	$135.00
SE80	3" SE80	80NB	316	$141.48
SE100	4" SE100	100NB	316	$223.90

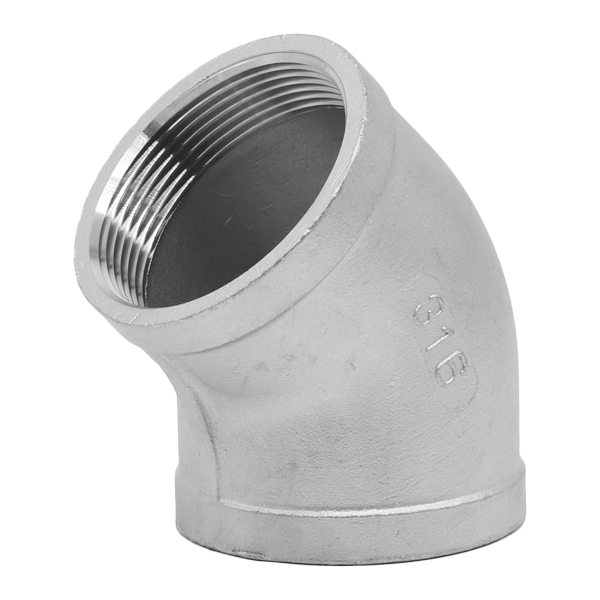

Female Elbow 45°

View

IMAGE DIAGRAM

Female Elbow 45°

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SE4506	1/8" SE4506	6NB	316	$5.25
SE4508	1/4" SE4508	8NB	316	$5.95
SE4510	3/8" SE4510	10NB	316	$5.95
SE4515	1/2" SE4515	15NB	316	$7.56
SE4520	3/4" SE4520	20NB	316	$10.08
SE4525	1" SE4525	25NB	316	$10.90
SE4532	1 1/4" SE4532	32NB	316	$24.57
SE4540	1 1/2" SE4540	40NB	316	$35.10
SE4550	2" SE4550	50NB	316	$35.25
SE4565	2 1/2" SE4565	65NB	316	$119.88
SE4580	3" SE4580	80NB	316	$136.62
SE45100	4" SE45100	100NB	316	$213.15

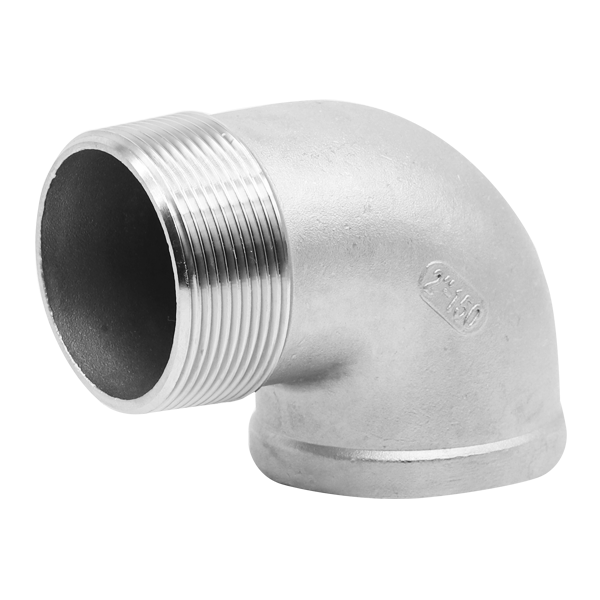

Male-Female Elbow 90°

View

IMAGE DIAGRAM

Male-Female Elbow 90°

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT), Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Also Known As Street Elbow

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SSE06	1/8" SSE06	6NB	316	$5.50
SSE08	1/4" SSE08	8NB	316	$6.75
SSE10	3/8" SSE10	10NB	316	$6.70
SSE15	1/2" SSE15	15NB	316	$8.19
SSE20	3/4" SSE20	20NB	316	$14.04
SSE25	1" SSE25	25NB	316	$21.06
SSE32	1 1/4" SSE32	32NB	316	$36.27
SSE40	1 1/2" SSE40	40NB	316	$47.97
SSE50	2" SSE50	50NB	316	$77.22
SSE65	2 1/2" SSE65	65NB	316	$115.25
SSE80	3" SSE80	80NB	316	$164.75
SSE100	4" SSE100	100NB	316	$270.20

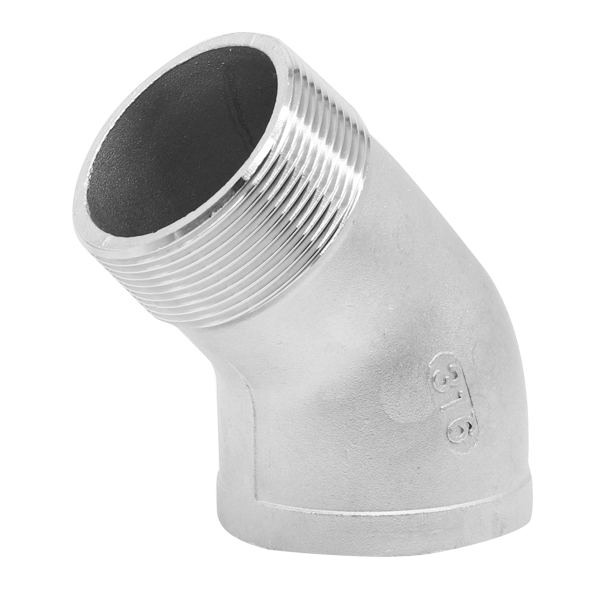

Male-Female Elbow 45°

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SSE4506	1/8" SSE4506	6NB	316	$5.25
SSE4508	1/4" SSE4508	8NB	316	$6.48
SSE4510	3/8" SSE4510	10NB	316	$5.95
SSE4515	1/2" SSE4515	15NB	316	$7.80
SSE4520	3/4" SSE4520	20NB	316	$9.25
SSE4525	1" SSE4525	25NB	316	$18.35
SSE4532	1 1/4" SSE4532	32NB	316	$30.24
SSE4540	1 1/2" SSE4540	40NB	316	$32.75
SSE4550	2" SSE4550	50NB	316	$47.90

Sockets

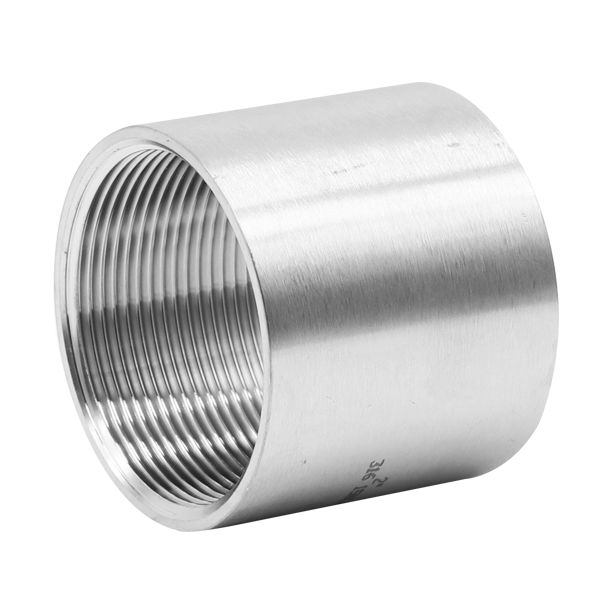

Socket

View

IMAGE DIAGRAM

Socket

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SS06	1/8" SS06	6NB	316	$5.50
SS08	1/4" SS08	8NB	316	$6.75
SS10	3/8" SS10	10NB	316	$7.11
SS15	1/2" SS15	15NB	316	$10.44
SS20	3/4" SS20	20NB	316	$10.53
SS25	1" SS25	25NB	316	$19.89
SS32	1 1/4" SS32	32NB	316	$25.80
SS40	1 1/2" SS40	40NB	316	$37.35
SS50	2" SS50	50NB	316	$63.45
SS65	2 1/2" SS65	65NB	316	$112.77
SS80	3" SS80	80NB	316	$134.91
SS100	4" SS100	100NB	316	$141.35
SS150	6" SS150	150NB	316	$446.80

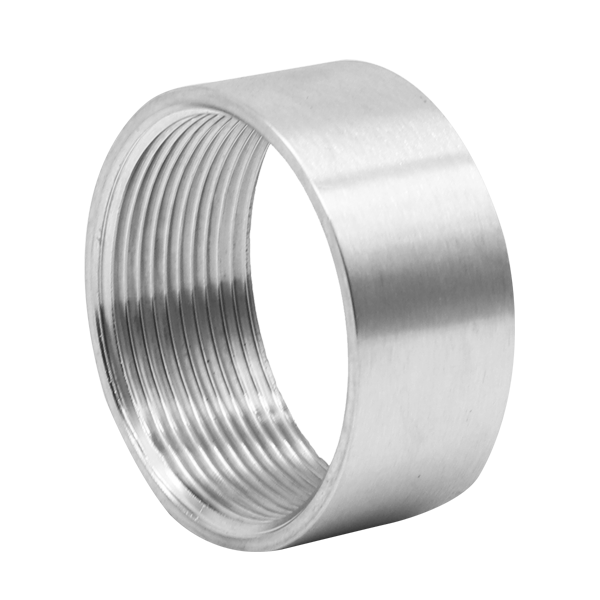

Half Socket

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SHS08	1/4" SHS08	8NB	316	$4.15
SHS10	3/8" SHS10	10NB	316	$5.49
SHS15	1/2" SHS15	15NB	316	$6.48
SHS20	3/4" SHS20	20NB	316	$6.84
SHS25	1" SHS25	25NB	316	$8.15
SHS32	1 1/4" SHS32	32NB	316	$12.06
SHS40	1 1/2" SHS40	40NB	316	$13.32
SHS50	2" SHS50	50NB	316	$26.82

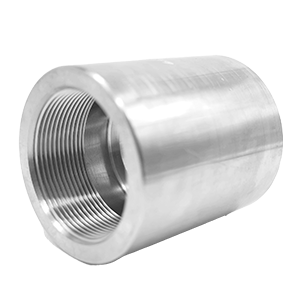

Reducing Socket

View

IMAGE DIAGRAM

Reducing Socket

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SRS0806	1/4 -1/8" SRS0806	8NB - 6NB	316	$5.49
SRS1006	3/8 - 1/8" SRS1006	10NB - 6NB	316	$5.80
SRS1008	3/8 - 1/4" SRS1008	10NB - 8NB	316	$5.95
SRS1506	1/2 - 1/8" SRS1506	15NB - 6NB	316	$5.95
SRS1508	1/2 -1/4" SRS1508	15NB - 8NB	316	$7.20
SRS1510	1/2 -3/8" SRS1510	15NB - 10NB	316	$7.20
SRS2010	3/4 - 3/8" SRS2010	20NB - 10NB	316	$7.00
SRS2015	3/4 -1/2" SRS2015	20NB - 15NB	316	$8.10
SRS2515	1 - 1/2" SRS2515	25NB - 15NB	316	$9.65
SRS2520	1 - 3/4" SRS2520	25NB - 20NB	316	$12.87
SRS3225	1 1/4 - 1" SRS3225	32NB - 25NB	316	$18.72
SRS4020	1 1/2 - 3/4" SRS4020	40NB - 20NB	316	$24.57
SRS4025	1 1/2 - 1" SRS4025	40NB - 25NB	316	$19.25
SRS4032	1 1/2 - 1 1/4" SRS4032	40NB - 32NB	316	$19.70
SRS5025	2 - 1" SRS5025	50NB - 25NB	316	$28.90
SRS5032	2 - 1 1/4" SRS5032	50NB - 32NB	316	$31.68
SRS5040	2 - 1 1/2" SRS5040	50NB - 40NB	316	$38.61
SRS6550	2 1/2 - 2" SRS6550	65NB - 50NB	316	$52.05
SRS8050	3 - 2" SRS8050	80NB - 50NB	316	$93.60
SRS8065	3 - 2 1/2" SRS8065	80NB - 65NB	316	$97.29
SRS10050	4 - 2" SRS10050	100NB - 50NB	316	$117.00
SRS10065	4 - 2 1/2" SRS10065	100NB - 65NB	316	$103.30
SRS10080	4 - 3" SRS10080	100NB - 80NB	316	$122.20

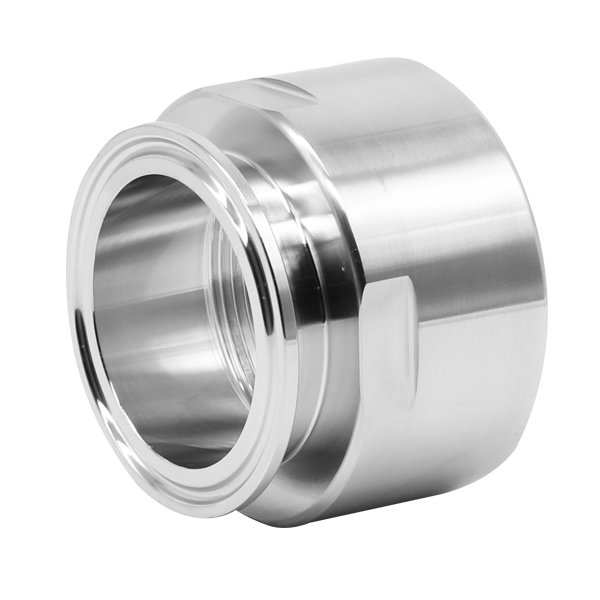

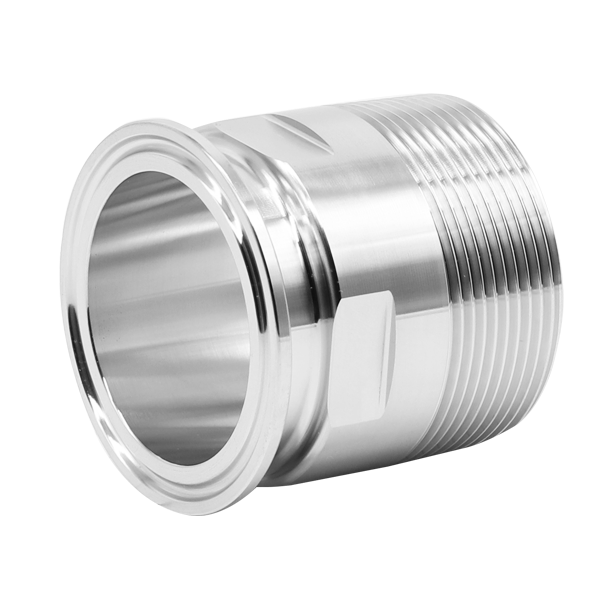

BSP Socket to Tri Clover Adapter

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SWSAFER12	1/2" SWSAFER12	15NB - 12.7mm	316	$35.75
SWSAFER20	3/4" SWSAFER20	20NB - 19.05mm	316	$33.55
SWSAFER25	1" SWSAFER25	25NB - 25.4mm	316	$62.40
SWSAFER30	1 1/4" SWSAFER30	32NB - 31.8mm	316	$51.30
SWSAFER40	1 1/2" SWSAFER40	40NB - 38.1mm	316	$81.60
SWSAFER50	2" SWSAFER50	50NB - 50.8mm	316	$105.30
SWSAFER65	2 1/2" SWSAFER65	65NB - 63.5mm	316	$95.70
SWSAFER75	3" SWSAFER75	80NB - 76.2mm	316	$143.16
SWSAFER100	4" SWSAFER100	100NB - 101.6mm	316	$156.55

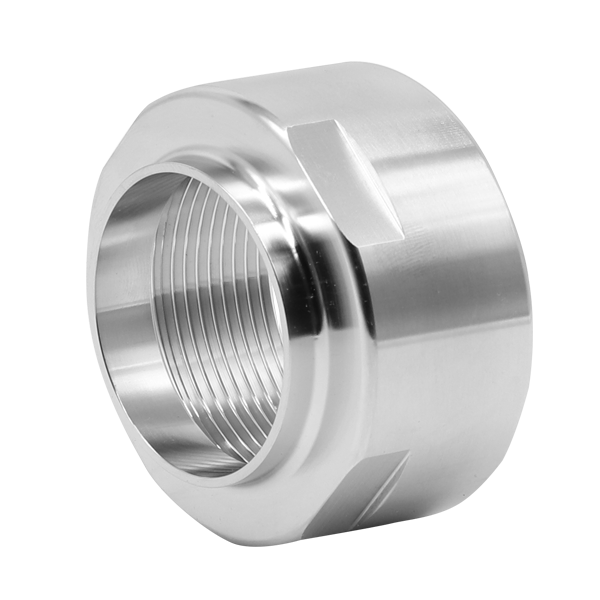

Weld Socket Adapter

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SWSA15	1/2" SWSA15	15NB - 12.7mm	316	$31.65
SWSA20	3/4" SWSA20	20NB - 19.05mm	316	$36.70
SWSA25	1" SWSA25	25NB - 25.4mm	316	$36.00
SWSA32	1 1/4" SWSA32	32NB - 31.8mm	316	$52.50
SWSA40	1 1/2" SWSA40	40NB - 38.1mm	316	$59.10
SWSA50	2" SWSA50	50NB - 50.8mm	316	$65.45
SWSA65	2 1/2" SWSA65	65NB - 63.5mm	316	$101.90
SWSA80	3" SWSA80	80NB - 76.2mm	316	$134.05
SWSA100	4" SWSA100	100NB - 101.6mm	316	$145.65

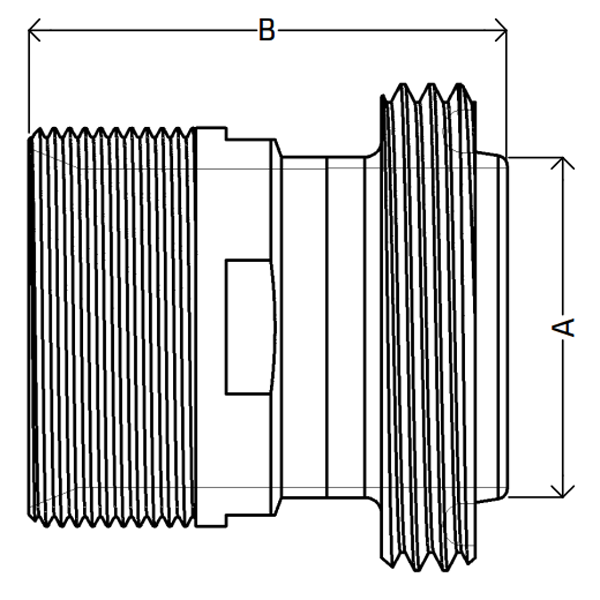

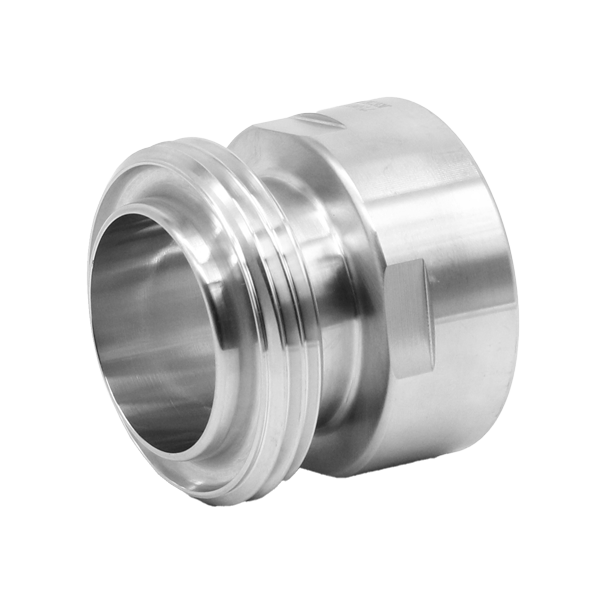

BSP Socket to RJT Male Adapter

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SWSAMP25	1" SWSAMP25	25.4	316	$85.00
SWSAMP40	1 1/2" SWSAMP40	38.1	316	$123.10
SWSAMP50	2" SWSAMP50	50.8	316	$135.48
SWSAMP65	2 1/2" SWSAMP65	63.5	316	$165.36
SWSAMP80	3" SWSAMP80	76.2	316	$240.96
SWSAMP100	4" SWSAMP100	101.6	316	$294.90

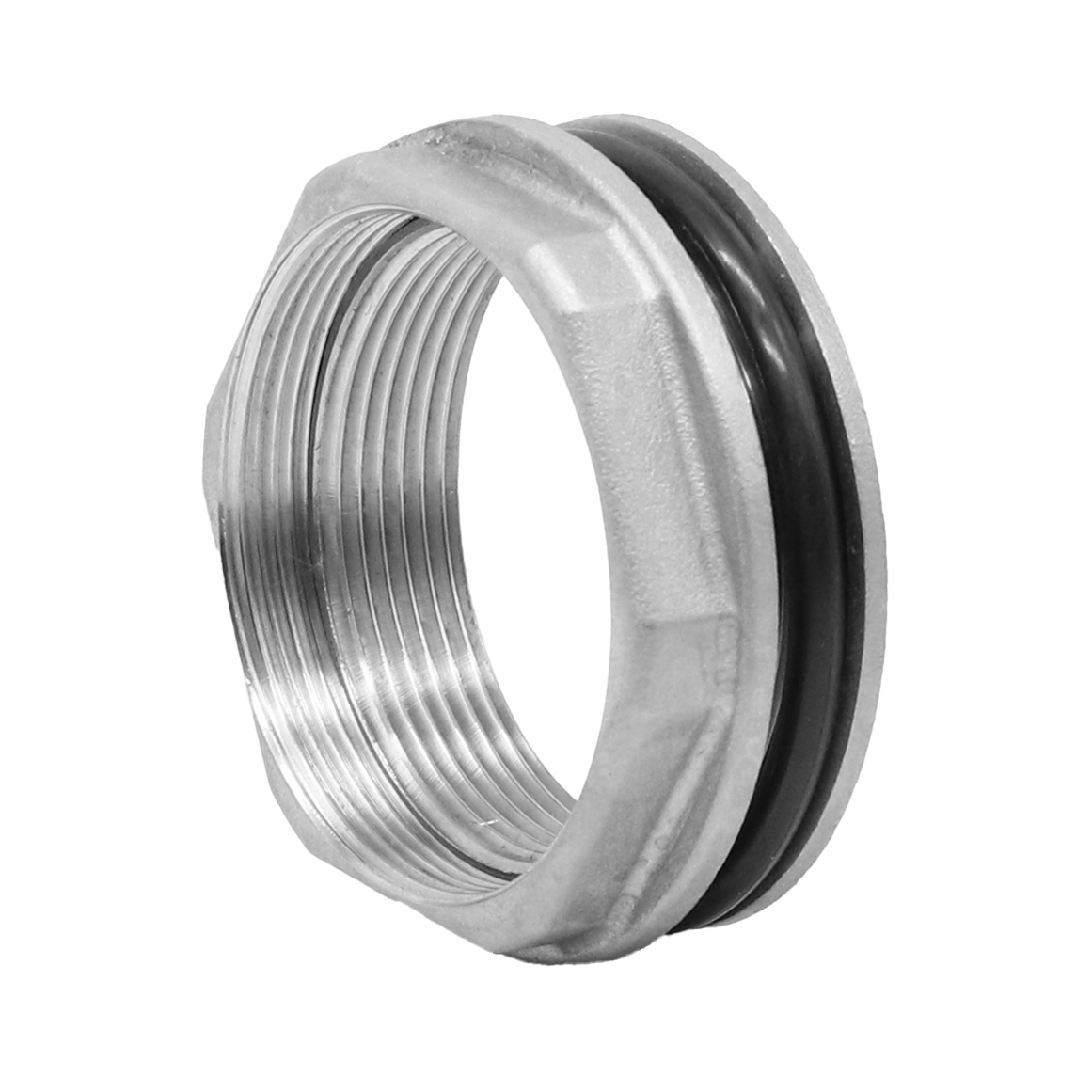

Tank Skin Fittings

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SSF25	1" SSF25	25NB	316	$24.70
SSF40	1 1/2" SSF40	40NB	316	$31.00
SSF50	2" SSF50	50NB	316	$52.65

Nipples

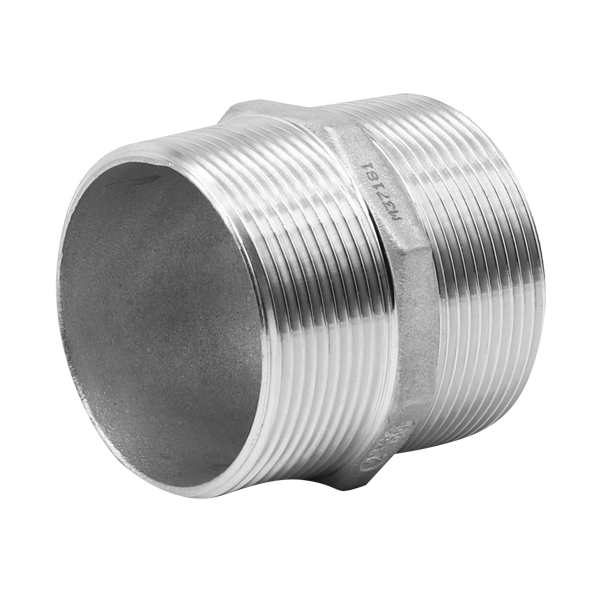

Hex Nipple

View

IMAGE DIAGRAM

Hex Nipple

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SHN06	1/8" SHN06	6NB	316	$5.25
SHN08	1/4" SHN08	8NB	316	$5.50
SHN10	3/8" SHN10	10NB	316	$6.25
SHN15	1/2" SHN15	15NB	316	$7.65
SHN20	3/4" SHN20	20NB	316	$10.80
SHN25	1" SHN25	25NB	316	$17.55
SHN32	1 1/4" SHN32	32NB	316	$24.57
SHN40	1 1/2" SHN40	40NB	316	$29.25
SHN50	2" SHN50	50NB	316	$43.29
SHN65	2 1/2" SHN65	65NB	316	$53.05
SHN80	3" SHN80	80NB	316	$91.26
SHN100	4" SHN100	100NB	316	$114.48

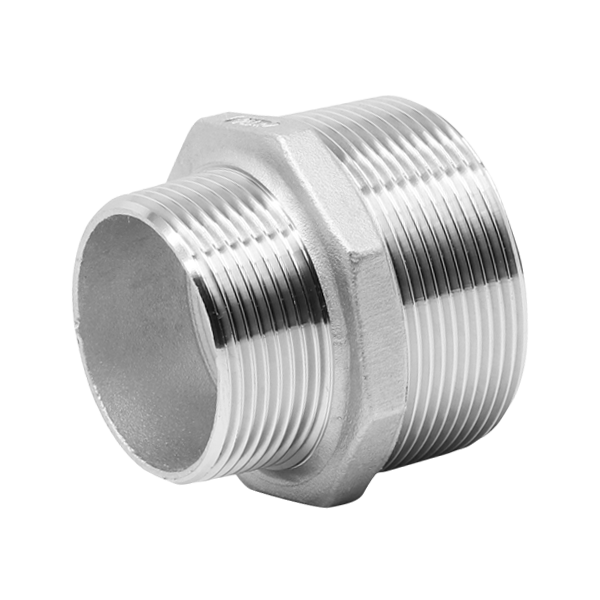

Hex Reducing Nipple

View

IMAGE DIAGRAM

Hex Reducing Nipple

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SHRN0806	1/4 -1/8" SHRN0806	8NB - 6NB	316	$5.50
SHRN1006	3/8 - 1/8" SHRN1006	10NB - 6NB	316	$5.80
SHRN1008	3/8 - 1/4" SHRN1008	10NB - 8NB	316	$7.20
SHRN1506	1/2 - 1/8" SHRN1506	15NB - 6NB	316	$6.70
SHRN1508	1/2 -1/4" SHRN1508	15NB - 8NB	316	$7.20
SHRN1510	1/2 -3/8" SHRN1510	15NB - 10NB	316	$7.65
SHRN2010	3/4 - 3/8" SHRN2010	20NB - 10NB	316	$10.80
SHRN2015	3/4 -1/2" SHRN2015	20NB - 15NB	316	$10.80
SHRN2515	1 - 1/2" SHRN2515	25NB - 15NB	316	$14.04
SHRN2520	1 - 3/4" SHRN2520	25NB - 20NB	316	$15.21
SHRN3220	1 1/4 -3/4" SHRN3220	32NB - 20NB	316	$23.40
SHRN3225	1 1/4 - 1" SHRN3225	32NB - 25NB	316	$23.40
SHRN4015	1 1/2 - 1/2" SHRN4015	40NB - 15NB	316	$18.09
SHRN4020	1 1/2 - 3/4" SHRN4020	40NB - 20NB	316	$25.74
SHRN4025	1 1/2 - 1" SHRN4025	40NB - 25NB	316	$26.91
SHRN4032	1 1/2 - 1 1/4" SHRN4032	40NB - 32NB	316	$29.25
SHRN5025	2 - 1" SHRN5025	50NB - 25NB	316	$39.78
SHRN5032	2 - 1 1/4" SHRN5032	50NB - 32NB	316	$39.78
SHRN5040	2 - 1 1/2" SHRN5040	50NB - 40NB	316	$40.95
SHRN6540	2 1/2 - 1 1/2" SHRN6540	65NB - 40NB	316	$58.10
SHRN6550	2 1/2 - 2" SHRN6550	65NB - 50NB	316	$58.50
SHRN8050	3 - 2" SHRN8050	80NB - 50NB	316	$79.20
SHRN8065	3 - 2 1/2" SHRN8065	80NB - 65NB	316	$95.94
SHRN10050	4 - 2" SHRN10050	100NB - 50NB	316	$109.10
SHRN10065	4 - 2 1/2" SHRN10065	100NB - 65NB	316	$109.10
SHRN10080	4 - 3" SHRN10080	100NB - 80NB	316	$122.95

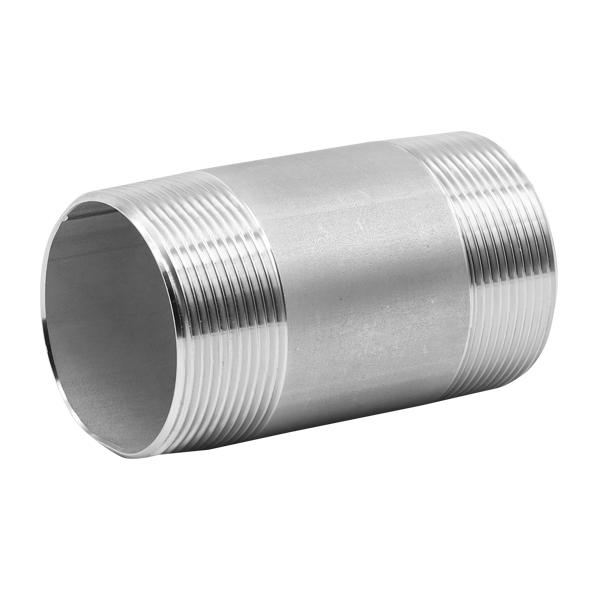

Barrel Nipple

View

IMAGE DIAGRAM

Barrel Nipple

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

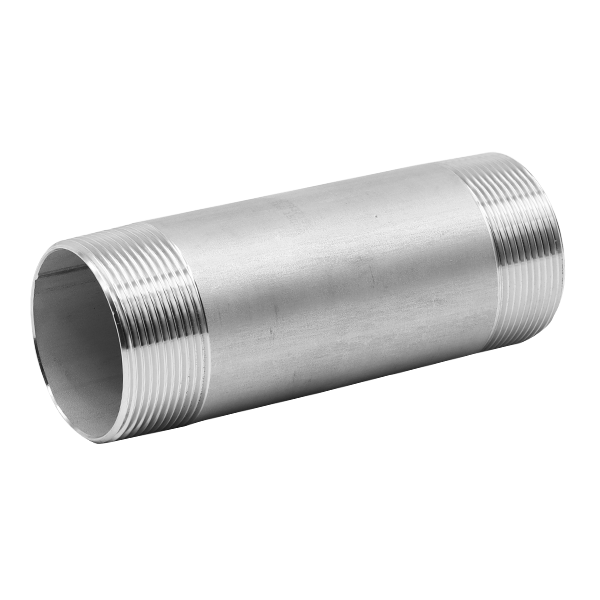

View Extended Barrel Nipples for more length options.

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SBN06	1/8" SBN06	6NB	316	$3.42
SBN08	1/4" SBN08	8NB	316	$3.87
SBN10	3/8" SBN10	10NB	316	$4.59
SBN15	1/2" SBN15	15NB	316	$6.84
SBN20	3/4" SBN20	20NB	316	$8.55
SBN25	1" SBN25	25NB	316	$11.79
SBN32	1 1/4" SBN32	32NB	316	$18.81
SBN40	1 1/2" SBN40	40NB	316	$21.51
SBN50	2" SBN50	50NB	316	$37.35
SBN65	2 1/2" SBN65	65NB	316	$60.75
SBN80	3" SBN80	80NB	316	$74.07
SBN100	4" SBN100	100NB	316	$117.00

Extended Barrel Nipple

View

IMAGE DIAGRAM

Extended Barrel Nipple

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Custom Made Lengths also Available To Suit Your needs. Enquire with our team.

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SEBN15-100	1/2" SEBN15-100	15NB	316	$19.55
SEBN15-150	1/2" SEBN15-150	15NB	316	$27.37
SEBN15-200	1/2" SEBN15-200	15NB	316	$33.66
SEBN20-100	3/4" SEBN20-100	20NB	316	$23.80
SEBN20-120	3/4" SEBN20-120	20NB	316	$27.37
SEBN20-150	3/4" SEBN20-150	20NB	316	$34.51
SEBN20-200	3/4" SEBN20-200	20NB	316	$35.30
SEBN25-100	1" SEBN25-100	25NB	316	$33.32
SEBN25-120	1" SEBN25-120	25NB	316	$38.59
SEBN25-150	1" SEBN25-150	25NB	316	$48.96
SEBN25-200	1" SEBN25-200	25NB	316	$63.41
SEBN25-300	1" SEBN25-300	25NB	316	$101.49
SEBN32-100	1 1/4" SEBN32-100	32NB	316	$44.20
SEBN32-120	1 1/4" SEBN32-120	32NB	316	$49.47
SEBN32-150	1 1/4" SEBN32-150	32NB	316	$60.01
SEBN32-200	1 1/4" SEBN32-200	32NB	316	$77.69
SEBN40-120	1 1/2" SEBN40-120	40NB	316	$59.33
SEBN40-150	1 1/2" SEBN40-150	40NB	316	$69.02
SEBN40-200	1 1/2" SEBN40-200	40NB	316	$93.67
SEBN40-300	1 1/2" SEBN40-300	40NB	316	$137.87
SEBN50-150	2" SEBN50-150	50NB	316	$106.08
SEBN50-200	2" SEBN50-200	50NB	316	$137.87
SEBN50-300	2" SEBN50-300	50NB	316	$189.55

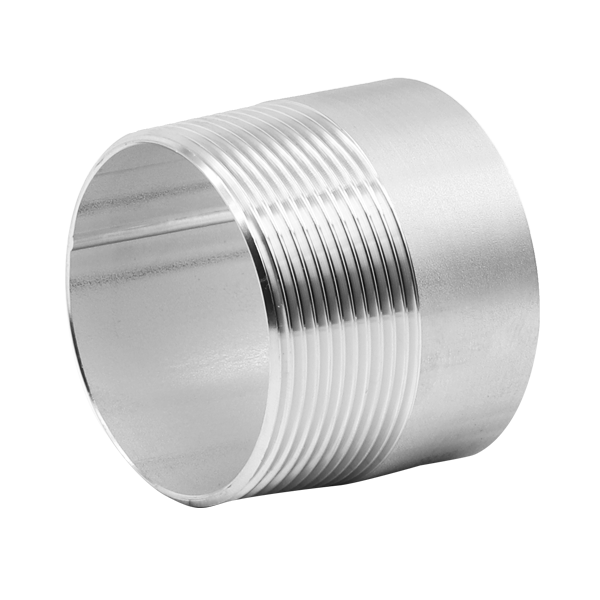

Weld Nipple

View

IMAGE DIAGRAM

Weld Nipple

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Butt Welds To Nominal Bore Pipe Sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SWN08	1/4" SWN08	8NB	316	$2.52
SWN10	3/8" SWN10	10NB	316	$2.65
SWN15	1/2" SWN15	15NB	316	$4.05
SWN20	3/4" SWN20	20NB	316	$5.40
SWN25	1" SWN25	25NB	316	$8.19
SWN32	1 1/4" SWN32	32NB	316	$11.52
SWN40	1 1/2" SWN40	40NB	316	$13.77
SWN50	2" SWN50	50NB	316	$20.79
SWN65	2 1/2" SWN65	65NB	316	$29.07
SWN80	3" SWN80	80NB	316	$43.47
SWN100	4" SWN100	100NB	316	$80.91
SWN150	6" SWN150	150NB	316	$288.00

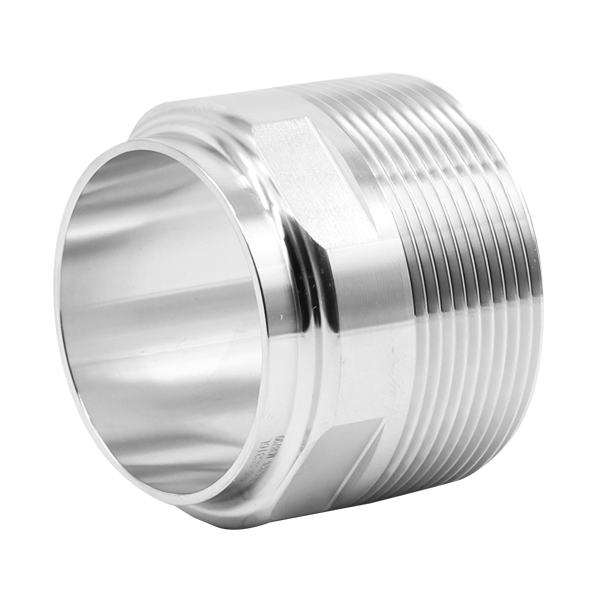

Weld Nipple Adapter

View

Code	Inch Size Code	Metric Size Code	Grade	COST
SWNA15	1/2" SWNA15	15NB - 12.7mm	316	$27.36
SWNA20	3/4" SWNA20	20NB - 19.05mm	316	$28.80
SWNA25	1" SWNA25	25NB - 25.4mm	316	$27.90
SWNA32	1 1/4" SWNA32	32NB - 31.8mm	316	$33.80
SWNA40	1 1/2" SWNA40	40NB - 38.1mm	316	$38.80
SWNA50	2" SWNA50	50NB - 50.8mm	316	$46.80
SWNA65	2 1/2" SWNA65	65NB - 63.5mm	316	$110.90
SWNA80	3" SWNA80	80NB - 76.2mm	316	$111.96
SWNA100	4" SWNA100	100NB - 101.6mm	316	$143.16

Tees

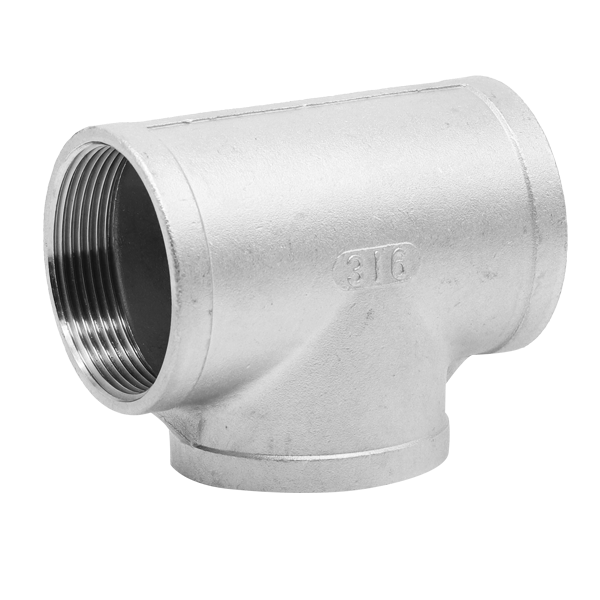

Tee

View

IMAGE DIAGRAM

Tee

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
ST06	1/8" ST06	6NB	316	$5.95
ST08	1/4" ST08	8NB	316	$6.66
ST10	3/8" ST10	10NB	316	$8.65
ST15	1/2" ST15	15NB	316	$11.34
ST20	3/4" ST20	20NB	316	$15.84
ST25	1" ST25	25NB	316	$24.30
ST32	1 1/4" ST32	32NB	316	$42.57
ST40	1 1/2" ST40	40NB	316	$60.75
ST50	2" ST50	50NB	316	$80.19
ST65	2 1/2" ST65	65NB	316	$141.35
ST80	3" ST80	80NB	316	$173.88
ST100	4" ST100	100NB	316	$254.25

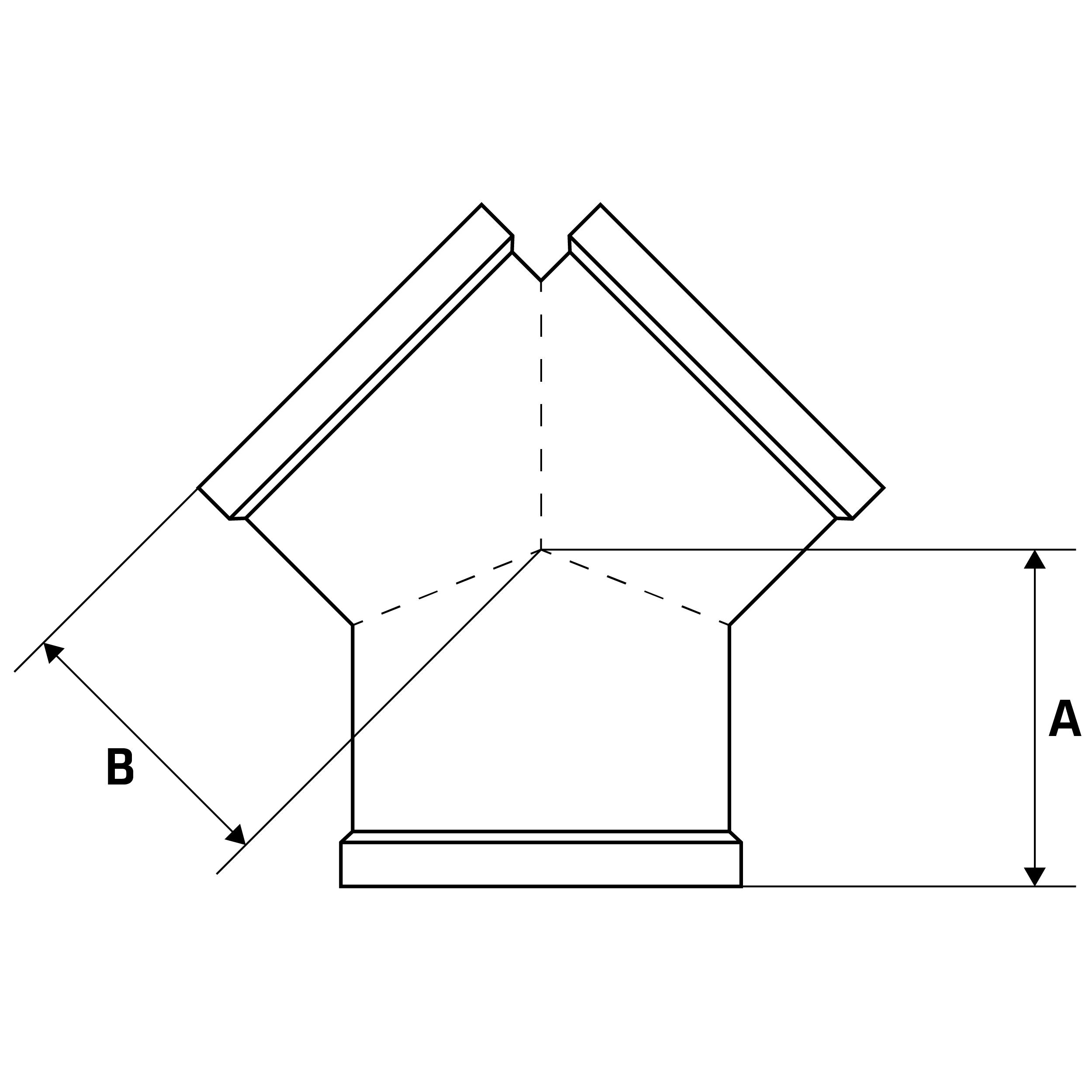

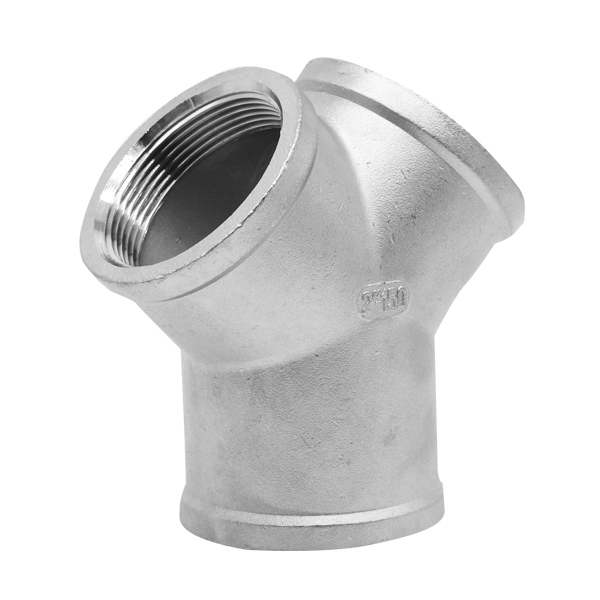

Y Type Tee

View

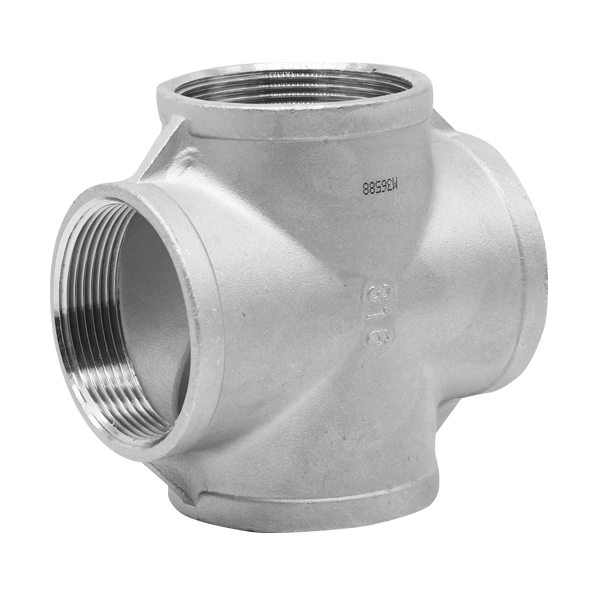

Cross

View

Bushes & Reducers

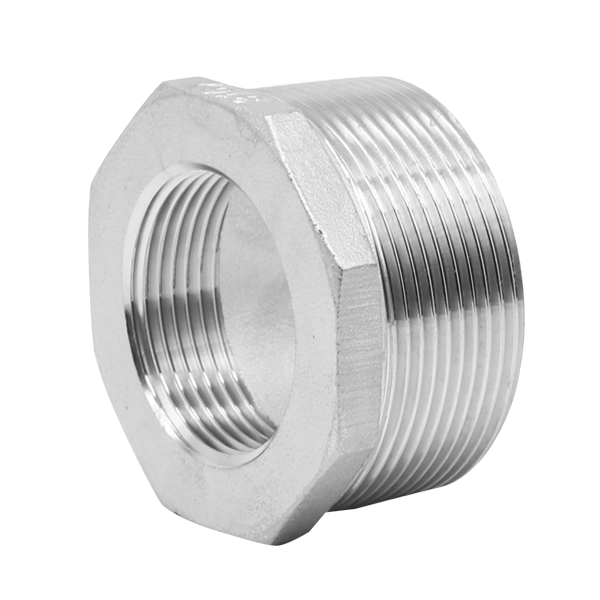

Hex Bush

View

IMAGE DIAGRAM

Hex Bush

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT), Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SB0806	1/4 -1/8" SB0806	8NB - 6NB	316	$4.85
SB1006	3/8 - 1/8" SB1006	10NB - 6NB	316	$5.25
SB1008	3/8 - 1/4" SB1008	10NB - 8NB	316	$6.75
SB1506	1/2 - 1/8" SB1506	15NB - 6NB	316	$6.45
SB1508	1/2 -1/4" SB1508	15NB - 8NB	316	$6.75
SB1510	1/2 -3/8" SB1510	15NB - 10NB	316	$6.75
SB2008	3/4 - 1/4" SB2008	20NB - 8NB	316	$6.90
SB2010	3/4 - 3/8" SB2010	20NB - 10NB	316	$8.10
SB2015	3/4 -1/2" SB2015	20NB - 15NB	316	$7.47
SB2508	1 - 1/4" SB2508	25NB - 8NB	316	$15.90
SB2510	1 - 3/8" SB2510	25NB - 10NB	316	$11.88
SB2515	1 - 1/2" SB2515	25NB - 15NB	316	$12.87
SB2520	1 - 3/4" SB2520	25NB - 20NB	316	$10.53
SB3208	1 1/4" - 1/4" SB3208	30NB - 8NB	316	$14.70
SB3210	1 1/4 - 3/8" SB3210	32NB - 10NB	316	$14.70
SB3215	1 1/4 - 1/2" SB3215	32NB - 15NB	316	$17.82
SB3220	1 1/4 -3/4" SB3220	32NB - 20NB	316	$18.72
SB3225	1 1/4 - 1" SB3225	32NB - 25NB	316	$15.21
SB4008	1 1/2 - 1/4" SB4008	40NB - 8NB	316	$19.15
SB4015	1 1/2 - 1/2" SB4015	40NB - 15NB	316	$23.05
SB4020	1 1/2 - 3/4" SB4020	40NB - 20NB	316	$26.91
SB4025	1 1/2 - 1" SB4025	40NB - 25NB	316	$22.23
SB4032	1 1/2 - 1 1/4" SB4032	40NB - 32NB	316	$16.38
SB5008	2 -1/4" SB5008	50NB - 8NB	316	$36.80
SB5015	2 - 1/2" SB5015	50NB - 15NB	316	$38.61
SB5020	2 - 3/4" SB5020	50NB - 20NB	316	$39.15
SB5025	2 - 1" SB5025	50NB - 25NB	316	$40.95
SB5032	2 - 1 1/4" SB5032	50NB - 32NB	316	$30.69
SB5040	2 - 1 1/2" SB5040	50NB - 40NB	316	$30.42
SB6540	2 1/2 - 1 1/2" SB6540	65NB - 40NB	316	$70.20
SB6550	2 1/2 - 2" SB6550	65NB - 50NB	316	$54.99
SB8050	3 - 2" SB8050	80NB - 50NB	316	$86.58
SB8065	3 - 2 1/2" SB8065	80NB - 65NB	316	$66.30
SB10050	4 - 2" SB10050	100NB - 50NB	316	$131.40
SB10065	4 - 2 1/2" SB10065	100NB - 65NB	316	$108.85
SB10080	4 - 3" SB10080	100NB - 80NB	316	$88.10

Hex Reducing Nipple

View

IMAGE DIAGRAM

Hex Reducing Nipple

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SHRN0806	1/4 -1/8" SHRN0806	8NB - 6NB	316	$5.50
SHRN1006	3/8 - 1/8" SHRN1006	10NB - 6NB	316	$5.80
SHRN1008	3/8 - 1/4" SHRN1008	10NB - 8NB	316	$7.20
SHRN1506	1/2 - 1/8" SHRN1506	15NB - 6NB	316	$6.70
SHRN1508	1/2 -1/4" SHRN1508	15NB - 8NB	316	$7.20
SHRN1510	1/2 -3/8" SHRN1510	15NB - 10NB	316	$7.65
SHRN2010	3/4 - 3/8" SHRN2010	20NB - 10NB	316	$10.80
SHRN2015	3/4 -1/2" SHRN2015	20NB - 15NB	316	$10.80
SHRN2515	1 - 1/2" SHRN2515	25NB - 15NB	316	$14.04
SHRN2520	1 - 3/4" SHRN2520	25NB - 20NB	316	$15.21
SHRN3220	1 1/4 -3/4" SHRN3220	32NB - 20NB	316	$23.40
SHRN3225	1 1/4 - 1" SHRN3225	32NB - 25NB	316	$23.40
SHRN4015	1 1/2 - 1/2" SHRN4015	40NB - 15NB	316	$18.09
SHRN4020	1 1/2 - 3/4" SHRN4020	40NB - 20NB	316	$25.74
SHRN4025	1 1/2 - 1" SHRN4025	40NB - 25NB	316	$26.91
SHRN4032	1 1/2 - 1 1/4" SHRN4032	40NB - 32NB	316	$29.25
SHRN5025	2 - 1" SHRN5025	50NB - 25NB	316	$39.78
SHRN5032	2 - 1 1/4" SHRN5032	50NB - 32NB	316	$39.78
SHRN5040	2 - 1 1/2" SHRN5040	50NB - 40NB	316	$40.95
SHRN6540	2 1/2 - 1 1/2" SHRN6540	65NB - 40NB	316	$58.10
SHRN6550	2 1/2 - 2" SHRN6550	65NB - 50NB	316	$58.50
SHRN8050	3 - 2" SHRN8050	80NB - 50NB	316	$79.20
SHRN8065	3 - 2 1/2" SHRN8065	80NB - 65NB	316	$95.94
SHRN10050	4 - 2" SHRN10050	100NB - 50NB	316	$109.10
SHRN10065	4 - 2 1/2" SHRN10065	100NB - 65NB	316	$109.10
SHRN10080	4 - 3" SHRN10080	100NB - 80NB	316	$122.95

Reducing Socket

View

IMAGE DIAGRAM

Reducing Socket

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SRS0806	1/4 -1/8" SRS0806	8NB - 6NB	316	$5.49
SRS1006	3/8 - 1/8" SRS1006	10NB - 6NB	316	$5.80
SRS1008	3/8 - 1/4" SRS1008	10NB - 8NB	316	$5.95
SRS1506	1/2 - 1/8" SRS1506	15NB - 6NB	316	$5.95
SRS1508	1/2 -1/4" SRS1508	15NB - 8NB	316	$7.20
SRS1510	1/2 -3/8" SRS1510	15NB - 10NB	316	$7.20
SRS2010	3/4 - 3/8" SRS2010	20NB - 10NB	316	$7.00
SRS2015	3/4 -1/2" SRS2015	20NB - 15NB	316	$8.10
SRS2515	1 - 1/2" SRS2515	25NB - 15NB	316	$9.65
SRS2520	1 - 3/4" SRS2520	25NB - 20NB	316	$12.87
SRS3225	1 1/4 - 1" SRS3225	32NB - 25NB	316	$18.72
SRS4020	1 1/2 - 3/4" SRS4020	40NB - 20NB	316	$24.57
SRS4025	1 1/2 - 1" SRS4025	40NB - 25NB	316	$19.25
SRS4032	1 1/2 - 1 1/4" SRS4032	40NB - 32NB	316	$19.70
SRS5025	2 - 1" SRS5025	50NB - 25NB	316	$28.90
SRS5032	2 - 1 1/4" SRS5032	50NB - 32NB	316	$31.68
SRS5040	2 - 1 1/2" SRS5040	50NB - 40NB	316	$38.61
SRS6550	2 1/2 - 2" SRS6550	65NB - 50NB	316	$52.05
SRS8050	3 - 2" SRS8050	80NB - 50NB	316	$93.60
SRS8065	3 - 2 1/2" SRS8065	80NB - 65NB	316	$97.29
SRS10050	4 - 2" SRS10050	100NB - 50NB	316	$117.00
SRS10065	4 - 2 1/2" SRS10065	100NB - 65NB	316	$103.30
SRS10080	4 - 3" SRS10080	100NB - 80NB	316	$122.20

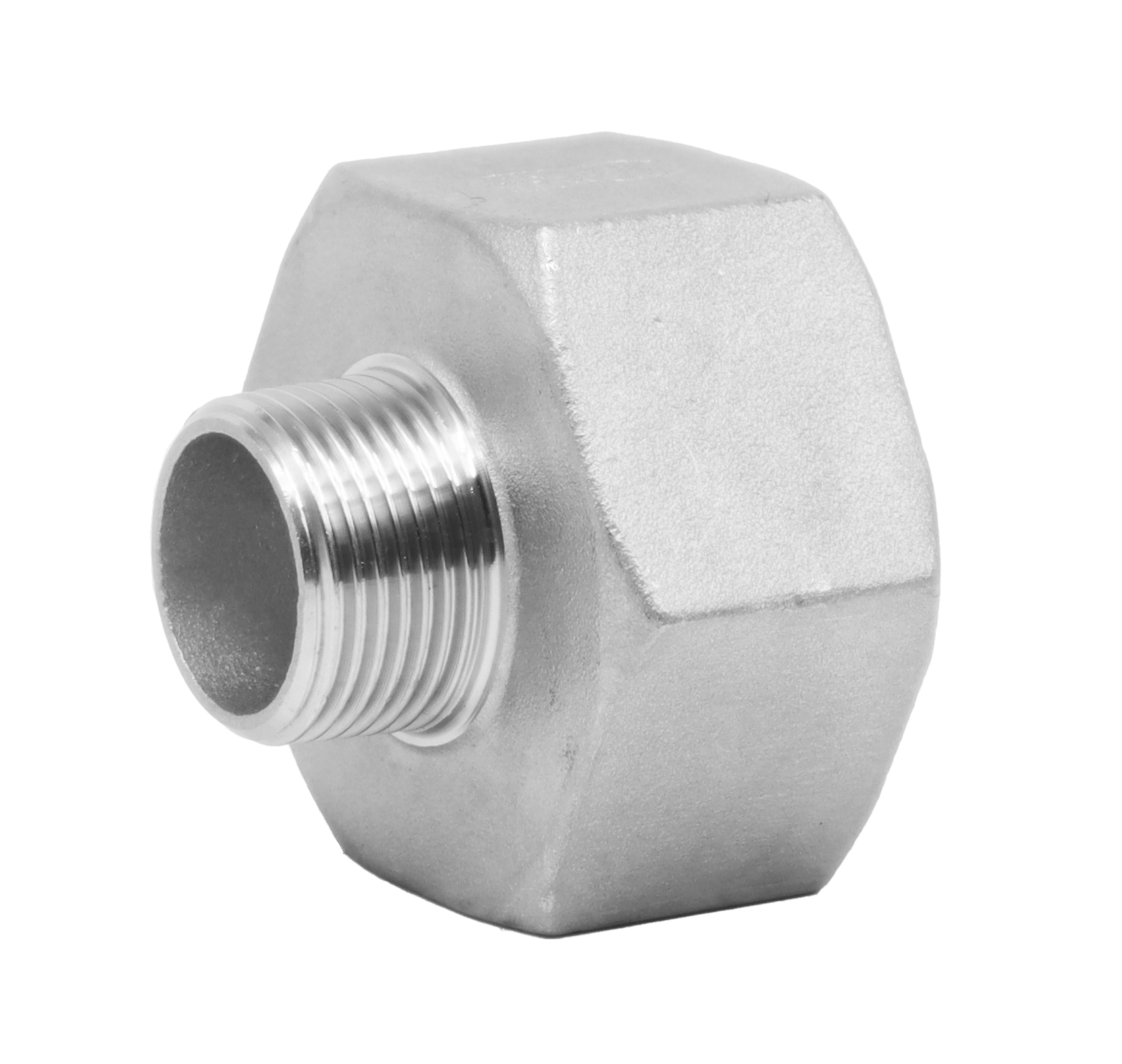

Negative Bush

View

IMAGE DIAGRAM

Negative Bush

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT), Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SNB0806	1/4 -1/8" SNB0806	8NB - 6NB	316	$5.25
SNB1006	3/8 - 1/8" SNB1006	10NB - 6NB	316	$5.25
SNB1008	3/8 - 1/4" SNB1008	10NB - 8NB	316	$5.95
SNB1506	1/2 - 1/8" SNB1506	15NB - 6NB	316	$4.40
SNB1508	1/2 -1/4" SNB1508	15NB - 8NB	316	$6.84
SNB1510	1/2 -3/8" SNB1510	15NB - 10NB	316	$5.95
SNB2008	3/4 - 1/4" SNB2008	20NB - 8NB	316	$6.75
SNB2010	3/4 - 3/8" SNB2010	20NB - 10NB	316	$6.90
SNB2015	3/4 -1/2" SNB2015	20NB - 15NB	316	$8.37
SNB2515	1 -1/2" SNB2515	25NB - 15NB	316	$11.30
SNB2520	1 - 3/4" SNB2520	25NB - 20NB	316	$12.65
SNB3220	1 1/4 -3/4" SNB3220	32NB - 20NB	316	$16.90
SNB3225	1 1/4 - 1" SNB3225	32NB - 25NB	316	$18.55
SNB4020	1 1/2 - 3/4" SNB4020	40NB - 20NB	316	$20.00
SNB4025	1 1/2 - 1" SNB4025	40NB - 25NB	316	$22.25
SNB4032	1 1/2 - 1 1/4" SNB4032	40NB - 32NB	316	$25.92
SNB5025	2 - 1" SNB5025	50NB - 25NB	316	$35.25
SNB5032	2 - 1 1/4" SNB5032	50NB - 32NB	316	$34.60
SNB5040	2 - 1 1/2" SNB5040	50NB - 40NB	316	$37.44
SNB6550	2 1/2 - 2" SNB6550	65NB - 50NB	316	$71.10
SNB8050	3 - 2" SNB8050	80NB - 50NB	316	$96.95
SNB8065	3 - 2 1/2" SNB8065	80NB - 65NB	316	$103.60

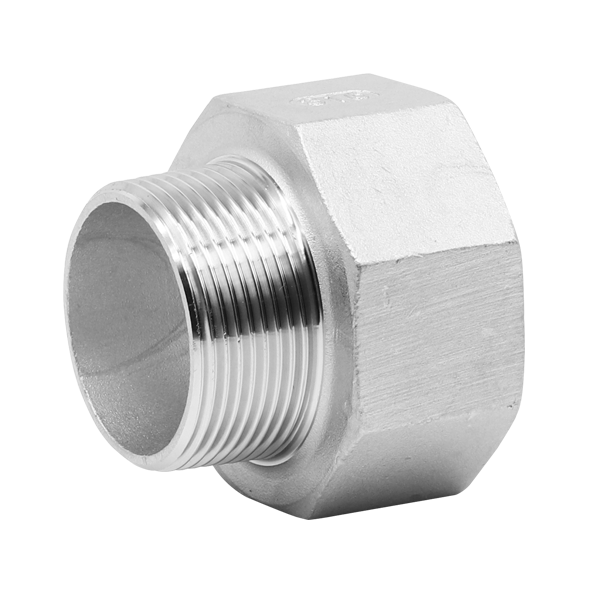

Extension Socket

View

Hosetails

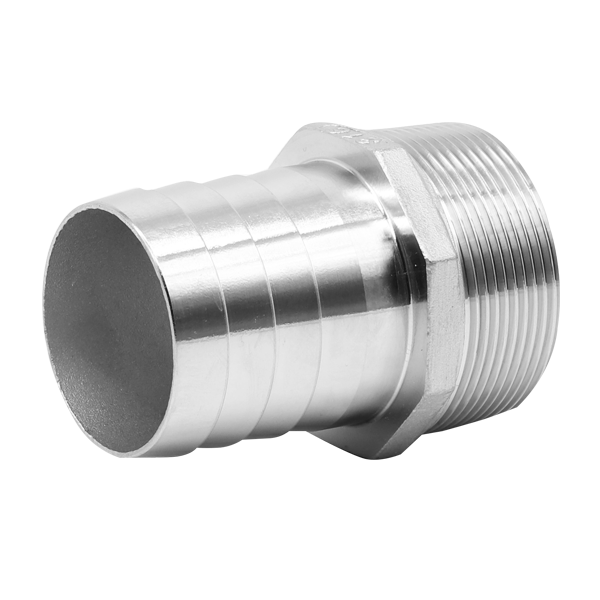

Male Hosetail

View

IMAGE DIAGRAM

Male Hosetail

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to DIN 2999 & 150 228/1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SMH06	1/8" SMH06	6NB	316	$3.06
SMH08	1/4" SMH08	8NB	316	$3.60
SMH10	3/8" SMH10	10NB	316	$5.31
SMH15	1/2" SMH15	15NB	316	$7.56
SMH20	3/4" SMH20	20NB	316	$11.07
SMH25	1" SMH25	25NB	316	$15.84
SMH32	1 1/4" SMH32	32NB	316	$21.60
SMH40	1 1/2" SMH40	40NB	316	$31.14
SMH50	2" SMH50	50NB	316	$42.93
SMH65	2 1/2" SMH65	65NB	316	$77.40
SMH80	3" SMH80	80NB	316	$127.80
SMH08-9	1/4" SMH08-9	8NB	316	$4.41
SMH100	4" SMH100	100NB	316	$203.13
SMH15-15	1/2" SMH15-15	15NB	316	$10.50

Female Hosetail

View

Plugs & Caps

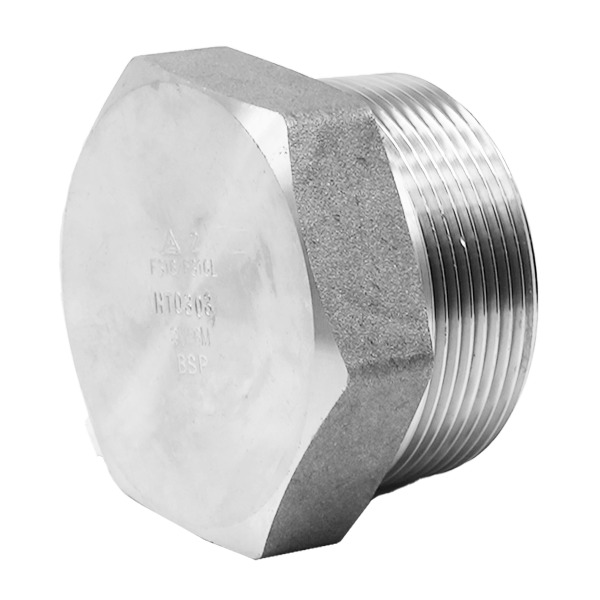

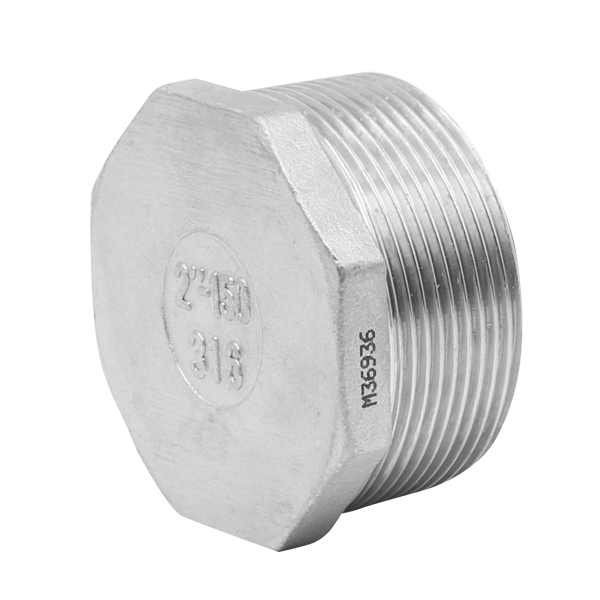

Hex Plug

View

IMAGE DIAGRAM

Hex Plug

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Male Threads are Tapered (BSPT)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Hollow Centre

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SHP06	1/8" SHP06	6NB	316	$4.70
SHP08	1/4" SHP08	8NB	316	$5.85
SHP10	3/8" SHP10	10NB	316	$6.48
SHP15	1/2" SHP15	15NB	316	$6.75
SHP20	3/4" SHP20	20NB	316	$7.65
SHP25	1" SHP25	25NB	316	$9.65
SHP32	1 1/4" SHP32	32NB	316	$12.60
SHP40	1 1/2" SHP40	40NB	316	$18.81
SHP50	2" SHP50	50NB	316	$29.70
SHP65	2 1/2" SHP65	65NB	316	$54.45
SHP80	3" SHP80	80NB	316	$59.65
SHP100	4" SHP100	100NB	316	$111.60

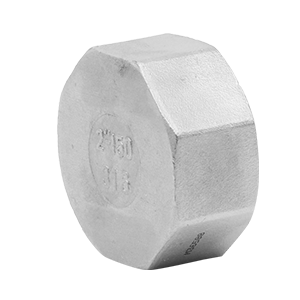

Hex Cap

View

IMAGE DIAGRAM

Hex Cap

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SHC06	1/8" SHC06	6NB	316	$5.25
SHC08	1/4" SHC08	8NB	316	$5.25
SHC10	3/8" SHC10	10NB	316	$5.80
SHC15	1/2" SHC15	15NB	316	$6.84
SHC20	3/4" SHC20	20NB	316	$7.65
SHC25	1" SHC25	25NB	316	$11.70
SHC32	1 1/4" SHC32	32NB	316	$15.40
SHC40	1 1/2" SHC40	40NB	316	$23.40
SHC50	2" SHC50	50NB	316	$26.05
SHC65	2 1/2" SHC65	65NB	316	$51.20
SHC80	3" SHC80	80NB	316	$74.35
SHC100	4" SHC100	100NB	316	$116.05

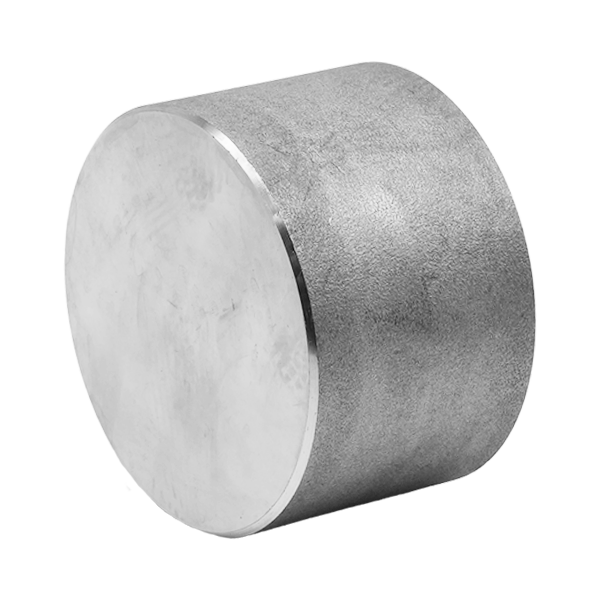

Round Cap

View

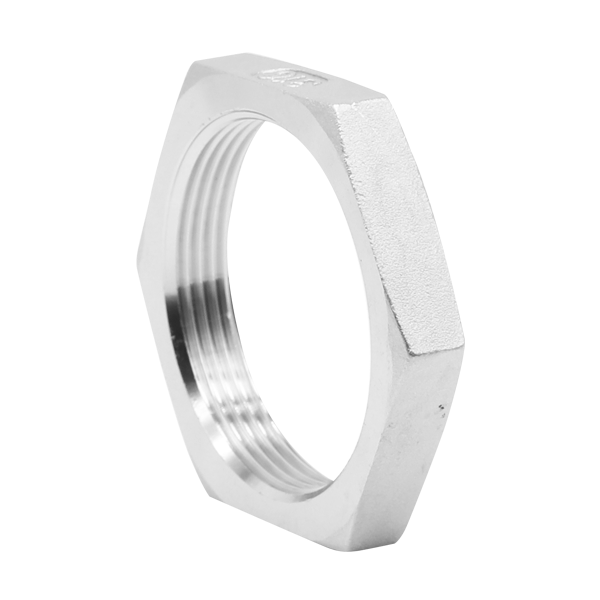

Hex Back Nut

View

IMAGE DIAGRAM

Hex Back Nut

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Use With Nippling Tube

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SN06	1/8" SN06	6NB	316	$4.70
SN08	1/4" SN08	8NB	316	$4.70
SN10	3/8" SN10	10NB	316	$5.25
SN15	1/2" SN15	15NB	316	$5.80
SN20	3/4" SN20	20NB	316	$5.95
SN25	1" SN25	25NB	316	$7.00
SN32	1 1/4" SN32	32NB	316	$11.34
SN40	1 1/2" SN40	40NB	316	$10.89
SN50	2" SN50	50NB	316	$14.30
SN65	2 1/2" SN65	65NB	316	$24.35
SN80	3" SN80	80NB	316	$37.00
SN100	4" SN100	100NB	316	$51.20

Mac Unions

Mac Union

View

IMAGE DIAGRAM

Mac Union

Features

BSP Threaded Ends
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Investment lost wax casting manufactured to ISO 9001 : 2015
Thread ends conform to ISO 7-1 & ISO 228-1
Female Threads are Parallel (BSPP)
Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Flat Faced Union
EPDM Gasket Included, But Can Be Sold Separately.
Please Note, we are changing the gasket to an O-Ring as our new orders arrive. Some existing stock will still have flat section gasket.

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SMU06#	1/8" - CLEARANCE SMU06#	6NB	316	$4.25
SMU08	1/4" SMU08	8NB	316	$16.20
SMU10	3/8" SMU10	10NB	316	$15.25
SMU15	1/2" SMU15	15NB	316	$26.46
SMU20	3/4" SMU20	20NB	316	$28.08
SMU25	1" SMU25	25NB	316	$37.80
SMU32	1 1/4" SMU32	32NB	316	$90.72
SMU40	1 1/2" SMU40	40NB	316	$100.80
SMU50	2" SMU50	50NB	316	$144.63
SMU65	2 1/2" SMU65	65NB	316	$127.60
SMU80	3" SMU80	80NB	316	$243.00
SMU100	4" SMU100	100NB	316	$364.10

Mac Union EPDM Seal

View

Mac Union EPDM Seal

Features

EPDM seal temperature rating 120 °C
EPDM is suitable for hot water, steam, alcohols or coolants
Not resistant to mineral oils, greases or fuels

Code	Inch Size Code	Metric Size Code	Grade	COST
SMUS06N#	1/8" - CLEARANCE SMUS06N#	3.18	EPDM	$1.38
SMUS10N#	3/8" - CLEARANCE SMUS10N#	9.53	EPDM	$1.98
(SMUS15N#)	1/2" - CLEARANCE (SMUS15N#)	12.7	EPDM	$2.43
SMUS20N#	3/4" - CLEARANCE SMUS20N#	19.05	EPDM	$2.58
SMUS25N#	1" - CLEARANCE SMUS25N#	25.4	EPDM	$1.98
SMUS32N#	1 1/4" - CLEARANCE SMUS32N#	31.8	EPDM	$5.28
SMUS40N#	1 1/2" - CLEARANCE SMUS40N#	38.1	EPDM	$7.50
SMUS50N#	2" - CLEARANCE SMUS50N#	50.8	EPDM	$2.33
SMUS65N#	2 1/2" - CLEARANCE SMUS65N#	63.5	EPDM	$11.35
SMUS80N#	3" - CLEARANCE SMUS80N#	76.2	EPDM	$21.35
SMUS100N#	4" - CLEARANCE SMUS100N#	101.6	EPDM	$29.78

Mac Union PTFE Seal

View

Mac Union PTFE Seal

Features

PTFE seal temperature rating 250 °C
PTFE is suitable for chemical resistance

Code	Inch Size Code	Metric Size Code	Grade	COST
SMUST06N#	1/8" - CLEARANCE SMUST06N#	3.18	PTFE	$1.38
SMUST08N#	1/4" SMUST08N#	6.35	PTFE	$3.25
SMUST10N#	3/8" - CLEARANCE SMUST10N#	9.53	PTFE	$1.98
SMUST15N#	1/2" SMUST15N#	12.7	PTFE	$4.85
SMUST20N#	3/4" - CLEARANCE SMUST20N#	19.05	PTFE	$2.58
SMUST25N#	1" SMUST25N#	25.4	PTFE	$7.60
SMUST32N#	1 1/4" - CLEARANCE SMUST32N#	31.8	PTFE	$5.28
SMUST40N#	1 1/2" - CLEARANCE SMUST40N#	38.1	PTFE	$5.75
SMUST50N#	2" - CLEARANCE SMUST50N#	50.8	PTFE	$9.00
SMUST65N#	2 1/2" - CLEARANCE SMUST65N#	63.5	PTFE	$11.35
SMUST80N#	3" - CLEARANCE SMUST80N#	76.2	PTFE	$21.35
SMUST100N#	4" - CLEARANCE SMUST100N#	101.6	PTFE	$29.78

BSP Adapters

BSP Nipple to Tri Clover Adapter

View

IMAGE DIAGRAM

BSP Nipple to Tri Clover Adapter

Features

BSP Threaded End - BSP Male
Working Pressure: 150lbs (psi) / 10bar
Working Temperature: 250°C at 10bar
Flat Spot For Ease Of Tightening
Male Threads are Tapered (BSPT)

VIEW DIMENSIONS

Code	Inch Size Code	Metric Size Code	Grade	COST
SWNAFER12	1/2" SWNAFER12	15NB - 12.7mm	316	$57.55
SWNAFER20	3/4" SWNAFER20	20NB - 19.05mm	316	$40.55
SWNAFER25	1" SWNAFER25	25NB - 25.4mm	316	$70.20
SWNAFER30	1 1/4" SWNAFER30	32NB - 31.8mm	316	$69.90
SWNAFER40	1 1/2" SWNAFER40	40NB - 38.1mm	316	$67.45
SWNAFER50	2" SWNAFER50	50NB - 50.8mm	316	$88.44
SWNAFER65	2 1/2" SWNAFER65	65NB - 63.5mm	316	$120.85
SWNAFER75	3" SWNAFER75	80NB - 76.2mm	316	$150.84
SWNAFER100	4" SWNAFER100	100NB - 101.6mm	316	$273.45
SWNAFER2520	1" SWNAFER2520	25NB - 25.4mm	316	$31.80
