Expansion & Vibration
Expansion Bellows
-
Stainless Steel Table D/E Expansion Bellow
Stainless Steel Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Stainless Steel Flanges
View Dimensions
-
Galvanised Table D/E Expansion Bellow
Galvanised Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Galvanised Table E Flanges
View Dimensions
Expansion Compensators
-

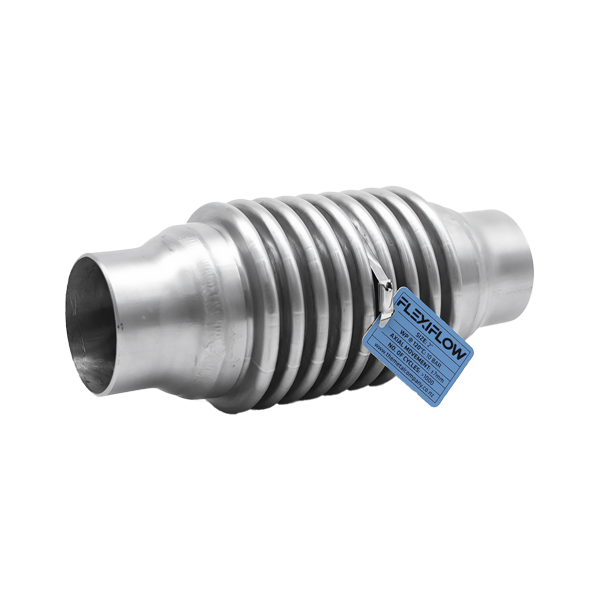

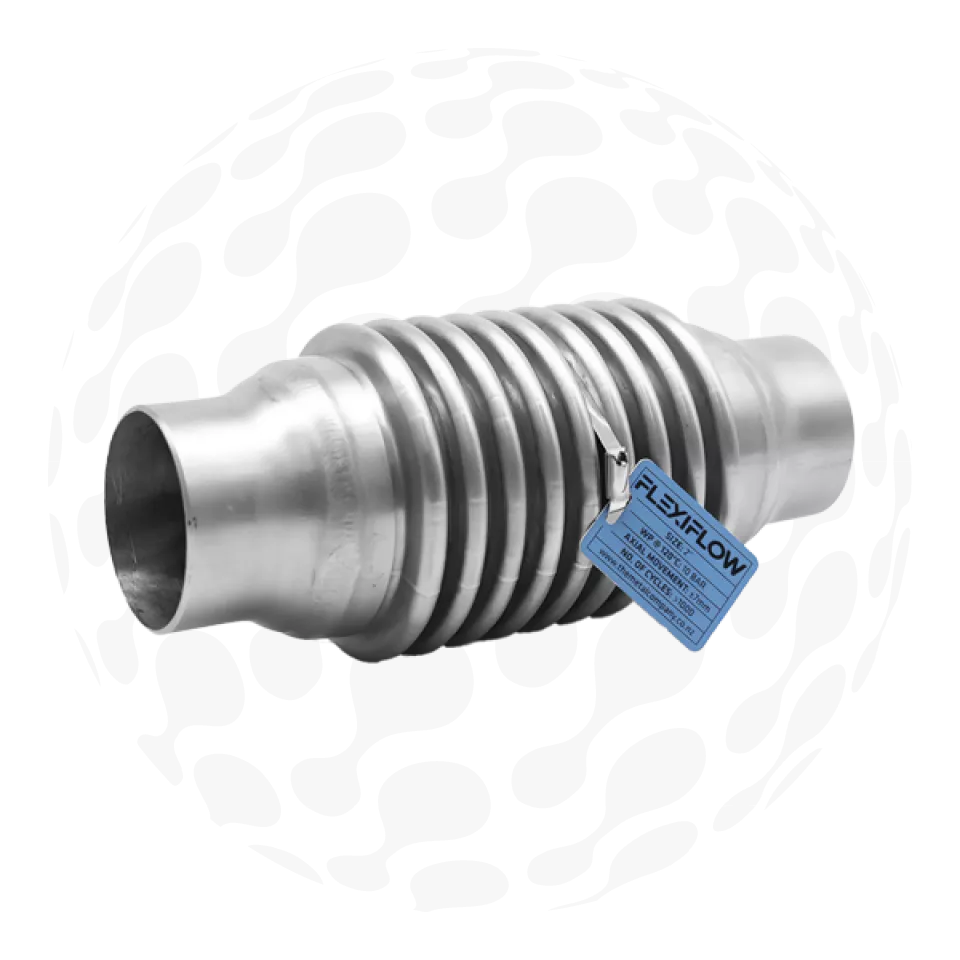

FlexiFlow Tube Expansion Compensator
FlexiFlow Tube Expansion Compensator
Features
- To suit imperial sized tube
- Number of Cycles: > 1,000
- Manufactured to ASTM A240 ...
- Additional information including Design Temperature/Pressure, Axial Movement (Compression/Expansion), Lateral Movement, and Angular Rotation available on request

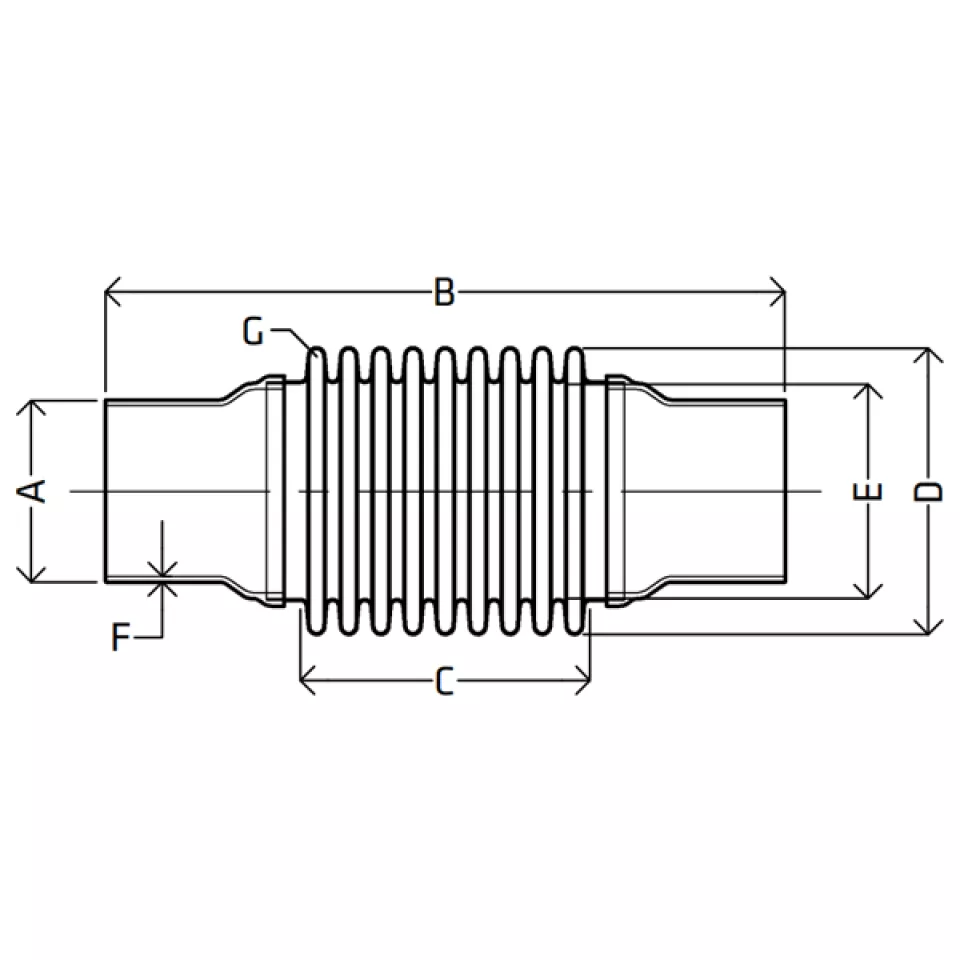

- Measurement definitions:
- E = Bellow internal diameter
- G = Number of convolutions
View Dimensions -

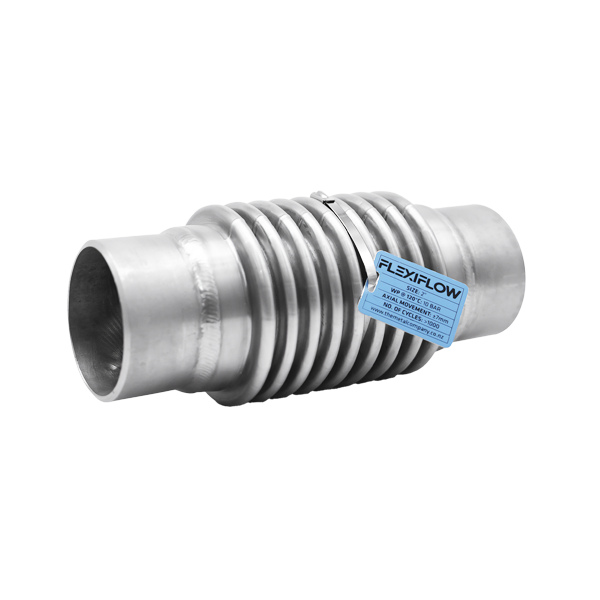

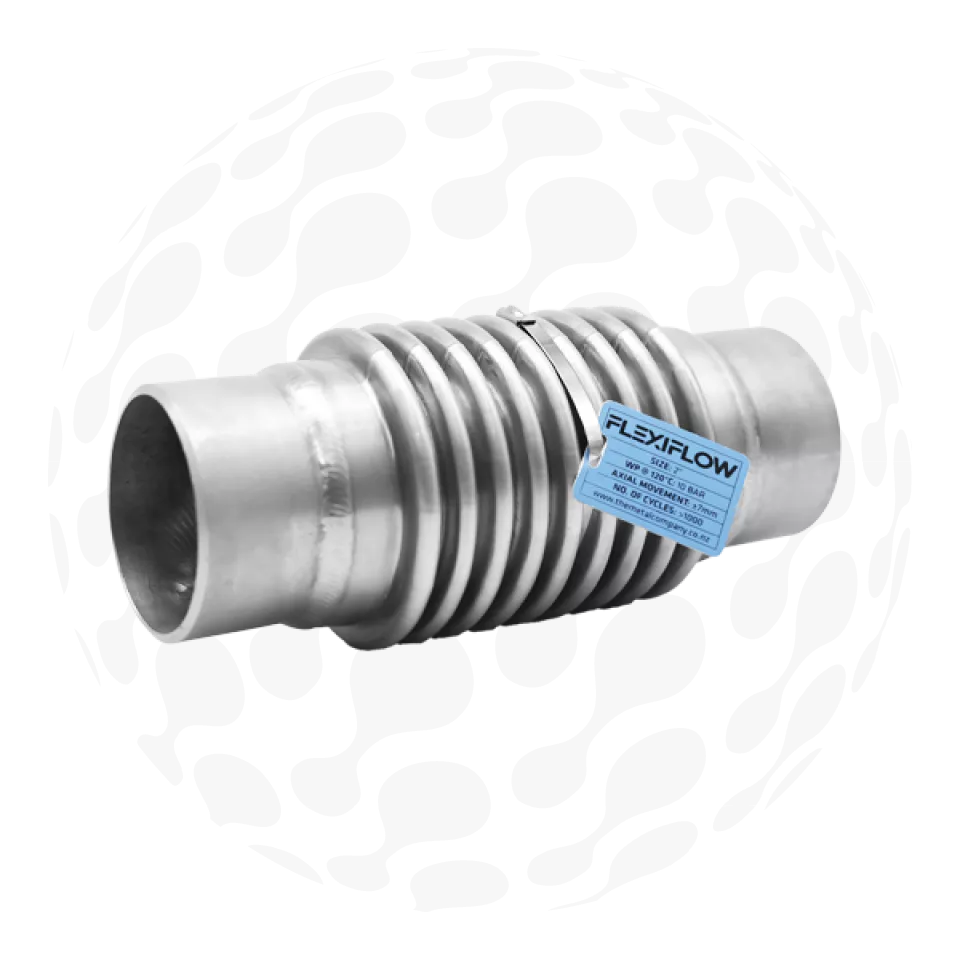

FlexiFlow Pipe Expansion Compensator SCH10S
FlexiFlow Pipe Expansion Compensator SCH10S
Features
- To suit Schedule 10S Pipe
- Number of Cycles: > 1,000
- Manufactured to ASTM A240 ...
- Additional information including Design Temperature/Pressure, Axial Movement (Compression/Expansion), Lateral Movement, and Angular Rotation available on request
- Measurement definitions:
- E = Bellow internal diameter
- G = Number of convolutions
View Dimensions
-
RapidPress Expansion Compensator
RapidPress Expansion Compensator
Features
- EPDM Seals
- Temperature rating: -20°C to +120°C
- Maximum operating pressure: 16 Bar (232 psi) ...
- Refer to page 35 in our RapidPress Technical Guide for our Expansion Compensation Table
- Measurement 'D' = Maximum amount of expansion length
- Also available in our RapidPress Extreme, RapidPress Gas & RapidPress Steam ranges
View Dimensions
You need to have a trade account with us to download CAD files.
FlexiFlow Hoses & Fittings
-

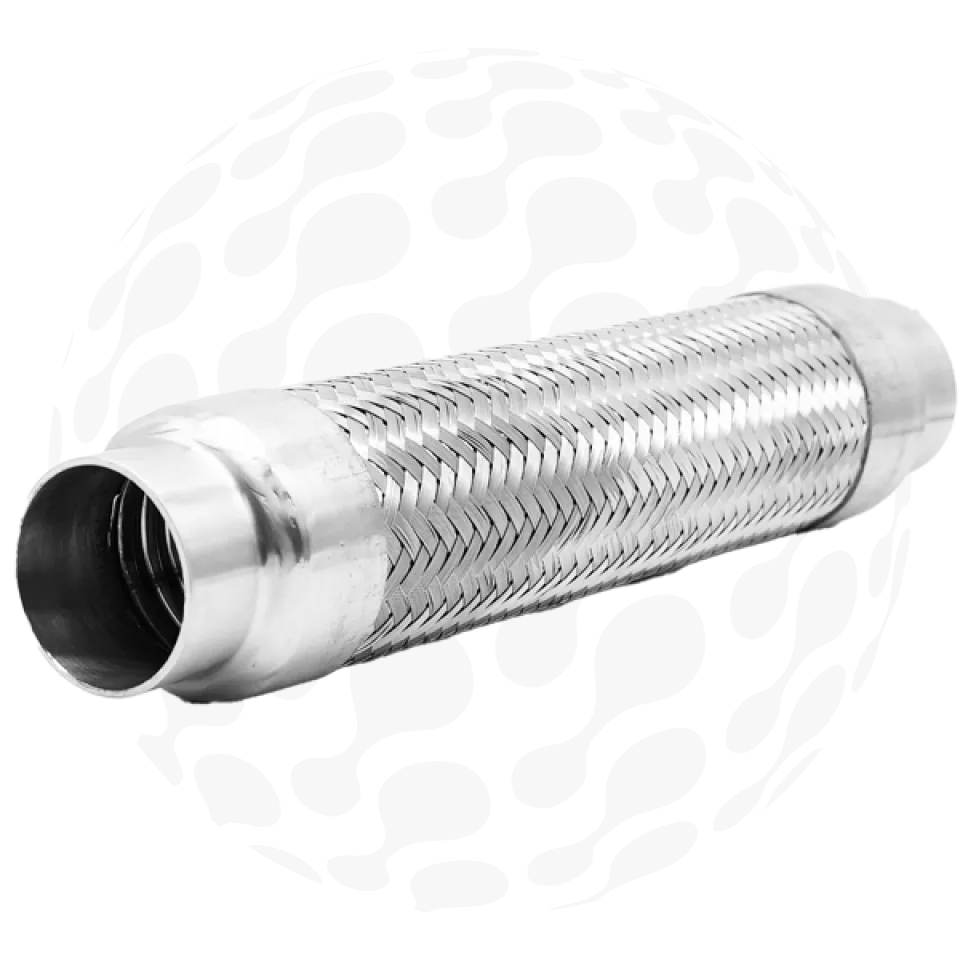

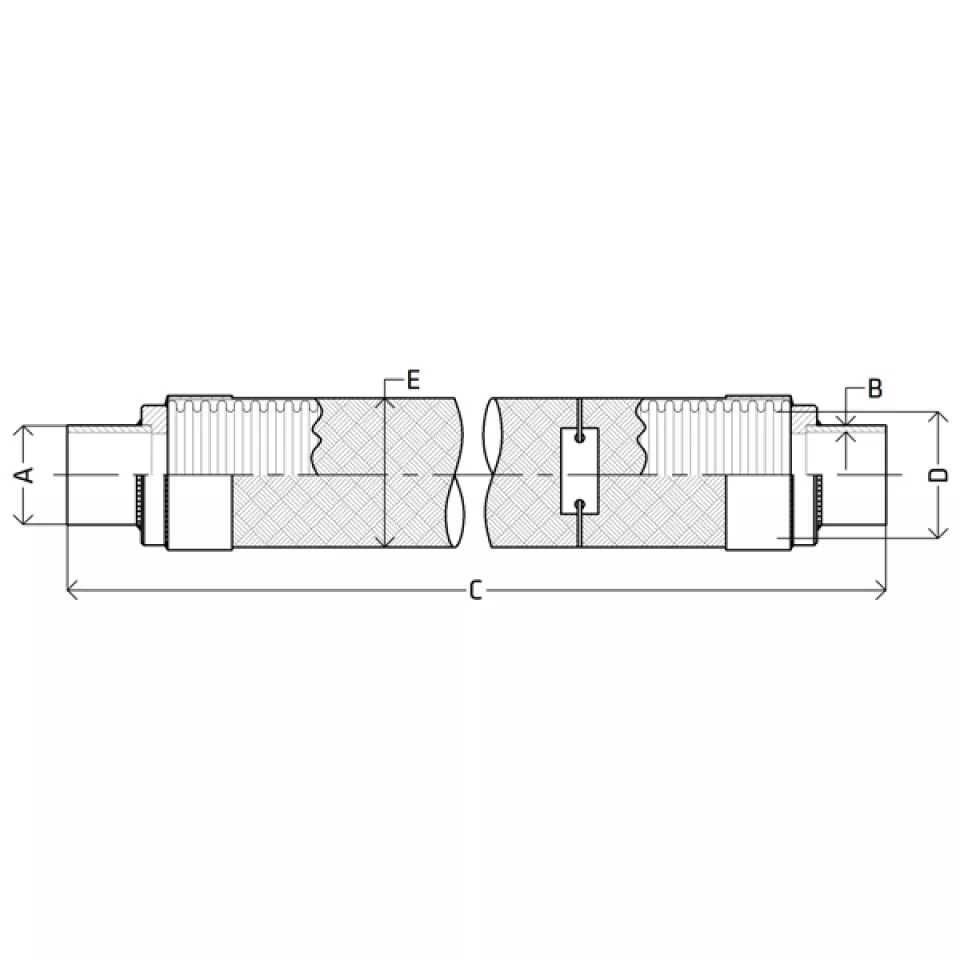

FlexiFlow Hose with Imperial Tube Ends
ISO 10380-2012, Type 1-10
FlexiFlow Hose with Imperial Tube Ends
ISO 10380-2012, Type 1-10
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose with Imperial Tube Butt Weld Ends
- Temperature Rating: -100˚C to 550˚C
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10 ...
- Click 'View Dimensions' for the following information: 'F' = Static/Flexing Minimum Bend Radius (mm), 'G' = Working/Test Pressure (bar)
View Dimensions
-

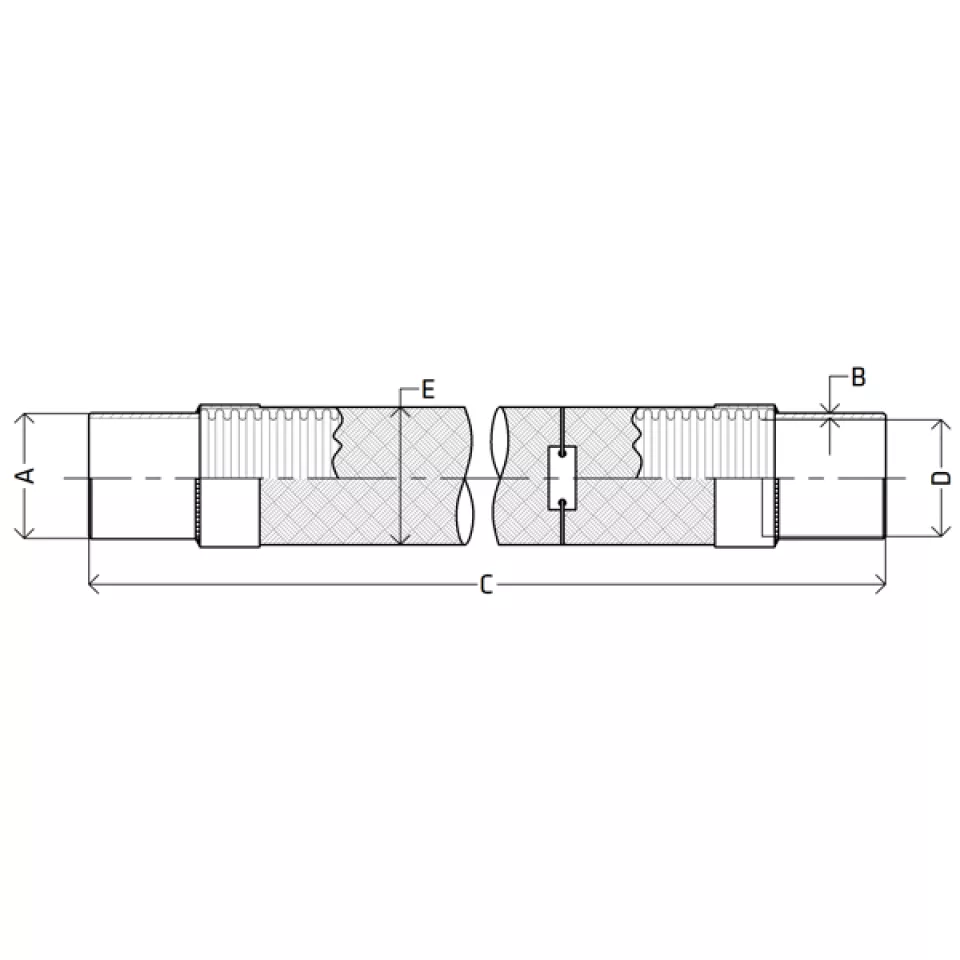

FlexiFlow Hose with Schedule 10S Pipe Ends
ISO 10380-2012, Type 1-10
FlexiFlow Hose with Schedule 10S Pipe Ends
ISO 10380-2012, Type 1-10
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose with Schedule 10S Pipe Butt Weld Ends
- Temperature Rating: -100˚C to 550˚C
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10 ...
- Click 'View Dimensions' for the following information: 'F' = Static/Flexing Minimum Bend Radius (mm), 'G' = Working/Test Pressure (bar)
View Dimensions
-

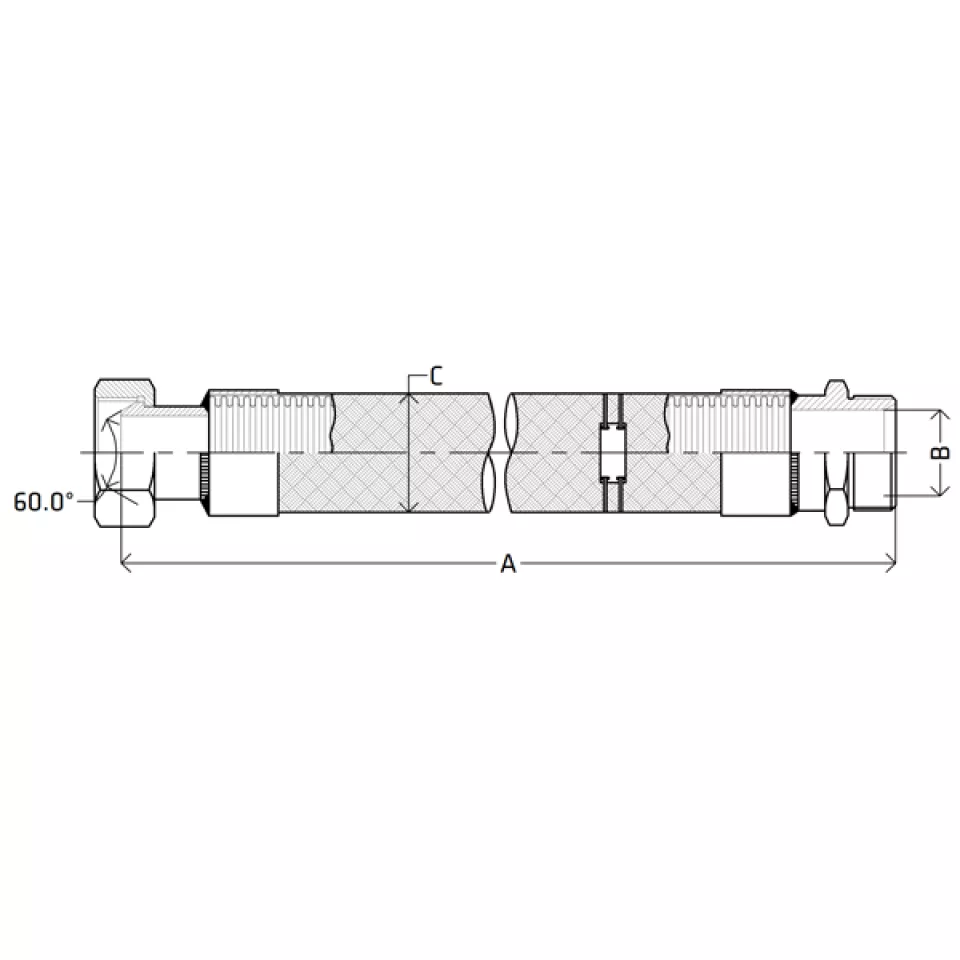

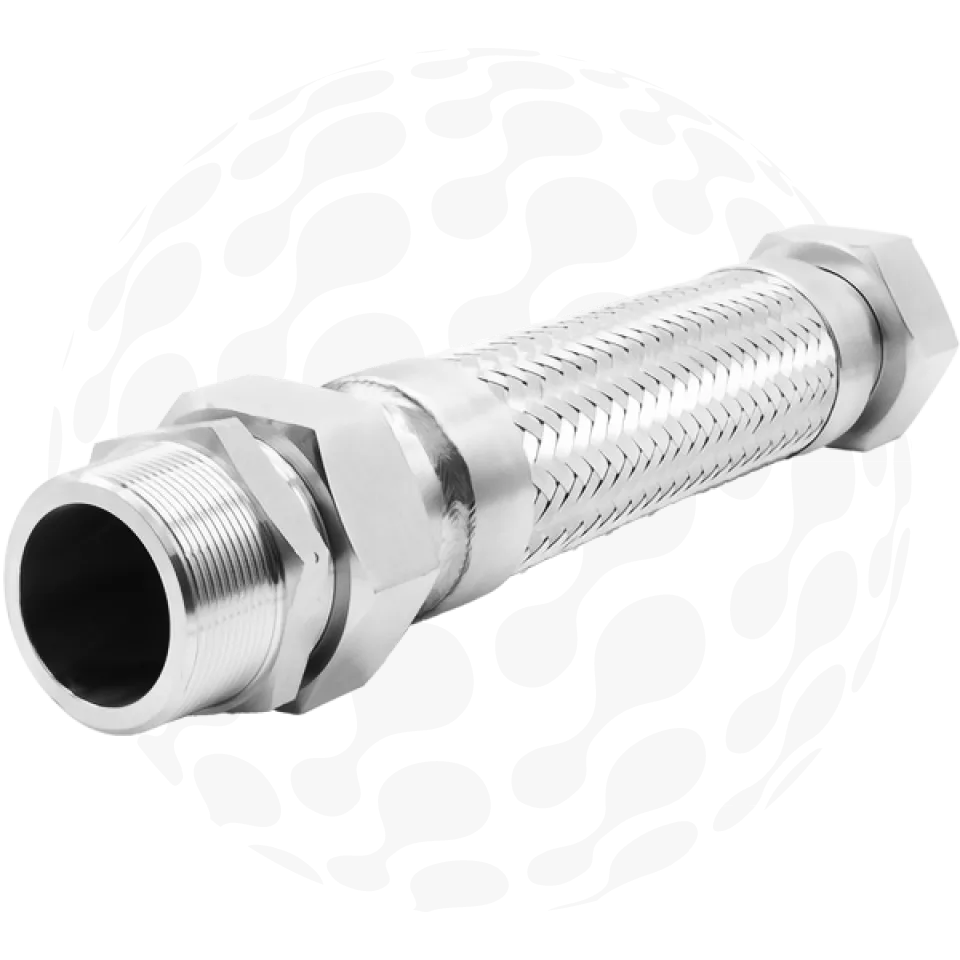

FlexiFlow Hose with BSP Male/Female Connections
ISO 10380-2012, Type 1-10
FlexiFlow Hose with BSP Male/Female Connections
ISO 10380-2012, Type 1-10
Features
- ***Please note that some stock is made up of FlexiFlow Hoses with BSP Running Nuts on both ends with a BSP Conical Hex Nipple pre-installed on one end until new stock arrives***
- FlexiFlow Stainless Steel Convoluted Braided Hose with BSP Nipple & BSP Running Nut
- Temperature Rating: -100˚C to 550˚C ...
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'E' = Working/Test Pressure (bar)
View Dimensions
-

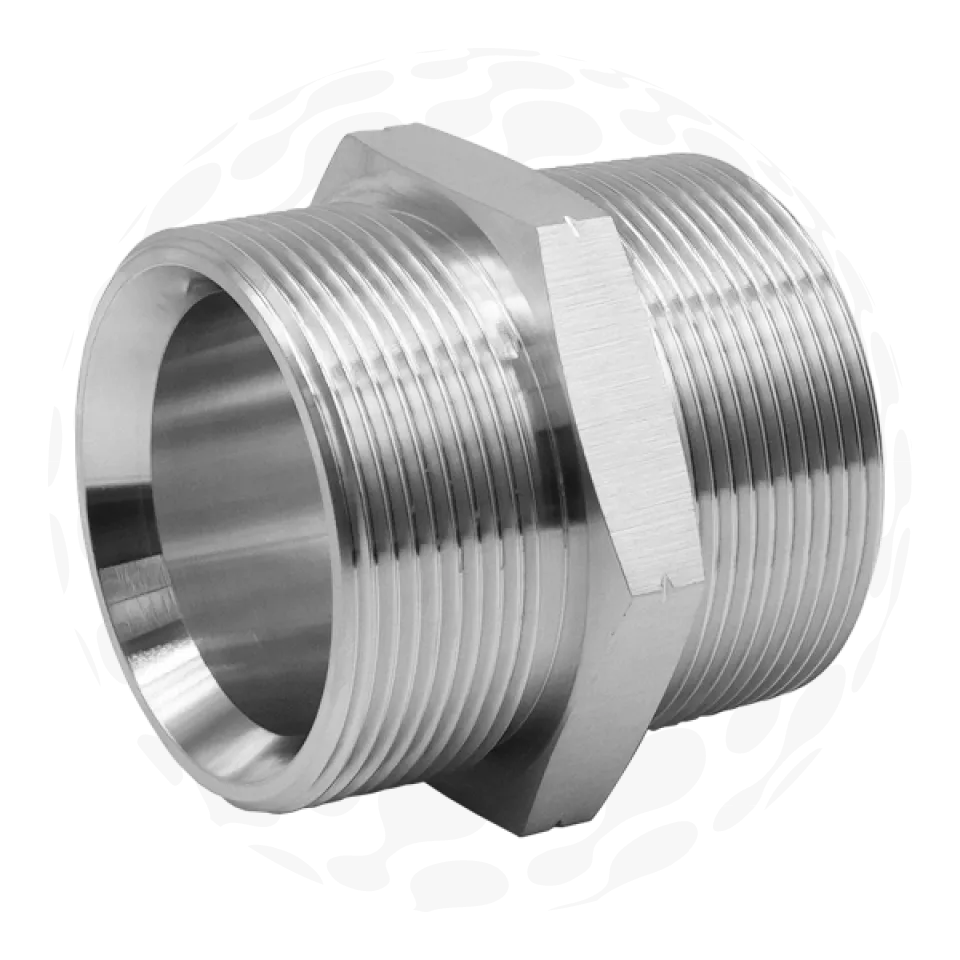

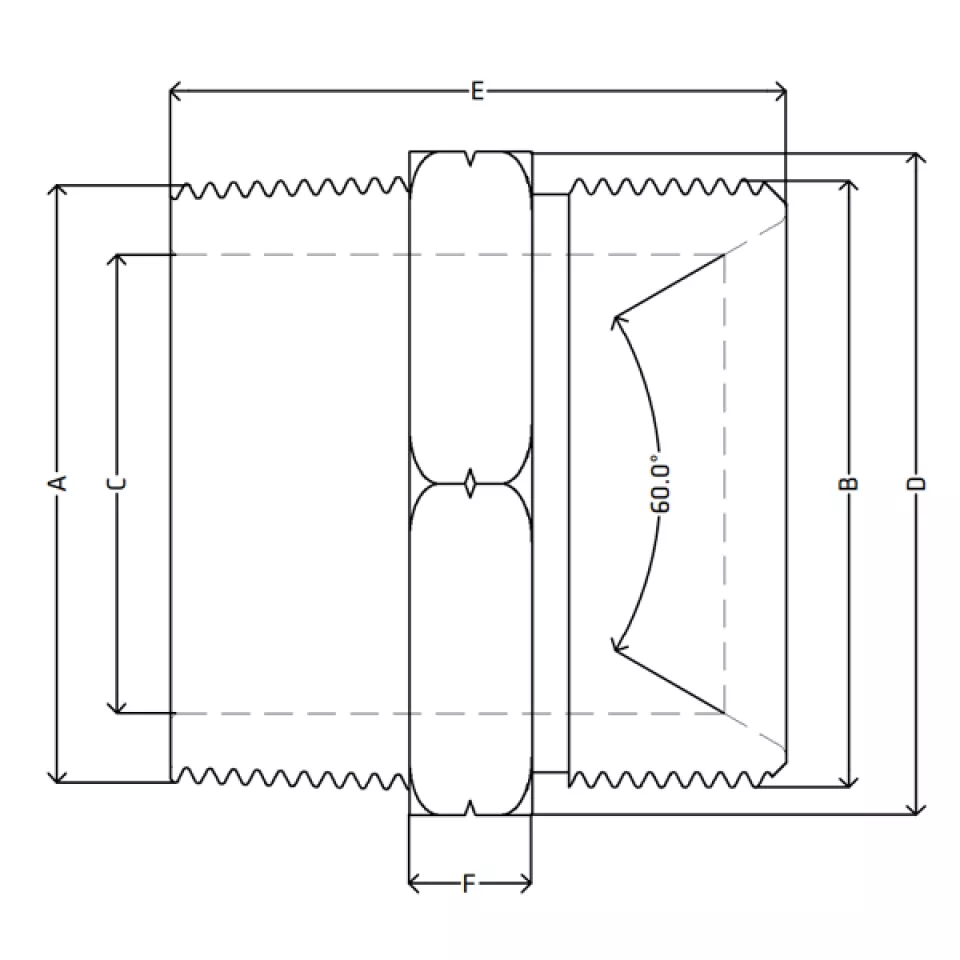

FlexiFlow BSP Conical Hex Nipple
FlexiFlow BSP Conical Hex Nipple
Features
- Conical faced internal suitable for use with FlexiFlow Hoses with BSP Running Nuts
- Working Pressure: 10 bar (150 psi)
- Working Temperature: 250°C @ 10 bar ...
- BSP Threads: ISO 7-1 (BSPT), ISO 228-1 (BSPP)
View Dimensions
-

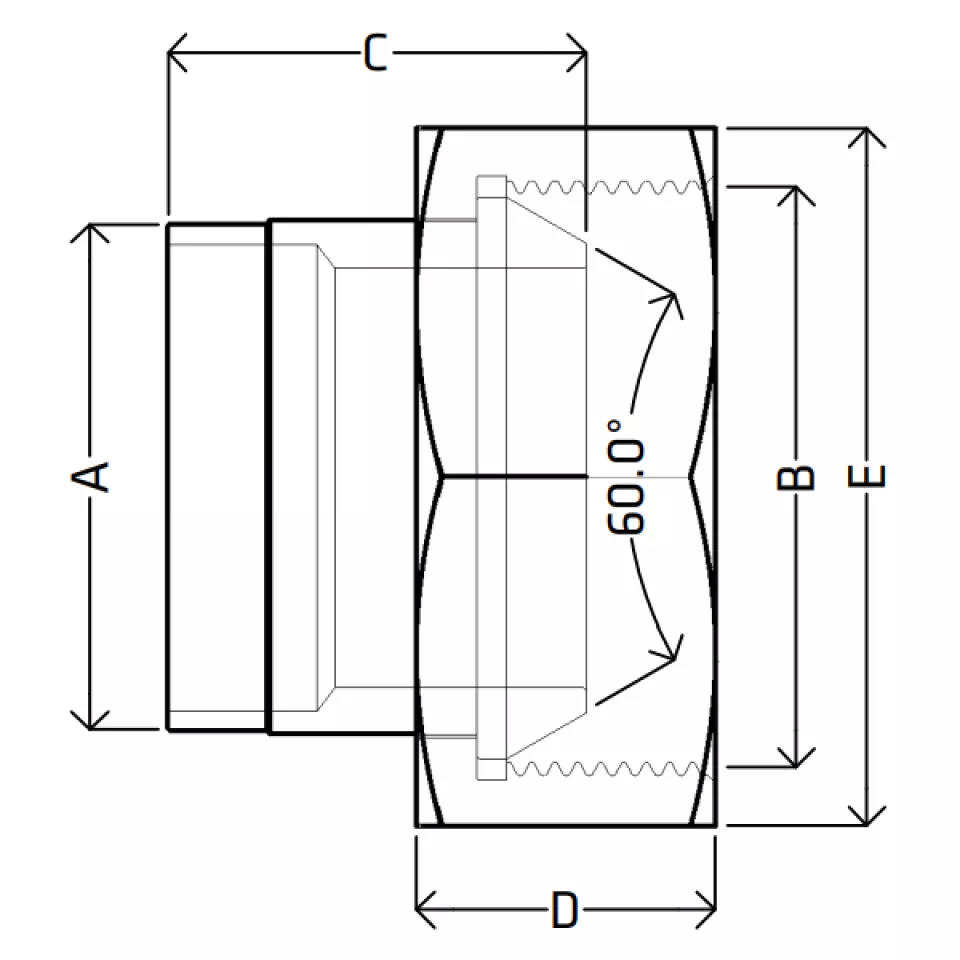

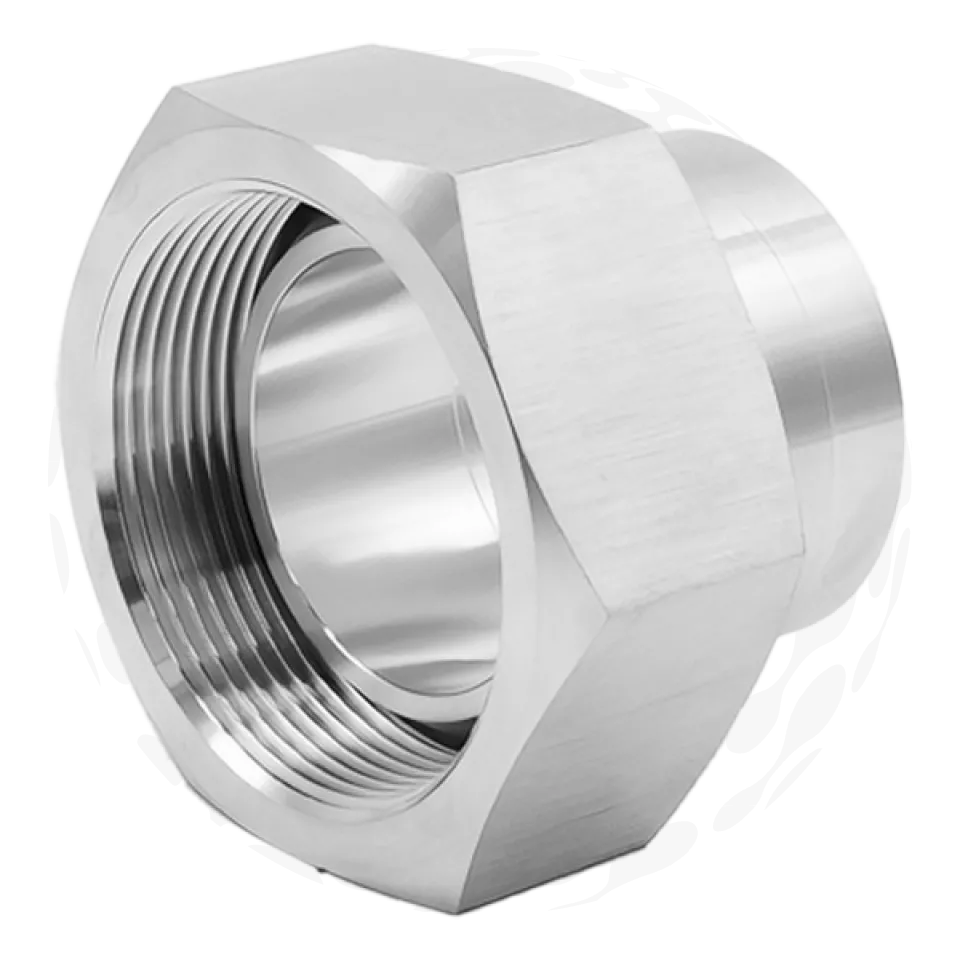

FlexiFlow BSP Floating Nut
FlexiFlow BSP Floating Nut
Features
- Conical faced nipple suitable for use with FlexiFlow BSP Conical Hex Nipples
- Butt welds to Imperial sized Tube
- BSP Threads: ISO 228-1 (BSPP)
View Dimensions
-

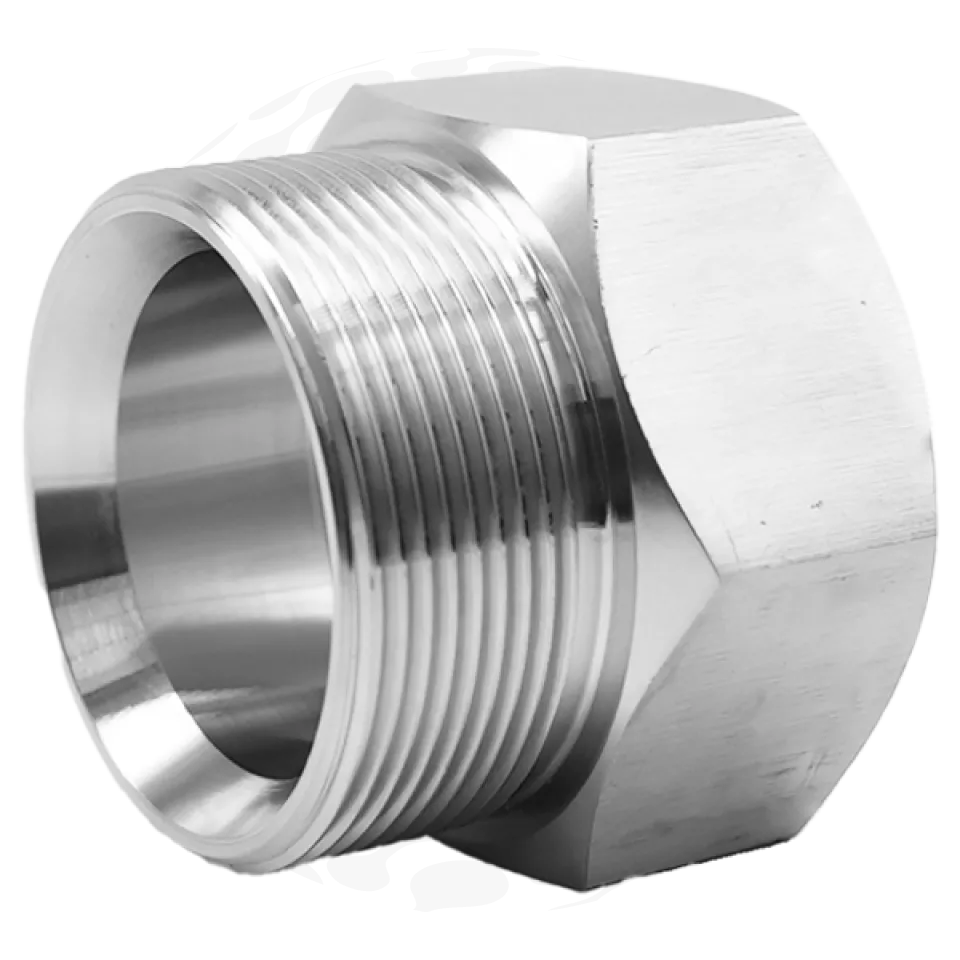

FlexiFlow BSP Extension Socket
FlexiFlow BSP Extension Socket
Features
- BSPP Thread (parallel)
- Conical faced internal suitable for use with FlexiFlow Hoses with BSP Running Nuts
View Dimensions
FlexiFlow Hoses with Union Connections
-

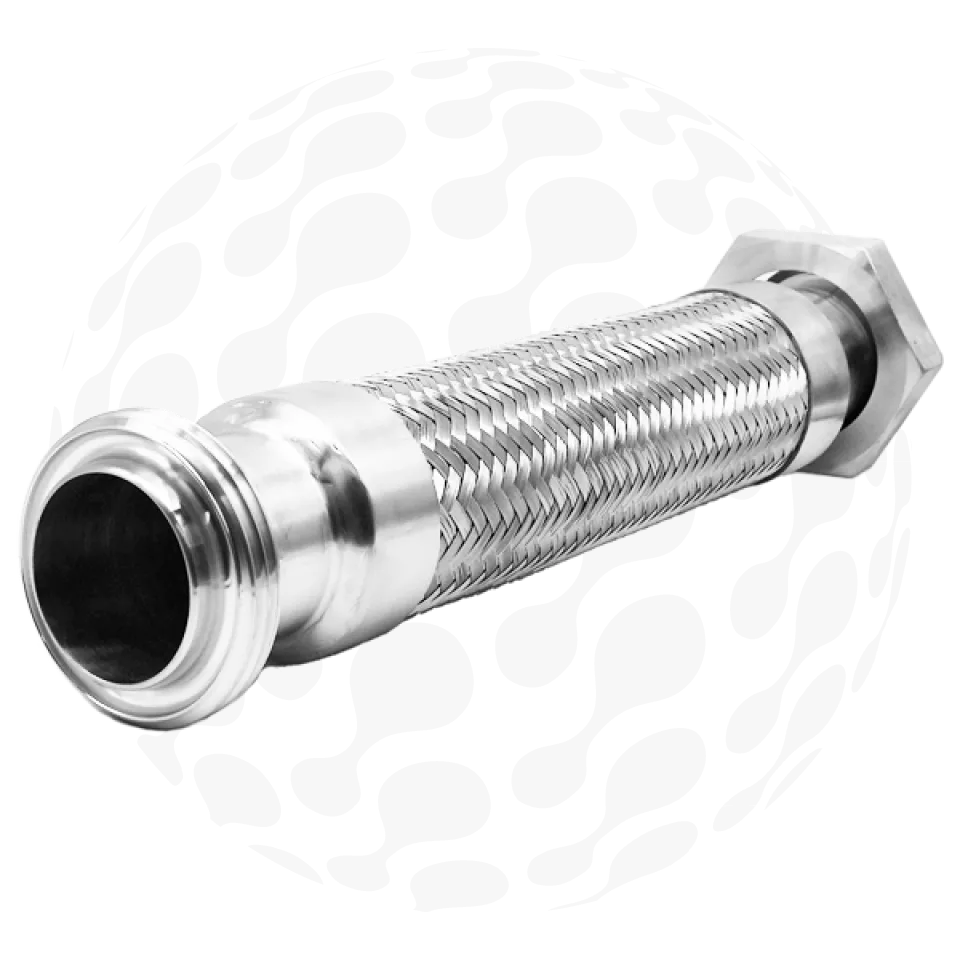

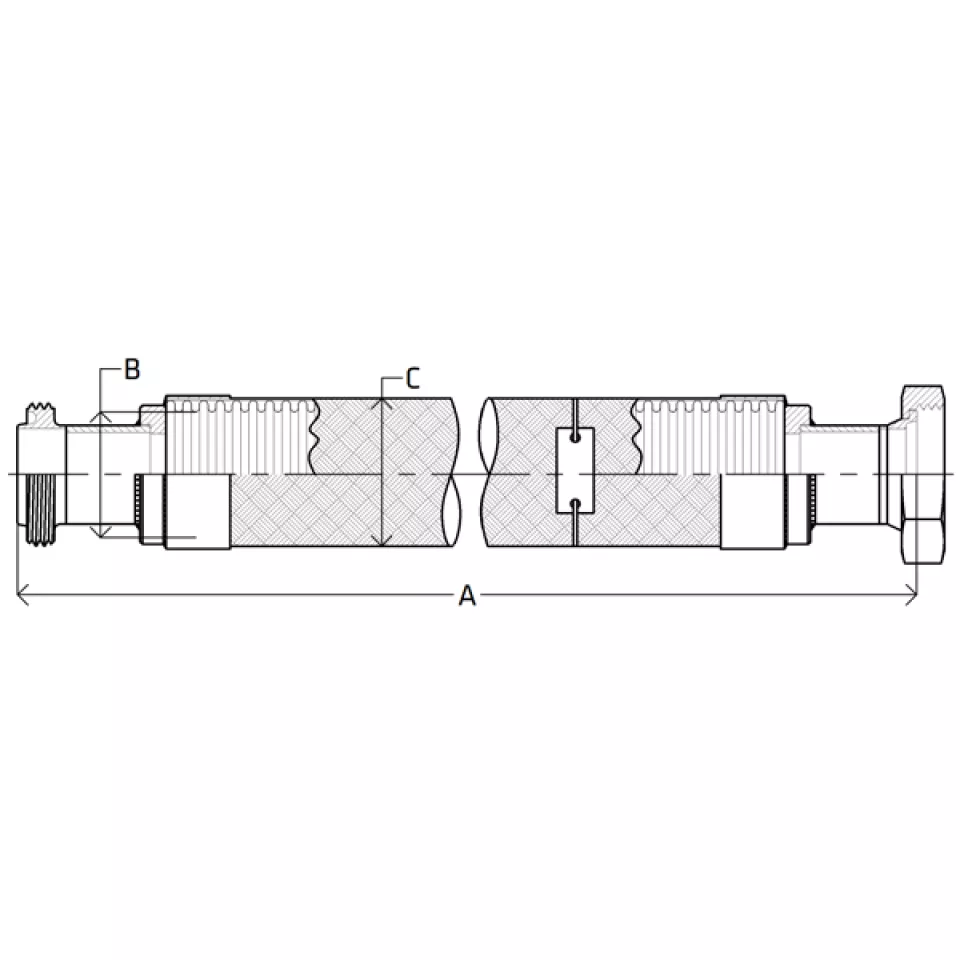

FlexiFlow Hose with RJT Male/Female
FlexiFlow Hose with RJT Male/Female
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with RJT Male Part, RJT Weld Liner & RJT Hex Nut
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
-

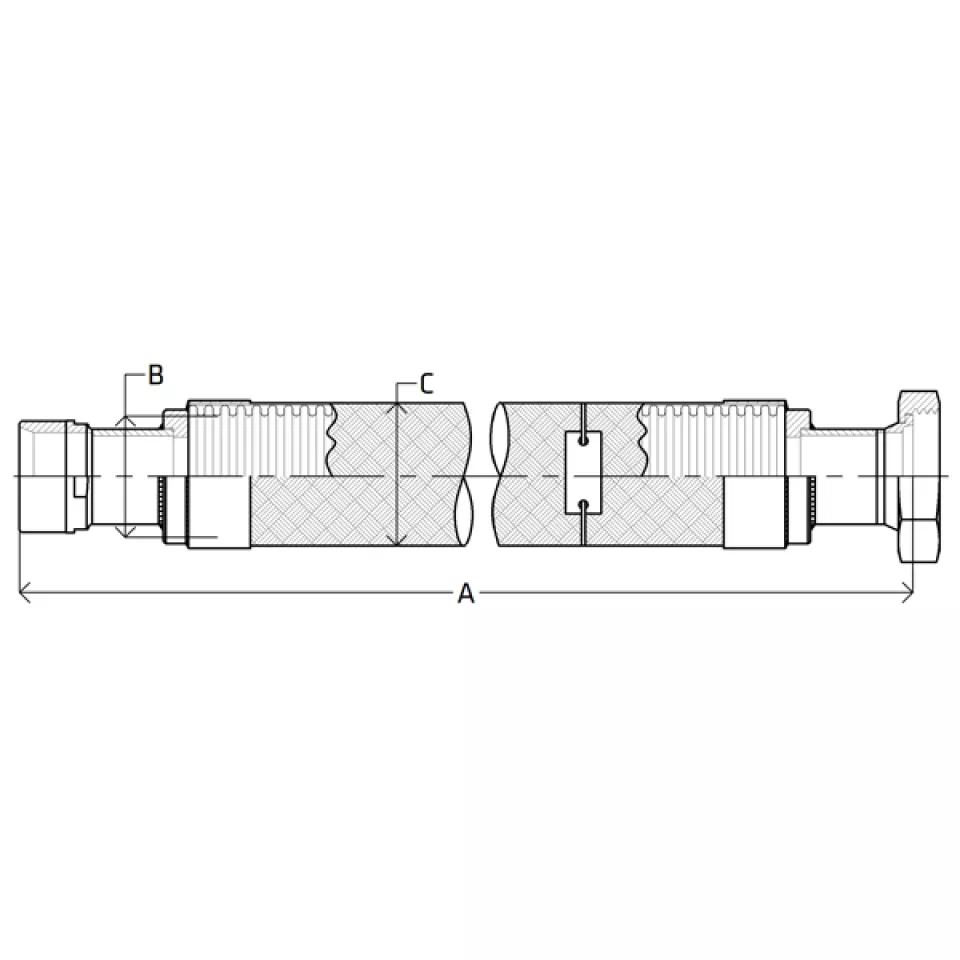

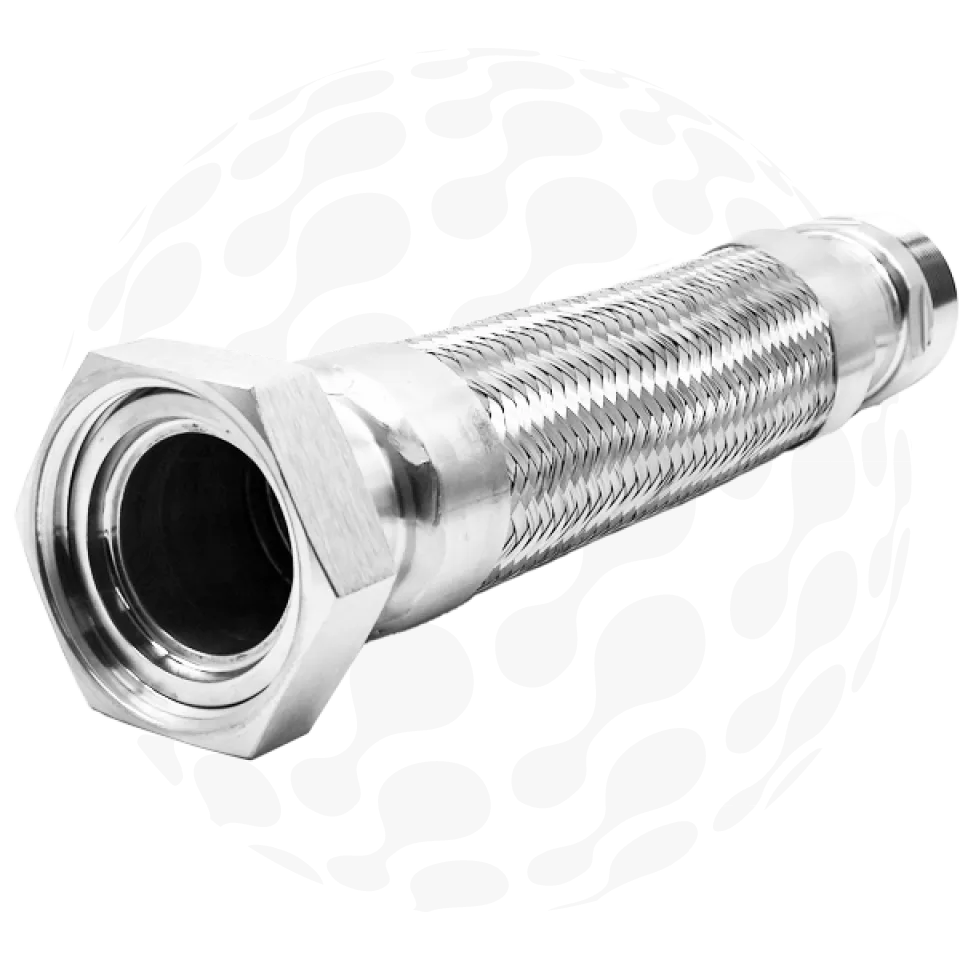

FlexiFlow Hose with BSP/RJT Female
FlexiFlow Hose with BSP/RJT Female
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with BSP Nipple, RJT Weld Liner & RJT Hex Nut
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
-

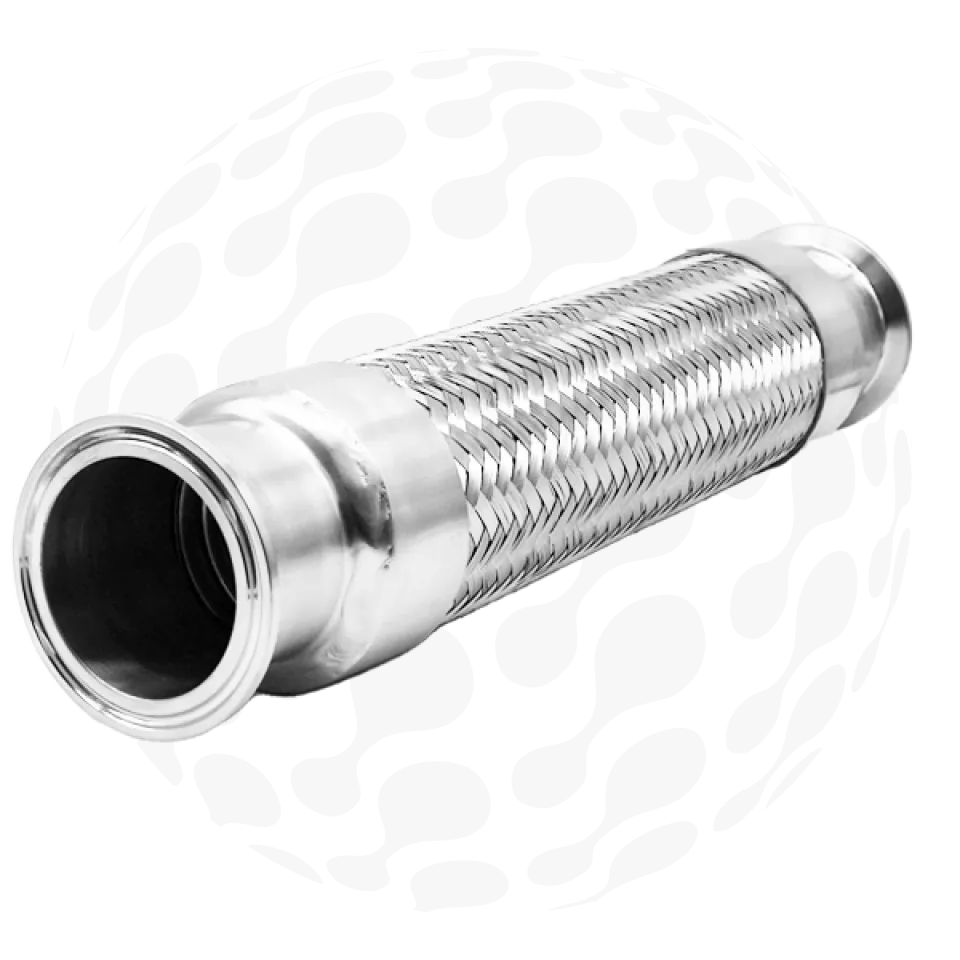

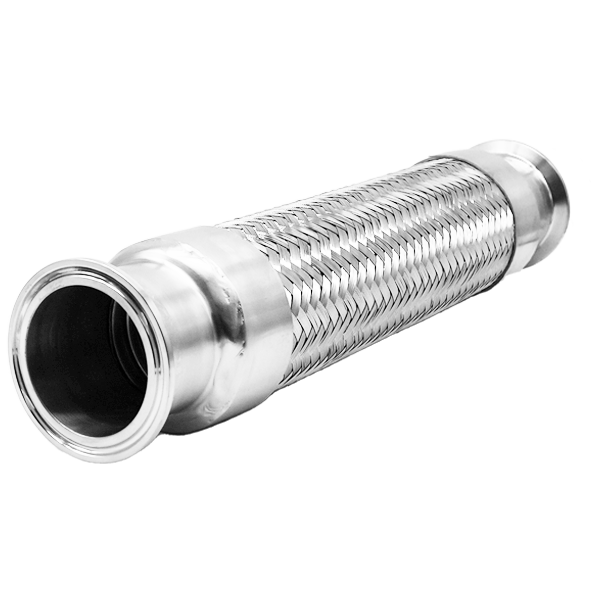

FlexiFlow Hose with Tri Clover Ferrules
FlexiFlow Hose with Tri Clover Ferrules
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with Tri Clover Ferrules
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
-

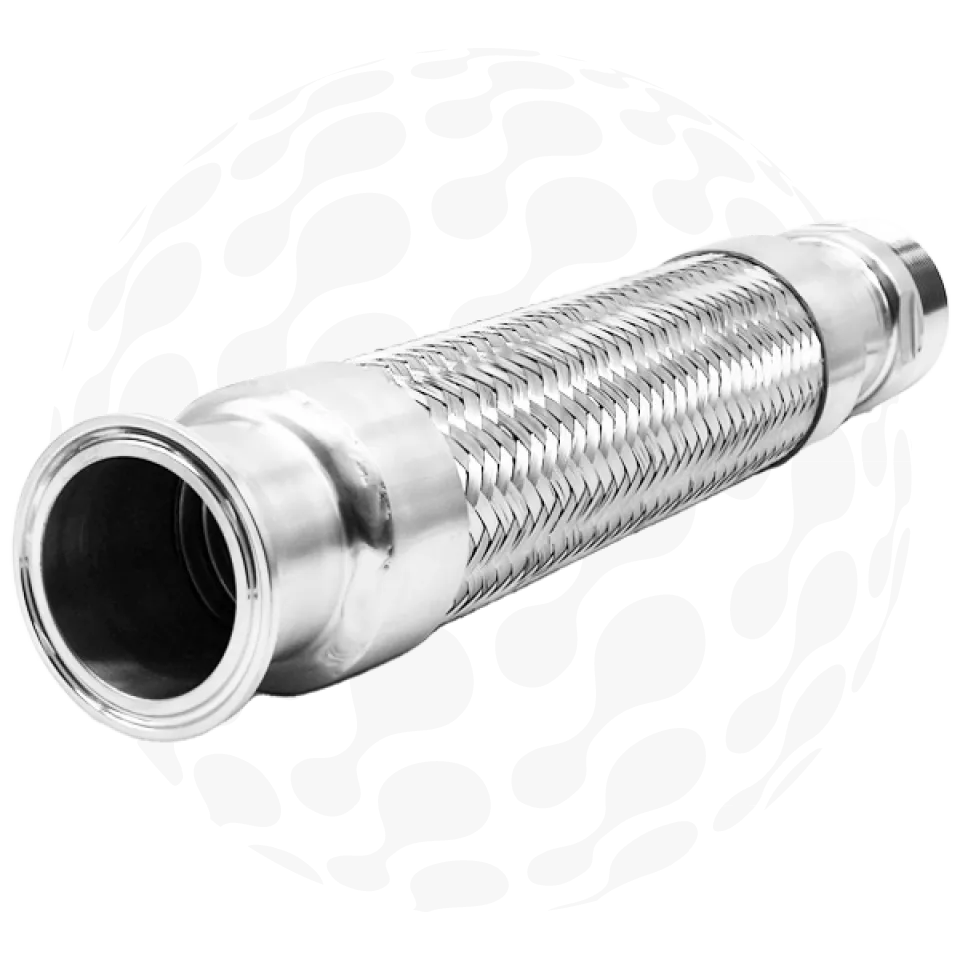

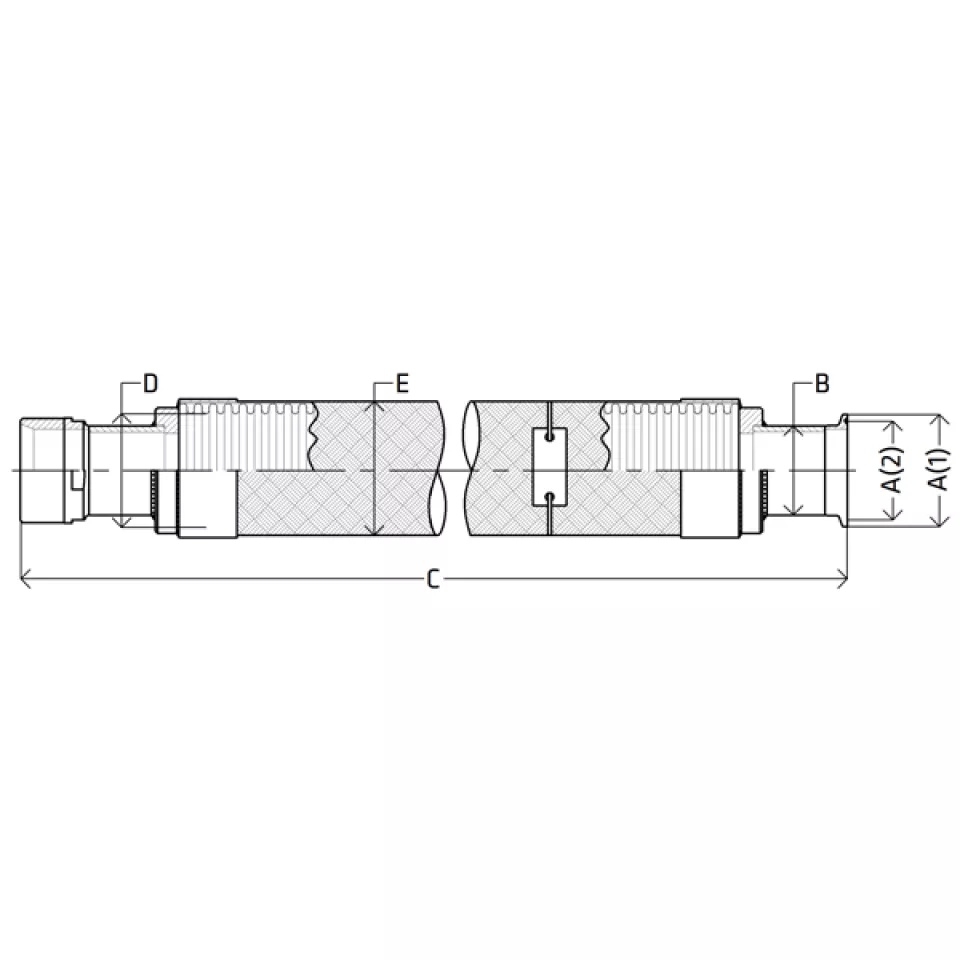

FlexiFlow Hose with BSP/Tri Clover Ferrule
FlexiFlow Hose with BSP/Tri Clover Ferrule
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with BSP Nipple & Tri Clover Ferrule
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
FlexiFlow Hoses with RapidPress Connections
-
FlexiFlow Hose with RapidPress Couplers
FlexiFlow Hose with RapidPress Couplers
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with RapidPress Couplers (-20°C to +120°C)
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
-

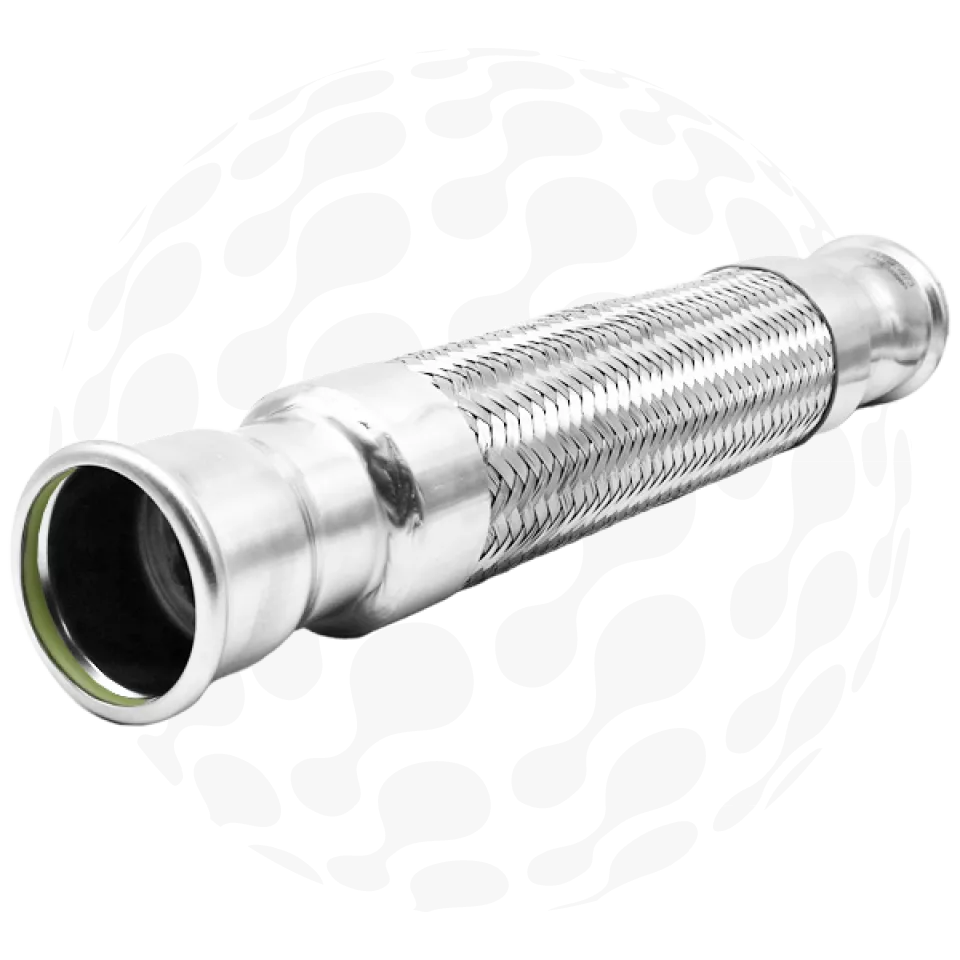

FlexiFlow Hose with RapidPress Extreme Couplers
FlexiFlow Hose with RapidPress Extreme Couplers
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with RapidPress Extreme Couplers (-20°C to +220°C)
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
FlexiFlow Hoses with Flange Connections
-

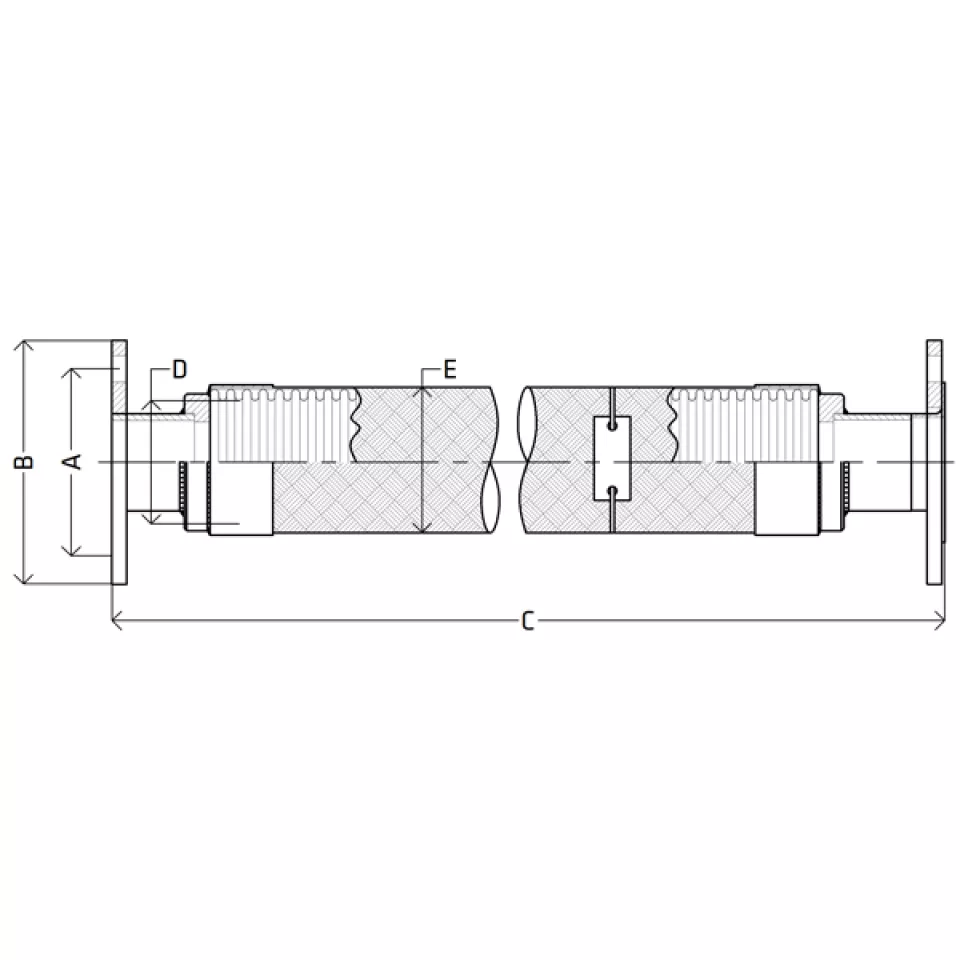

FlexiFlow Hose with Table E Flanges
FlexiFlow Hose with Table E Flanges
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with Loose & Fixed Table E Flanges
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
-

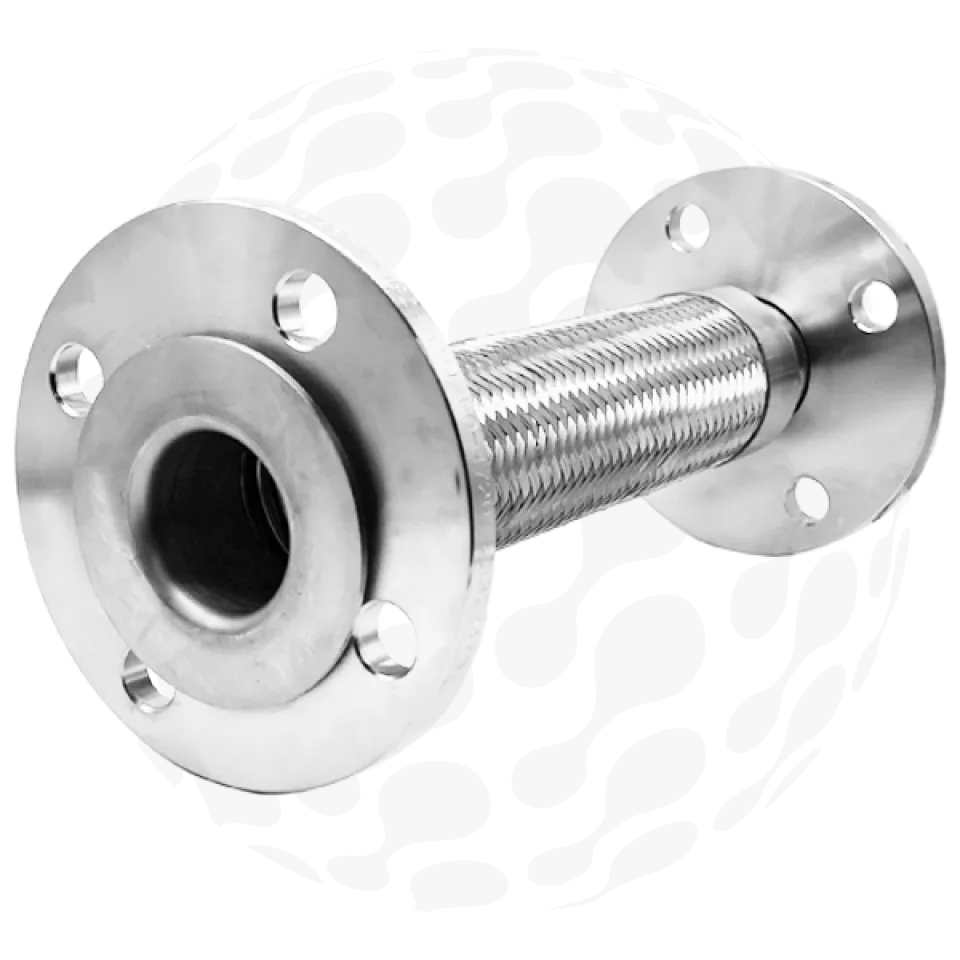

FlexiFlow Hose with PN10-40 Flanges
FlexiFlow Hose with PN10-40 Flanges
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with Loose & Fixed PN10-40 Flanges
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
-
FlexiFlow Hose with ANSI150 Flanges
FlexiFlow Hose with ANSI150 Flanges
Features
- ***Fabrication Required. Please get in touch with us for leadtime***
- FlexiFlow Stainless Steel Convoluted Braided Hose with Loose & Fixed ANSI 150 Flanges
- Hose Test Standard: ISO 10380-2012, Hose Designation: Type 1-10...
- Click 'View Dimensions' for the following information: 'D' = Static/Flexing Minimum Bend Radius (mm), 'G' Working/Test Pressure (bar)
- Please note: Working/Test Pressure (bar) applies to the Flexible Hose only, end connections are excluded from these ratings
View Dimensions
FlexiFlow 'U' Loops
-

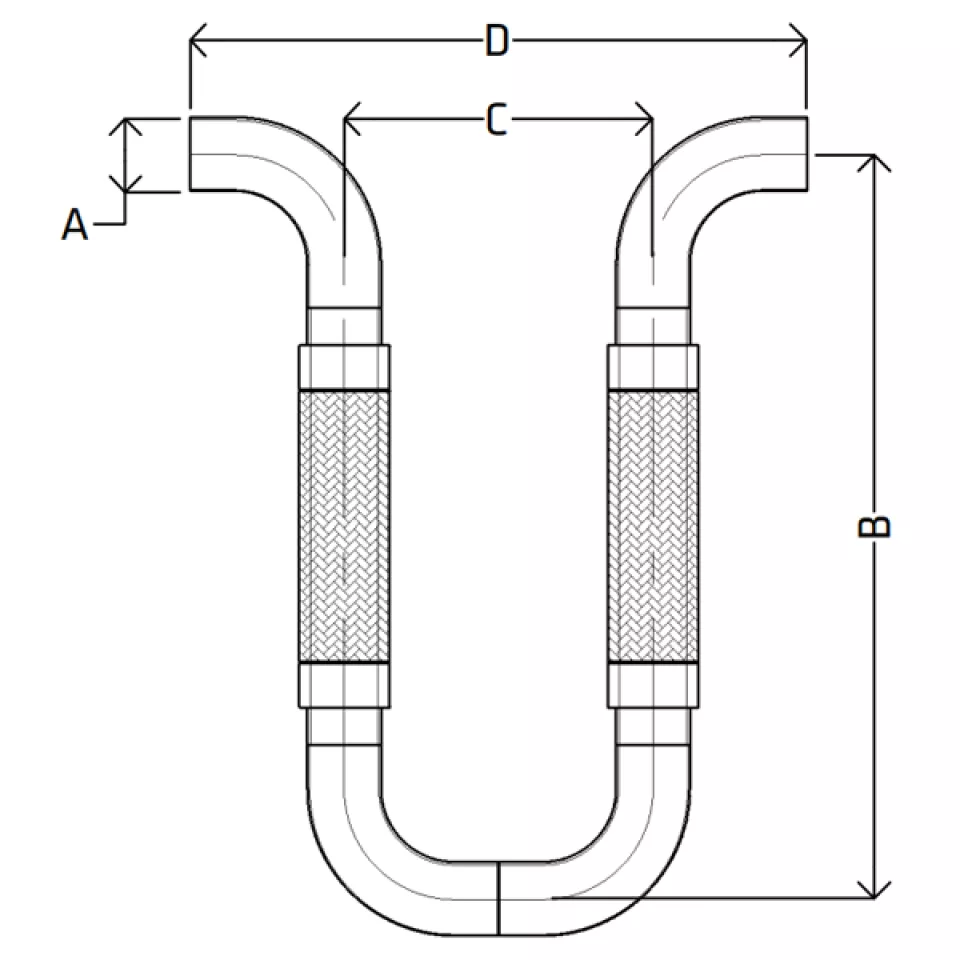

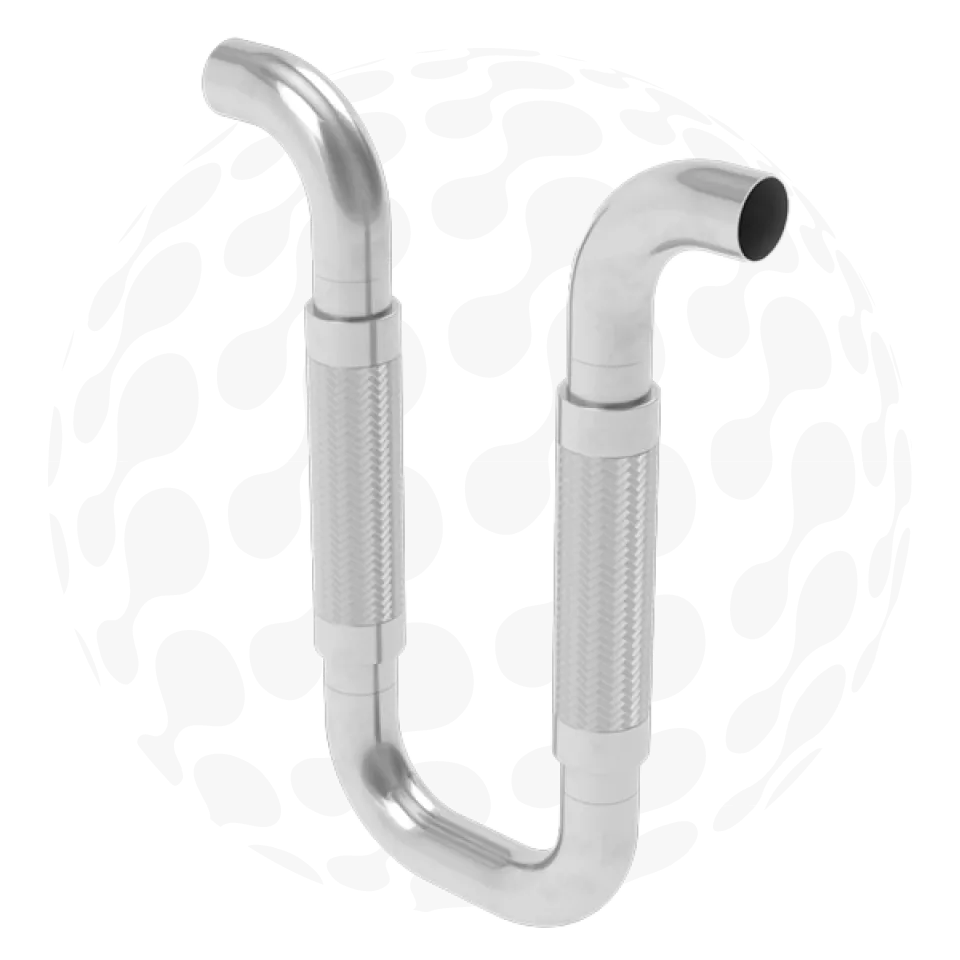

FlexiFlow Seismic 'U' Loop w/ Imperial Tube Ends
FlexiFlow Seismic 'U' Loop w/ Imperial Tube Ends
Features
- ***Fabrication required. Please get in touch for leadtime***
- Butt Weld Ends (Imperial Tube)
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-

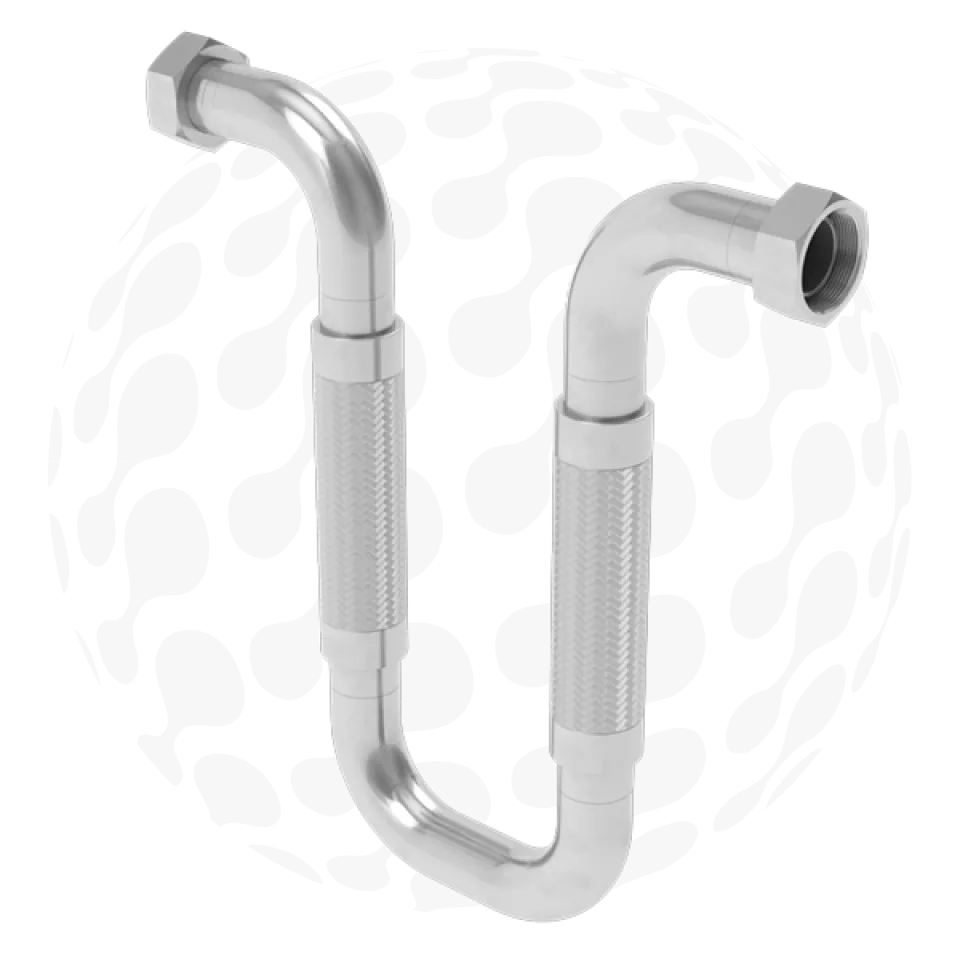

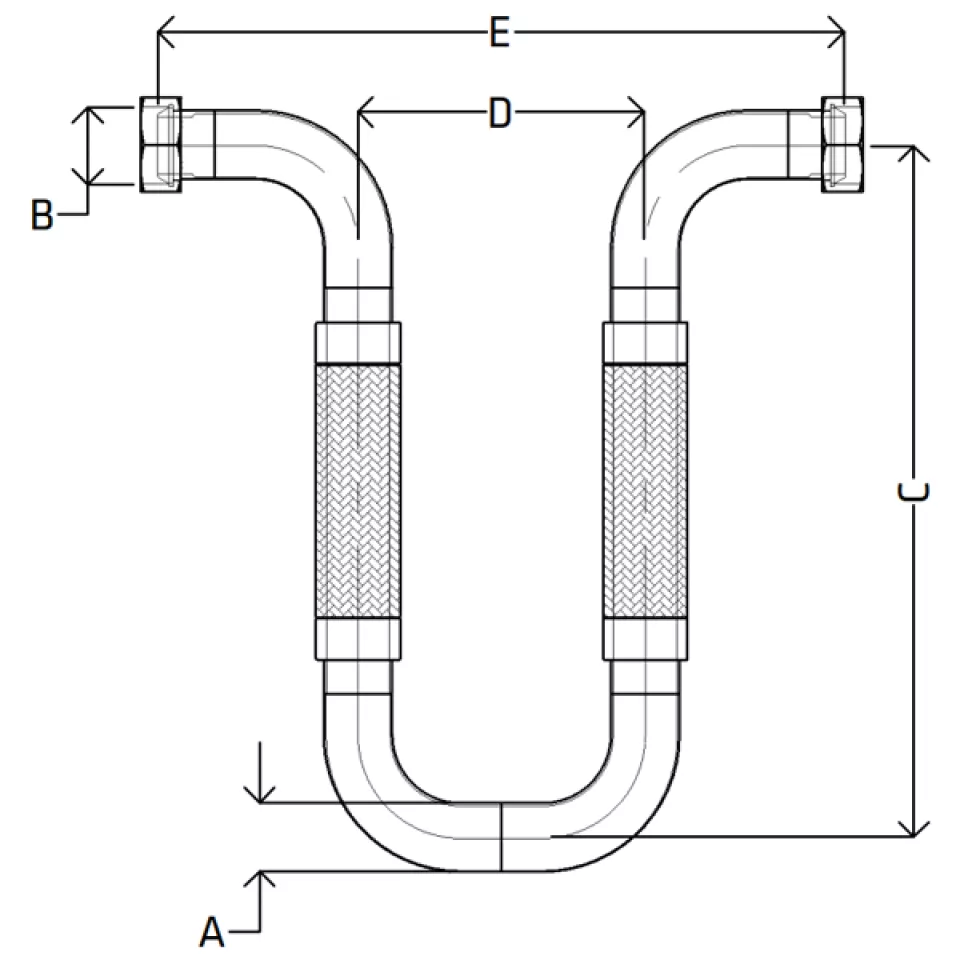

FlexiFlow Seismic 'U' Loop w/ BSP Floating Nuts
FlexiFlow Seismic 'U' Loop w/ BSP Floating Nuts
Features
- ***Fabrication required. Please get in touch for leadtime***
- BSP Floating Nut End Connections (with 60° conical face)
- Measurement 'F' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-

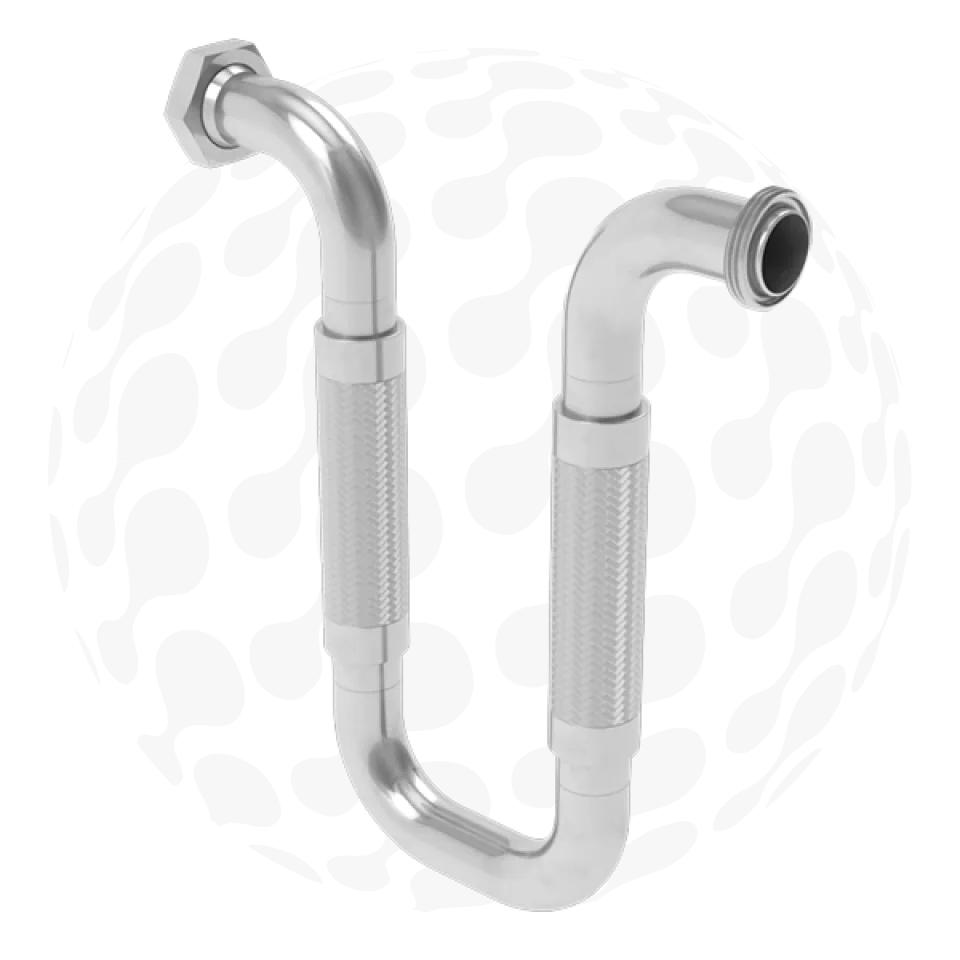

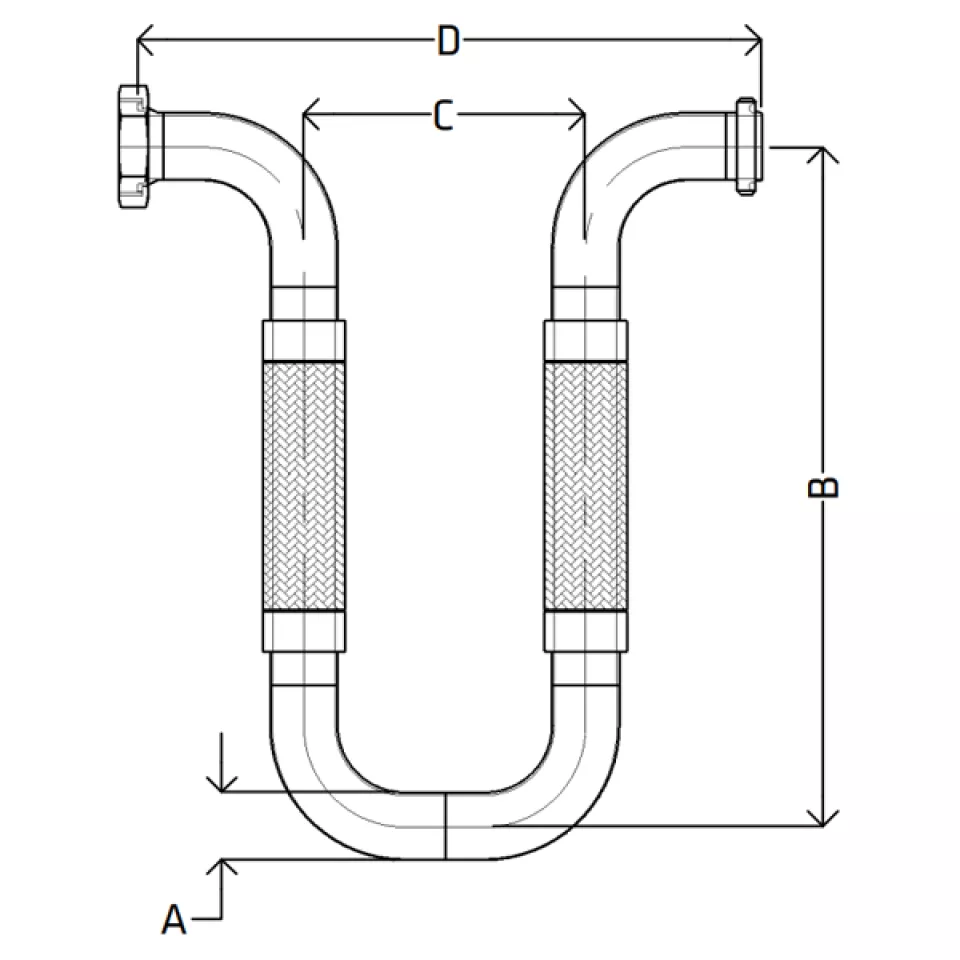

FlexiFlow Seismic 'U' Loop w/ RJT Connections
FlexiFlow Seismic 'U' Loop w/ RJT Connections
Features
- ***Fabrication required. Please get in touch for leadtime***
- RJT Male Part & Weld Liner/Hex Nut End Connections
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-

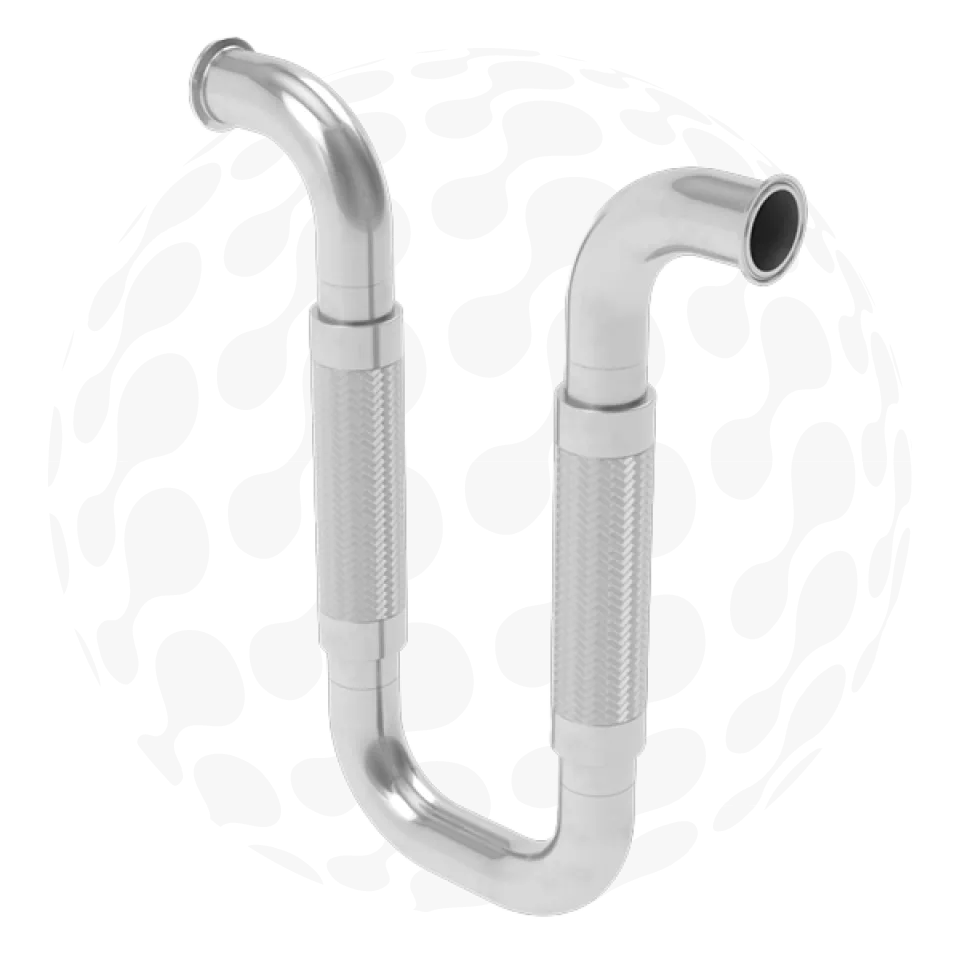

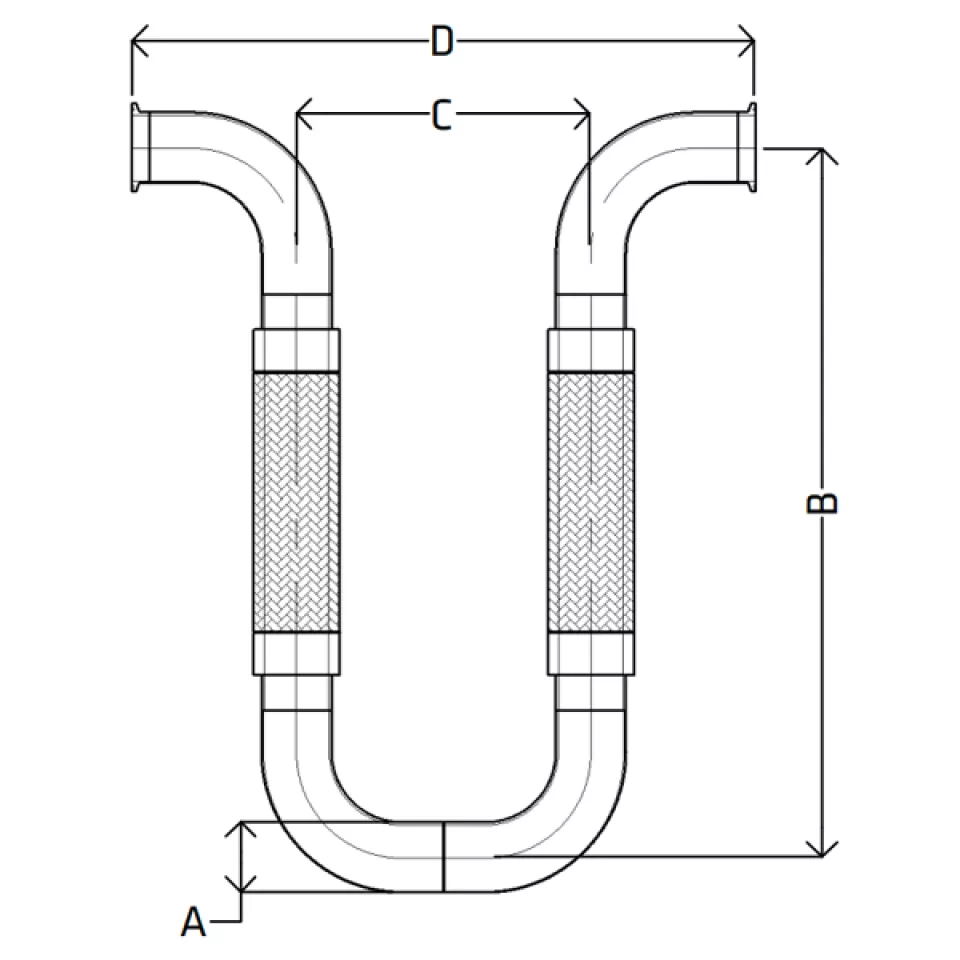

FlexiFlow Seismic 'U' Loop w/ Tri Clover Ferrules
FlexiFlow Seismic 'U' Loop w/ Tri Clover Ferrules
Features
- ***Fabrication required. Please get in touch for leadtime***
- Tri Clover Ferrule End Connections
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ RapidPress Couplers
FlexiFlow Seismic 'U' Loop w/ RapidPress Couplers
Features
- RapidPress Coupler End Connections (EPDM Seals)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

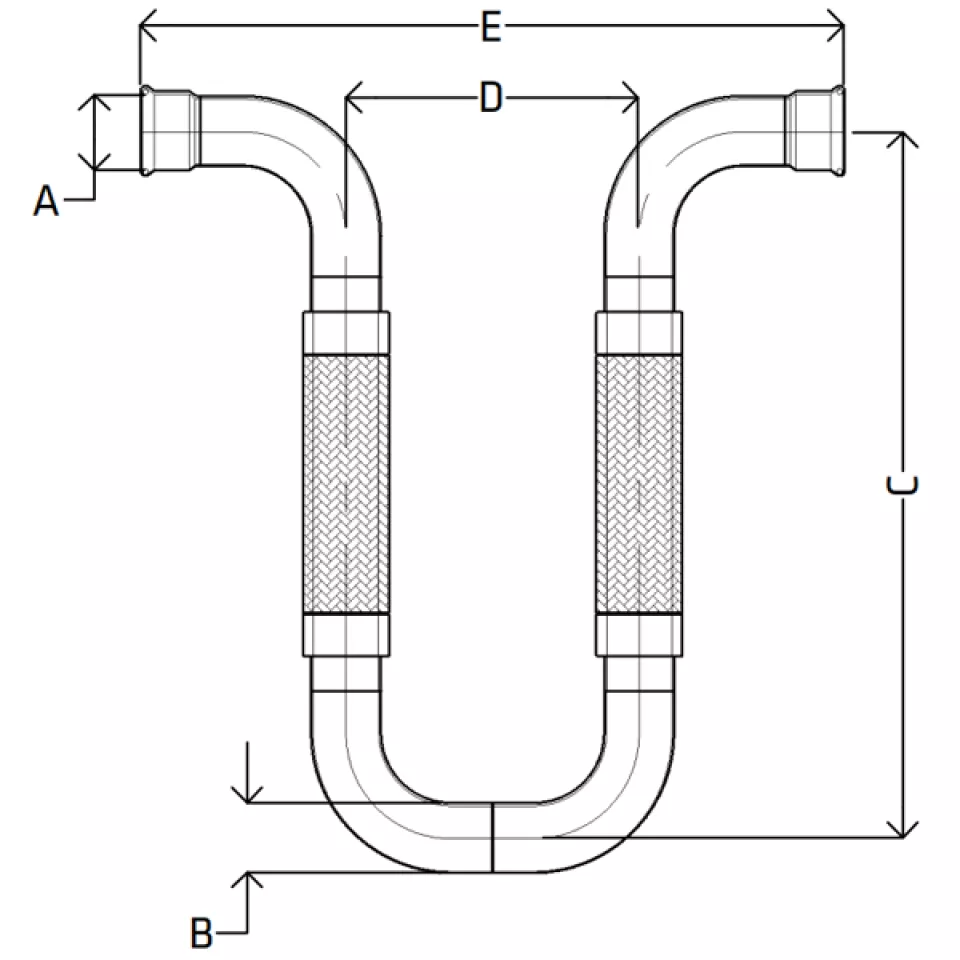

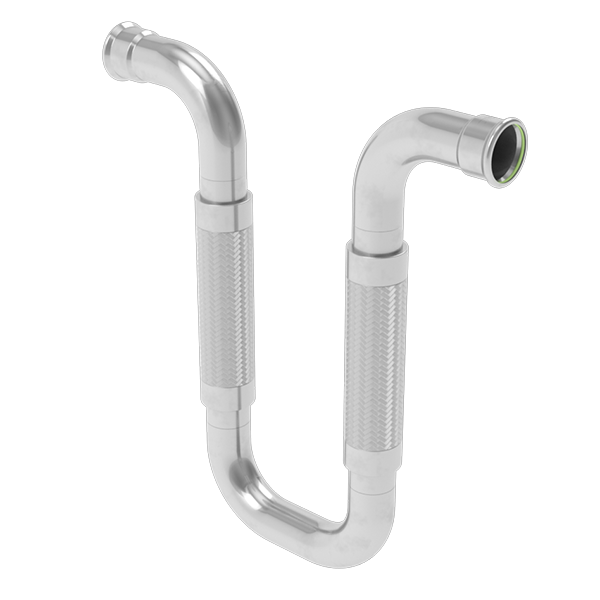

FlexiFlow Seismic 'U' Loop w/ RapidPress Extreme Couplers
FlexiFlow Seismic 'U' Loop w/ RapidPress Extreme Couplers
Features
- RapidPress Extreme Coupler End Connections (FKM Seals)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

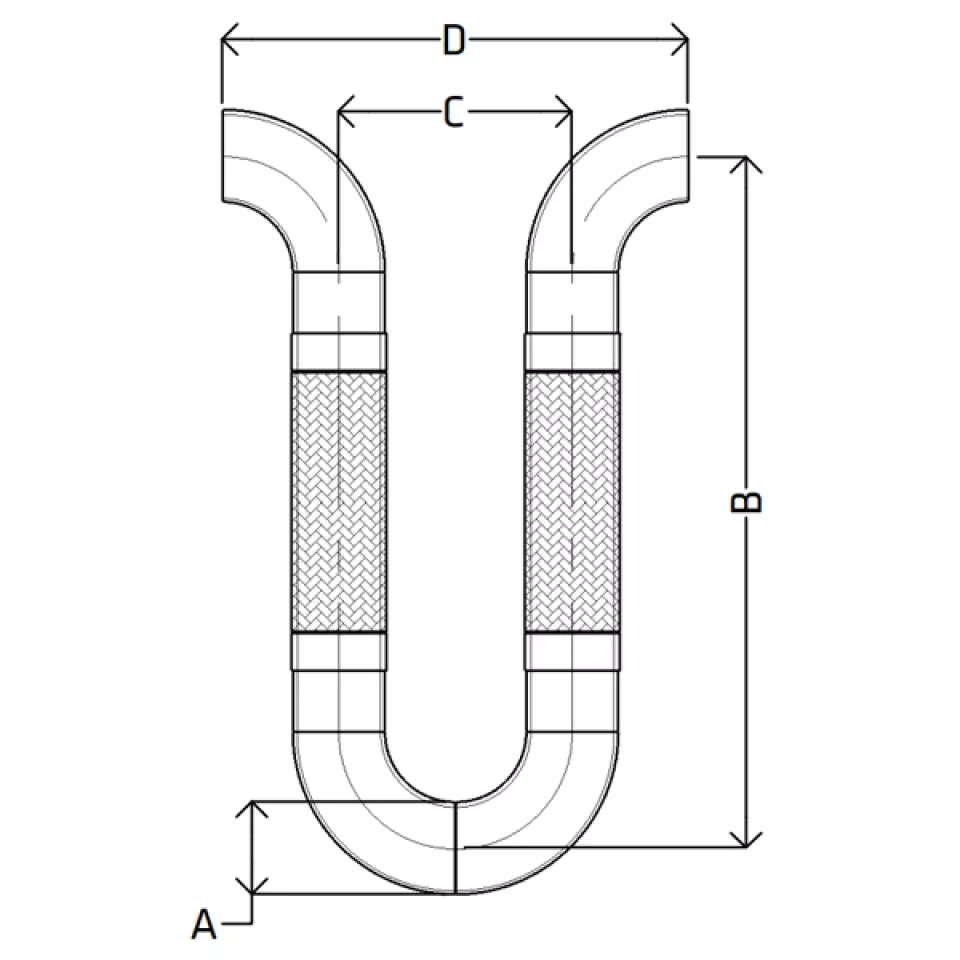

FlexiFlow Seismic 'U' Loop w/ Schedule 10S Pipe Ends
FlexiFlow Seismic 'U' Loop w/ Schedule 10S Pipe Ends
Features
- ***Fabrication required. Please get in touch for leadtime***
- Butt Weld Ends (Schedule 10S Pipe)
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Floating Table E Flanges
FlexiFlow Seismic 'U' Loop w/ Floating Table E Flanges
Features
- ***Fabrication required. Please get in touch for leadtime***
- Table E Floating Flange End Connections (AS2129 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Floating PN10-16 Flanges
FlexiFlow Seismic 'U' Loop w/ Floating PN10-16 Flanges
Features
- ***Fabrication required. Please get in touch for leadtime***
- PN10-16 Floating Flange End Connections (EN1092-1 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Floating ANSI 150 Flanges
FlexiFlow Seismic 'U' Loop w/ Floating ANSI 150 Flanges
Features
- ***Fabrication required. Please get in touch for leadtime***
- ANSI 150 Floating Flange End Connections (ASME B16.5 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
FlexiFlow 'V' Loops
-
FlexiFlow Seismic 'V' Loop w/ Imperial Tube Ends
FlexiFlow Seismic 'V' Loop w/ Imperial Tube Ends
Features
- ***Fabrication required. Please get in touch for leadtime***
- Butt Weld Ends (Imperial Tube)
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ BSP Floating Nuts
FlexiFlow Seismic 'V' Loop w/ BSP Floating Nuts
Features
- ***Fabrication required. Please get in touch for leadtime***
- BSP Floating Nut End Connections (with 60° conical face)
- Measurement 'E' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ RJT Connections
FlexiFlow Seismic 'V' Loop w/ RJT Connections
Features
- ***Fabrication required. Please get in touch for leadtime***
- RJT Male Part & Weld Liner/Hex Nut End Connections
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Tri Clover Ferrules
FlexiFlow Seismic 'V' Loop w/ Tri Clover Ferrules
Features
- ***Fabrication required. Please get in touch for leadtime***
- Tri Clover Ferrule End Connections
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ RapidPress Couplers
FlexiFlow Seismic 'V' Loop w/ RapidPress Couplers
Features
- RapidPress Coupler End Connections (EPDM Seals)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ RapidPress Extreme Couplers
FlexiFlow Seismic 'V' Loop w/ RapidPress Extreme Couplers
Features
- RapidPress Extreme Coupler End Connections (FKM Seals)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Schedule 10S Pipe Ends
FlexiFlow Seismic 'V' Loop w/ Schedule 10S Pipe Ends
Features
- ***Fabrication required. Please get in touch for leadtime***
- Butt Weld Ends (Schedule 10S Pipe)
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Floating Table E Flanges
FlexiFlow Seismic 'V' Loop w/ Floating Table E Flanges
Features
- ***Fabrication required. Please get in touch for leadtime***
- Table E Floating Flange End Connections (AS2129 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Floating PN10-16 Flanges
FlexiFlow Seismic 'V' Loop w/ Floating PN10-16 Flanges
Features
- ***Fabrication required. Please get in touch for leadtime***
- PN10-16 Floating Flange End Connections (EN1092-1 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Floating ANSI 150 Flanges
FlexiFlow Seismic 'V' Loop w/ Floating ANSI 150 Flanges
Features
- ***Fabrication required. Please get in touch for leadtime***
- ANSI 150 Floating Flange End Connections (ASME B16.5 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side) ...
- Lifting/Cable Lug can be added on request
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
View Dimensions
