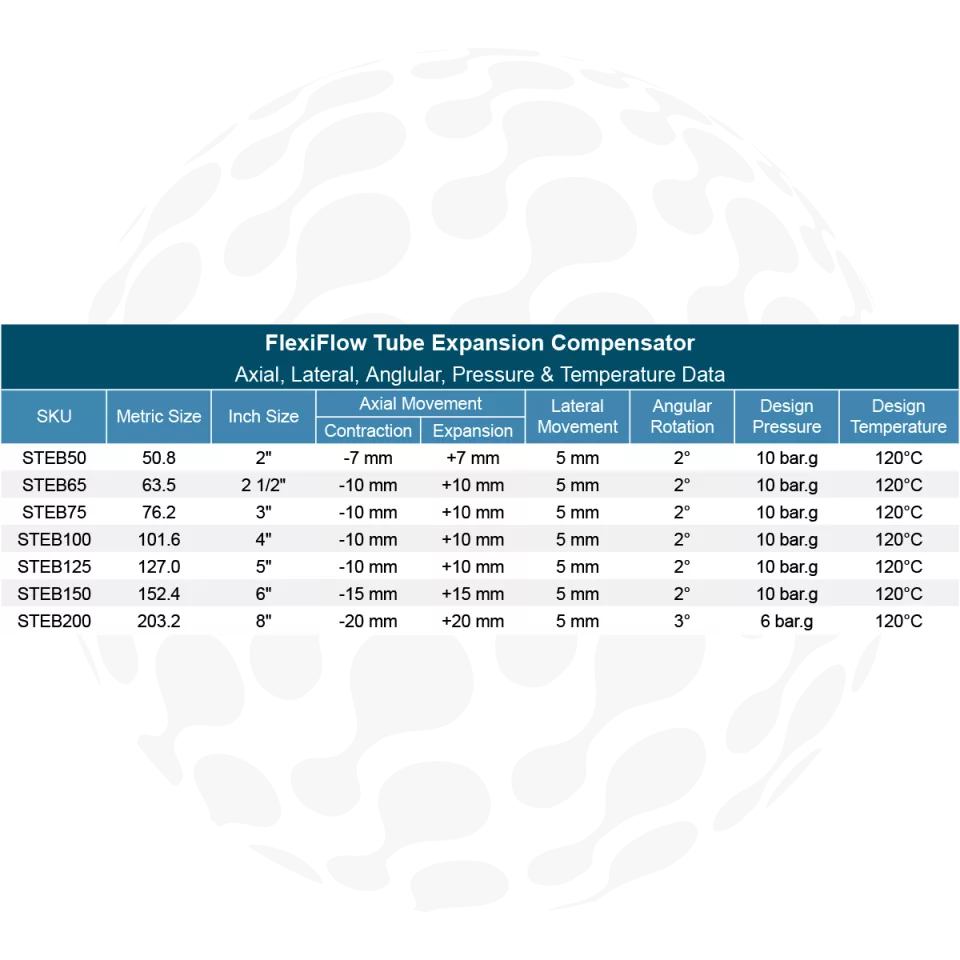

FlexiFlow Tube Expansion Compensator
FlexiFlow Tube Expansion Compensator
Features
- To suit imperial sized tube
- Number of Cycles: > 1,000
- Manufactured to ASTM A240
- Additional information including Design Temperature/Pressure, Axial Movement (Compression/Expansion), Lateral Movement, and Angular Rotation available on request
- Measurement definitions:
- E = Bellow internal diameter
- G = Number of convolutions
Related Products
-
FlexiFlow Seismic 'U' Loop w/ Imperial Tube Ends
FlexiFlow Seismic 'U' Loop w/ Imperial Tube Ends
Features
- Butt Weld Ends (Imperial Tube)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Hose with Table E Flanges
FlexiFlow Hose with Table E Flanges
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: Table E (*Non Standard* AS2129) Flange...
- Connection 2: Table E (*Non Standard* AS2129) Flange with Neck Ring (Floating Flange)
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- A = Flange PCD
- B = Flange OD
- C = Overall Length
- D = Convolution ID
- E = Braid OD
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
Stainless Steel Table D/E Expansion Bellow
Stainless Steel Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Stainless Steel Flanges
View Dimensions
-
FlexiFlow Hose with RapidPress Couplers
FlexiFlow Hose with RapidPress Couplers
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: RapidPress Couplers ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- E = Static/Flexing Minimum Bend Radius (mm)
- F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Hose with Imperial Tube Ends
FlexiFlow Hose with Imperial Tube Ends
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: Imperial Tube Butt Weld Ends
- Temperature Rating: -100˚C to 550˚C ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar)
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Imperial Tube Ends
FlexiFlow Seismic 'V' Loop w/ Imperial Tube Ends
Features
- Butt Weld Ends (Imperial Tube)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Hose with RJT Male/Female
FlexiFlow Hose with RJT Male/Female
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: RJT Male Part ...
- Connection 2: RJT Weld Liner & Hex Nut
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- D = Static/Flexing Minimum Bend Radius (mm)
- E = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ BSP Floating Nuts
FlexiFlow Seismic 'V' Loop w/ BSP Floating Nuts
Features
- BSP Floating Nut End Connections (with 60° conical face)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Hose with PN10-40 Flanges
FlexiFlow Hose with PN10-40 Flanges
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: PN10/16/40 (EN1092-1) Flange...
- Connection 2: PN10/16/40 (EN1092-1) Flange with Neck Ring (Floating Flange)
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- A = Flange PCD
- B = Flange OD
- C = Overall Length
- D = Convolution ID
- E = Braid OD
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Hose with Schedule 10S Pipe Ends
FlexiFlow Hose with Schedule 10S Pipe Ends
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: Schedule 10S Pipe Butt Weld Ends
- Temperature Rating: -100˚C to 550˚C ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar)
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ BSP Floating Nuts
FlexiFlow Seismic 'U' Loop w/ BSP Floating Nuts
Features
- BSP Floating Nut End Connections (with 60° conical face)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Hose with RapidPress Extreme Couplers
FlexiFlow Hose with RapidPress Extreme Couplers
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: RapidPress Extreme Couplers (FKM) ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- E = Static/Flexing Minimum Bend Radius (mm)
- F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
Galvanised Table D/E Expansion Bellow
Galvanised Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Galvanised Table E Flanges
View Dimensions
-
FlexiFlow Hose with BSP/RJT Female
FlexiFlow Hose with BSP/RJT Female
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: BSP Nipple ...
- Connection 2: RJT Weld Liner & Hex Nut
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- D = Static/Flexing Minimum Bend Radius (mm)
- E = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Hose with Tri Clover Ferrules
FlexiFlow Hose with Tri Clover Ferrules
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: Tri Clover Ferrules ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ RJT Connections
FlexiFlow Seismic 'U' Loop w/ RJT Connections
Features
- RJT Male Part & Weld Liner/Hex Nut End Connections
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Hose with ANSI150 Flanges
FlexiFlow Hose with ANSI150 Flanges
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: ANSI150 (ASME B16.5) Flange...
- Connection 2: ANSI150 (ASME B16.5) Flange with Neck Ring (Floating Flange)
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- A = Flange PCD
- B = Flange OD
- C = Overall Length
- D = Convolution ID
- E = Braid OD
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Hose with BSP Male/Female Connections
FlexiFlow Hose with BSP Male/Female Connections
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: BSP Nipple
- Connection 2: BSP Running Nut ...
- Temperature Rating: -100˚C to 550˚C
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- ***Please note that some stock is made up of FlexiFlow Hoses with BSP Running Nuts on both ends with a FlexiFlow BSP Conical Hex Nipple pre-installed on one end until new stock arrives***
- Click 'View Dimensions' for the following information:
- D = Static/Flexing Minimum Bend Radius (mm)
- E = Working/Test Pressure (bar)
View Dimensions
-

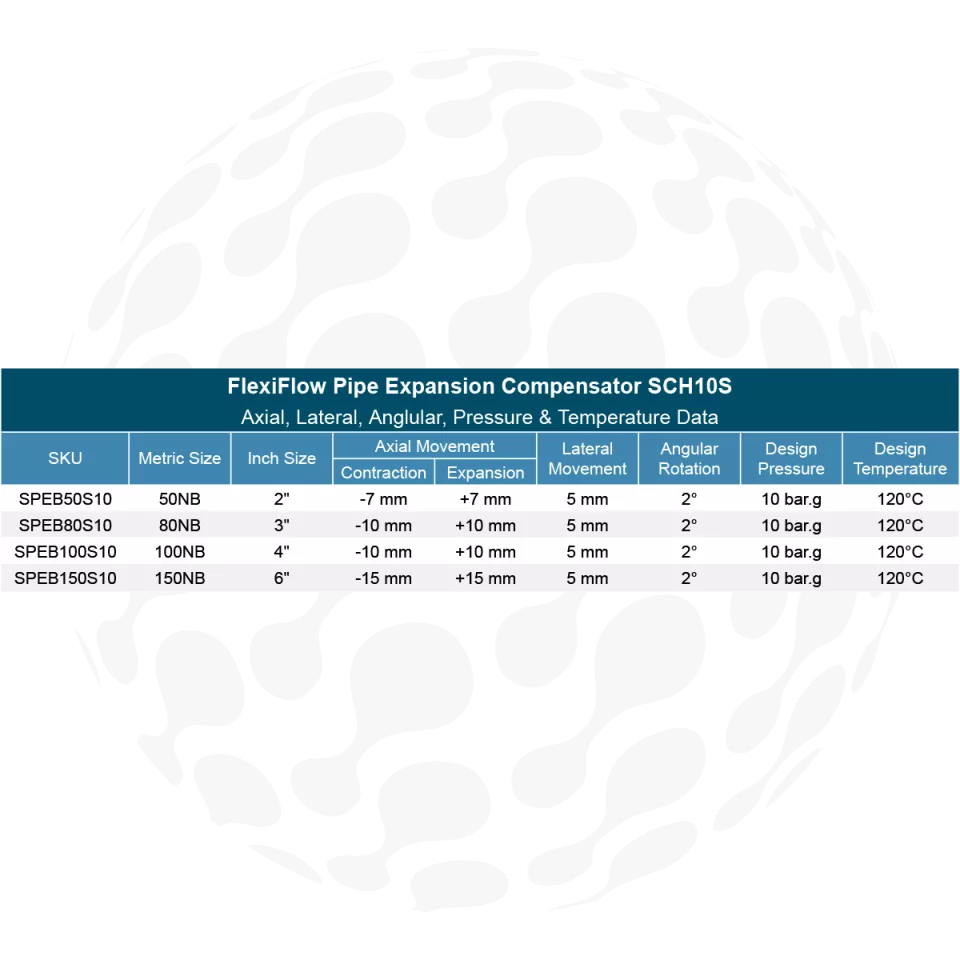

FlexiFlow Pipe Expansion Compensator SCH10S
FlexiFlow Pipe Expansion Compensator SCH10S
Features
- To suit Schedule 10S Pipe
- Number of Cycles: > 1,000
- Manufactured to ASTM A240 ...
- Additional information including Design Temperature/Pressure, Axial Movement (Compression/Expansion), Lateral Movement, and Angular Rotation available on request
- Measurement definitions:
- E = Bellow internal diameter
- G = Number of convolutions
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ RJT Connections
FlexiFlow Seismic 'V' Loop w/ RJT Connections
Features
- RJT Male Part & Weld Liner/Hex Nut End Connections
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Hose with BSP/Tri Clover Ferrule
FlexiFlow Hose with BSP/Tri Clover Ferrule
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: BSP Nipple ...
- Connection 2: Tri Clover Ferrule
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Tri Clover Ferrules
FlexiFlow Seismic 'V' Loop w/ Tri Clover Ferrules
Features
- Tri Clover Ferrule End Connections
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Tri Clover Ferrules
FlexiFlow Seismic 'U' Loop w/ Tri Clover Ferrules
Features
- Tri Clover Ferrule End Connections
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow BSP Conical Hex Nipple
FlexiFlow BSP Conical Hex Nipple
Features
- Conical faced internal suitable for use with FlexiFlow Hoses with BSP Running Nuts
- BSP Threaded Ends (ISO 7-1, ISO 228-1)
- Working Pressure: 10 bar (150 psi) ...
- Working Temperature: 250°C @ 10 bar
- *Please note: Dimension 'A' is BSPT and Dimension 'B' is BSPP*
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ RapidPress Couplers
FlexiFlow Seismic 'V' Loop w/ RapidPress Couplers
Features
- RapidPress Coupler End Connections (EPDM Seals)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ RapidPress Couplers
FlexiFlow Seismic 'U' Loop w/ RapidPress Couplers
Features
- RapidPress Coupler End Connections (EPDM Seals)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ RapidPress Extreme Couplers
FlexiFlow Seismic 'U' Loop w/ RapidPress Extreme Couplers
Features
- RapidPress Extreme Coupler End Connections (FKM Seals)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ RapidPress Extreme Couplers
FlexiFlow Seismic 'V' Loop w/ RapidPress Extreme Couplers
Features
- RapidPress Extreme Coupler End Connections (FKM Seals)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow BSP Extension Socket
FlexiFlow BSP Extension Socket
Features
- BSPP Thread (parallel)
- Conical faced internal suitable for use with FlexiFlow Hoses with BSP Running Nuts
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Schedule 10S Pipe Ends
FlexiFlow Seismic 'U' Loop w/ Schedule 10S Pipe Ends
Features
- Butt Weld Ends (Schedule 10S Pipe)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Schedule 10S Pipe Ends
FlexiFlow Seismic 'V' Loop w/ Schedule 10S Pipe Ends
Features
- Butt Weld Ends (Schedule 10S Pipe)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Floating Table E Flanges
FlexiFlow Seismic 'U' Loop w/ Floating Table E Flanges
Features
- Table E Floating Flange End Connections (AS2129 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Floating Table E Flanges
FlexiFlow Seismic 'V' Loop w/ Floating Table E Flanges
Features
- Table E Floating Flange End Connections (AS2129 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Floating PN10-16 Flanges
FlexiFlow Seismic 'U' Loop w/ Floating PN10-16 Flanges
Features
- PN10-16 Floating Flange End Connections (EN1092-1 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Floating PN10-16 Flanges
FlexiFlow Seismic 'V' Loop w/ Floating PN10-16 Flanges
Features
- PN10-16 Floating Flange End Connections (EN1092-1 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow Seismic 'U' Loop w/ Floating ANSI 150 Flanges
FlexiFlow Seismic 'U' Loop w/ Floating ANSI 150 Flanges
Features
- ANSI 150 Floating Flange End Connections (ASME B16.5 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- **Please allow 2-3 days lead-time for fabrication**
View Dimensions
-
FlexiFlow Seismic 'V' Loop w/ Floating ANSI 150 Flanges
FlexiFlow Seismic 'V' Loop w/ Floating ANSI 150 Flanges
Features
- ANSI 150 Floating Flange End Connections (ASME B16.5 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- 8mm Round Bar temporarily installed (tack welded) for shipping and for maintaining alignment during installations
- Pressure/Temperature rating applies to hose only, not end connections
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
RapidPress Expansion Compensator
RapidPress Expansion Compensator
Features
- EPDM Seals
- Measurement 'D' = Maximum amount of expansion length
- Temperature rating: -20°C, 120°C ...
- Maximum operating pressure: 16 Bar (232psi)
- Refer to page 35 in our RapidPress Technical Guide for our Expansion Compensation Table
- RapidPress Extreme options available
View Dimensions
