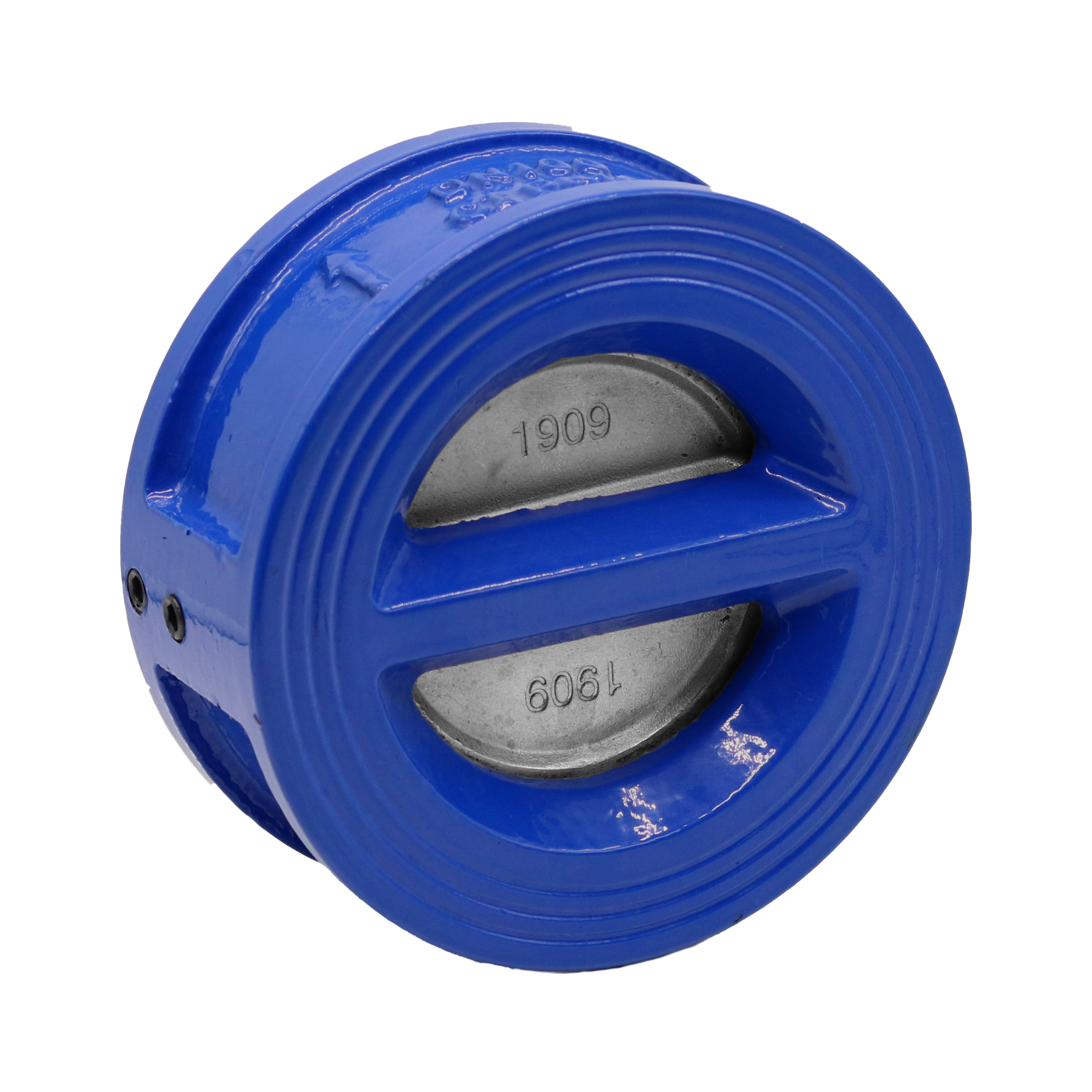

Wafer Double Gate Check Valve
Wafer Double Gate Check Valve
Features
- Cast Iron Body
- Suitable for use with all flanges, including Table D/E, PN10-16 & ANSI 150
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
You need to have a trade account with us to download CAD files.
Related Products
-
'E' Series Butterfly Valve
'E' Series Butterfly Valve
Features
- Butt welds to Outside Diameter tube sizes
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 110°C (with EPDM seal) ...
- Multi-position handle
- Stainless steel trigger handle available
View Dimensions
You need to have a trade account with us to download CAD files.
-

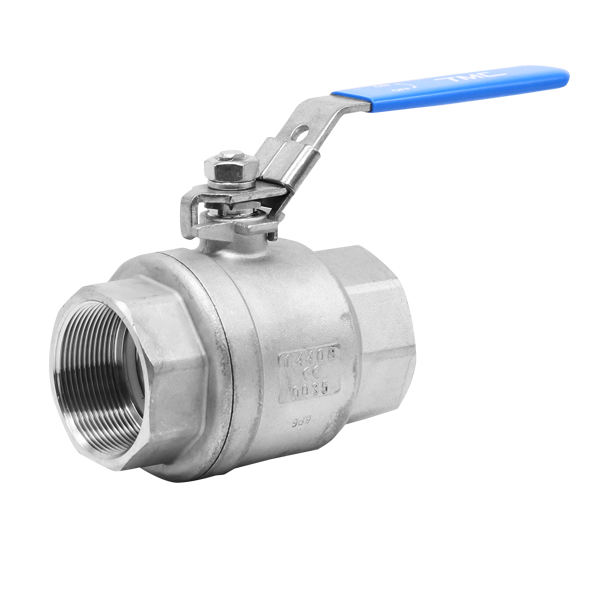

BSP 2pc Ball Valve
BSP 2pc Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- Temperature rating: -20°C to +160°C ...
- PTFE Seals
- Full port
- Lockable latch handle

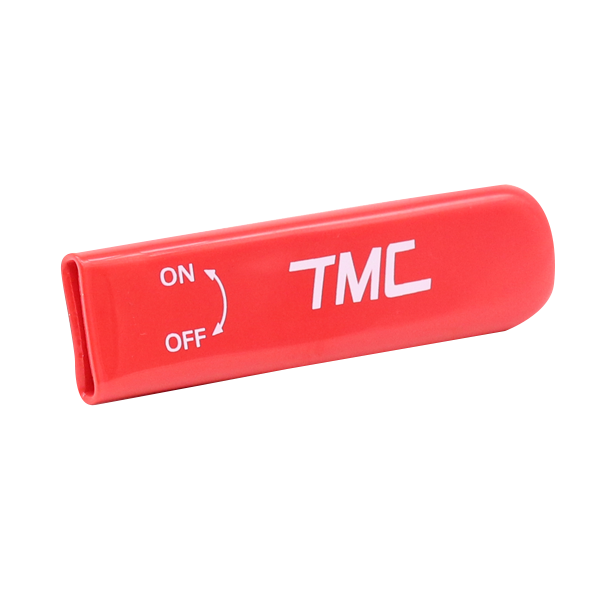

- Red handle sleeve available for hot water indication
View Dimensions
You need to have a trade account with us to download CAD files.
-

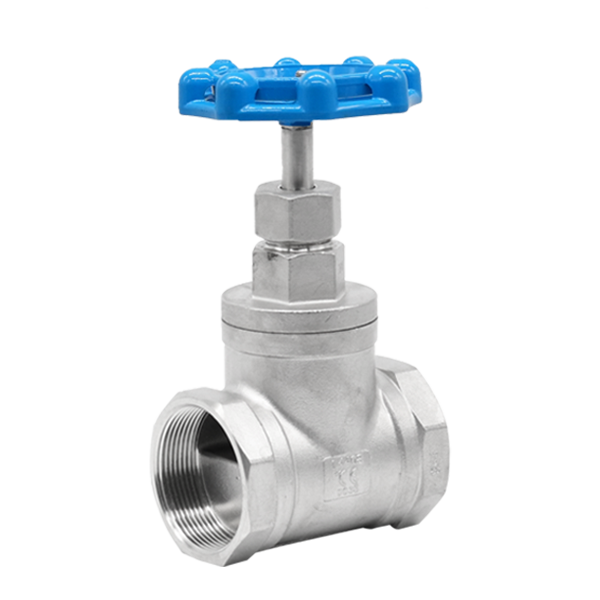

BSP Globe Valve
BSP Globe Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- Stainless steel body and gate ...
- Aluminium handwheel
- No seal
- These are an Isolation valve, not a full Termination valve due to having no seal/gasket
View Dimensions
-

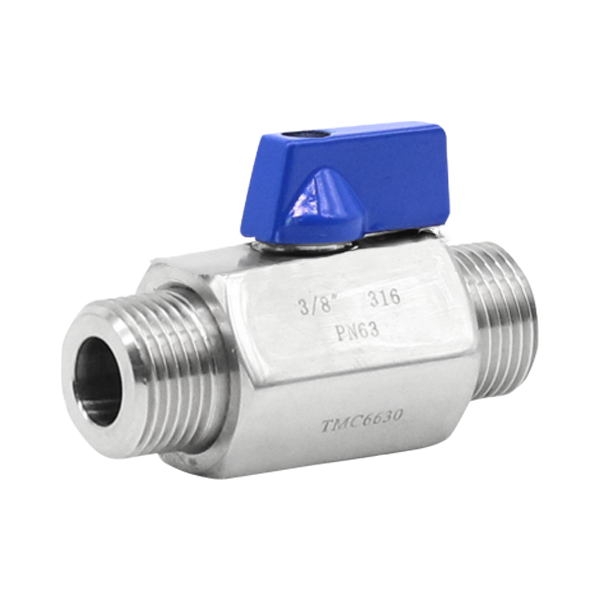

BSP Male Mini Ball Valve
BSP Male Mini Ball Valve
Features
- BSP Threaded ends
- Reduced port
- Maximum pressure 1000PSI / 68Bar ...
- PTFE seat
- Temperature rating: -20°C to +160°C
View Dimensions
You need to have a trade account with us to download CAD files.
-

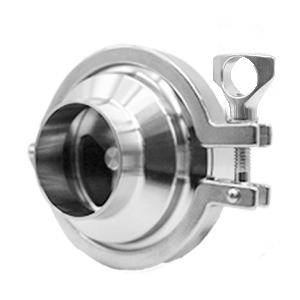

Sanitary Non-Return Valve
Sanitary Non-Return Valve
Features
- Butt welds to Outside Diameter tube sizes
- EPDM seal (Food Grade) maximum temperature 120°C
- Centre clamp for easy access ...
- Spring actioned flow control
View Dimensions
You need to have a trade account with us to download CAD files.
-

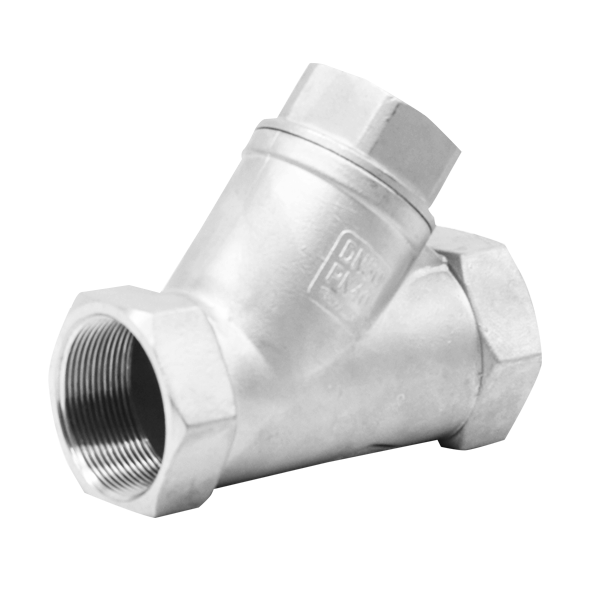

BSP Piston Check Valve
BSP Piston Check Valve
Features
- BSP threaded ends
- Maximum pressure 800PSI / 55Bar
- Maximum working Maximum working temperature 230°C ...
- PTFE seal maximum temperature 250°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Sanitary Ball Valve
Sanitary Ball Valve
Features
- Butt welds to Outside Diameter tube sizes
- Multi-position handle
- Maximum working temperature 120°C (with EPDM seal)
View Dimensions
You need to have a trade account with us to download CAD files.
-

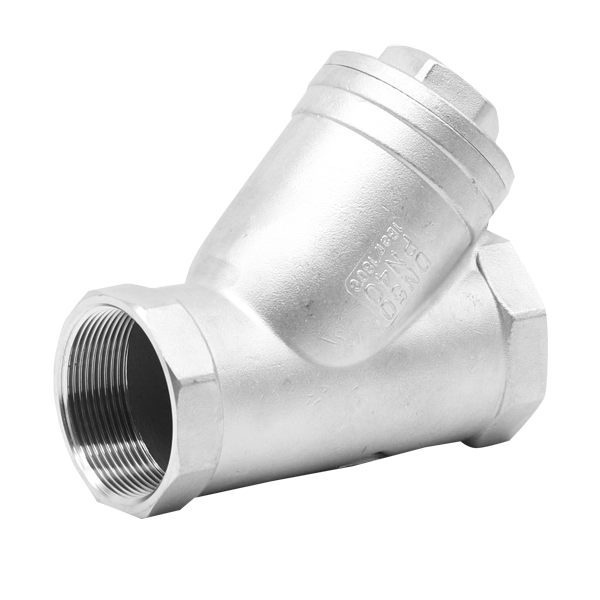

BSP 'Y' Strainer
BSP 'Y' Strainer
Features
- BSP threaded ends
- Temperature Rating: -20°C, +180°C
- Pressure Rating: 40 bar ...
- Stainless steel body and mesh
- No seal
- Mesh Specs:
- 1,000 microns (micrometres)
- Hole Diameter = 1.0mm
- Hole PCD = 2.0mm
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table E Lugged Butterfly Valve Bolt Kit
Table E Lugged Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Lugged Butterfly Valve.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Flat Washers
View Dimensions
-

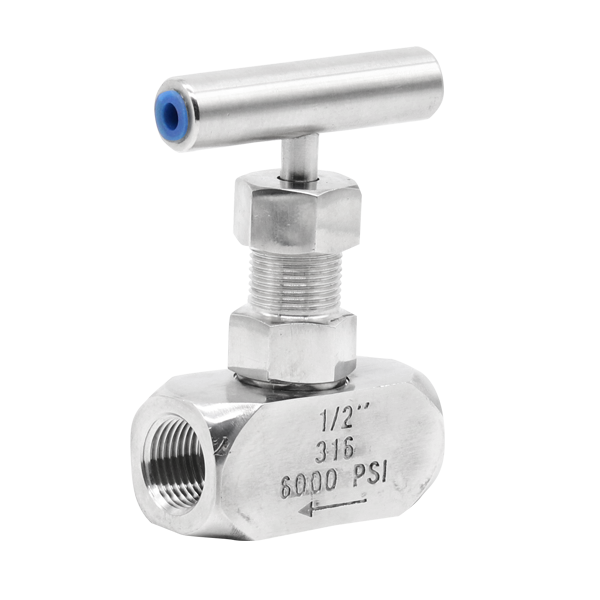

BSP Needle Valve
BSP Needle Valve
Features
- BSP threaded ends
- Temperature Rating: -20°C to +160°C
- Maximum pressure 6000PSI / 400Bar ...
- T handle operation
- 'B' Measurement is taken when the valve is fully open and the handle is at it's highest point
View Dimensions
You need to have a trade account with us to download CAD files.
-

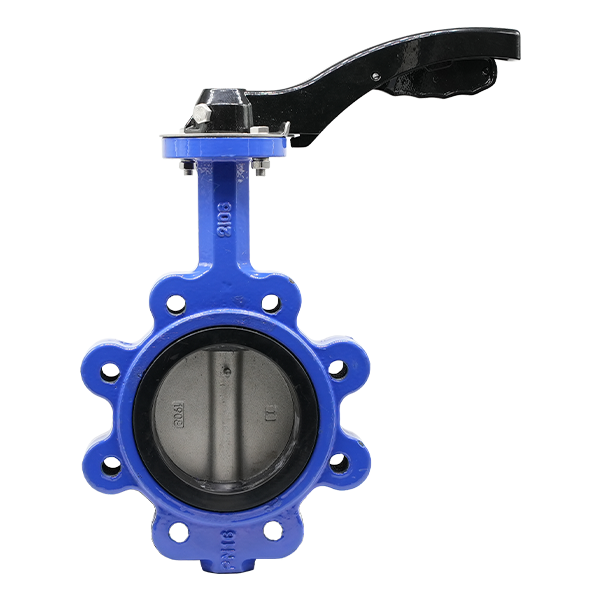

Table D/E Lugged Butterfly Valve
Table D/E Lugged Butterfly Valve
Features

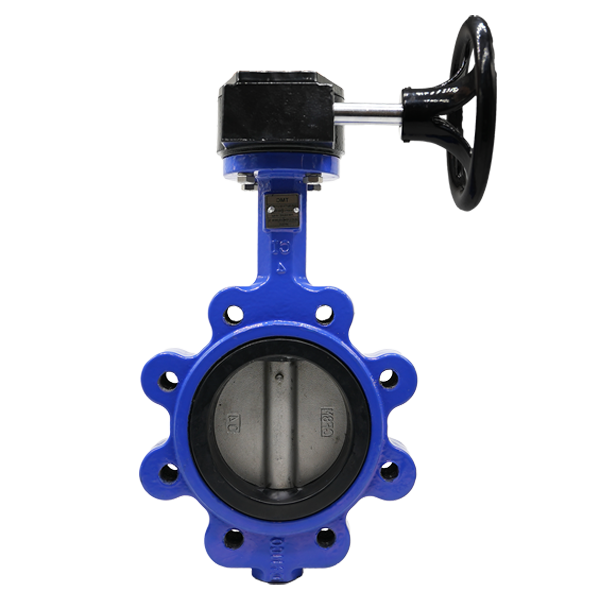

- For sizes DN250 to DN400, we recommend the use of a Gearbox. Larger sizes and kits with Gearboxes available for purchase: https://www.themetalcompany.co.nz/cilbve-gb
- Table D/E threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C) ...
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS316)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
View Dimensions
You need to have a trade account with us to download CAD files.
-
Stainless Steel Table D/E Expansion Bellow
Stainless Steel Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Stainless Steel Flanges
View Dimensions
-

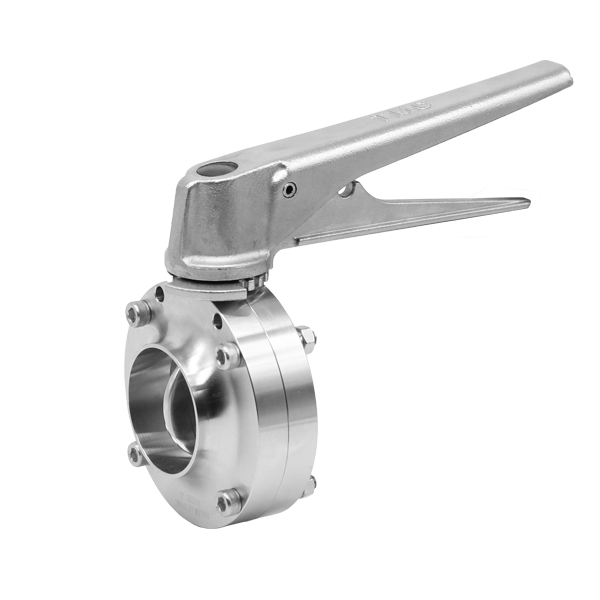

'A' Series Butterfly Valve
'A' Series Butterfly Valve
Features
- Butt welds to Outside Diameter tube sizes
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 150°C (with silicone seal) ...
- Multi-position trigger handle
- Parts are interchangeable with Keystone F250 valves
View Dimensions
You need to have a trade account with us to download CAD files.
-

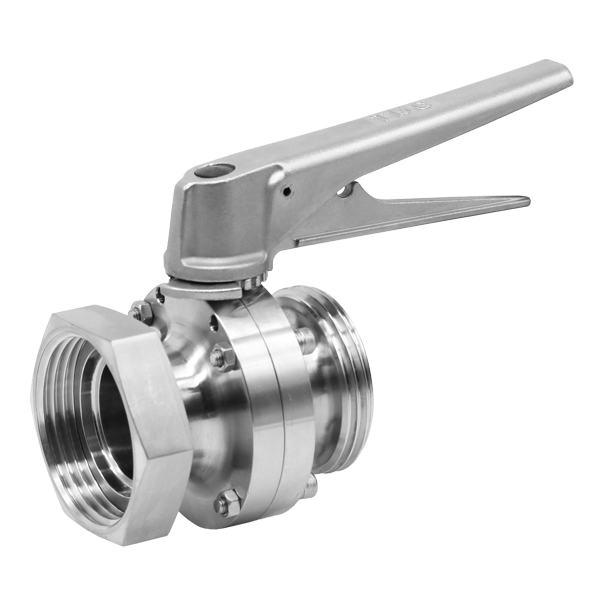

RJT 'A' Series Butterfly Valve
RJT 'A' Series Butterfly Valve
Features
- RJT Male to RJT Female connection
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 150°C (with silicone seal) ...
- Multi-position trigger handle
- Parts are interchangeable with Keystone F250 valves
View Dimensions
You need to have a trade account with us to download CAD files.
-

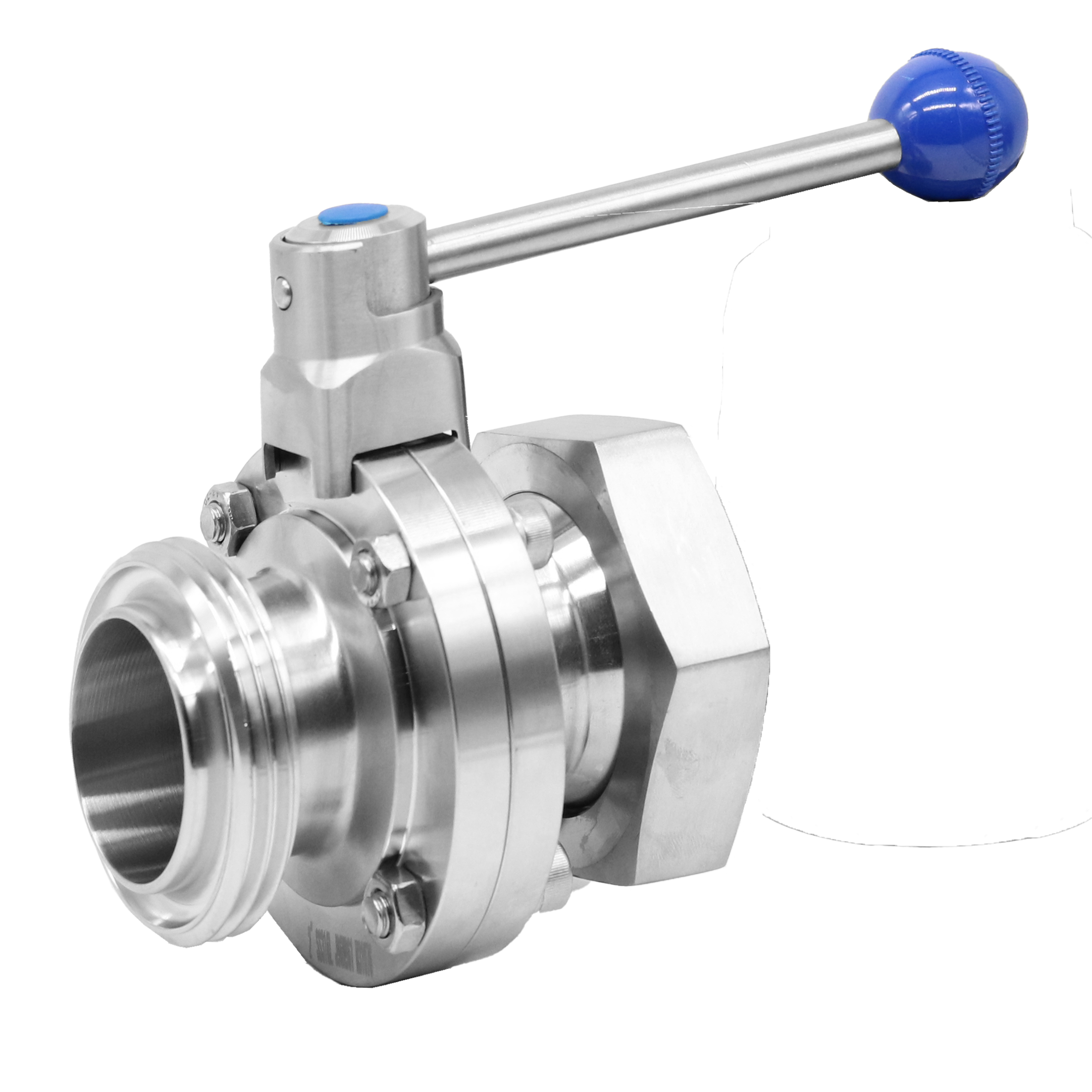

RJT 'E' Series Butterfly Valve
RJT 'E' Series Butterfly Valve
Features
- RJT Male to RJT Female connection
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 110°C (with EPDM seal) ...
- Multi-position handle
- Stainless steel trigger handle available
View Dimensions
You need to have a trade account with us to download CAD files.
-

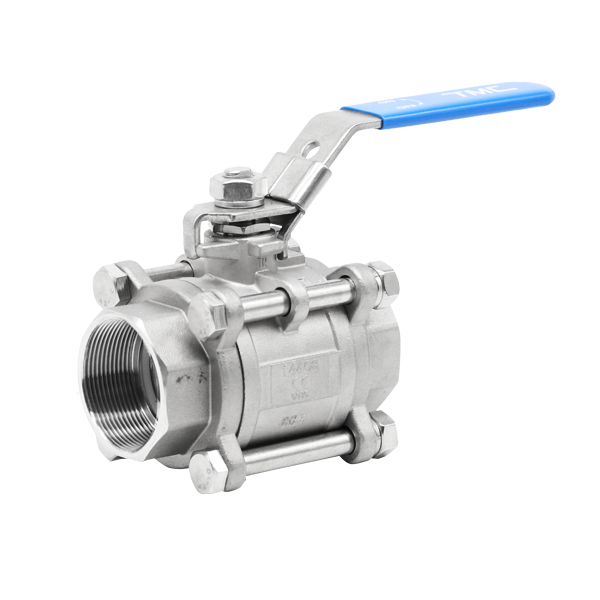

BSP 3pc Ball Valve
BSP 3pc Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- Temperature rating: -20°C to +160°C ...
- PTFE Seals
- Full port
- Lockable latch handle
- Red handle sleeve available for hot water indication
View Dimensions
You need to have a trade account with us to download CAD files.
-

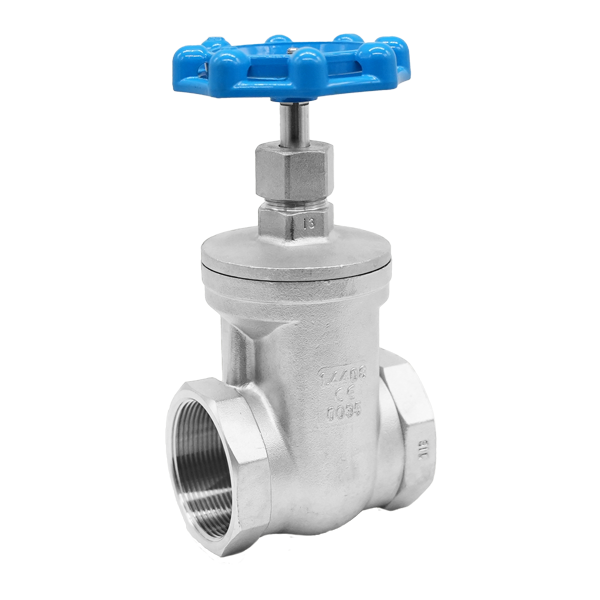

BSP Gate Valve
BSP Gate Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- Stainless steel body and gate ...
- Aluminium handwheel
- No seal
- These are an Isolation valve, not a full Termination valve due to having no seal/gasket
View Dimensions
You need to have a trade account with us to download CAD files.
-

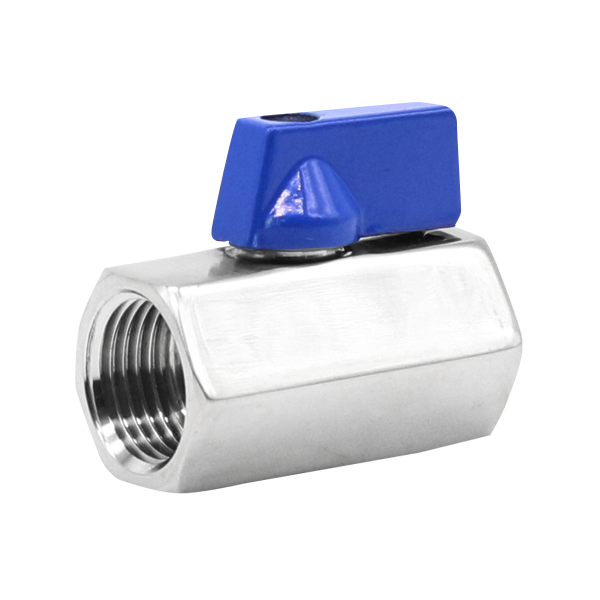

BSP Female Mini Ball Valve
BSP Female Mini Ball Valve
Features
- BSP Threaded ends
- Reduced port
- Maximum pressure 1000PSI / 68Bar ...
- PTFE seat
- Temperature rating: -20°C to +160°C
View Dimensions
You need to have a trade account with us to download CAD files.
-

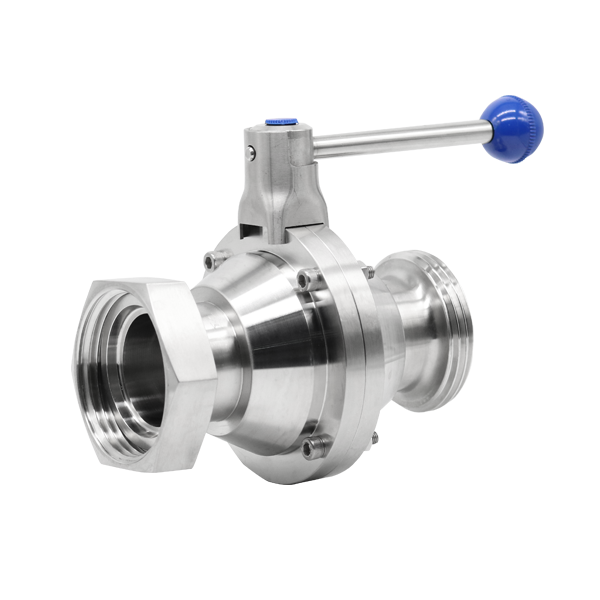

RJT Sanitary Ball Valve
RJT Sanitary Ball Valve
Features
- RJT Male - Female connection with hex nut
- Multi-position handle
- Maximum working temperature 120°C (with EPDM seal)
View Dimensions
You need to have a trade account with us to download CAD files.
-

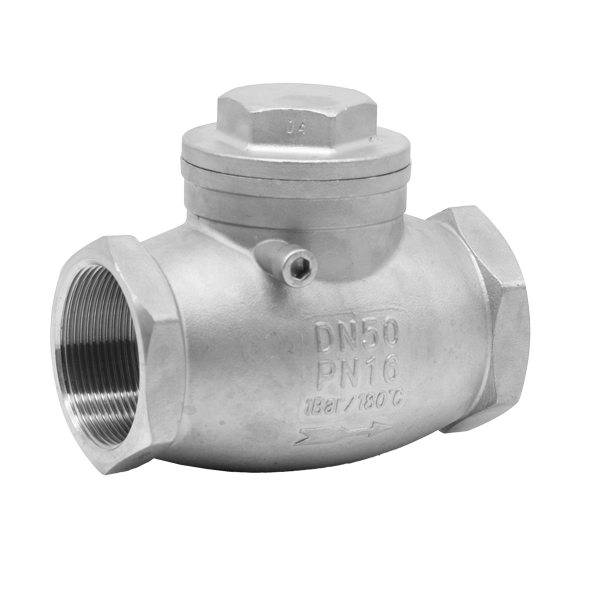

BSP Vertical Swing Check Valve
BSP Vertical Swing Check Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- These are an isolation valve, not a full termination valve due to having no seal/gasket ...
- Stainless steel body and disc
- Please note that these only operate in a vertical orientation
View Dimensions
You need to have a trade account with us to download CAD files.
-
Galvanised Table D/E Expansion Bellow
Galvanised Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Galvanised Table E Flanges
View Dimensions
-
Table D Lugged Butterfly Valve Bolt Kit
Table D Lugged Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting a Table D Flange to one side of a Table E Lugged Butterfly Valve.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Flat Washers
View Dimensions
-

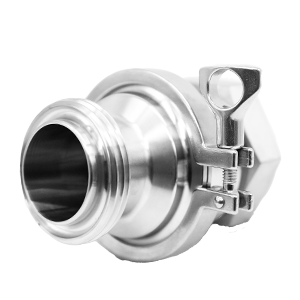

RJT Sanitary Non-Return Valve
RJT Sanitary Non-Return Valve
Features
- RJT Male/Female connections
- EPDM seal (Food Grade) maximum temperature 120°C
- Centre clamp for easy access ...
- Spring actioned flow control
- Flow direction is from RJT female to RJT male
View Dimensions
You need to have a trade account with us to download CAD files.
-

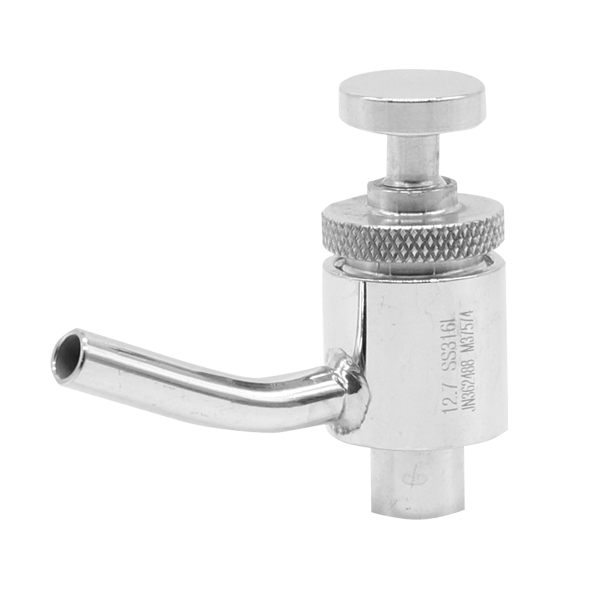

Diaphragm Sampling Valve
Diaphragm Sampling Valve
Features
- Butt weld connection for Outside Diameter tube
- Also available as Tri Clover ferrule connection
- Temperature Rating: -10°C to +150°C ...
- Working Pressure: 8 bar
- Silicone seal
View Dimensions
You need to have a trade account with us to download CAD files.
-
PN10-16 Lugged Butterfly Valve
PN10-16 Lugged Butterfly Valve
Features
- Cast Iron Body
- PN10-16 threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C) ...
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS316)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
View Dimensions
You need to have a trade account with us to download CAD files.
-

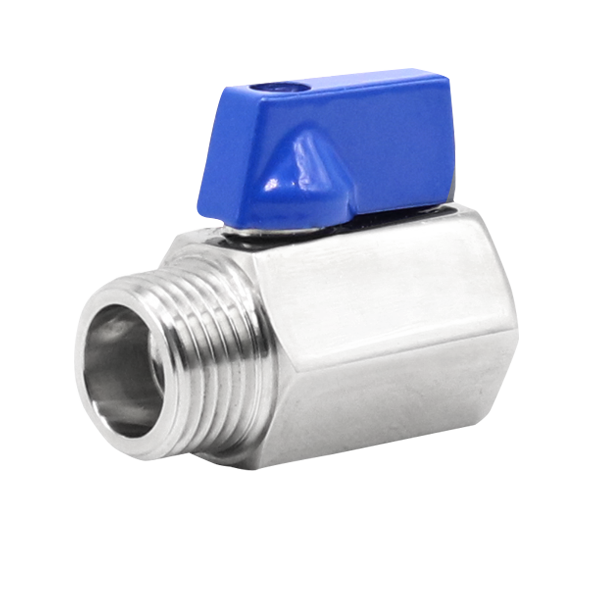

BSP Male-Female Mini Ball Valve
BSP Male-Female Mini Ball Valve
Features
- BSP Threaded ends
- Reduced port
- Maximum pressure 1000PSI / 68Bar ...
- PTFE seat
- Temperature rating: -20°C to +160°C
View Dimensions
You need to have a trade account with us to download CAD files.
-

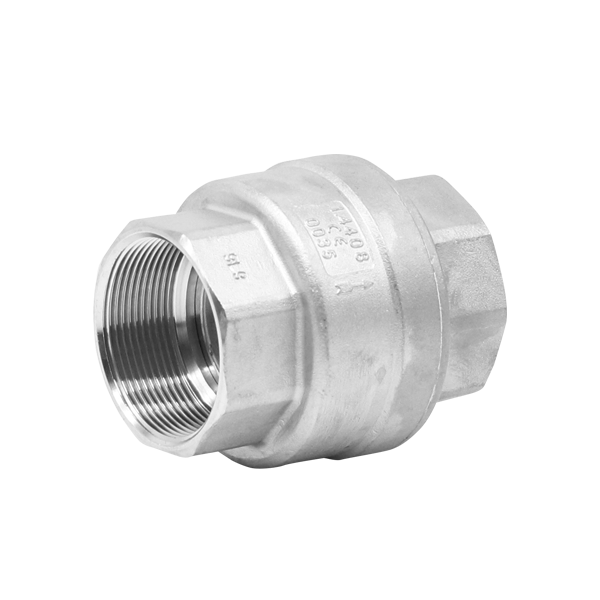

BSP 2pc Spring Check Valve
BSP 2pc Spring Check Valve
Features
- BSP threaded ends
- Maximum pressure: 40 Bar (580 PSI)
- These are an isolation valve, not a full termination valve due to having no seal/gasket ...
- Stainless steel body and disc
- Retaining Pin for Disc Alignment
- Can be used in a vertical or horizontal orientation
View Dimensions
You need to have a trade account with us to download CAD files.
-

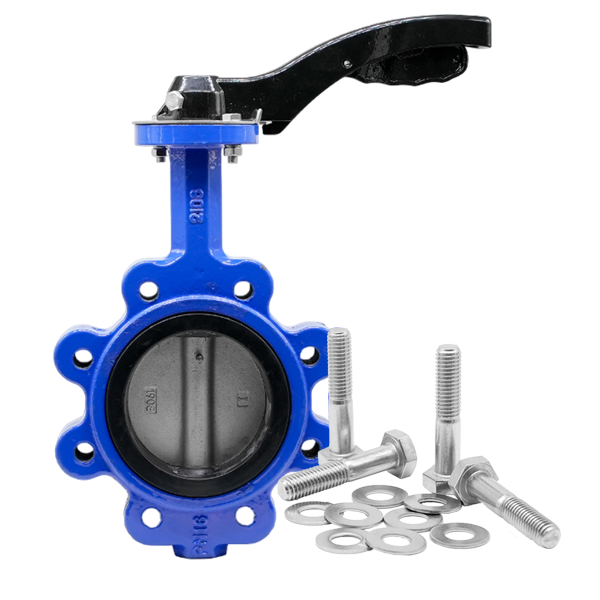

PN10-16 Lugged Butterfly Valve Bolt Kit
PN10-16 Lugged Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting a PN10-16 Flange to one side of a PN10-16 Lugged Butterfly Valve.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Flat Washers
View Dimensions
-

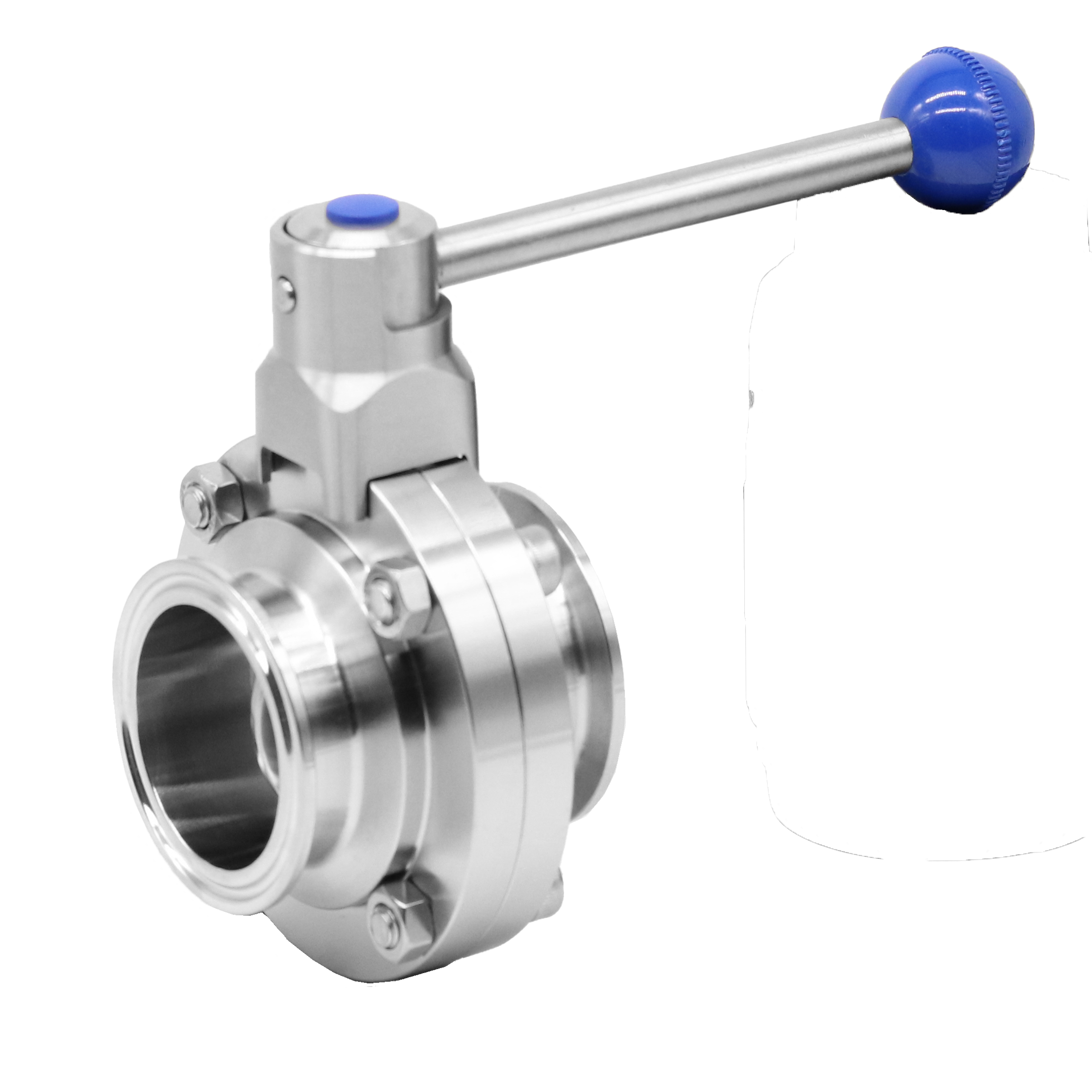

Tri Clover 'E' Series Butterfly Valve
Tri Clover 'E' Series Butterfly Valve
Features
- Tri Clover Ferrule connections
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 110°C (with EPDM seal) ...
- Multi-position handle
- Stainless steel trigger handle available
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover 'A' Series Butterfly Valve
Tri Clover 'A' Series Butterfly Valve
Features
- Tri Clover Ferrule connection
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 150°C (with silicone seal) ...
- Multi-position trigger handle
- Parts are interchangeable with Keystone F250 valves
View Dimensions
You need to have a trade account with us to download CAD files.
-

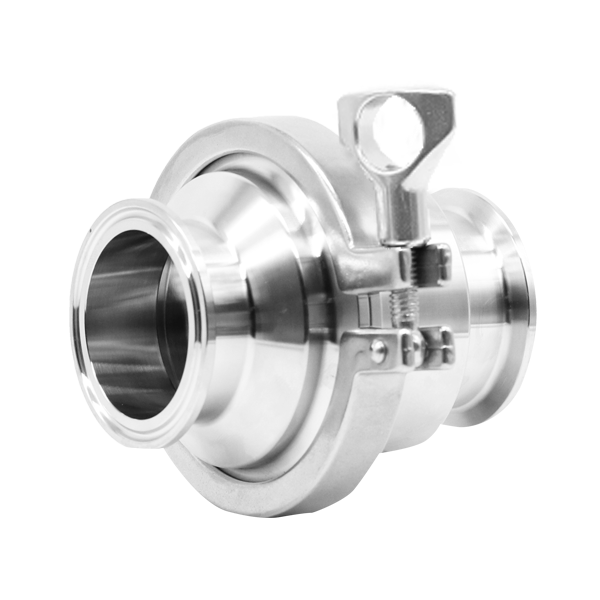

Tri Clover Sanitary Non-Return Valve
Tri Clover Sanitary Non-Return Valve
Features
- Tri Clover Ferrule connections
- EPDM seal (Food Grade) maximum temperature 120°C
- Centre clamp for easy access ...
- Spring actioned flow control
View Dimensions
You need to have a trade account with us to download CAD files.
-

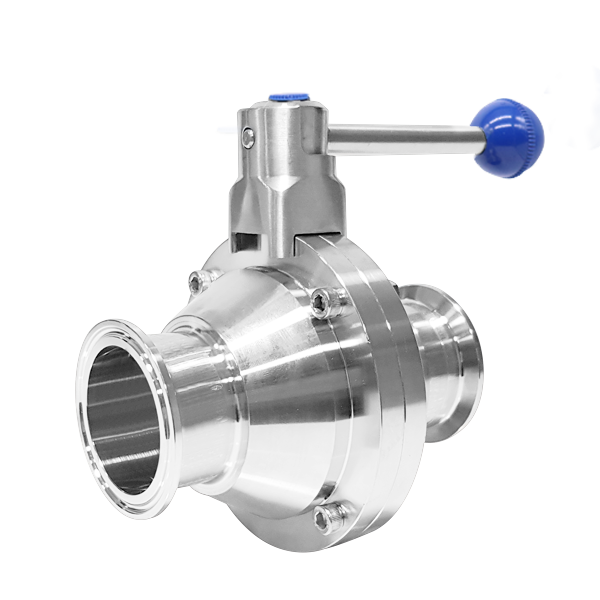

Tri Clover Sanitary Ball Valve
Tri Clover Sanitary Ball Valve
Features
- Tri Clover Ferrule connections
- Multi-position handle
- Maximum working temperature 120°C (with EPDM seal)
View Dimensions
You need to have a trade account with us to download CAD files.
-

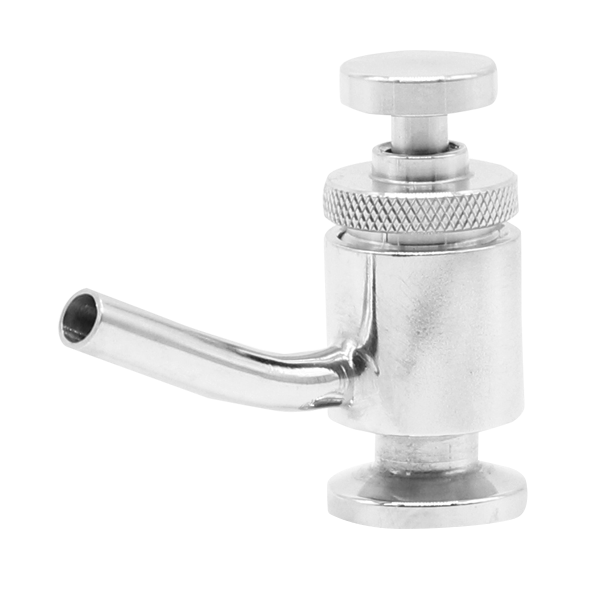

Tri Clover Diaphragm Sampling Valve
Tri Clover Diaphragm Sampling Valve
Features
- Tri Clover ferrule connection
- Also available as butt weld connection for Outside Diameter tube
- Temperature Rating: -10°C to +150°C ...
- Working Pressure: 8 bar
- Silicone seal
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP 3pc Ball Valve Service Kit
BSP 3pc Ball Valve Service Kit
Features
- Replacement seals for our BSP 3pc Ball Valves
- Includes: PTFE Ball Seat (x2), PTFE Thrust Washer (x1), PTFE Stem Packing (x2) and PTFE Joint Gaskets (x2)
View Dimensions
-
ANSI150 Lugged Butterfly Valve
ANSI150 Lugged Butterfly Valve
Features
- Cast Iron Body
- ANSI 150 threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C) ...
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS316)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
- Please note: CILBV80A150 has 5/8" Threaded Holes. Stock with M16 Threaded Holes will replace this as new stock arrives.
View Dimensions
You need to have a trade account with us to download CAD files.
-
Sanitary Ball Valve EPDM/PTFE Seal Kit
Sanitary Ball Valve EPDM/PTFE Seal Kit
Features
- Replacement seal kit to suit Sanitary Ball Valve
- Includes:
- x1 EPDM seat ...
- x2 PTFE seats
- x2 EPDM o-rings
- x1 PTFE stem bush
View Dimensions
-
BSP 3pc Spring Check Valve
BSP 3pc Spring Check Valve
Features
- BSP threaded ends
- Maximum pressure 580PSI / 40Bar
- These are an isolation valve, not a full termination valve due to having no seal/gasket ...
- Stainless steel body and disc
- No Retaining Pin for Disc Alignment
- Can only be used in a vertical orientation
View Dimensions
You need to have a trade account with us to download CAD files.
-
'A' Series Butterfly Valve Handle
'A' Series Butterfly Valve Handle
Features
- Multi-position trigger handle
View Dimensions
You need to have a trade account with us to download CAD files.
-
ANSI150 Lugged Butterfly Valve Bolt Kit
ANSI150 Lugged Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting a ANSI150 Flange to one side of a ANSI150 Lugged Butterfly Valve.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Flat Washers
View Dimensions
-
Diaphragm Sampling Valve Seal
Diaphragm Sampling Valve Seal
Features
- Silicone Seal to suit Sampling Diaphragm Valve
- Temperature Rating: -10°C to +150°C
View Dimensions
-
'E' Series Butterfly Valve Extension Handle
'E' Series Butterfly Valve Extension Handle
Features
- Extension Handle
- Great for use on lagged/insulated pipe work
View Dimensions
You need to have a trade account with us to download CAD files.
-
Wafer Butterfly Valve
Wafer Butterfly Valve
Features
- Cast Iron Body
- Suits most flange bolt patterns including, Table D/E, PN10-16 & ANSI 150
- PCD is measured from a range of smallest to largest PCD measured with Table D/E, PN10-16 & ANSI 150 ...
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS316)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
View Dimensions
You need to have a trade account with us to download CAD files.
-
Sanitary Non-Return Valve EPDM Seal Kit
Sanitary Non-Return Valve EPDM Seal Kit
Features
- EPDM seal (Food Grade) maximum temperature 120°C
- Kit includes: 2 x O’rings, spring and 1 x seal for end of gate/plate.
View Dimensions
-
'E' Series Butterfly Valve Handle Knob
'E' Series Butterfly Valve Handle Knob
Features
- M10 Thread
- Fits end of E Series Valve Handle
View Dimensions
-
'A' Series Butterfly Valve Disc
'A' Series Butterfly Valve Disc
Features
- To Fit A Series Valve
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress 3pc Ball Valve
RapidPress 3pc Ball Valve
Features
- EPDM Seals
- RapidPress Coupler Connections
- Full Port ...
- Lockable latch handle
- Temperature Rating: -20°C, 120°C
- Red handle sleeves available for purchase
- RapidPress Extreme options available
- **Please note: 76.1x65NB has been fabricated from a standard 65NB BSP Ball Valve and two 76.1 RapidPress Weld Couplers**
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table E Wafer Butterfly Valve Bolt Kit
Table E Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table E Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Lockable Sampling Valve
Lockable Sampling Valve
Features
- Butt weld connection for Outside Diameter tube
- Temperature Rating: -10°C to +135°C
- Working Pressure: 8 bar ...
- Silicone & PTFE seal
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table E Lugged Butterfly Valve with Gearbox
Table E Lugged Butterfly Valve with Gearbox
Features
- Sizes DN250-DN300 are Cast Iron, Sizes DN350-DN400 are Ductile Iron
- Table E threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C) ...
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
View Dimensions
-
'A' Series Butterfly Valve Silicone Seal Kit
'A' Series Butterfly Valve Silicone Seal Kit
Features
- Maximum temperature 150°C
- Kit includes 2x PTFE shaft bush/bearings
- These Seals Suit any Keystone F250 Butterfly Valves
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table D Wafer Butterfly Valve Bolt Kit
Table D Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table D Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
BSP Sampling Valve
BSP Sampling Valve
Features
- BSPT threaded end
- Temperature Rating: -10°C to +135°C
- Working Pressure: 8 bar ...
- Silicone & PTFE Seal
View Dimensions
You need to have a trade account with us to download CAD files.
-
Wafer Butterfly Valve with Gearbox
Wafer Butterfly Valve with Gearbox
Features
- Cast Iron Body
- Suits most flange bolt patterns including, Table D/E, PN10-16 & ANSI 150
- PCD is measured from a range of smallest to largest PCD measured with Table D/E, PN10-16 & ANSI 150 ...
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
View Dimensions
-
RapidPress Ball Valve Handle Extension
RapidPress Ball Valve Handle Extension
Features
- 70mm Handle Extension
- Extend your RapidPress Valve Handle above insulation or hard to reach places
View Dimensions
-
'E' Series Butterfly Valve Disc
'E' Series Butterfly Valve Disc
Features
- Replacement disc for E Series Valve
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP 'L' Port Ball Valve
BSP 'L' Port Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- PTFE seal maximum temperature 250°C ...
- Lockable latch handle
- ISO5211 mounting pad - These do not fit to actuators but can be used for mounting to wall or panels
- Reduced port
- 3 way valves from 2 1/2" to 4" will differ from image shown
View Dimensions
-
PN10-16 Wafer Butterfly Valve Bolt Kit
PN10-16 Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two PN10-40 Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
'A' Series Butterfly Valve EPDM Seal Kit
'A' Series Butterfly Valve EPDM Seal Kit
Features
- Maximum temperature 110°C
- These Seals Suit any Keystone F250 Butterfly Valves
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP Sampling Valve Handle/Seal
BSP Sampling Valve Handle/Seal
Features
- Silicone/PTFE Seal to suit BSP Sampling Valve
- Temperature Rating: -10°C to +135°C
View Dimensions
-
Butterfly Valve Handle
Butterfly Valve Handle
Features
- To suit our range of Cast Iron Butterfly Valves
- Aluminum
- Stainless Steel Fasteners & Notch Plate (SS316) ...
- Epoxy Resin Powder Painted (Black)
View Dimensions
-
'E' Series Butterfly Valve EPDM Seal
'E' Series Butterfly Valve EPDM Seal
Features
- Maximum temperature 110°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP 'T' Port Ball Valve
BSP 'T' Port Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- PTFE seal maximum temperature 250°C ...
- Lockable latch handle
- ISO5211 mounting pad - These do not fit to actuators but can be used for mounting to wall or panels
- Reduced port
- 3 way valves from 2 1/2" to 4" will differ from image shown
View Dimensions
-
'A' Series Butterfly Valve FKM Seal Kit
'A' Series Butterfly Valve FKM Seal Kit
Features
- Maximum temperature 180°C
- These Seals Suit any Keystone F250 Butterfly Valves
View Dimensions
You need to have a trade account with us to download CAD files.
-
ANSI150 Wafer Butterfly Valve Bolt Kit
ANSI150 Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI150 Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Butterfly Valve Gear Box
Butterfly Valve Gear Box
Features
- To suit Cast Iron Butterfly Valves
View Dimensions
You need to have a trade account with us to download CAD files.
-
Ball Valve Handle
Ball Valve Handle
Features
- Lockable latch handle with blue handle sleeve
- Fits on most 2pc and 3pc Ball Valves and various other valves
View Dimensions
-
'E' Series Butterfly Valve Silicone Seal
'E' Series Butterfly Valve Silicone Seal
Features
- Maximum temperature 110°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table E Wafer Check Valve Bolt Kit
Table E Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table E Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Table E 'Y' Strainer
Table E 'Y' Strainer
Features
- Ductile Iron Body
- Table E bolt pattern
- Nominal Pressure - 1.6 Mpa (16 bar) ...
- Drain Plug on Cover
- Graphite Cover Gasket
- Graphite temperature rating -10°C to 230°C
- Epoxy resin powder paint according to ISO 21809
View Dimensions
-
Red Ball Valve Handle Sleeve
Red Ball Valve Handle Sleeve
Features
- Red handle sleeve available for hot water indication (Sleeve only, handle not included)
- Fits on most 2pc and 3pc Ball Valves and various other valves
View Dimensions
-
'E' Series Butterfly Valve FKM Seal
'E' Series Butterfly Valve FKM Seal
Features
- Maximum temperature 115°C
View Dimensions
You need to have a trade account with us to download CAD files.
-
Table D Wafer Check Valve Bolt Kit
Table D Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table D Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Isolating Regulating Valve PN16
Isolating Regulating Valve PN16
Features
- Ductile Iron Body
- PN16 Bolt Pattern
- Two Brass Measurement Ports ...
- Stainless Steel Stem
- Resilient Seated
- Temperature Rating: 0°C to +80°C
View Dimensions
-
PN10-40 Wafer Check Valve Bolt Kit
PN10-40 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two PN10-40 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
RapidPress Red Ball Valve Handle Sleeve
RapidPress Red Ball Valve Handle Sleeve
Features
- Red handle sleeve available for hot water indication (Sleeve only, handle not included)
- Fits our RapidPress 3pc Ball Valve Handles
View Dimensions
-
ANSI150 Wafer Check Valve Bolt Kit
ANSI150 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI150 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
ANSI300 Wafer Check Valve Bolt Kit
ANSI300 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI300 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
AS4087 Wafer Check Valve Bolt Kit
AS4087 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two AS4087 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Table E Y Strainer Bolt Kit
Table E Y Strainer Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Y Strainer.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
PN16 Isolating Regulating Valve Bolt Kit
PN16 Isolating Regulating Valve Bolt Kit
Features
- Bolt Kit to suit bolting a PN10-40 Flange to one side of a PN16 Isolating Regulating Valve.
- For Kit contents, click View Dimensions
- A: Bolts...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Table E Expansion Bellow Bolt Kit
Table E Expansion Bellow Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Expansion Bellow.
- For Kit contents, click View Dimensions
- A: Bolts ...
- B: Hex Nuts
- C: Flat Washers
View Dimensions
-
Pressure Relief Valve with RJT Female
Pressure Relief Valve with RJT Female
Features
- PTFE Insert
- EPDM Seals
- Additional sizes available upon request
View Dimensions
