RapidPress Inox Gas Press-Fit System

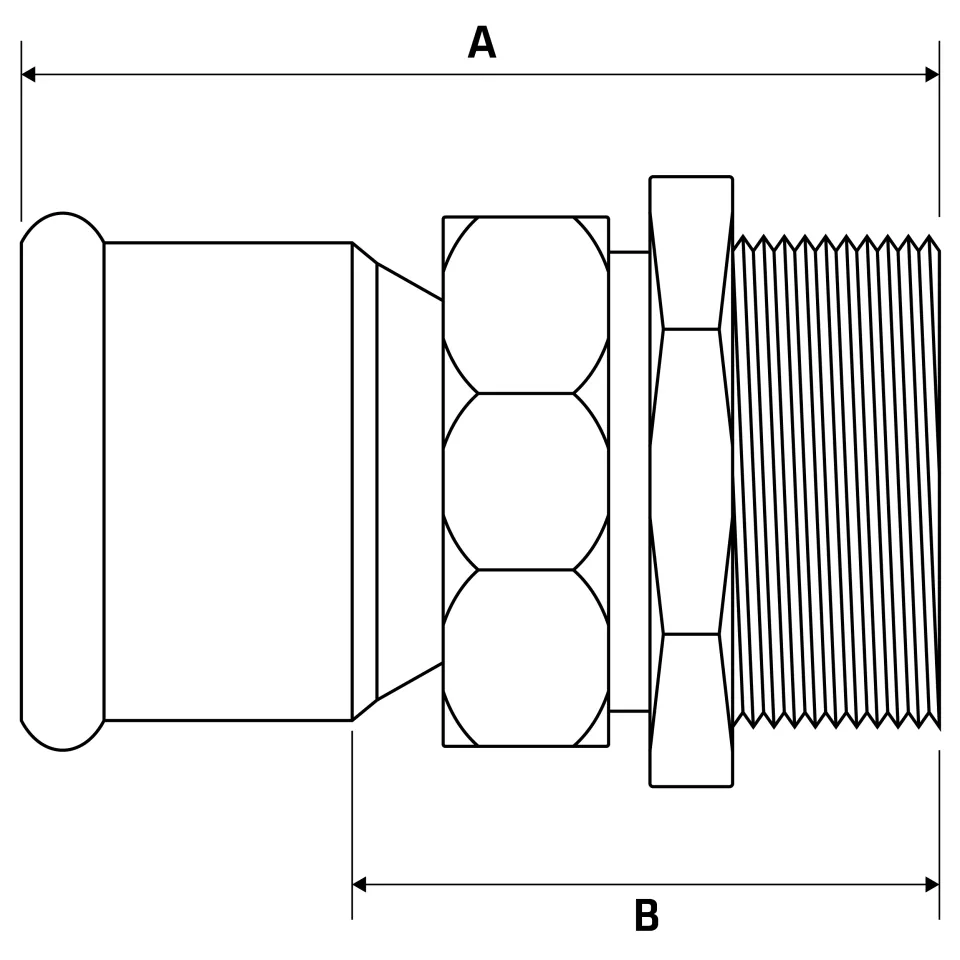

RapidPress Male BSP Union with Brass Nut - Gas
RapidPress Male BSP Union with Brass Nut - Gas
Features
- NBR Seals & Gasket
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 bar (72 psi)
- BSP Thread: ISO 7-1, EN 10226-1
- BSP Nipple Material: Brass
Related Products
-

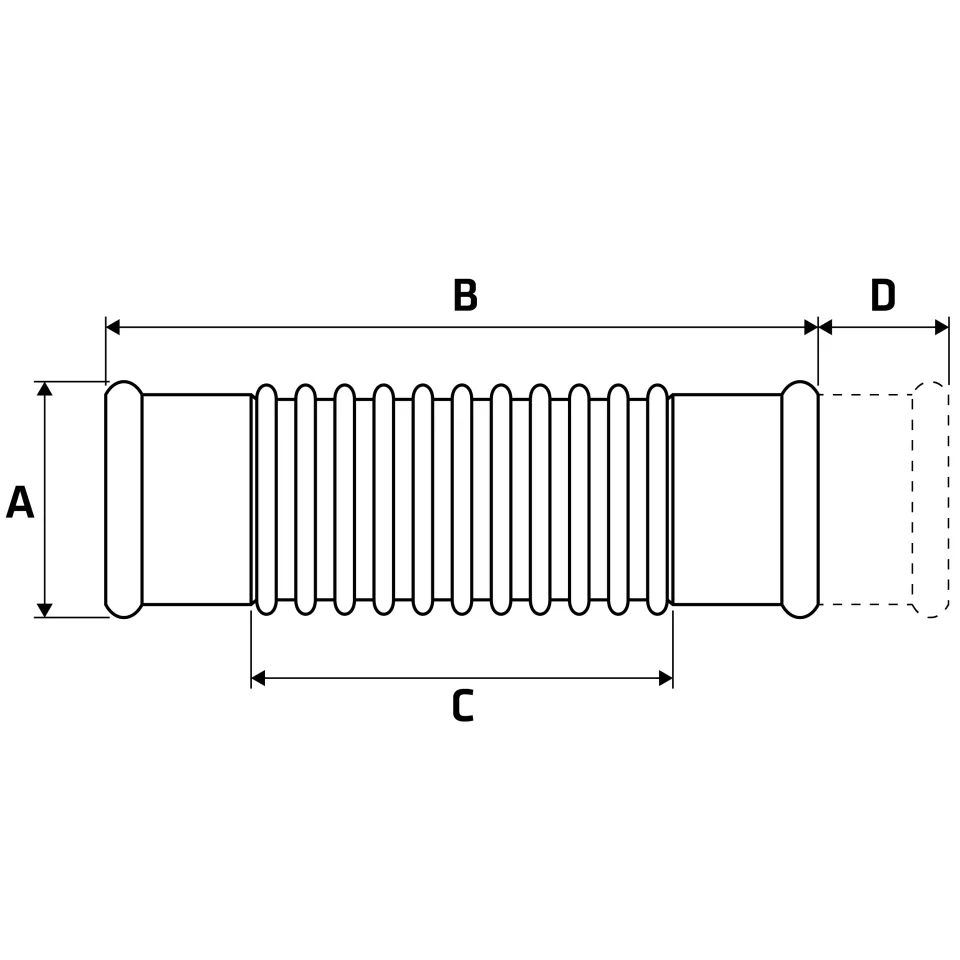

RapidPress Gas Expansion Compensator
RapidPress Gas Expansion Compensator
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 bar (72 psi) ...
- Refer to page 35 in our RapidPress Technical Guide for our Expansion Compensation Table
- Measurement 'D' = Maximum amount of expansion length
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress 2pc Brass Ball Valve - Gas
RapidPress 2pc Brass Ball Valve - Gas
Features
- ***Please note there is a two to three day leadtime for this product from time of the order***
- RapidPress Seals: NBR
- Temperature rating: -20°C to +70°C...
- Maximum operating pressure: 5 bar (72 psi)
- BSP Thread: ISO 7-1, EN 10226-1
- Valve manufactured to: AS 4617-2018, Certified to: GAS-104839-001 & WMTS012-2018
- Valve body: Nickel Plated Brass (CW602N (C35200))
- We recommend the use of Blue Monster PTFE Gas Guard Thread Sealing Tape
-
RapidPress Plain Clamp
RapidPress Plain Clamp
Features
- To suit RapidPress tube
- Includes Stainless Steel Metric Fasteners
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Pressing Tool Case
RapidPress Pressing Tool Case
Features
- RapidPress Pressing Tool Case for ACO203 & ACO203XL Pressing Tools
View Dimensions
-

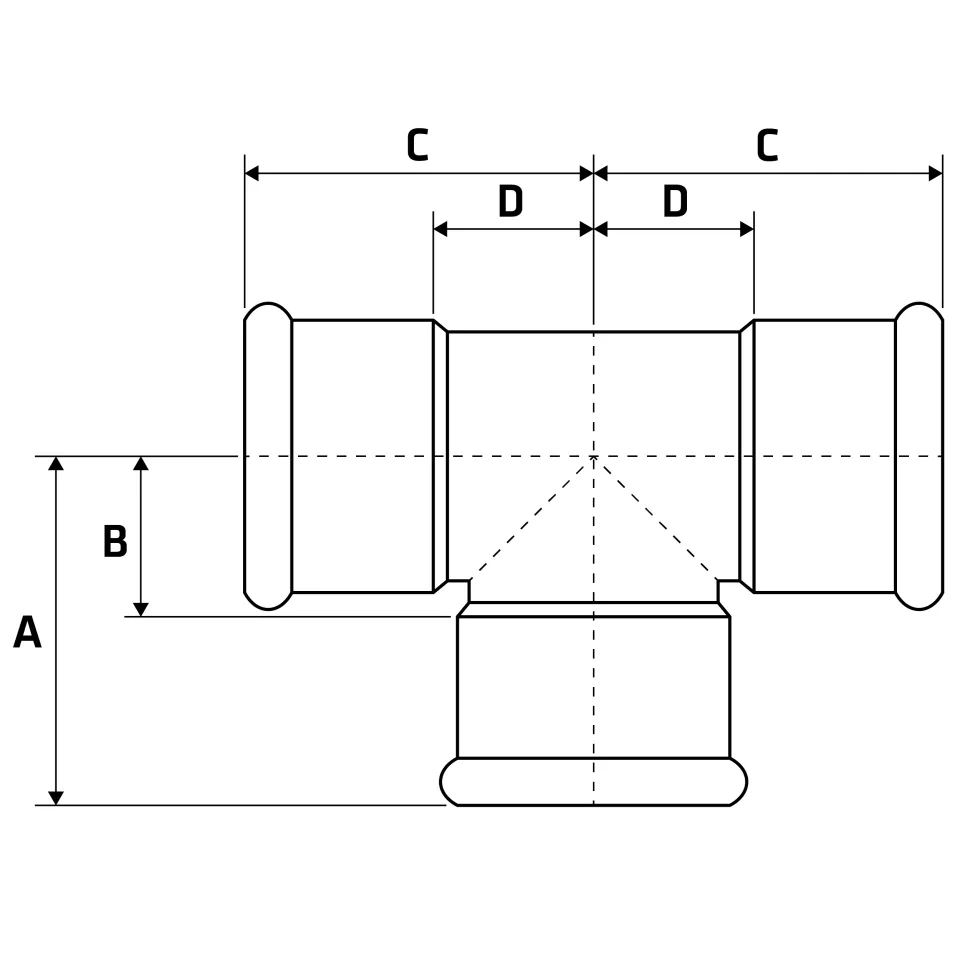

RapidPress Gas Equal Tee
RapidPress Gas Equal Tee
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

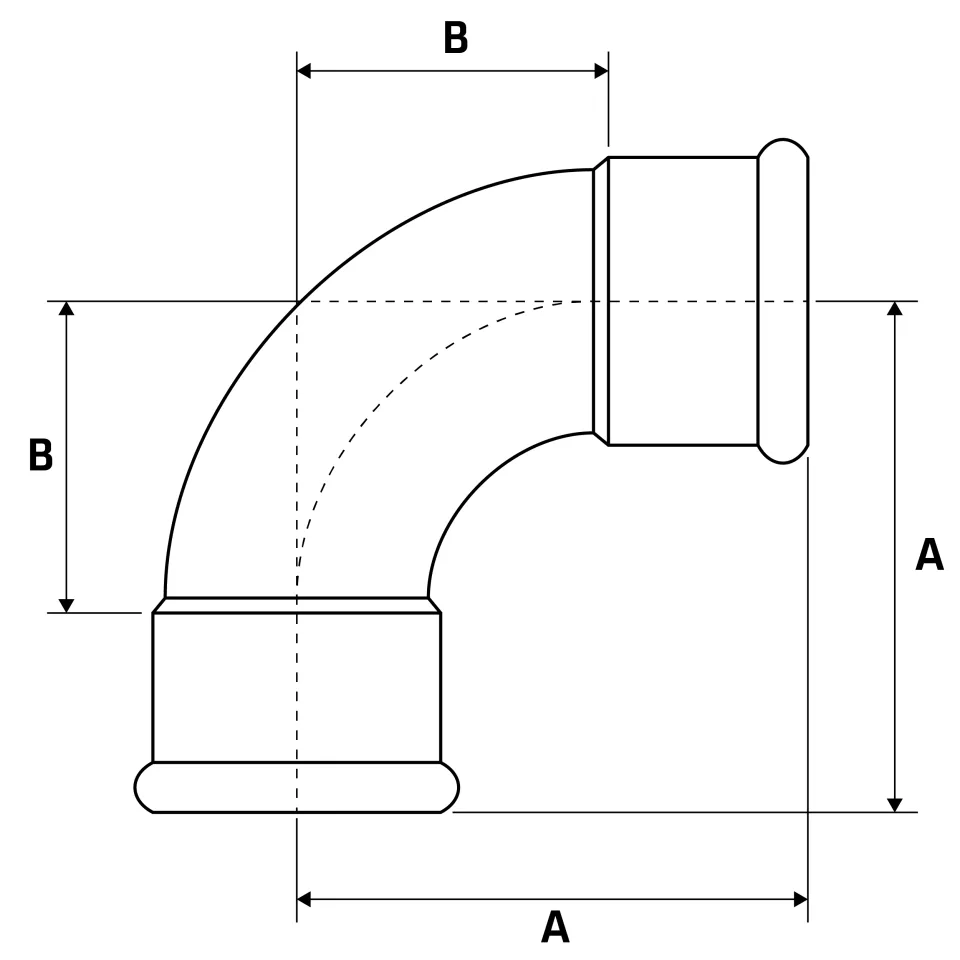

RapidPress Gas Bend 90°
RapidPress Gas Bend 90°
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

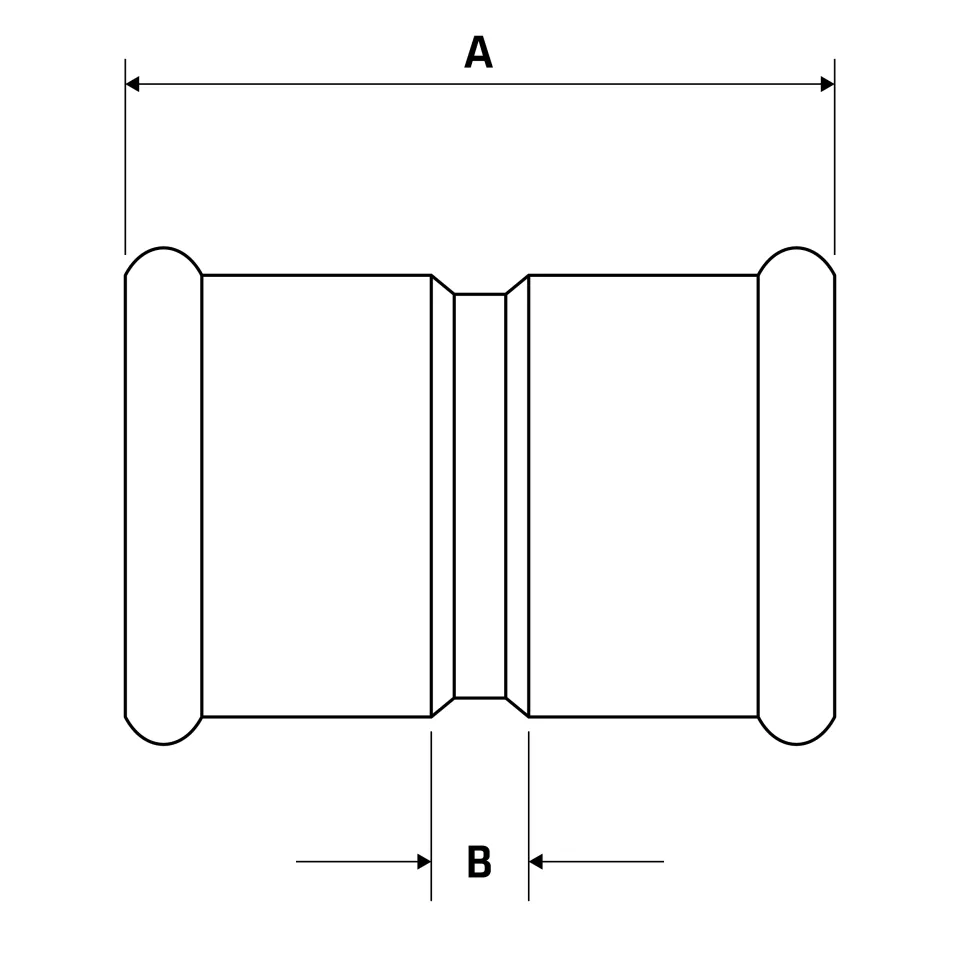

RapidPress Gas Coupler
RapidPress Gas Coupler
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

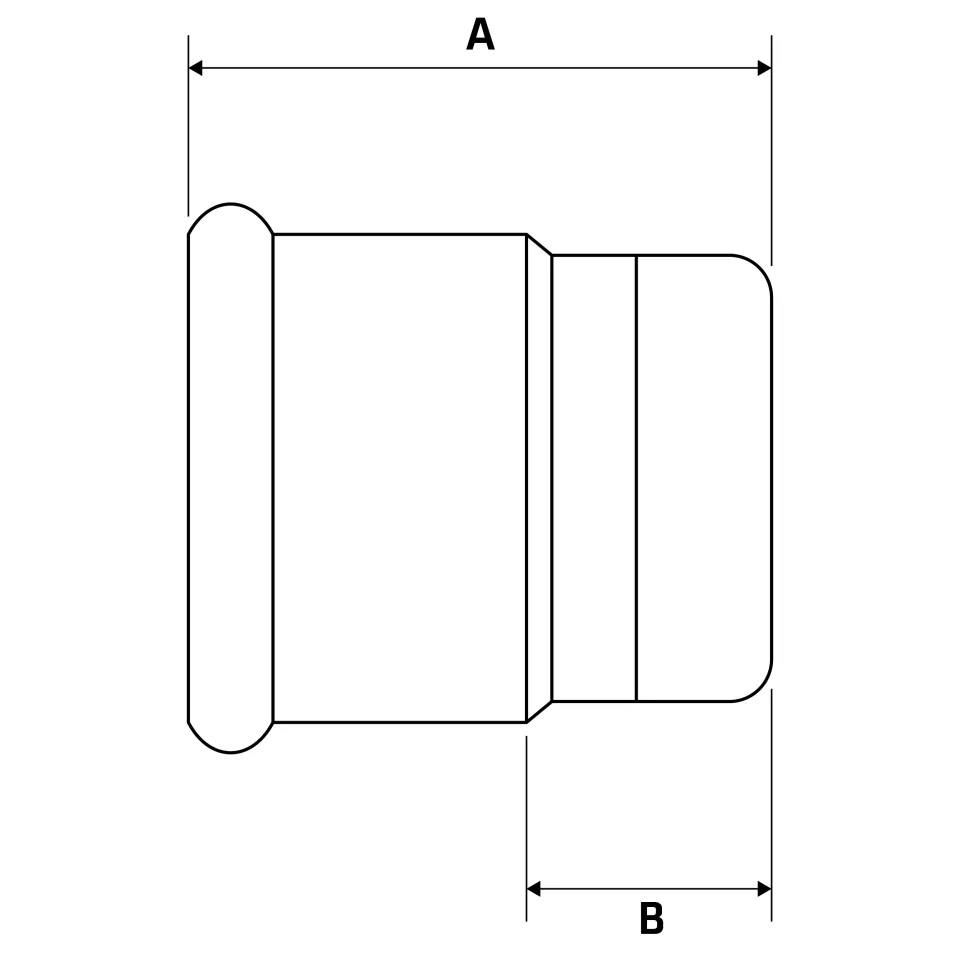

RapidPress Gas End Cap
RapidPress Gas End Cap
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress Startup Kit
RapidPress Startup Kit
Features
- Kit includes: Orbital Tube Cutter, Deburrer, Depth Gauge and our RapidPress Technical Manual.
-
RapidPress ACO203 Complete Set 15-54
RapidPress ACO203 Complete Set 15-54
Features
- Tool comes with full set of compatible pressing heads
- Press sizes from 15.0mm to 54.0mm
- Work light for safe working ...
- Analysis of tool performance via NovoCheck app
- Data transfer via Bluetooth®
- Brushless Motor Technology
- Runs Milwaukee® M18™ Battery
View Dimensions
-
RapidPress ACO203XL Complete Set 15-108
RapidPress ACO203XL Complete Set 15-108
Features
- Tool comes with full set of compatible Pressing Heads (excludes 88.9mm Pressing Head)
- Press sizes from 15.0mm to 108.0mm
- Rotatable head ...
- Analysis of tool performance via NovoCheck app
- Data transfer via Bluetooth®
- Brushless Motor Technology
- Runs Milwaukee® M18™ Battery
View Dimensions
-
RapidPress ACO203XL 15-108 Tool
RapidPress ACO203XL 15-108 Tool
Features
- *Tool, Battery, Charger and Case only*
- Press sizes from 15.0mm to 108.0mm
- Rotatable head ...
- Analysis of tool performance via NovoCheck app
- Data transfer via Bluetooth®
- Brushless Motor Technology
- Runs Milwaukee® M18™ Battery
- Ask us about our ex hire tools available for purchase!
View Dimensions
-
RapidPress Pressing Head Case 76.1-108
RapidPress Pressing Head Case 76.1-108
Features
- For RapidPress Pressing Heads & Adapters from 76.1 to 108.0
View Dimensions
-
RapidPress Clip Head & 'T' Bracket
RapidPress Clip Head & 'T' Bracket
Features
- To suit RapidPress Press-Fit Tube
- Fasteners included
- Additional sizes available on request
View Dimensions
-

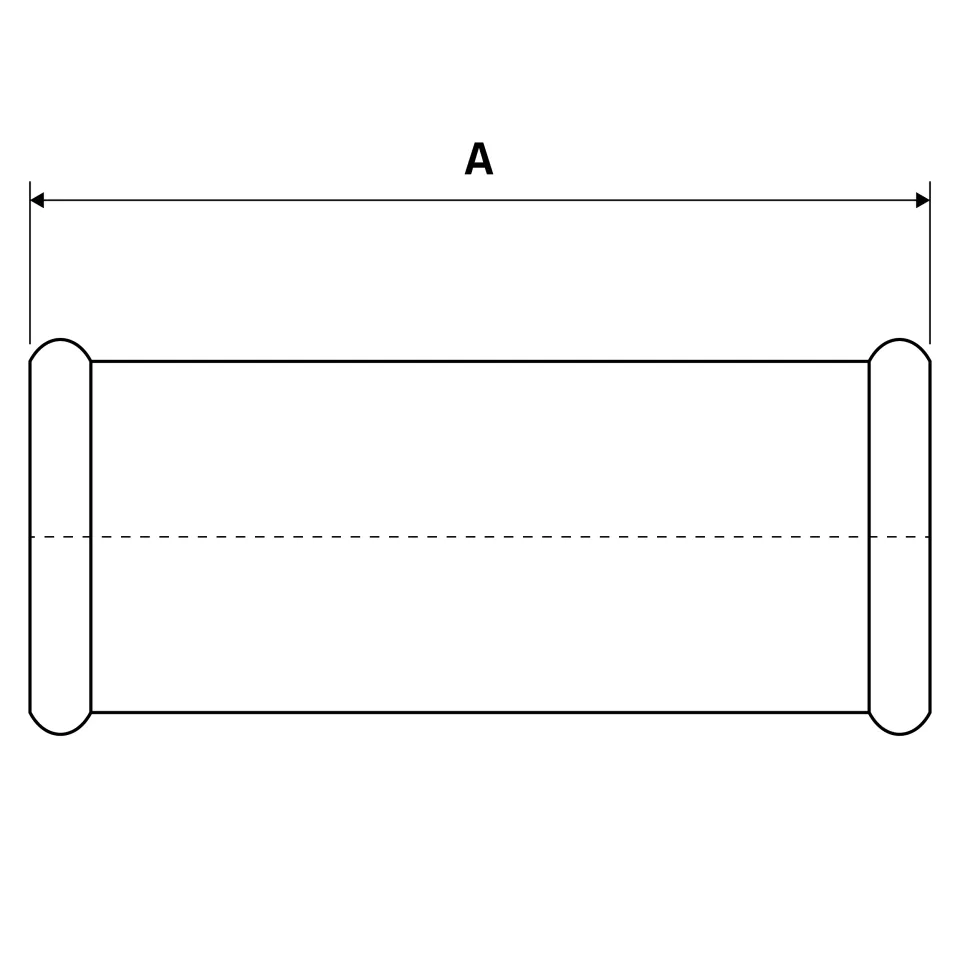

RapidPress Gas Slip Coupler
RapidPress Gas Slip Coupler
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

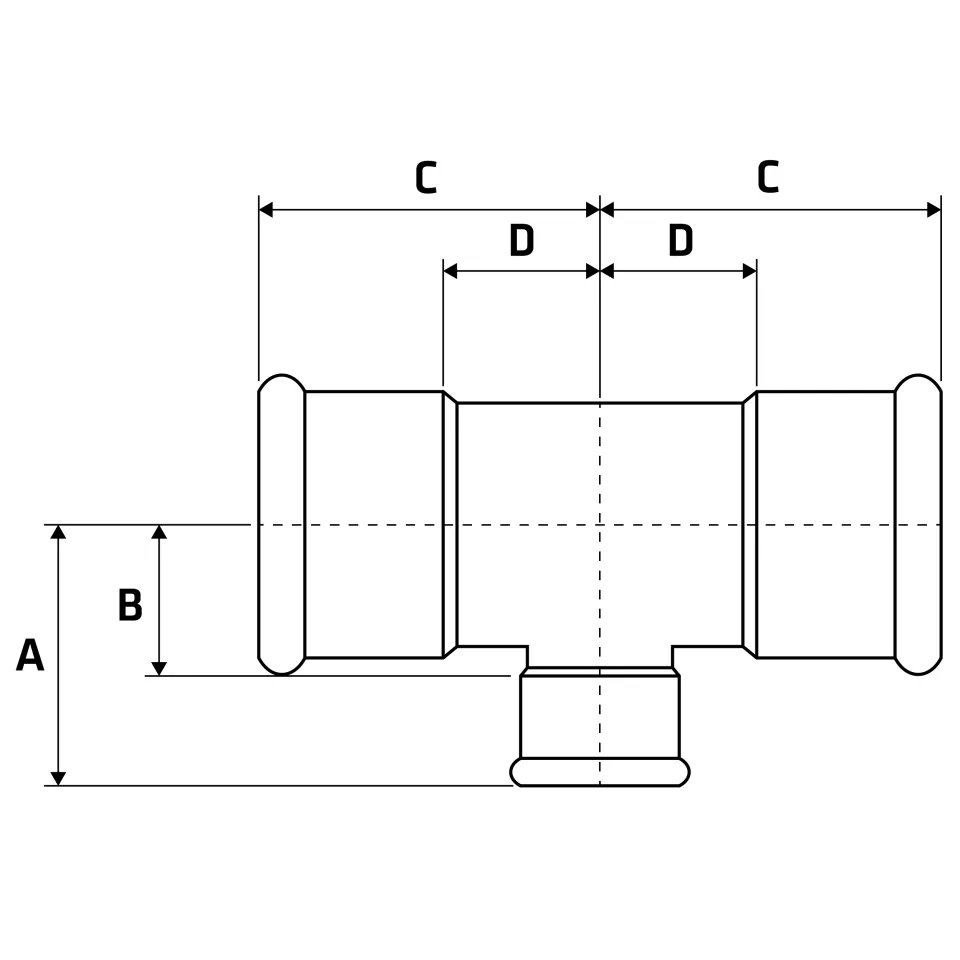

RapidPress Gas Reducing Tee
RapidPress Gas Reducing Tee
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

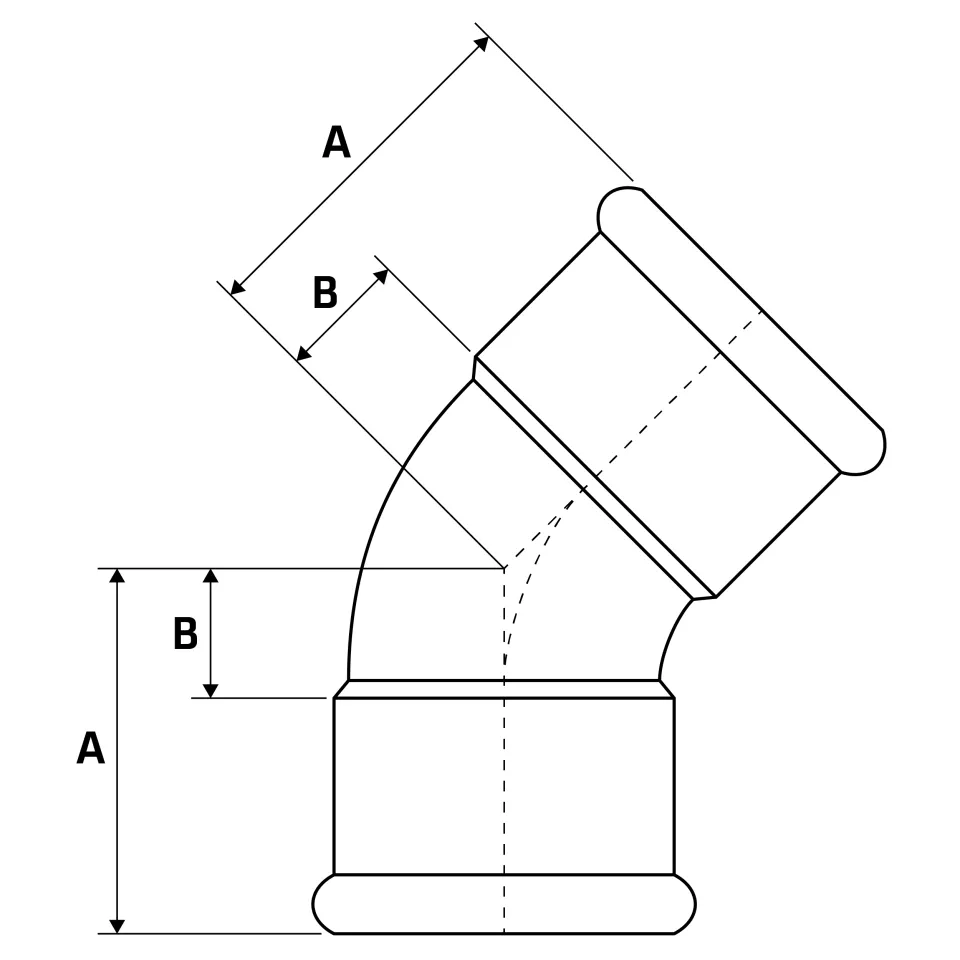

RapidPress Gas Bend 45°
RapidPress Gas Bend 45°
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress Bossed Clamp
RapidPress Bossed Clamp
Features
- M10 Boss (17mm long)
- Clamp to suit RapidPress Tube
- Includes Stainless Steel Metric Fasteners ...
- Smaller sizes are available as Saddles
View Dimensions
You need to have a trade account with us to download CAD files.
-

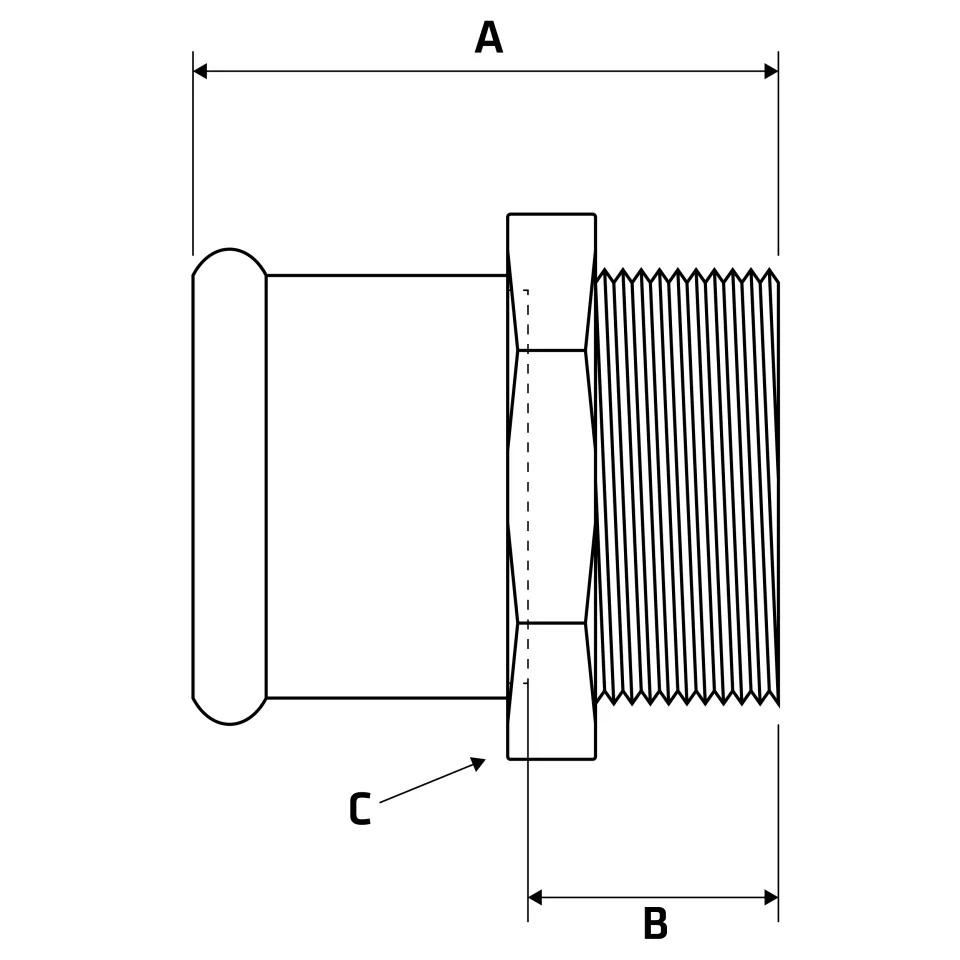

RapidPress Gas Male BSP Coupler
RapidPress Gas Male BSP Coupler
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress ACO203 15-54 Tool
RapidPress ACO203 15-54 Tool
Features
- *Tool, Battery, Charger and Case only*
- Press sizes from 15.0mm to 54.0mm
- Work light for safe working ...
- Analysis of tool performance via NovoCheck app
- Data transfer via Bluetooth®
- Brushless Motor Technology
- Runs Milwaukee® M18™ Battery
- Ask us about our ex hire tools available for purchase!
View Dimensions
-
RapidPress Pressing Head Set 76.1-108
RapidPress Pressing Head Set 76.1-108
Features
- Full set of Pressing Heads and Adapters from 76.1-108.0 (excludes 88.9mm Pressing Head)
- Comes with it's own carrying case
- M-Profile
View Dimensions
-
RapidPress Deburrer Tool
RapidPress Deburrer Tool
Features
- Suitable for deburring both pipe/tube internals and externals
- Can be used with Stainless Steel, Copper, Brass, Aluminium, Plastic and more
View Dimensions
-
RapidPress Pressing Tool Case Handle
RapidPress Pressing Tool Case Handle
Features
- Replacement Handle for RapidPress Pressing Tool Case (ACO203/ACO203XL)
View Dimensions
-

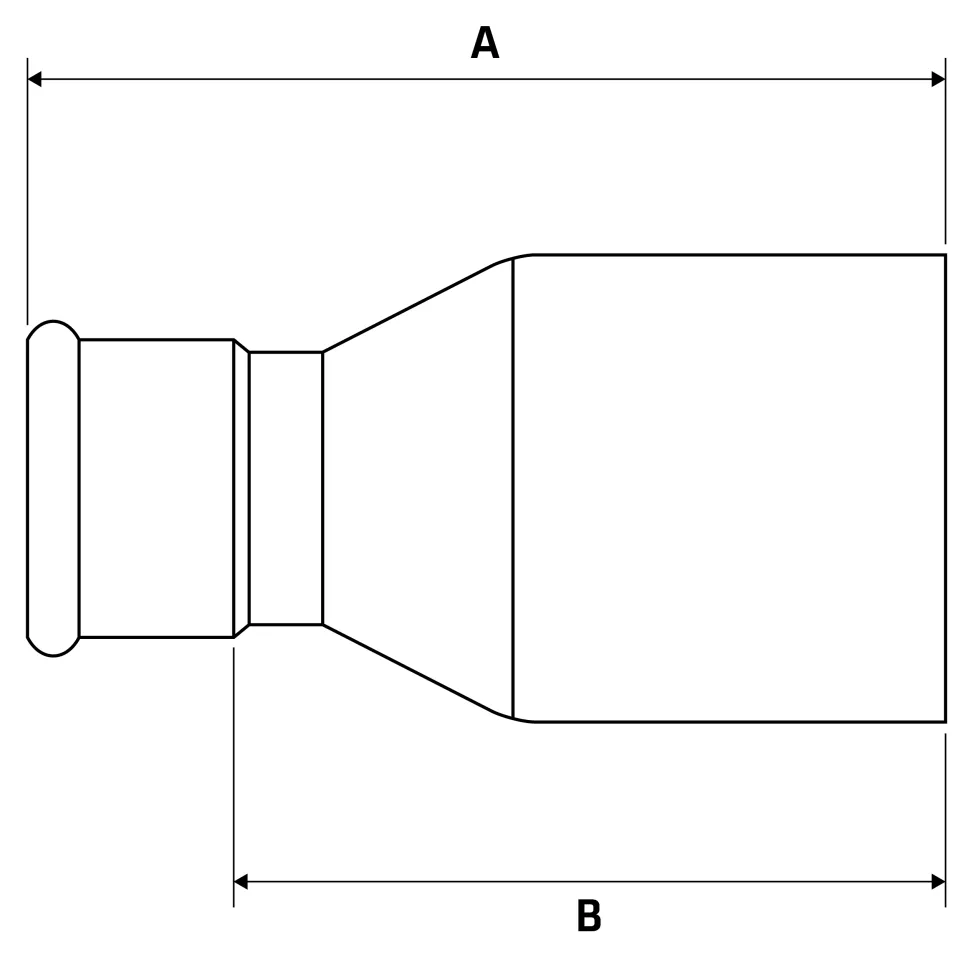

RapidPress Gas Reducing Coupler
RapidPress Gas Reducing Coupler
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

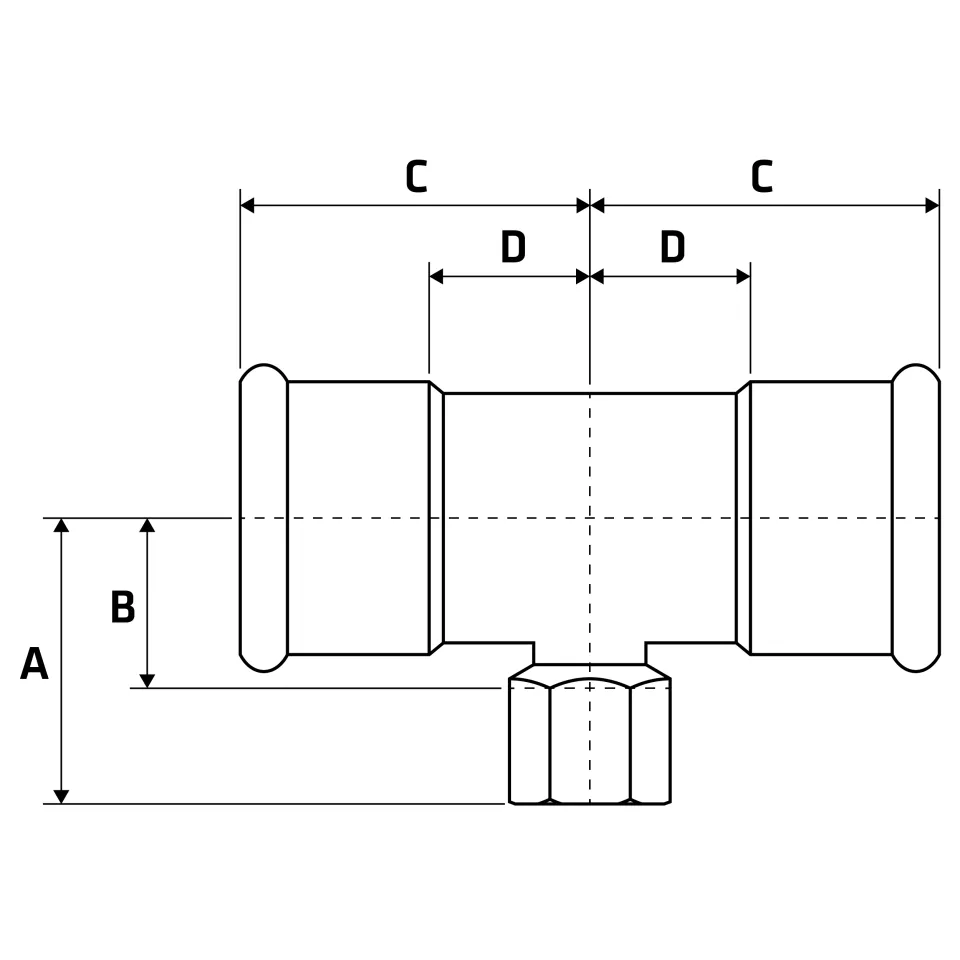

RapidPress Gas Female BSP Tee
RapidPress Gas Female BSP Tee
Features
- NBR Seals
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

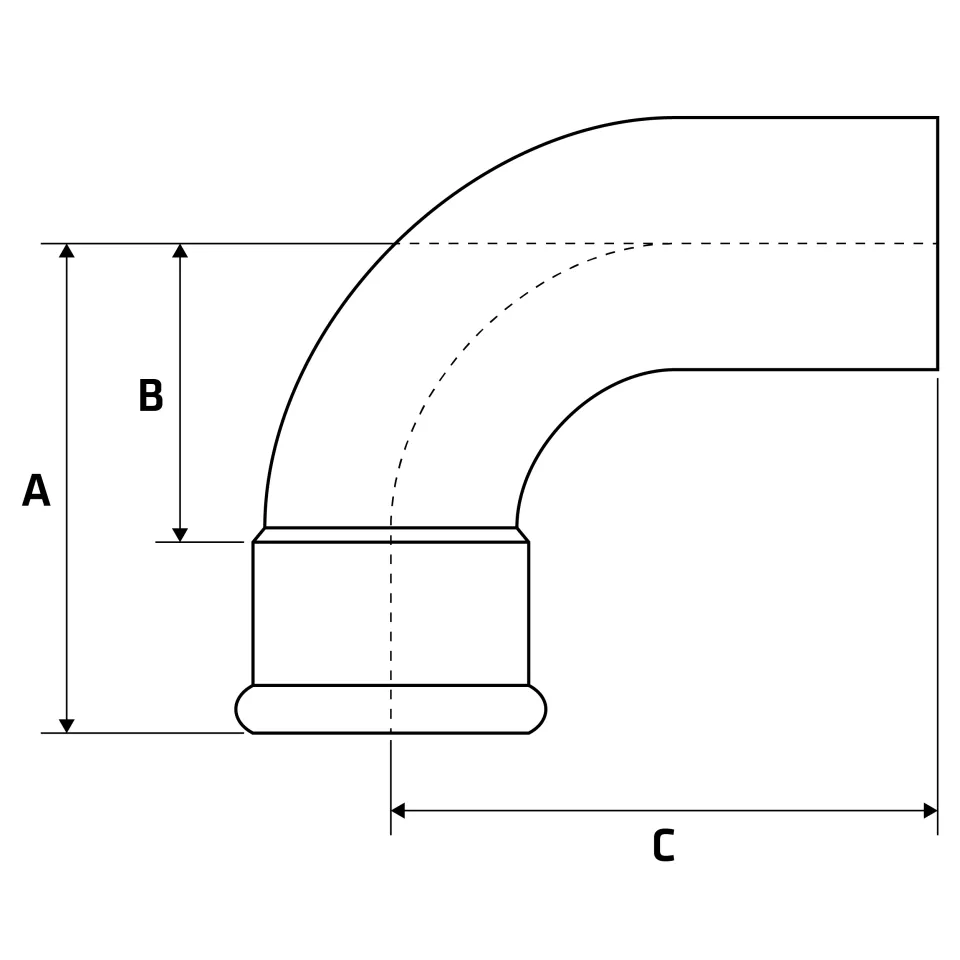

RapidPress Gas Spigot Bend 90°
RapidPress Gas Spigot Bend 90°
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-

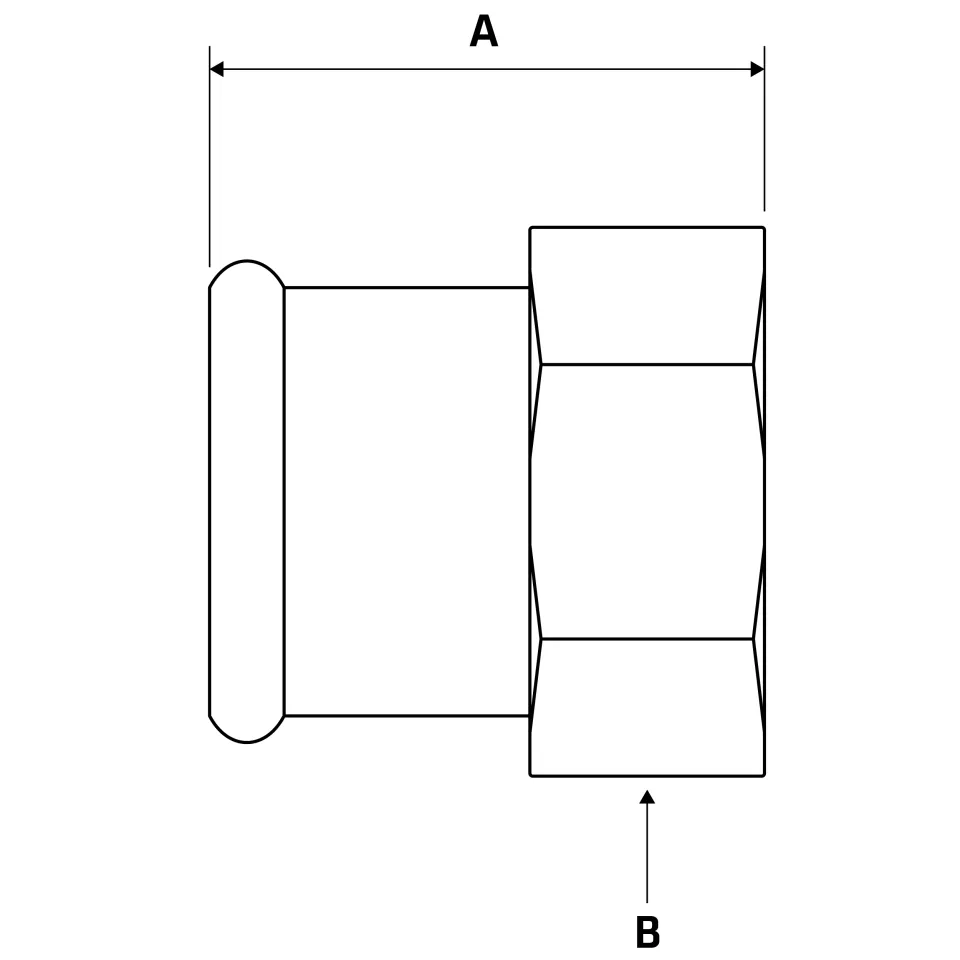

RapidPress Gas Female BSP Coupler
RapidPress Gas Female BSP Coupler
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress Bossed Saddle
RapidPress Bossed Saddle
Features
- M10 Boss (17mm long)
- Saddle to suit RapidPress Tube
- Includes Stainless Steel Metric Fasteners ...
- Larger sizes are available as Clamps
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Gas Flange Table E
RapidPress Gas Flange Table E
Features
- RapidPress Gas Coupler - Yellow NBR Seal
- Flange Manufactured to AS2129 Table E Standard (*)
- (*) Please note that sizes 22.0x20NB to 42.0x40NB do not meet AS2129 thickness. The thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard. These flanges will be denoted as "NON STANDARD"....
- Flange Forged to ASTM A182 (F316L)
- Temperature Rating: -20°C, 70°C
- Maximum Operating Pressure: 5 Bar (72 psi)
-
RapidPress Depth Gauge
RapidPress Depth Gauge
Features
- Depth Gauge for sizes 15mm to 168.3mm
- To ensure a correctly inserted joint, the tube must be witness marked with a fine-point/felt-tip pen where it meets the fitting using the depth gauge so that full insertion can be verified
View Dimensions
-
RapidPress Rubber Lined Bossed Saddle
RapidPress Rubber Lined Bossed Saddle
Features
- EPDM Liner
- M10 Boss
- To suit RapidPress Tube
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Inox Press-Fit Tube
EN 10312/EN 10217-7
RapidPress Inox Press-Fit Tube
EN 10312/EN 10217-7
Features
- Manufactured to EN 10312/EN 10217-7 Standards
- 180 Grit Finish
- 6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Pressing Jaws Handle
RapidPress Pressing Jaws Handle
Features
- Replacement Handle for RapidPress Pressing Jaws (76.1-108.0)
View Dimensions
-
RapidPress Clip Head & Hanging Bracket
RapidPress Clip Head & Hanging Bracket
Features
- To suit RapidPress Press-Fit Tube
- Fasteners included
- Hanging Bracket suits M10 ...
- Additional sizes available on request
View Dimensions
-

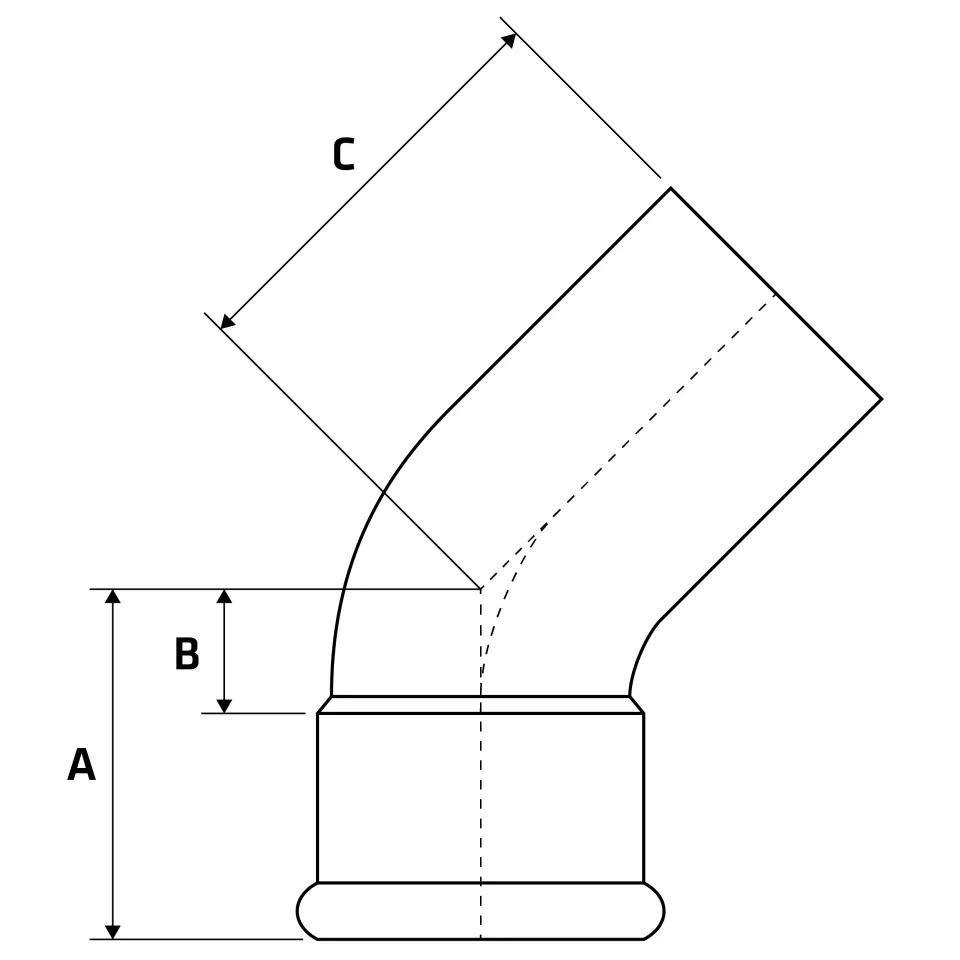

RapidPress Gas Spigot Bend 45°
RapidPress Gas Spigot Bend 45°
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress Pressing Heads & Adapters 15-54
RapidPress Pressing Heads & Adapters 15-54
Features
- M-Profile
- Adapter Jaw (AJ4254) required for use of the 42.0mm & 54.0mm Pressing Heads
View Dimensions
-
RapidPress O-Ring HNBR Seal
RapidPress O-Ring HNBR Seal
Features
- HNBR O-Ring - Yellow
- Typically used with Natural Gas & Methane Gas
- Certificates/Approvals: G260HTB, DVGW G 5614 ...
- Patented seal ring with lenticular profile which fits the press crimp groove which provides a 20% enlargement of the sealing surface
- Fit makes the pipes insertion easier
View Dimensions
-

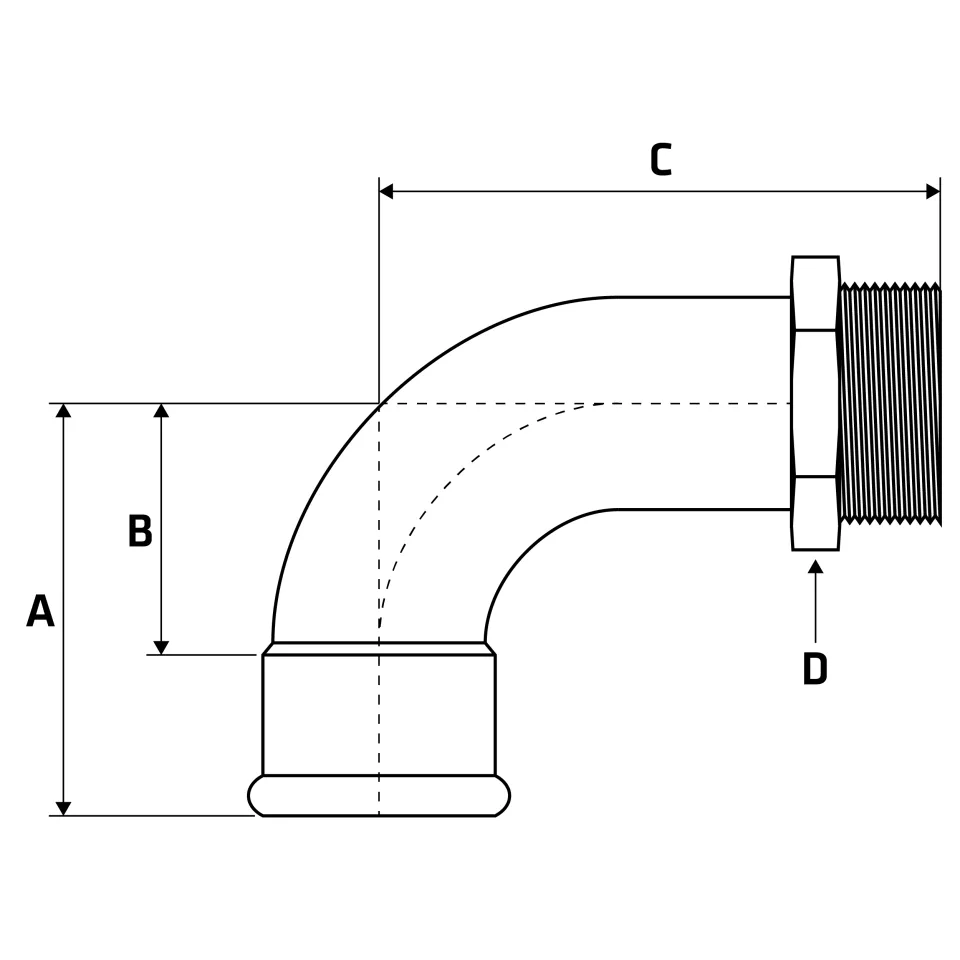

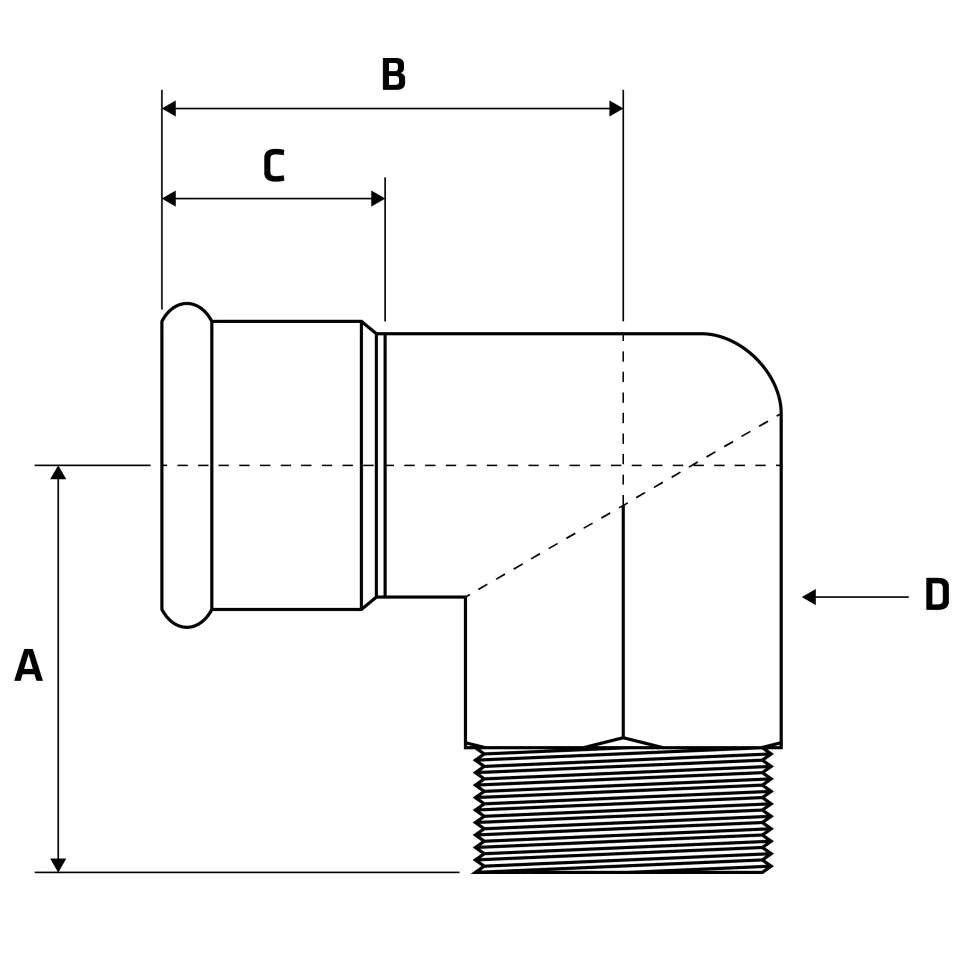

RapidPress Gas Male BSP Bend 90°
RapidPress Gas Male BSP Bend 90°
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress Stubbed Clamp
RapidPress Stubbed Clamp
Features
- 16mm Stub (47mm long, 50mm from tube)
- Clamp to suit RapidPress Tube
- Includes Stainless Steel Metric Fasteners
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Rotary Tube Cutter
RapidPress Rotary Tube Cutter
Features
- Suitable for Stainless Steel, Copper and Aluminium tubing
- Built-in deburrer
View Dimensions
-
RapidPress Male BSP Spigot
RapidPress Male BSP Spigot
Features
- No Seals
- BSP Thread: ISO 7-1, EN 10226-1
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Pressing Tool Case Latching Clips
RapidPress Pressing Tool Case Latching Clips
Features
- Latching Clip to suit RapidPress Pressing Tool Cases (ACO203/ACO203XL) & RapidPress Pressing Jaws Case (76.1-108.0)
View Dimensions
-
RapidPress M/F Union HNBR Flat Washer
RapidPress M/F Union HNBR Flat Washer
Features
- HNBR Flat Washer - Yellow
- For use with RapidPress Male BSP Unions and Female BSP Unions
View Dimensions
-
RapidPress Pressing Heads & Adapters 76.1-108
RapidPress Pressing Heads & Adapters 76.1-108
Features
- M-Profile
- Adapter Jaw (AJ76108) required for use of the 76.1mm & 88.9mm Pressing Head. Also for the initial press for 108.0mm Pressing Head
- Adapter Jaw (AJ108) required for the secondary press for the 108.0mm Pressing Head
View Dimensions
-
RapidPress Inox Press-Fit Tube (WM)
EN 10312/EN 10217-7
RapidPress Inox Press-Fit Tube (WM)
EN 10312/EN 10217-7
Features
- Manufactured to EN 10312/EN 10217-7 Standards. WaterMark Approved for use with potable water
- 180 Grit Finish, Annealed
- 6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Rotary Tube Cutter Blade
RapidPress Rotary Tube Cutter Blade
Features
- Replacement wheel blade to suit the RapidPress Rotary Tube Cutter
- Suitable for Stainless Steel, Copper and Aluminium tubing
View Dimensions
-
RapidPress Gas Flange PN10-40
RapidPress Gas Flange PN10-40
Features
- RapidPress Gas Coupler - Yellow NBR Seal
- Flange Manufactured to EN1092-1 PN10/16/40 Type 13/B1 Standard (*)
- (*) To determine the flange spec, please refer to the end of the code as shown in between stars (RPF28*PN10-40*G). Please note, stars are for visual purposes of this example only....
- Flange Forged to EN10222-5 (1.4404 (F316L))
- Temperature Rating: -20°C, 70°C
- Maximum Operating Pressure: 5 Bar (232 psi)
-
RapidPress Female BSP Spigot
RapidPress Female BSP Spigot
Features
- No Seals
- BSP Thread: ISO 7-1, EN 10226-1
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Clip Head
RapidPress Clip Head
Features
- To suit RapidPress Press-Fit Tube
- Fasteners included
- Additional sizes available on request
View Dimensions
-
Milwaukee M18 Battery
Milwaukee M18 Battery
Features
- 2.0Ah & 5.0Ah batteries for use with our RapidPress Pressing Tools
- (Charger not included)
View Dimensions
-
RapidPress 'U' Saddle
RapidPress 'U' Saddle
Features
- To suit RapidPress Tube
- Fasteners not included
View Dimensions
You need to have a trade account with us to download CAD files.
-
RapidPress Gas Male BSP Elbow 90°
RapidPress Gas Male BSP Elbow 90°
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
Clip Head 'T' Bracket
Clip Head 'T' Bracket
Features
- For use with our Tube Clip Heads and RapidPress Clip Heads
View Dimensions
-
RapidPress Gas Female BSP Elbow 90°
RapidPress Gas Female BSP Elbow 90°
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
Clip Head Hanging Bracket
Clip Head Hanging Bracket
Features
- For use with our Tube Clip Heads and RapidPress Clip Heads
View Dimensions
-
RapidPress Gas Female BSP Wing Back
RapidPress Gas Female BSP Wing Back
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
-
RapidPress Gas Flange ANSI150
RapidPress Gas Flange ANSI150
Features
- RapidPress Gas Coupler - Yellow NBR Seal
- Flange Manufactured to ASME B16.5 ANSI150 Standard
- Flange Forged to ASTM A182 (F316L)...
- Temperature Rating: -20°C, 70°C
- Maximum Operating Pressure: 5 Bar (72 psi)
-
RapidPress Gas Female BSP Extended Wing Back
RapidPress Gas Female BSP Extended Wing Back
Features
- NBR Seal
- Temperature rating: -20°C to +70°C
- Maximum operating pressure: 5 Bar (72 psi) ...
- BSP Thread: ISO 7-1, EN 10226-1
- Also available in our RapidPress Inox, RapidPress Extreme & RapidPress Steam ranges
View Dimensions
