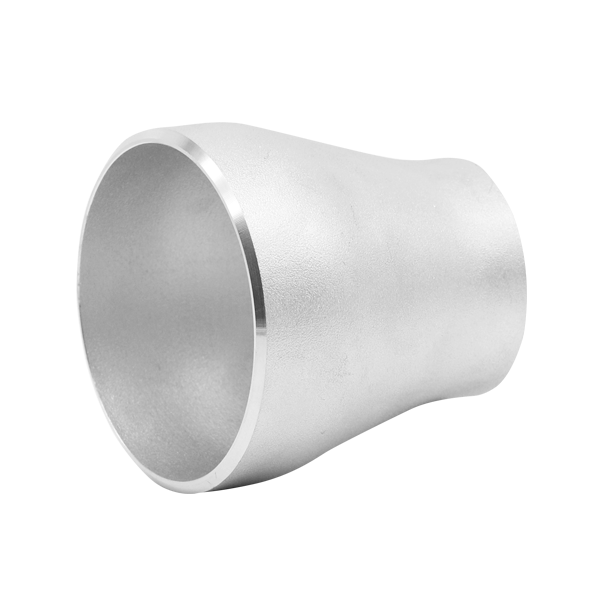

Pipe Concentric Reducer Schedule 10S
IMAGE DIAGRAM 3D VIEW

Pipe Concentric Reducer Schedule 10S

ASME B16.9, ASTM A403

Features

  • Schedule 10S
  • Manufactured to ASME B16.9, ASTM A403 Standard
You need to have a trade account with us to download CAD files.
View Dimensions
Code In Stock Inch Size
Code		 Metric Size
Code		 Grade Thickness A B C D E F G Price
SPCR2015S10 3/4"x1/2"
SPCR2015S10 		20NBx15NB
SPCR2015S10 		316L 2.11 26.7 22.48 21.3 17.08 38 8 2.11
SPCR2515S10 1"x1/2"
SPCR2515S10 		25NBx15NB
SPCR2515S10 		316L 2.77-2.11 33.4 27.86 21.3 17.08 50.8 8 2.77-2.11
SPCR2520S10 1"x3/4"
SPCR2520S10 		25NBx20NB
SPCR2520S10 		316L 2.77-2.11 33.4 27.86 26.7 22.48 50.8 8 2.77-2.11
SPCR3220S10 1 1/4"x3/4"
SPCR3220S10 		32NBx20NB
SPCR3220S10 		316L 2.77-2.11 42.2 36.66 26.7 22.48 50.8 10 2.77-2.11
SPCR3225S10 1 1/4"x1"
SPCR3225S10 		32NBx25NB
SPCR3225S10 		316L 2.77 42.2 36.66 33.4 27.86 50.8 10 2.77
SPCR4020S10 1 1/2"x3/4"
SPCR4020S10 		40NBx20NB
SPCR4020S10 		316L 2.77-2.11 48.3 42.76 26.7 22.48 63.5 15 2.77-2.11
SPCR4025S10 1 1/2"x1"
SPCR4025S10 		40NBx25NB
SPCR4025S10 		316L 2.77 48.3 42.76 33.4 27.86 63.5 15 2.77
SPCR4032S10 1 1/2"x1 1/4"
SPCR4032S10 		40NBx32NB
SPCR4032S10 		316L 2.77 48.3 42.76 42.2 36.66 63.5 15 2.77
SPCR5020S10 2"x3/4"
SPCR5020S10 		50NBx20NB
SPCR5020S10 		316L 2.77-2.11 60.3 54.76 26.7 22.48 76.2 15 2.77-2.11
SPCR5025S10 2"x1"
SPCR5025S10 		50NBx25NB
SPCR5025S10 		316L 2.77 60.3 54.76 33.4 27.86 76.2 15 2.77
SPCR5032S10 2"x1 1/4"
SPCR5032S10 		50NBx32NB
SPCR5032S10 		316L 2.77 60.3 54.76 42.2 36.66 76 15 2.77
SPCR5040S10 2"x1 1/2"
SPCR5040S10 		50NBx40NB
SPCR5040S10 		316L 2.77 60.3 54.76 48.3 42.76 76.2 15 2.77
SPCR6540S10 2 1/2"x1 1/2"
SPCR6540S10 		65NBx40NB
SPCR6540S10 		316L 3.05-2.77 73 66.9 48.3 42.76 88.9 15 3.05-2.77
SPCR6550S10 2 1/2"x2"
SPCR6550S10 		65NBx50NB
SPCR6550S10 		316L 3.05-2.77 73 66.9 60.3 54.76 88.9 15 3.05-2.77
SPCR8040S10 3"x1 1/2"
SPCR8040S10 		80NBx40NB
SPCR8040S10 		316L 3.05-2.77 88.9 82.8 48.3 42.76 88.9 15 3.05-2.77
SPCR8050S10 3"x2"
SPCR8050S10 		80NBx50NB
SPCR8050S10 		316L 3.05-2.77 88.9 82.8 60.3 54.76 88.9 15 3.05-2.77
SPCR8065S10 3"x2 1/2"
SPCR8065S10 		80NBx65NB
SPCR8065S10 		316L 3.05 88.9 82.8 73 66.9 88.9 15 3.05
SPCR10040S10 4"x1 1/2"
SPCR10040S10 		100NBx40NB
SPCR10040S10 		316L 3.05-2.77 114.3 108.2 48.3 42.76 101.6 15 3.05-2.77
SPCR10050S10 4"x2"
SPCR10050S10 		100NBx50NB
SPCR10050S10 		316L 3.05-2.77 114.3 108.2 60.3 54.76 101.6 15 3.05-2.77
SPCR10065S10 4"x2 1/2"
SPCR10065S10 		100NBx65NB
SPCR10065S10 		316L 3.05 114.3 108.2 73 66.9 101.6 15 3.05
SPCR10080S10 4"x3"
SPCR10080S10 		100NBx80NB
SPCR10080S10 		316L 3.05 114.3 108.2 88.9 82.8 101.6 15 3.05
SPCR125100S10 5"x4"
SPCR125100S10 		125NBx100NB
SPCR125100S10 		316L 3.4-3.05 141.3 134.5 114.3 108.2 127 18 3.4-3.05
SPCR15080S10 6"x3"
SPCR15080S10 		150NBx80NB
SPCR15080S10 		316L 3.4-3.05 168.3 161.5 88.9 82.8 139.7 25 3.4-3.05
SPCR150100S10 6"x4"
SPCR150100S10 		150NBx100NB
SPCR150100S10 		316L 3.4-3.05 168.3 161.5 114.3 108.2 139.7 25 3.4-3.05
SPCR150125S10 6"x5"
SPCR150125S10 		150NBx125NB
SPCR150125S10 		316L 3.4 168.3 161.5 141.4 134.6 139.7 25 3.4
SPCR20080S10 8"x3"
SPCR20080S10 		200NBx80NB
SPCR20080S10 		316L 3.76-3.05 219.1 211.58 88.9 82.8 152.4 25 3.76-3.05
SPCR200100S10 8"x4"
SPCR200100S10 		200NBx100NB
SPCR200100S10 		316L 3.76-3.05 219.1 211.58 114.3 108.2 152.4 25 3.76-3.05
SPCR200150S10 8"x6"
SPCR200150S10 		200NBx150NB
SPCR200150S10 		316L 3.76-3.4 219.1 211.58 168.3 161.5 152.4 25 3.76-3.4
SPCR250150S10 10"x6"
SPCR250150S10 		250NBx150NB
SPCR250150S10 		316L 4.19-3.4 273 264.62 168.3 161.5 177.8 - 4.19-3.4
SPCR250200S10 10"x8"
SPCR250200S10 		250NBx200NB
SPCR250200S10 		316L 4.19-3.76 273 264.62 219.1 211.58 177.8 17-14 4.19-3.76
SPCR300150S10 12"x6"
SPCR300150S10 		300NBx150NB
SPCR300150S10 		316L 4.57-3.4 323.8 314.66 168.3 161.5 203.2 - 4.57-3.4
SPCR300200S10 12"x8"
SPCR300200S10 		300NBx200NB
SPCR300200S10 		316L 4.57-3.76 323.8 314.66 219.1 211.58 203.2 - 4.57-3.76
SPCR300250S10 12"x10"
SPCR300250S10 		300NBx250NB
SPCR300250S10 		316L 4.57-4.19 323.8 314.66 273 264.62 203.2 19-17 4.57-4.19
SPCR350250S10 14"x10"
SPCR350250S10 		350NBx250NB
SPCR350250S10 		316L 4.78-4.19 355.6 346.04 273 264.62 330 - 4.78-4.19
SPCR350300S10 14"x12"
SPCR350300S10 		350NBx300NB
SPCR350300S10 		316L 4.78-4.57 355.6 346.04 323.8 314.66 330 21-19 4.78-4.57
SPCR400300S10 16"x12"
SPCR400300S10 		400NBx300NB
SPCR400300S10 		316L 4.78-4.57 406.4 396.84 323.8 314.66 356 - 4.78-4.57
SPCR400350S10 16"x14"
SPCR400350S10 		400NBx350NB
SPCR400350S10 		316L 4.78 406.4 396.84 355.6 346.04 356 22-21 4.78
