Cellar & Brew Fittings
Tri Clover Concentric Reducer
Tri Clover Concentric Reducer
Features
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrule Connections
You need to have a trade account with us to download CAD files.
Related Products
-
Spray Ball
Spray Ball
Features
- Bolt-fixed slip-on connection to suit tube sizes
- Maximum pressure rating 40PSI / 3Bar
- Maximum temperature rating 95°C ...
- 360° coverage
- Click 'View Dimensions' to view the following: 'D' = Cleaning Radius Overflow, 'E' = Cleaning Radius, 'F' = Flow Rate
View Dimensions
You need to have a trade account with us to download CAD files.
-
BSP Needle Valve
BSP Needle Valve
Features
- BSP threaded ends
- Temperature Rating: -20°C to +160°C
- Maximum pressure 6000PSI / 400Bar ...
- T handle operation
- 'B' Measurement is taken when the valve is fully open and the handle is at it's highest point
View Dimensions
You need to have a trade account with us to download CAD files.
-

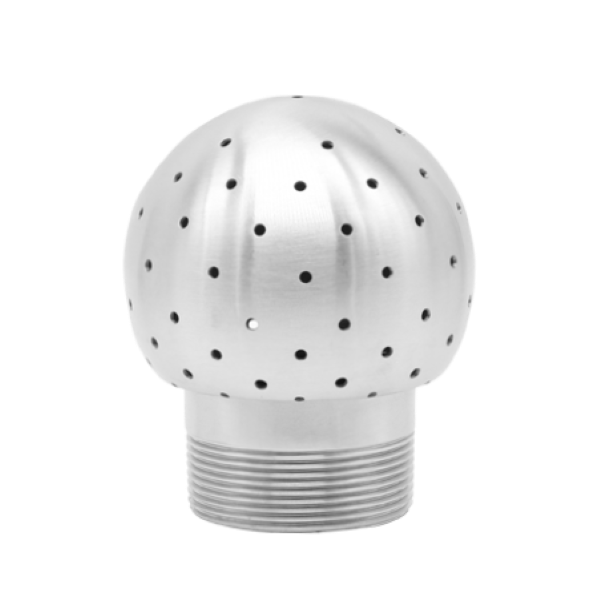

BSP Threaded Spray Ball
BSP Threaded Spray Ball
Features
- Male BSP thread connection
- Maximum pressure rating 40PSI / 3Bar
- Maximum temperature rating 95°C ...
- 360° coverage
- Click 'View Dimensions' to view the following: 'D' = Cleaning Radius Overflow, 'E' = Cleaning Radius, 'F' = Flow Rate
View Dimensions
-
RJT Polycarbonate Sight Glass - Long
RJT Polycarbonate Sight Glass - Long
Features
- RJT Male Part, Weld Liner/Hex Nut Connections
- Body: 316, Fasteners: 304
- Polycarbonate viewing tube (please note that Polycarbonate is not suitable for Caustic and other CIP Chemicals) ...
- Maximum Temperature Rating: 80°C
- Maximum Pressure Rating: 5-6 bar
- Replacement Polycarbonate tubes also available for purchase
View Dimensions
You need to have a trade account with us to download CAD files.
-
Diaphragm Sampling Valve
Diaphragm Sampling Valve
Features
- Butt weld connection for Outside Diameter tube
- Also available as Tri Clover ferrule connection
- Temperature Rating: -10°C to +150°C ...
- Working Pressure: 8 bar
- Silicone seal
View Dimensions
You need to have a trade account with us to download CAD files.
-

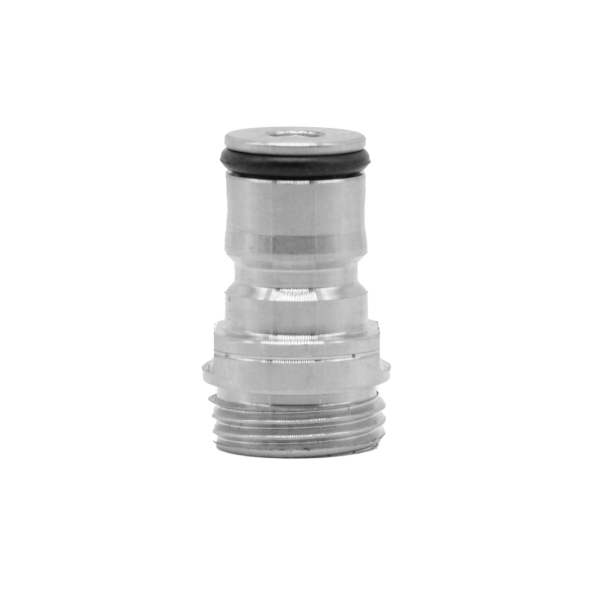

BSP Male-Male Gas Fitting
BSP Male-Male Gas Fitting
Features
- Ball lock plug with BSP nipple (male thread)
- FULL Stainless Steel body. (Other Brands are Nickel Plated Bronze)
- Used for gas applications ...
- Maximum temperature rating 130°C
- Maximum pressure 215PSI / 15Bar
View Dimensions
-

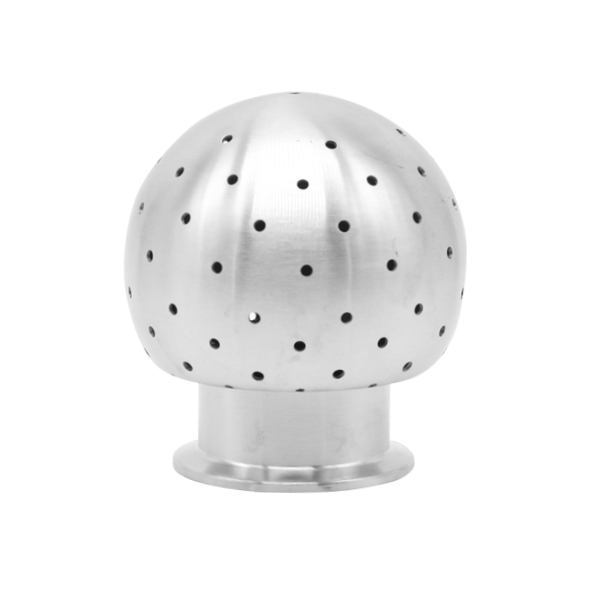

Tri Clover Spray Ball
Tri Clover Spray Ball
Features
- Tri Clover Ferrule connection
- Maximum pressure rating 40PSI / 3Bar
- Maximum temperature rating 95°C ...
- 360° coverage
- Click 'View Dimensions' to view the following: 'D' = Cleaning Radius Overflow, 'E' = Cleaning Radius, 'F' = Flow Rate
View Dimensions
-
Tri Clover Polycarbonate Sight Glass - Long
Tri Clover Polycarbonate Sight Glass - Long
Features
- Tri Clover Ferrule Connections
- Body: 316, Fasteners: 304
- Polycarbonate viewing tube (please note that Polycarbonate is not suitable for Caustic and other CIP Chemicals) ...
- Maximum Temperature Rating: 80°C
- Maximum Pressure Rating: 5-6 bar
- Replacement Polycarbonate tubes also available for purchase
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Diaphragm Sampling Valve
Tri Clover Diaphragm Sampling Valve
Features
- Tri Clover ferrule connection
- Also available as butt weld connection for Outside Diameter tube
- Temperature Rating: -10°C to +150°C ...
- Working Pressure: 8 bar
- Silicone seal
View Dimensions
You need to have a trade account with us to download CAD files.
-

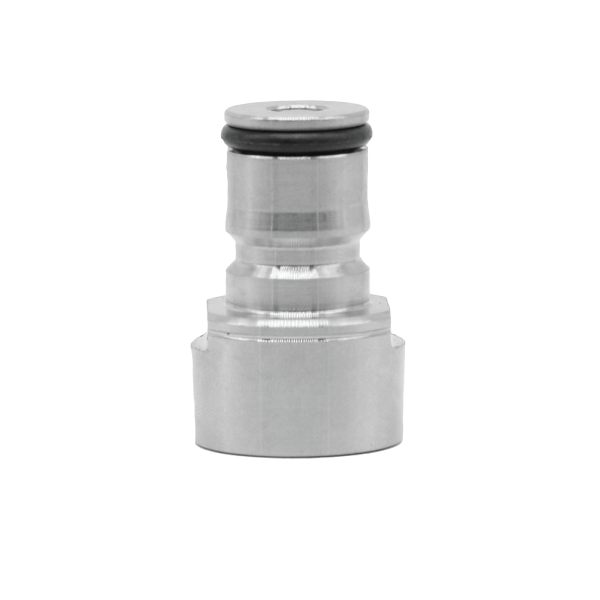

BSP Male-Female Gas Fitting
BSP Male-Female Gas Fitting
Features
- Ball lock plug with BSP socket (female thread)
- FULL Stainless Steel body. (Other Brands are Nickel Plated Bronze)
- Used for gas applications ...
- Maximum temperature rating 130°C
- Maximum pressure 215PSI / 15Bar
View Dimensions
-
Polycarbonate Sight Glass Tube - Long
Polycarbonate Sight Glass Tube - Long
Features
- 100mm long Polycarbonate replacement tube to suit our Sight Glasses
- Maximum Temperature Rating: 80°C
- Maximum Pressure Rating: 5-6 bar ...
- Please note that Polycarbonate is not suitable for Caustic and other CIP Chemicals
View Dimensions
You need to have a trade account with us to download CAD files.
-

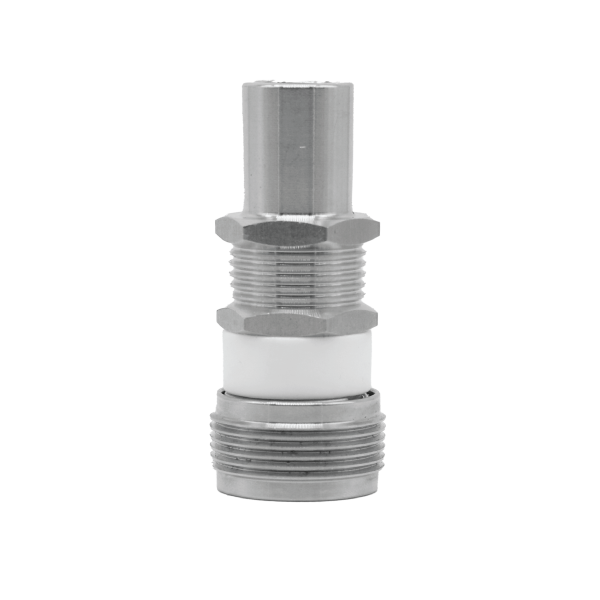

BSP Socket Gas Fitting
BSP Socket Gas Fitting
Features
- Ball Lock Socket with 8NB BSP Socket
- Used for gas applications
- FULL Stainless Steel body. (Other Brands are Nickel Plated Bronze) ...
- Maximum temperature rating 130°C
- Maximum pressure 215PSI / 15Bar
View Dimensions
-
Diaphragm Sampling Valve Seal
Diaphragm Sampling Valve Seal
Features
- Silicone Seal to suit Sampling Diaphragm Valve
- Temperature Rating: -10°C to +150°C
View Dimensions
-
Lockable Sampling Valve
Lockable Sampling Valve
Features
- Butt weld connection for Outside Diameter tube
- Temperature Rating: -10°C to +135°C
- Working Pressure: 8 bar ...
- Silicone & PTFE seal
View Dimensions
You need to have a trade account with us to download CAD files.
-

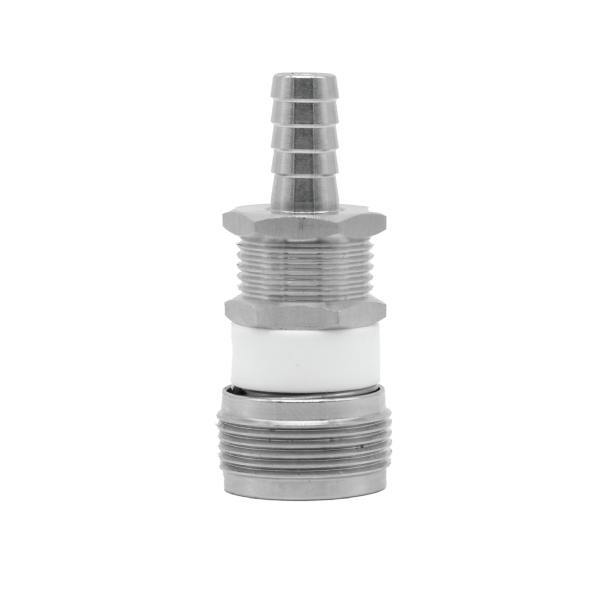

Inline Hosetail Gas Fitting
Inline Hosetail Gas Fitting
Features
- Ball lock socket with barbed hosetail
- Used for gas applications
- FULL Stainless Steel body. (Other Brands are Nickel Plated Bronze) ...
- Maximum temperature rating 130°C
- Maximum pressure 215PSI / 15Bar
View Dimensions
-

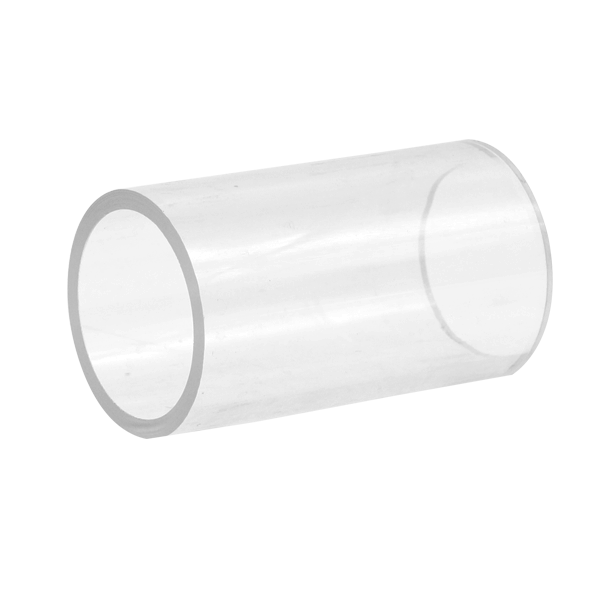

Acrylic Sight Glass Tube - Long
Acrylic Sight Glass Tube - Long
Features
- 100mm long Acrylic replacement tube to suit our Sight Glasses
- Maximum Temperature Rating: 80°C
- No pressure rating is available from the manufacturer, we estimate maximum pressure rating of 2 bar
View Dimensions
You need to have a trade account with us to download CAD files.
-

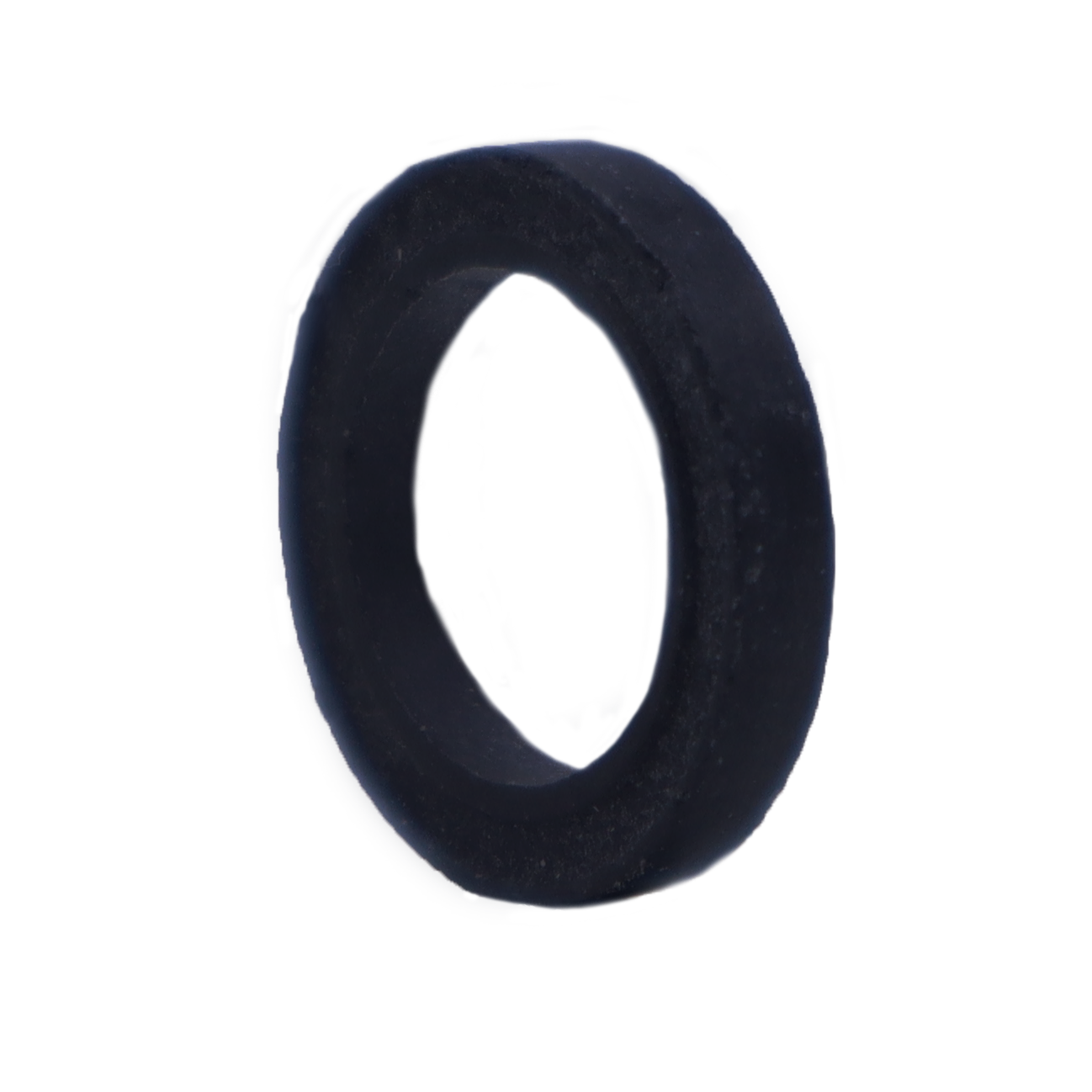

Quick Connect Gas Fitting Seal
Quick Connect Gas Fitting Seal
Features
- EPDM seal temperature rating 120 °C
- EPDM is suitable for hot water, steam, alcohols or coolants
- Not resistant to mineral oils, greases or fuels
View Dimensions
-
BSP Sampling Valve
BSP Sampling Valve
Features
- BSPT threaded end
- Temperature Rating: -10°C to +135°C
- Working Pressure: 8 bar ...
- Silicone & PTFE Seal
View Dimensions
You need to have a trade account with us to download CAD files.
-

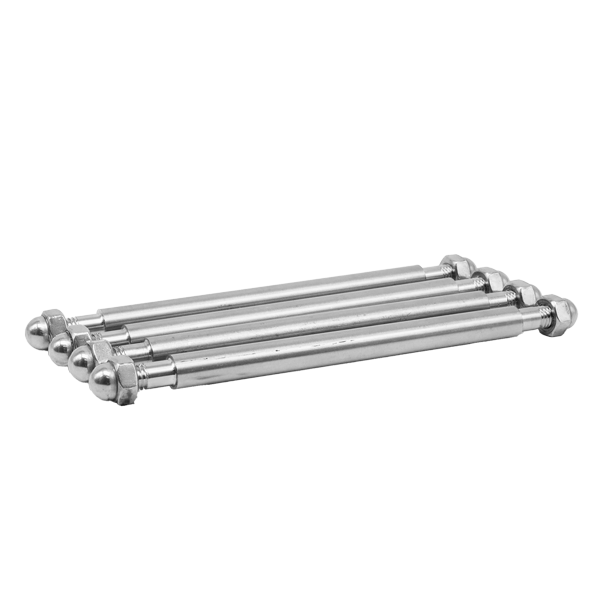

Sight Glass Fasteners - Long
Sight Glass Fasteners - Long
Features
- Complete set of studs and dome nuts for our long sight glasses
View Dimensions
-
BSP Sampling Valve Handle/Seal
BSP Sampling Valve Handle/Seal
Features
- Silicone/PTFE Seal to suit BSP Sampling Valve
- Temperature Rating: -10°C to +135°C
View Dimensions
-

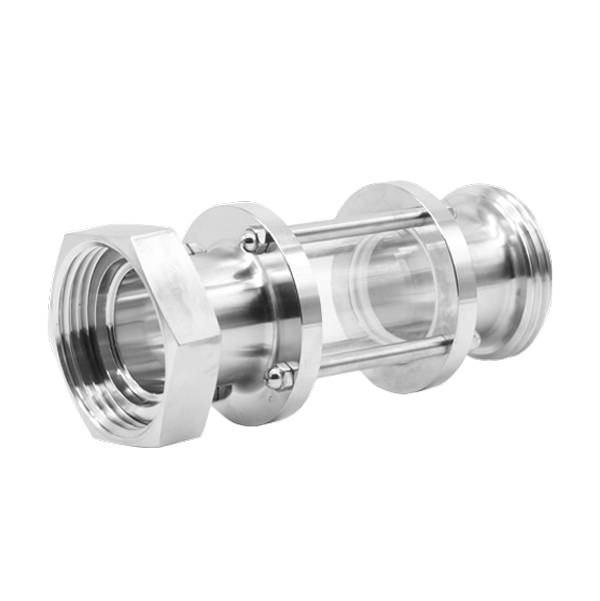

RJT Polycarbonate Sight Glass - Short
RJT Polycarbonate Sight Glass - Short
Features
- RJT Male Part, Weld Liner/Hex Nut Connections
- Body: 316, Fasteners: 304
- Polycarbonate viewing tube (please note that Polycarbonate is not suitable for Caustic and other CIP Chemicals) ...
- Maximum Temperature Rating: 80°C
- Maximum Pressure Rating: 5-6 bar
- Replacement Polycarbonate tubes also available for purchase
View Dimensions
You need to have a trade account with us to download CAD files.
-

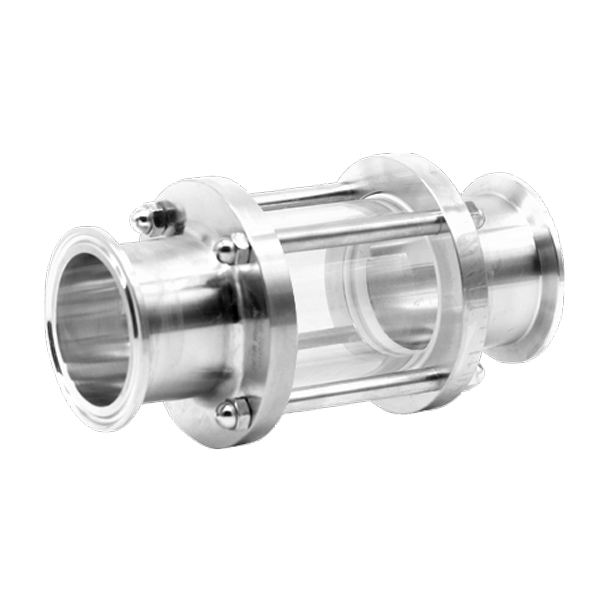

Tri Clover Polycarbonate Sight Glass - Short
Tri Clover Polycarbonate Sight Glass - Short
Features
- Tri Clover Ferrule Connections
- Body: 316, Fasteners: 304
- Polycarbonate viewing tube (please note that Polycarbonate is not suitable for Caustic and other CIP Chemicals) ...
- Maximum Temperature Rating: 80°C
- Maximum Pressure Rating: 5-6 bar
- Replacement Polycarbonate tubes also available for purchase
View Dimensions
You need to have a trade account with us to download CAD files.
-

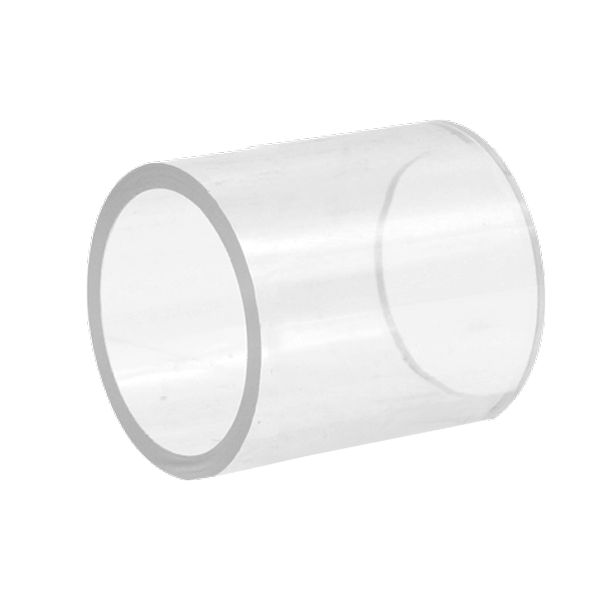

Polycarbonate Sight Glass Tube - Short
Polycarbonate Sight Glass Tube - Short
Features
- 50mm long Polycarbonate replacement tube to suit our Sight Glasses
- Maximum Temperature Rating: 80°C
- Maximum Pressure Rating: 5-6 bar ...
- Please note that Polycarbonate is not suitable for Caustic and other CIP Chemicals
View Dimensions
You need to have a trade account with us to download CAD files.
-
Acrylic Sight Glass Tube - Short
Acrylic Sight Glass Tube - Short
Features
- 50mm long Acrylic replacement tube to suit our Sight Glasses
- Maximum Temperature Rating: 80°C
- No pressure rating is available from the manufacturer, we estimate maximum pressure rating of 2 bar
View Dimensions
You need to have a trade account with us to download CAD files.
-

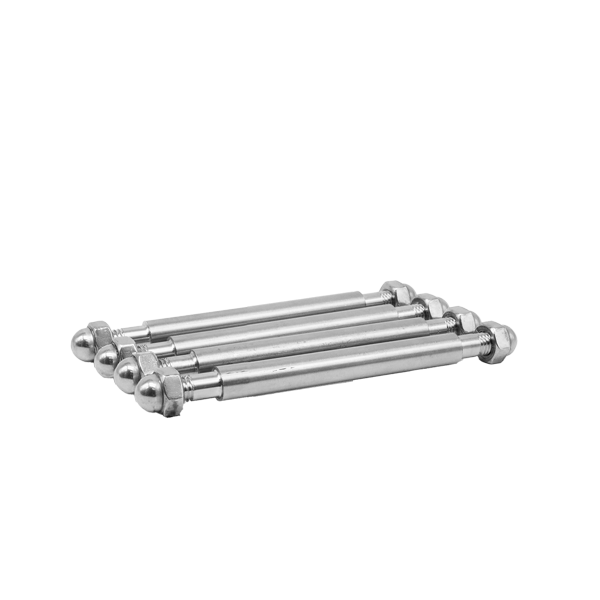

Sight Glass Bolts - Short
Sight Glass Bolts - Short
Features
- Complete set of studs and dome nuts for our short sight glasses
View Dimensions
-
Tri Clover Union Blank with 15NB BSP Socket
Tri Clover Union Blank with 15NB BSP Socket
Features
- Tri Clover Union Blank Cap with centred 15NB Female BSP Socket.
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket
View Dimensions
You need to have a trade account with us to download CAD files.
-

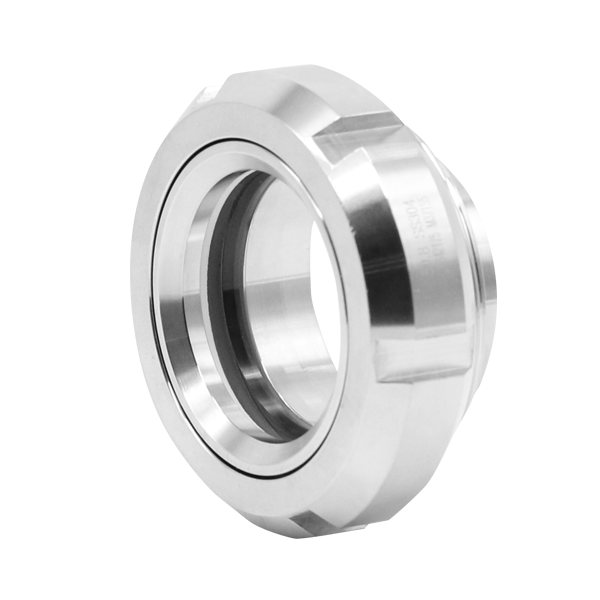

Union Sight Glass
Union Sight Glass
Features
- Tempered Glass
- Buttweld Union Sight Glass
- Please note this is not an RJT fitting. ...
- Contains a PTFE seal on the outer side of the glass, and a Silicone seal on the contact side.
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Union Blank with 15NB BSP Socket
RJT Union Blank with 15NB BSP Socket
Features
- RJT Blank Cap with centered 15NB Female BSP Socket
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket ...
- Female BSP threaded
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Union Blank with 20NB BSP Socket
Tri Clover Union Blank with 20NB BSP Socket
Features
- Tri Clover Union Blank Cap with centred 20NB Female BSP Socket
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Blind Hex Nut
RJT Blind Hex Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-

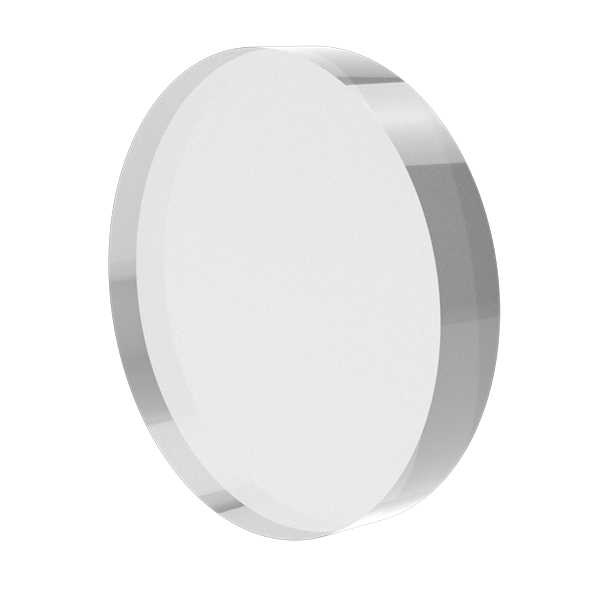

Union Sight Glass Replacement Glass
Union Sight Glass Replacement Glass
Features
- Tempered Glass
- Direct Replacement Glass for our Union Sight Glasses
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Union Blank with 20NB BSP Socket
RJT Union Blank with 20NB BSP Socket
Features
- RJT Blank Cap with centered 20NB Female BSP Socket
- Commonly known as a 'Water Pusher'
- Threaded halfway through socket ...
- Female BSP threaded
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Blind Slotted Nut
RJT Blind Slotted Nut
Features
- Also known as a Blanking Cap
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Concentric Reducer
RJT Concentric Reducer
Features
- 320 Grit Finish
- Pre-Welded with RJT Connections
- RJT Male Part = Smaller Diameter End ...
- RJT Weld Liner & Hex Nut = Larger Diameter End
View Dimensions
You need to have a trade account with us to download CAD files.
-
Short Radius Tri Clover Bend 90°
Short Radius Tri Clover Bend 90°
Features
- Short Radius (1.5x Diameter)
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrules
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Bend 45°
Tri Clover Bend 45°
Features
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrule Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
Short Radius RJT Bend 90°
Short Radius RJT Bend 90°
Features
- Short Radius (1.5x Diameter)
- 320 Grit Finish
- Pre-Welded with RJT Male Part & Weld Liner/Hex Nut Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Equal Tee
RJT Equal Tee
Features
- 320 Grit Finish
- Pre-Welded with RJT Connections
- Male Part / Male Part / Weld Liner & Hex Nut Orientation
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Equal Tee
Tri Clover Equal Tee
Features
- 320 Grit Finish
- Pre-Welded with Tri Clover Ferrule Connections
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Male Part Hose Joiner
RJT Male Part Hose Joiner
Features
- RJT Male Part Ends
- For joining two RJT Female hoses
- Handle for ease of use ...
- 200mm Length
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Male Single Swaged Hosetail
RJT Male Single Swaged Hosetail
Features
- Pre-Welded with a RJT Male Part
View Dimensions
You need to have a trade account with us to download CAD files.
-
RJT Weld Liner Single Swaged Hosetail
RJT Weld Liner Single Swaged Hosetail
Features
- Pre-Welded with a RJT Weld Liner
- RJT Hex Nuts and Slotted Nuts sold seperately
View Dimensions
You need to have a trade account with us to download CAD files.
-
Tri Clover Single Swaged Hosetail
Tri Clover Single Swaged Hosetail
Features
- Pre-Welded with a Tri Clover Ferrule
View Dimensions
You need to have a trade account with us to download CAD files.
-
Pressure Relief Valve with RJT Female
Pressure Relief Valve with RJT Female
Features
- PTFE Insert
- EPDM Seals
- Additional sizes available upon request
View Dimensions
