Bend Tolerances

Bends are manufactured within the following tolerances.

Applicable for all bends: Short Bend, Medium Bend (UNI), Long Leg Bend (NZ) and Extra Long Leg Bend.

45 degree bend tolerance

<img fetchpriority="high" decoding="async" class="alignnone wp-image-556" src="https://www.themetalcompany.co.nz/wp-content/uploads/2018/02/45-Bend-Tolerance-1024x338.webp" alt="45 degree bend tolerance" width="697" height="230" />

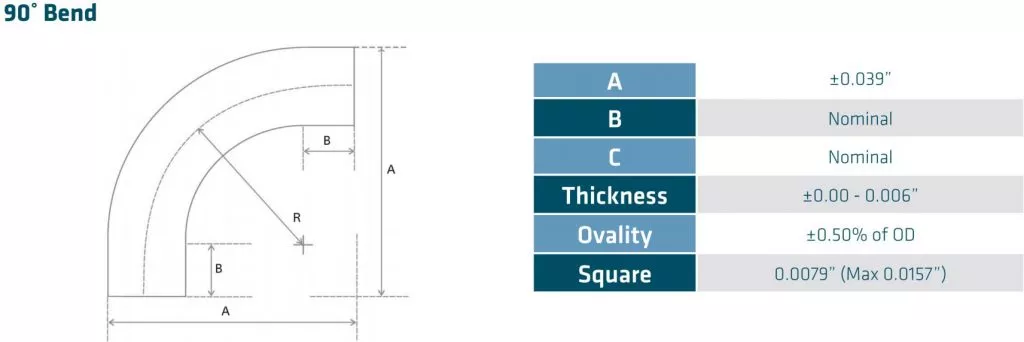

90 degree bend tolerance

<img decoding="async" class="alignnone wp-image-557" src="https://www.themetalcompany.co.nz/wp-content/uploads/2018/02/90-Bend-Tolerance-1024x342.webp" alt="90 degree bend tolerance" width="698" height="233" />

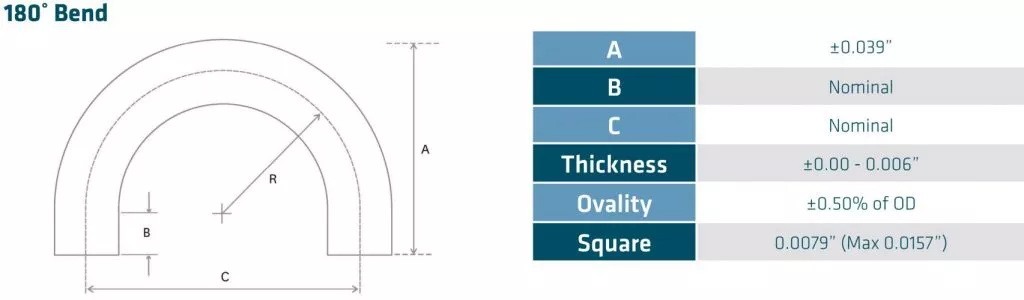

180 degree bend tolerance

<img decoding="async" class="alignnone wp-image-555" src="https://www.themetalcompany.co.nz/wp-content/uploads/2018/02/180-Bend-Tolerance-1024x300.webp" alt="180 degree bend tolerance" width="696" height="204" />

Bends are manufactured within the following tolerances.

Applicable for all bends: Short Bend, Medium Bend (UNI), Long Leg Bend (NZ) and Extra Long Leg Bend.

45 degree bend tolerance

<img fetchpriority="high" decoding="async" class="alignnone wp-image-556" src="https://www.themetalcompany.co.nz/wp-content/uploads/2018/02/45-Bend-Tolerance-1024x338.webp" alt="45 degree bend tolerance" width="697" height="230" />

90 degree bend tolerance

<img decoding="async" class="alignnone wp-image-557" src="https://www.themetalcompany.co.nz/wp-content/uploads/2018/02/90-Bend-Tolerance-1024x342.webp" alt="90 degree bend tolerance" width="698" height="233" />

180 degree bend tolerance

<img decoding="async" class="alignnone wp-image-555" src="https://www.themetalcompany.co.nz/wp-content/uploads/2018/02/180-Bend-Tolerance-1024x300.webp" alt="180 degree bend tolerance" width="696" height="204" />
