Flange Manufactured to AS2129 Table E Standard (*)
(*) Please note that sizes 22.0x20NB to 42.0x40NB do not meet AS2129 thickness. The thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard. These flanges will be denoted as "NON STANDARD".
Flange Manufactured to EN1092-1 Type 01/A PN10/16/40 Standard (*)
(*) To determine the flange spec, please refer to the end of the code as shown in between stars (RPF28*PN10-40*). Please note, stars are for visual purposes of this example only.
A purpose designed seal, used when process piping penetrates a wall, floor or ceiling in Food & Beverage Plants or any application where a waterproof hygenic seal is required.

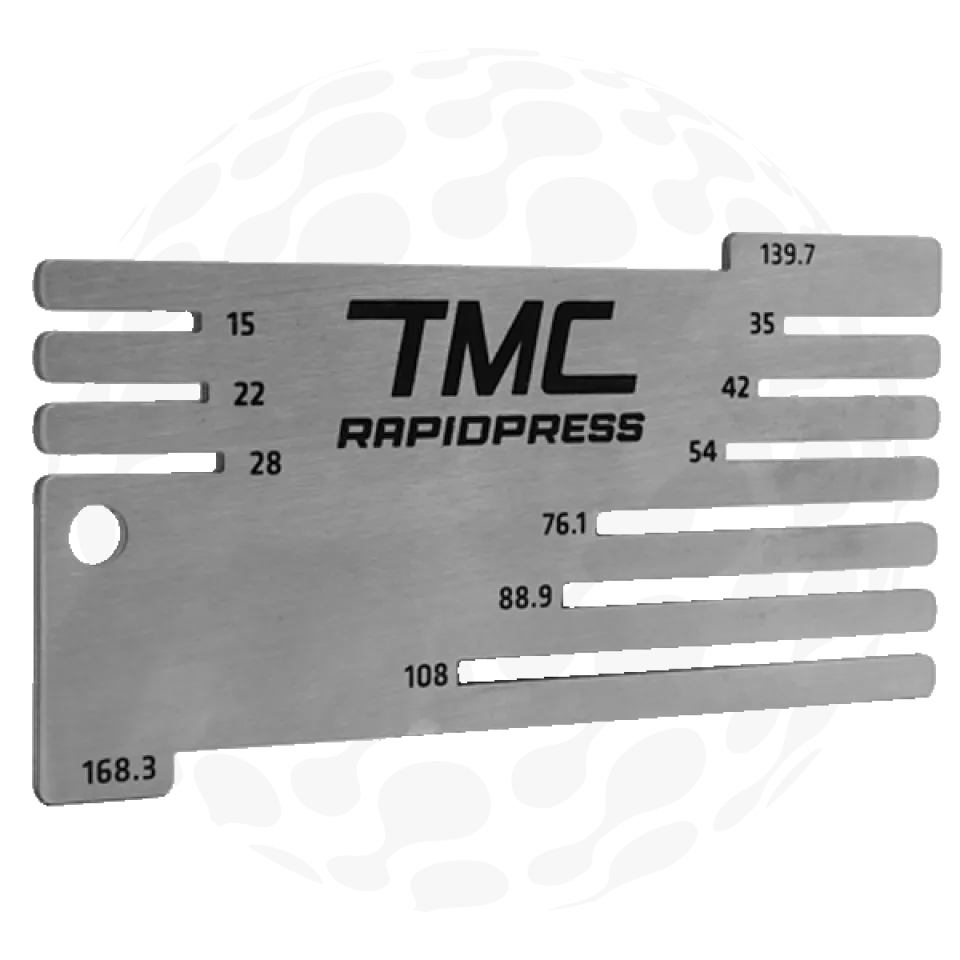

To ensure a correctly inserted joint, the tube must be witness marked with a fine-point/felt-tip pen where it meets the fitting using the depth gauge so that full insertion can be verified
